Flexible Conveyor, 460mm Wide, Adjustable Length 1200-4800mm, Height 600-1000mm

Flexible Conveyor, 460 mm Wide

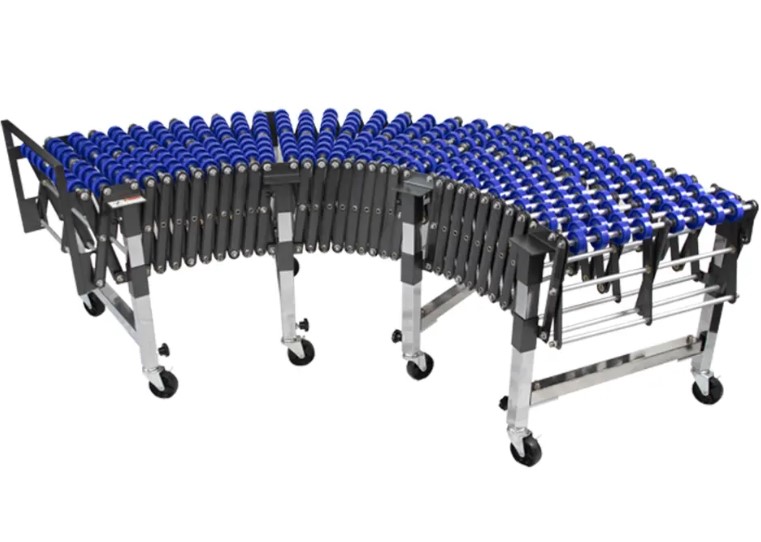

This flexible conveyor features a concertina-style frame with rollers that extends to your desired length, bends into curves, and folds back together when not in use.

The conveyor has a 460 mm width and adjusts in length from 1200 mm up to 4800 mm. The height can be set anywhere between 600 mm and 1000 mm using the adjustable legs.

Rollers are 48 mm in diameter with 8 mm axles, supporting loads up to 35 kg. This model is not motorized—cartons move by being pushed or by gravity on a slight incline.

The legs are fitted with casters, allowing you to roll the conveyor to a loading dock, packing station, or truck, and then fold it away when finished.

Flexible Conveyor, 460 mm: Common Applications

This conveyor is ideal for warehouses, distribution centers, manufacturing, retail, and e-commerce to move cartons and boxes between work areas, packing stations, storage shelves, and loading docks. It is frequently used for loading and unloading trucks or containers, or to connect equipment and packing lines where a permanent conveyor would be impractical.

Technical Data

What the flexible conveyor does

• The length you want. Adjusts from 1200 to 4800 mm, extended or retracted in seconds.
• Handles curves. The concertina frame flexes so the conveyor fits your layout.
• Works at your height. Adjustable legs from 600 to 1000 mm to line up with tables, equipment, or truck beds.
• No electricity required. No motor or wiring: rollers spin as cartons move.
• Easy to relocate. Fitted with castors to move from packing to loading areas.
• Compact storage. Retracts to save floor space when not in use.

Flexible conveyor 460 mm wide: in your packing workflow

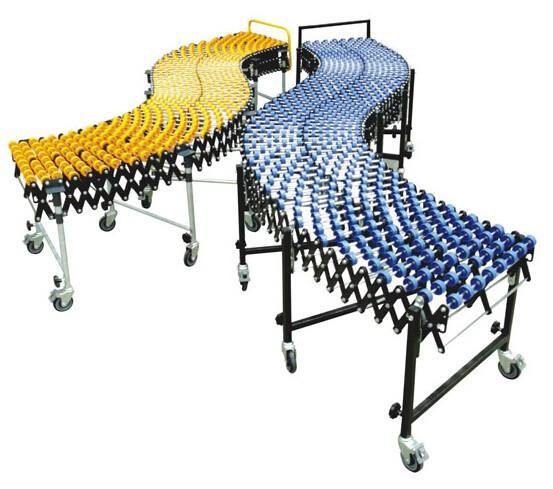

Commonly used as a temporary bridge between fixed stations in packing or shipping zones, or to add reach to a permanent conveyor. In high-volume settings, multiple flexible conveyors can be arranged side by side for sorting or order picking.

Included with your order

• Flexible conveyor with concertina-style frame
• 460 mm wide
• Length adjusts from 1200 to 4800 mm
• Height adjustable from 600 to 1000 mm
• Rollers: 48 mm diameter, 8 mm axles
• Supports up to 35 kg
• Castors included
• Manual operation, no motor

How to set up the flexible conveyor

1. Wheel the conveyor to your desired location.
2. Extend it to the needed length and curve it to fit your space.
3. Adjust the legs to your preferred working height, anywhere from 600 to 1000 mm.
4. Place cartons on the rollers and push them along, or set a gentle incline for gravity movement.
5. When finished, retract the conveyor and roll it out of the way.

Operation and Maintenance

• Load. Do not exceed the maximum load of 35 kg.
• Slope. A gentle downward angle allows cartons to move on their own; if the slope is too steep, they may move too quickly.
• Stability. Adjust the legs so the conveyor is level from side to side.
• Flat bottoms. Boxes and cartons with a flat base move best on the rollers.
• Care. Keep the rollers clean and free from strap scraps so they spin smoothly.

Flexible Conveyor 460 mm: Selection and Operation

Before selecting this conveyor, confirm that the width and length match your packages and available space. Measure the full path, including any turns, and consider both the minimum and maximum extension. Make sure the floor is even enough for the casters to roll and the legs to remain stable. If you plan to use a slope, test with sample cartons to ensure they move safely and do not get stuck on curves.

Typical errors include using the conveyor for items that are too heavy, too wide, have uneven bottoms, or setting a slope that is too steep for safe operation.

Before Purchasing

The price is listed on this page. Please review the following before placing your order:

• Your goods. Only use with boxes and cartons that have a flat base and fit within the 460 mm width.
• Length. Adjustable from 1200 mm to 4800 mm as needed.
• Height. Adjustable between 600 mm and 1000 mm.
• Load. Maximum load capacity is 35 kg.
• Collection. The conveyor is folded and packed in a box measuring 47 × 129 × 68 cm. Goods are collected EXW and prices do not include VAT.
