How a pedal heat sealing machine works

The bag is placed on the shelf in front of the sealing jaws. The operator flattens the bag’s open end across the bar and presses the foot pedal. This action closes the jaws on the bag; for impulse models, it also starts the heating cycle.

Heat and pressure bond the two layers of film, and the seal sets as it cools. Using a foot pedal sealer keeps both hands free to hold the bag straight and flat.

First, fill the bag with your product. Then, lay the bag’s open end flat across the bar with both hands, making sure there are no creases. Press the foot pedal to close the jaws. For the constant heat model, keep the pedal pressed for the sealing time. For impulse models, hold the pedal until the indicator light turns off, then wait one to two seconds more before releasing the pedal and removing the bag. The seal reaches full strength as it cools.

Always leave enough empty film above the product in the bag. This extra space lets the bag’s mouth lie flat on the bar without pulling the product into the sealing area. If the contents are too close to the seal, they may get caught in the seam, which can weaken it and cause leaks. For example, when sealing a bag of powder, make sure the powder is well below the opening before sealing.

The shelf in front of the jaws supports the filled bag during sealing, so the weight does not stress the seal while it is still hot. Always hold the bag mouth stretched flat with both hands as the jaws close. Any fold or wrinkle in the mouth can create a weak spot where the bag could open later.

Impulse heat sealer vs. constant heat: how they operate

The ZONE300D is a constant heat sealer. The sealing bar stays at the set temperature, ready for each bag. This model is suitable for thick bags and aluminum-laminated (foil) bags. It provides a 300 mm long and 14 mm wide seal, with an adjustable temperature range from 0 to 300 °C.

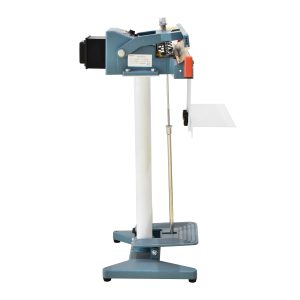

The ZONE450F and ZONE600F are impulse heat sealers. A wire in the sealing bar heats up only when the jaws are closed, then cools under pressure. The seal sets before the bag is released. Both models seal PE and PP film as well as multi-layer film. The ZONE600F can seal bags up to 600 mm wide in a single operation. If you need to seal foil bags, choose the ZONE300D.

The ZONE300D creates a 14 mm wide seal, which is wider than the 2–5 mm seal produced by the ZONE450F and ZONE600F. A wider seal is helpful for heavy or bulky items, as it provides more area to support the weight. For example, a heavy bag of granules up to 300 mm wide can be sealed on the ZONE300D, where the 14 mm seal holds the load. The impulse models, with their narrower seal, are ideal for standard PE and PP bags.

The ZONE300D keeps its sealing bar hot whenever it is powered on, so it is ready to seal as soon as the pedal is pressed. The impulse models only use heating power during the brief pulse when the jaws are closed, so they do not consume energy between bags.

With a constant heat bar, always keep your hands away from the sealing area, since the bar remains hot even when not in use. Turn the machine off during long breaks to prevent burns and save energy. After switching on the ZONE300D, wait for the bar to reach the set temperature before sealing your first bag.

An impulse bar is cool between uses, reducing the risk of accidental burns during setup or bag placement. The seal cools under pressure before the jaws open, resulting in a flat, neat finish on thin film. This process adds one to two seconds per bag, but ensures the seal is set before the bag is moved. In summary, use the ZONE300D for foil laminates and thick bags up to 300 mm wide; use the ZONE450F or ZONE600F for standard PE and PP bags, including those wider than 300 mm.

ZONE300D, ZONE450F and ZONE600F: comparison chart

The table below compares the ZONE300D, ZONE450F and ZONE600F heat sealers by seal length, heating method, compatible films, and main settings.

To use the comparison chart, start with the film type: if you need to seal foil bags, only the ZONE300D is suitable. Next, match the seal length to your widest bag, then check the seal width, which is greater on the constant heat model. Finally, review the power supply row: the ZONE300D operates on 220 V only, while the impulse models work on either 110 V or 220 V.

Which bags each plastic bag sealer can close, by model

The ZONE300D heat sealer is designed for sealing PE and PS film, as well as multi-layer laminates, including aluminum-laminated bags. The ZONE450F and ZONE600F models are suitable for sealing PE and PP film, along with multi-layer film. Depending on the model, the available seal lengths are 300 mm, 450 mm, or 600 mm.

A poly bag sealer must seal the entire width of the bag opening in one operation. The ZONE600F impulse heat sealer is capable of closing sacks, liners, and covers up to 600 mm wide.

Foil laminates are used when it is important to protect the contents from light and moisture. These types of bags are sealed using the ZONE300D, which is made for aluminum-laminated and other multi-layer laminates. To ensure a foil bag is moisture-proof, the seal must be complete across the entire opening, so always inspect each seal visually.

Bags with side gussets have four layers of film at the folds, making the sealing process more challenging. The gussets need to be folded flat, and sealing usually requires either more heat or a longer heating time than a flat bag of the same film thickness, since the seal must go through four layers at the gussets. For example, when sealing a gusseted liner, make sure the folds are even and increase the setting if the seal at the gusset is weaker than the rest.

Thicker film requires either higher heat or a longer heating time to achieve a proper seal. For thick bags, use the constant heat model, as its bar stays hot and can provide enough heat for a strong seal.

When sealing a bag with a zipper, always seal above the zipper, never across it, since the zipper itself does not seal and prevents the opening from lying flat.

Settings and operation: impulse heat sealer and constant heat models

For the constant heat model, start with a low temperature and increase it gradually until the seal holds. The seal time is determined by how long the pedal is pressed. With impulse sealers, begin with a short heating time and add tenths of a second until the seal is secure.

Lay the bag opening flat across the sealing bar, making sure there are no folds. On impulse heat sealer models, wait one to two seconds after the indicator light turns off, then pull the bag away sideways, not forward: the seal is set but still warm, and pulling forward could open it.

To determine the correct setting for a new bag, use an actual sample. Begin with a low temperature or short heating time, seal the bag, let it cool, and then pull the two sides apart. If the seal peels open, increase the setting slightly and try again. The right setting is reached when the film tears next to the seal rather than the seal itself coming apart.

If the setting is too high, you may notice the film shrinking away from the bar, becoming thin or burned through, or sticking to the PTFE cloth. If the setting is too low, the seal will peel open easily. Always check the setting when you receive a new batch of bags, as film thickness can vary. After sealing many bags in a row, the jaws of an impulse heat sealer can warm up, so a heating time that was correct at first may become too long; check the seal occasionally during long runs.

It is helpful to write down the correct setting for each bag type and keep it at the machine, so the next operator does not have to start from scratch. On the constant heat model, use the same timing for every bag to ensure each seal receives the same amount of heat.

Pedal heat sealer or band sealer: which is right for your process

A pedal heat sealer seals one bag at a time using heat and pressure, making it suitable for packing stations where bags are filled and sealed manually. A band sealer moves bags between belts and seals them continuously, which is ideal for lines with a high volume of bags per hour.

The three heat sealers in this category are pedal-operated models for sealing bags by hand. As industrial heat sealers at a packing station, each can seal a bag up to the length of its sealing bar in one operation.

With a pedal heat sealer, the operator sets the pace. Most of the time is spent filling the bag and laying it flat on the bar; the actual sealing step takes only a few seconds. If filling and preparing the bag takes longer than sealing, switching to a faster machine will not speed up the process. A pedal heat sealer can also handle bags of different sizes in succession without adjustment, while a band sealer is set up for one bag size and is intended for a steady flow of identical bags.

Band sealers are available in vertical versions for upright filled bags and horizontal versions for flat bags. Many band sealers can also print a date or code into the seal during the process.

A vacuum packing machine removes air from the bag, making it the right choice for products that need to be protected from air; a pedal heat sealer closes the bag with air inside. The pedal models here are mounted on their own columns, with a shelf for the bag and a foot pedal that leaves both hands free to position the bag. This setup is better suited for long sealing bars and heavier bags than a small table-top sealer.

Materials suitable for heat sealing

A heat sealer bonds two layers of thermoplastic film, such as PE or PP, using heat and pressure. Laminates can be sealed if the inner layer is a sealable film, including foil laminates; aluminum-laminated bags are sealed with a constant heat sealer.

Paper or cardboard alone cannot be sealed. For printed or laminated bags, the inner layer is what matters, not the outside: a bag printed on the outside seals according to its inner film.

In general, both layers must be the same plastic: PE seals to PE and PP to PP, but PE will not seal to PP.

Ask your bag supplier for the material and thickness of the bag, and check if the inner layer is sealable. This information determines which model and settings you need. For example, if the supplier confirms a thin PE film, the impulse heat sealer models are suitable, and the heating time should be set for the film thickness; a thick PE bag is best sealed with the constant heat model.

A paper bag with a PE lining seals like PE: the heat passes through the paper and the two PE linings fuse together inside the seal, so it requires more heat or time than a standard PE bag. The ZONE300D can also seal PS film, while the impulse heat sealer models are designed for PE, PP, and multi-layer film.

What makes a bag seal strong

A seal is strong when the heat, pressure, and time are matched to the film. The temperature or heating time is set on the machine based on the bag material and thickness, and adjusted until the seal is secure without burning or shrinking the film.

The bag opening must be clean, dry, and flat across the bar. Folds or powder in the sealing area will weaken the seal. A wide seal supports heavy contents and has a uniform appearance. A narrow impulse seal uses less energy because the bar heats only during the sealing cycle.

The pressure needed for a good seal comes from the pedal and the upper pressure pad. If seals start to fail in a specific spot along the bar, check the pad and PTFE cloth at that location first: a damaged pad causes uneven pressure, and a worn cloth can make the film stick and heat unevenly.

A good seal is clear and even, without wrinkles, bubbles, or burned spots. To keep the sealing area clean while filling, fold the top of the bag outward like a cuff or use a funnel, so powder or liquid does not touch the inside of the opening where the seal will be made. For liquids, keep the bag upright so the liquid stays away from the opening until the seal has cooled. A good seal is consistent along its entire length; a weak spot at one end often means the bag was not laid straight.

The seal gets its full strength as it cools down, so avoid pulling on the bag or putting weight on the seal while it is still warm. For heavy items, making two seals, one above the other, adds extra security. Place the second seal just above the first, on a clean, flat part of the film.

What affects the price of a bag sealing machine

The price of a bag sealing machine is mainly determined by the heating method, how the temperature or timing is controlled, and the quality of the frame and jaws, rather than just the length of the sealing bar.

You can see the current price for each heat sealer on its product card above. All three models include a 12-month warranty. For a quote, use the Get offer button on the product card. The Add to inquiry button lets you request several products at once.

Operating costs are low: you only need to replace the PTFE cloth, the heating wire on impulse models, and the top pressure pad. Keeping a spare set of these parts at the machine helps prevent unexpected downtime at your packing station.

The ZONE300D keeps its bar hot with two 175 W elements, so it is always ready to use. The impulse models, ZONE450F and ZONE600F, use 800 W or 1000 W, but only during each short sealing pulse. If you seal bags at intervals instead of nonstop, the impulse models will use less energy during a shift.

How long should the sealing bar be?

The sealing bar should be at least as long as the width of the bag opening. If the bar is too short, you have to seal the bag in two steps, which creates a weak spot where the seals overlap. The entire bag opening should fit flat across the bar in a single press.

To pick the right bar length, measure the bag opening while it is lying flat and compare it to the bar length. The ZONE450F can seal bags up to 450 mm wide, but if the bag fills the bar from end to end, it can be hard to lay it straight. If your widest bag is close to the length of a bar, choosing the next longer bar makes sealing easier and helps avoid weak spots at the ends.

For bags with side gussets, fold the gussets in before measuring the width. A longer bar can also seal small bags: you can seal two or three small bags side by side in one press, as long as their openings are flat and do not overlap. The ZONE300D, ZONE450F, and ZONE600F have bar lengths of 300 mm, 450 mm, and 600 mm.

What to check before ordering a heat sealer

Check the widest bag opening you need to seal, the type and thickness of the film, and whether the bag is a foil laminate. Count how many bags you seal per hour, measure the available space at your packing station, and make sure you have a single-phase outlet with a separate ground. Also note if the bags contain powder, liquids, or heavy items, as this affects how you keep the opening clean and whether you need a double seal.

The comparison table above shows which of the three models fits your needs: foil bags up to 300 mm wide are best with the constant heat model, while wide sacks need the longest bar.

Ask your bag supplier for a few sample bags so you can set up the machine with real bags on the first day.

If sealing becomes the slowest part of your packing process and the number of bags per hour keeps increasing, a band sealer that moves bags through automatically is a better fit than a pedal-operated sealer.

Plan for enough space around the machine. The footprint ranges from 345 × 480 mm for the ZONE300D to 700 × 570 mm for the ZONE600F. Allow extra room for the operator and for tables to hold full and empty bags on both sides. Heavy bags need a place to rest right after sealing, close to the machine, so the seal is not stressed while it is still warm.

Care and replacement parts for your heat sealer

Never close the jaws without a bag: this burns the PTFE cloth. The PTFE cloth and heating wire (on impulse models) are parts that wear out. Replace the top pressure pad if the seal becomes uneven.

Keep the bar and PTFE cloth clean and dry. Never clean them with water or scrape off hardened film with anything hard. All models use a single-phase outlet with a separate ground. No compressed air is required.

The PTFE cloth covers the sealing bar and keeps the film from sticking during sealing. If the cloth is burned, torn, or has film stuck to it, the seal will be uneven and the film may start to stick to the bar. Replace the cloth to get a clean, even seal again. For example, if the bag is hard to remove or the seal looks rough, check the PTFE cloth first.

If the heating wire burns out, the bag will not seal at all, so keep a spare wire and cloth on hand for impulse models. Always clean the bar when it is cold, using a dry, soft cloth to remove any film residue. Turn off and unplug the machine before replacing any wear part to work safely and avoid electric shock.

Questions about heat sealers

Can these heat sealers seal foil or aluminum bags?

Yes, the ZONE300D can: as a constant heat sealer, it seals aluminum-laminated (foil) bags up to 300 mm wide and multi-layer laminates. The impulse models are designed for PE, PP, and multi-layer film.

What is the widest bag opening these machines can seal?

The ZONE600F impulse heat sealer can seal bags with an opening up to 600 mm wide in one press. The ZONE450F seals up to 450 mm, and the ZONE300D up to 300 mm.

What power supply do these heat sealers require?

All three heat sealers use a standard single-phase outlet with a separate ground. The ZONE450F and ZONE600F can run on 110 V or 220 V, while the ZONE300D uses 220 V.

Do these heat sealers need compressed air?

No, none of these heat sealers require compressed air. They are pedal-operated and only need a single-phase electric supply.
