How paper banding works on these machines

On these machines, paper banding means wrapping a single band of paper or OPP film around a bundle or stack. The band is tensioned up to 5 kg and sealed automatically.

The frame or arch on the paper banding machine determines the largest bundle you can strap. For example, the ECOBAND-S has a 220 x 170 mm frame, while the ECOBAND-B4620 and ECOBAND-A both have a 460 x 200 mm arch.

To operate these machines, place the bundle inside the ECOBAND-S frame or under the arch of the ECOBAND-B4620 or ECOBAND-A. The ECOBAND-A uses a belt to move the product under the arch, and a top press holds it steady during banding. This setup keeps stacks aligned and prevents shifting, which is especially important for light or uneven items on a packing line.

The machine feeds the band around the bundle and applies the set tension, up to 5 kg. Adjust the tension using a test bundle: it should be tight enough to hold the stack together, but not so tight that it damages soft or printed items. Too much tension can crush corners or leave marks, while too little can let the band slip and the bundle fall apart during handling.

The bundle must fit within the frame or arch and be at least as wide as the smallest size the machine can process: 30 mm for the ECOBAND-S, 50 mm for the ECOBAND-A, and 30 × 10 mm for the ECOBAND-B4620. Each cycle applies one band. For a second band in a different position, reposition the bundle and run another cycle. Bands are supplied on rolls that mount on the machine. The ECOBAND-B4620 can use an external dispenser for larger rolls up to 380 mm in diameter, reducing roll changes in high-volume operations.

Selecting a paper banding machine for your packaging line

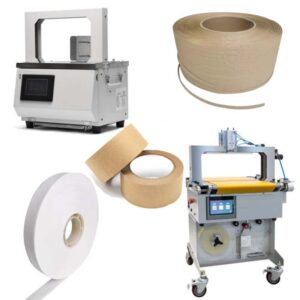

The ECOBAND-S is a compact desktop banding machine for 12 mm paper or OPP bands, with a 220 x 170 mm frame. The ECOBAND-B4620 is a tabletop banding machine for 30 mm bands (20 mm optional), with a 460 x 200 mm arch and an external dispenser for large rolls.

The ECOBAND-A is a paper banding machine on its own stand, takes 20 or 30 mm bands, and features a belt to move the product under the arch and a top press. All three machines operate on single-phase power.

Start by choosing the band width. The ECOBAND-S uses 12 mm bands, ideal for small stacks like card packs or leaflets. The ECOBAND-B4620 uses 30 mm bands as standard, with a 20 mm option, for larger and wider bundles. The ECOBAND-A accepts 20 or 30 mm bands for medium and large bundles.

The maximum bundle size depends on the frame or arch. The ECOBAND-S has a 220 × 170 mm frame, while the ECOBAND-B4620 and ECOBAND-A both have a 460 × 200 mm arch. The ECOBAND-B4620 can handle packages up to 473 × 206 mm and supports up to 30 kg on the machine. If your bundles are near these limits, measure them before selecting a model. For example, on a production line with mixed carton sizes, the larger arch of the ECOBAND-B4620 or ECOBAND-A offers more flexibility.

The machine’s position affects workflow. The ECOBAND-S is a tabletop model with a working height of 215 mm, suitable for manual packing stations. The ECOBAND-B4620 is also a tabletop machine with a dispenser column and a working height of 245 mm. The ECOBAND-A stands on its own wheeled stand at 600 mm, with a belt to move the product and a top press to hold it. Output is 26 bands per minute for the ECOBAND-S and ECOBAND-B4620, and 20 per minute for the ECOBAND-A. Actual output depends on how quickly the operator loads bundles. The ECOBAND-A features a touchscreen for settings and a resettable production counter, making it easy to track daily output in a warehouse.

ECOBAND-S, ECOBAND-B4620 and ECOBAND-A comparison

Below is a comparison table for the ECOBAND-S, ECOBAND-B4620 and ECOBAND-A. It lists band width, frame or arch size, output, and other key specifications for each machine.

To use the comparison table, start with band width and frame or arch size, as these determine which bundles you can process. Next, check the smallest object each model can handle and the roll core size: the ECOBAND-S and ECOBAND-B4620 use a 40 mm core, while the ECOBAND-A uses a 76 mm core. The table also shows whether the machine is tabletop or on its own stand. These details help you match the machine to your packaging line, whether you need to band small stacks on a table or larger bundles on a stand with a belt.

Widths and Rolls for Paper Banding Machines

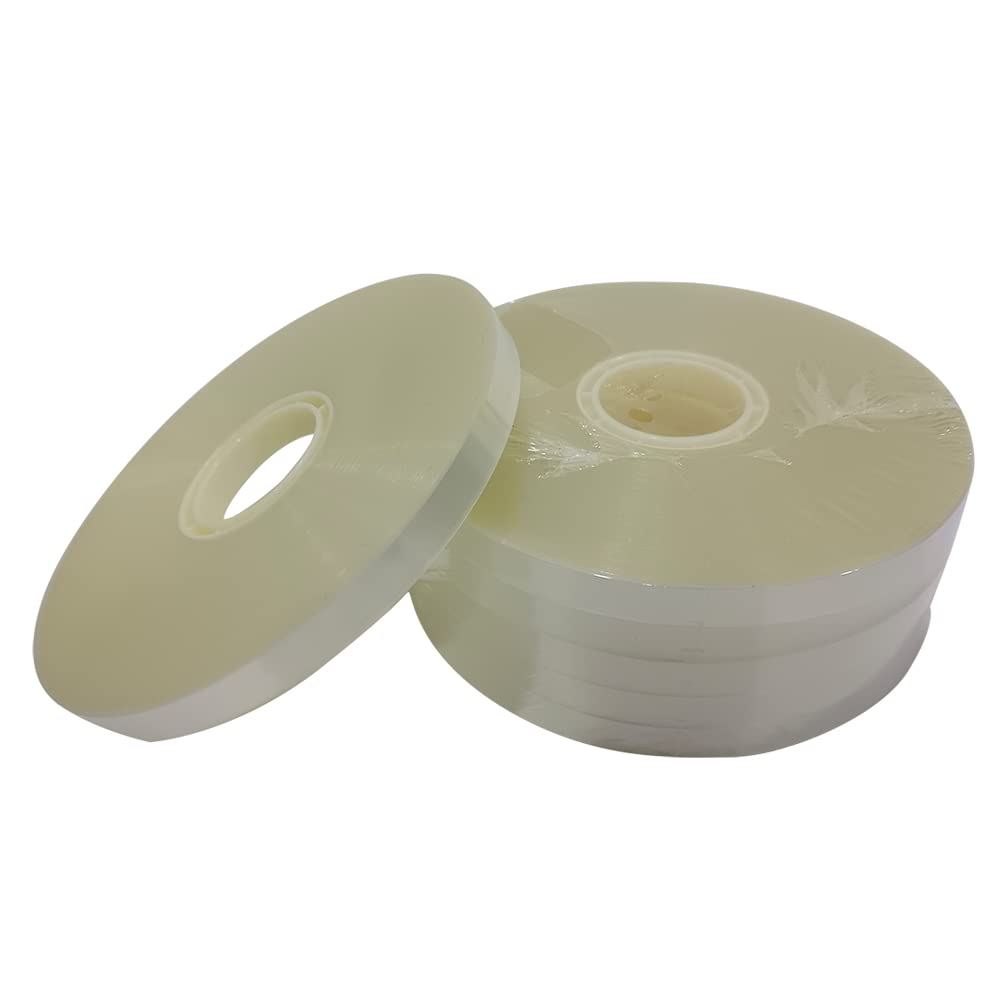

You can find both paper band and OPP band in our shop. The ECOBAND-S uses 12 mm band with a 40 mm core. The ECOBAND-B4620 is designed for 30 mm band with a 40 mm spool core. The ECOBAND-A works with either 20 mm or 30 mm band and requires a 76 mm core. The 12 mm OPP band is made to fit the ECOBAND-S.

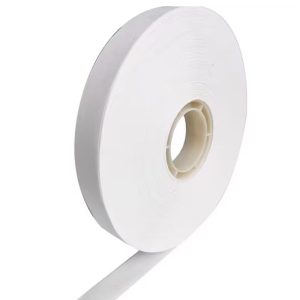

Our paper banding rolls are available in 12 mm width, 150 meters per roll, with a 40 mm core and 100 rolls per box. The 30 mm paper band is also 150 meters per roll, with 56 rolls in a box. OPP band comes in 12 mm width, 150 meters per roll, 100 rolls per box, and in 30 mm width, 150 meters per roll, 40 rolls per box. The 12 mm paper band and OPP band are suitable for the ECOBAND-S, while the 30 mm paper and OPP bands fit the ECOBAND-B4620 as standard.

The roll core size must match the machine’s holder: 40 mm for the ECOBAND-S and ECOBAND-B4620, and 76 mm for the ECOBAND-A. If the core size does not fit, the roll will not sit properly and the band will not feed. On the ECOBAND-S and ECOBAND-B4620, the roll can be up to 160 mm in diameter. The ECOBAND-B4620 also has an external dispenser that accepts rolls up to 380 mm, so you can run longer before changing rolls.

Keep paper banding rolls dry in their box until use, since paper loses strength if it gets wet. Store banding boxes off the floor and away from damp areas in your warehouse. Order the banding rolls together with your machine, in the width and core size your machine requires, so you can start banding right away. This helps you avoid delays when setting up a new packing line.

Paper Strapping for Packaging

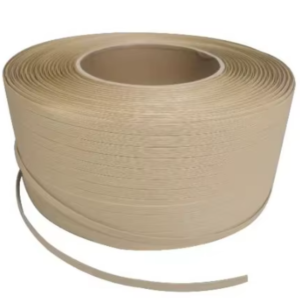

Paper strapping is available in 9 mm, 12 mm, or 15 mm widths for light to medium duty applications, such as bundling lightweight items and cartons. Paper strapping loses strength if it becomes wet.

In a warehouse packing dry goods, 12 mm paper strapping can be used to hold small cartons together for internal transport. Always keep the strapping dry, as wet strapping can break during handling.

Both banding and paper strapping are designed to keep bundles together, but they are not intended for securing heavy pallet loads. For that, use plastic or metal strapping.

When to Use Banding for Paper Strapping

Paper strapping holds stacks or bundles together with gentle, even tension. Banding machines like the ECOBAND-S, ECOBAND-B4620, or ECOBAND-A apply up to 5 kg of tension. This is enough to keep soft, printed, or stacked items together without crushing them. Typical uses include stacks of printed materials, envelopes, leaflets, trays or boxes, and produce bundles.

Paper strapping is not for heavy pallet loads. For those, use plastic or metal strapping. Banding with paper or OPP film is best for light to medium duty, such as keeping bundles together during handling, but not for securing heavy items for pallet transport.

For example, in a print shop, stacks of brochures are banded for delivery. On a packing line, trays of small boxes are held together with a single band to make handling easier.

You may need to adjust the tension for different products. For instance, a stack of envelopes may need less tension than a bundle of plastic trays. Always check the first few bundles after changing products or bands to make sure the tension is set correctly. This helps prevent damage to goods or loose bundles on your production floor.

Paper Band or OPP Band: Recycling and Product Visibility

Paper strapping with a paper band can be recycled with cartons or other paper goods. OPP band is a plastic film. Using a clear OPP band keeps the product underneath visible. Both types of band fit the ECOBAND-S, ECOBAND-B4620, and ECOBAND-A, as long as the width and core size match the machine.

Paper loses strength if it gets wet, so paper strapping is best for dry goods and dry storage. OPP band does not lose strength when exposed to moisture. Choose paper band if your goods will be recycled with paper, and OPP band if you need a clear film or moisture resistance.

When deciding, consider the end use and storage: use paper band for goods that will be recycled with cartons, and OPP band when the product needs to stay visible or may be exposed to humidity, such as food trays on a humid packing line.

What Determines the Price of a Banding Machine

The price of a banding machine depends on the band width it uses, the frame or arch size, the speed in bands per minute, and the construction: whether it is a desktop machine, a table machine with a dispenser column, or a stand-alone machine with a belt and top press. The current price is listed on each product card.

The main ongoing cost is the banding material, which is purchased by the box: 100 rolls of 12 mm paper band, 56 rolls of 30 mm paper band, or 100 rolls of 12 mm OPP band. Each product card has a Get offer button for a quote, for example if you want a machine with a supply of band, and an Add to inquiry button to collect several products in one request. This helps you plan your purchase and inventory for your packaging line.

What to Check Before Ordering Paper Strapping

Before you order a paper strapping machine, check the size of the largest and smallest bundles you need to band. The bundle must fit through the frame or arch and be at least as wide as the smallest object the machine can handle. For example, the ECOBAND-S requires a minimum object width of 30 mm.

Check the band width, decide if you need paper or OPP band, and consider how many bundles per minute you need to process. Decide if you want a table machine or a stand-alone model. All three machines operate on a single-phase power supply. The comparison table above shows which model matches your needs.

Test the machine settings on your own bundles with the band you plan to use. Adjust the tension on a test bundle: it should be tight enough to hold the stack, but not so tight that it dents the edges. For example, when packing printed brochures in a warehouse, start with lower tension to avoid marks, and only increase it if the bundles do not stay together.

Mistakes can occur if the bundle is too large for the frame or arch, or if the band width does not match the machine. If the band is too narrow or too wide for the holder, it will not feed properly. If the tension is set too high, soft products may be damaged. If it is too low, bundles may come apart during handling. Check these points before running a full batch to avoid wasting material and time.

Questions About Paper Strapping

Which band fits which banding machine?

The ECOBAND-S uses 12 mm band with a 40 mm core. The ECOBAND-B4620 is designed for 30 mm band as standard (20 mm optional) with a 40 mm core. The ECOBAND-A takes 20 mm or 30 mm band with a 76 mm core.

Can I use paper or OPP band on these machines?

All three machines—ECOBAND-S, ECOBAND-B4620, and ECOBAND-A—can use either paper band or OPP band, as long as the width and core size are correct.

How many bundles per minute can these machines process?

The ECOBAND-S and ECOBAND-B4620 can process up to 26 bands per minute. The ECOBAND-A can process up to 20 bands per minute.

What is the largest bundle I can strap?

The largest bundle depends on the frame or arch size. The ECOBAND-S has a 220 x 170 mm frame. The ECOBAND-B4620 and ECOBAND-A have a 460 x 200 mm arch.
