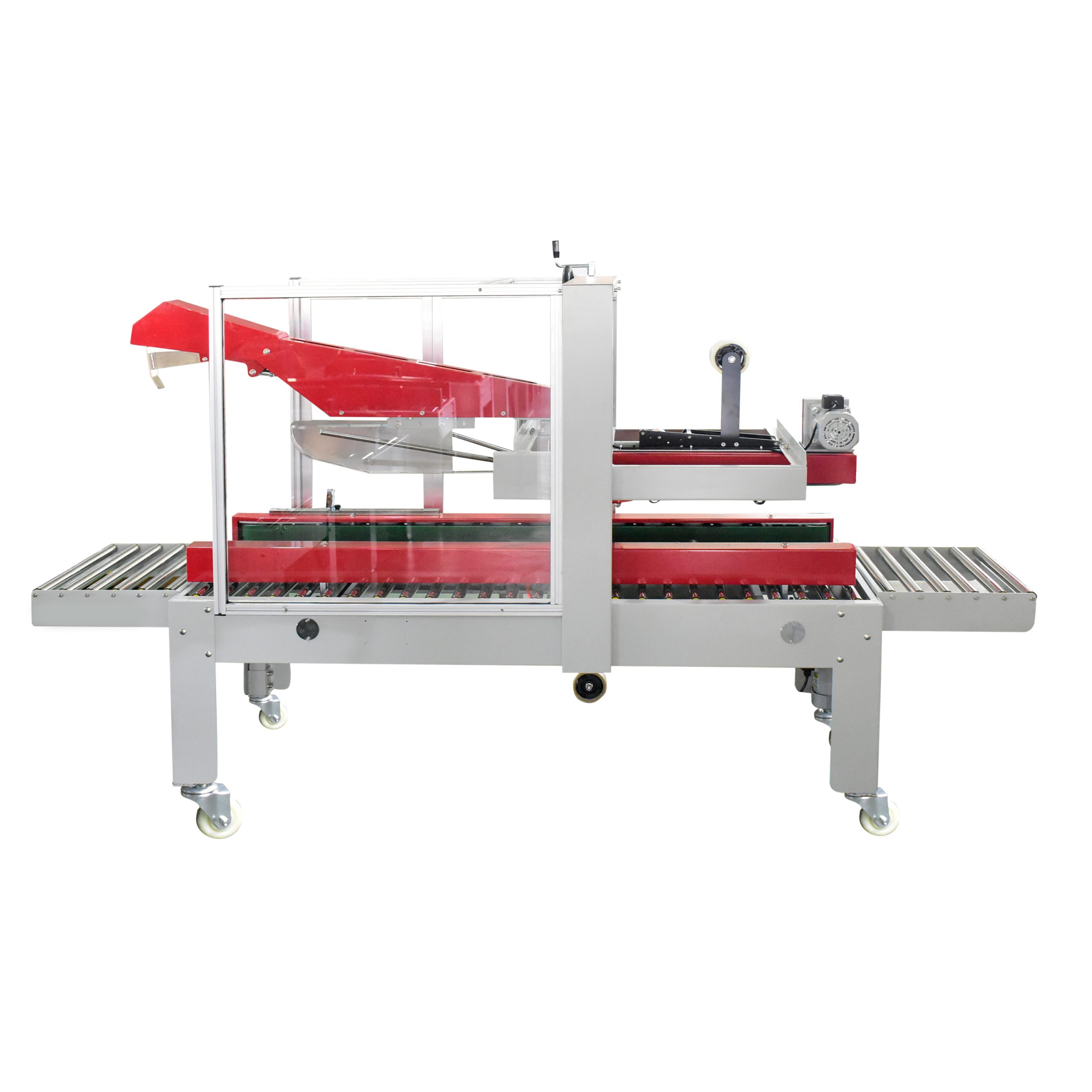

RUBBER Automatic Box Taping Machine 48–60mm (Kraft or BOPP Tape) – 16m/min – Max Carton Size: W500×H500mm – Min Carton Size: W120×H120mm

RUBBER automatic carton sealer: automatically folds top flaps and applies tape to both top and bottom surfaces

RUBBER is an automatic carton sealer that closes the carton’s top flaps without manual assistance: a sensor detects the carton, the flap folding system turns in the front, rear, and both side flaps, and the side belts move the carton through the upper and lower tape heads, sealing both top and bottom in one pass. The belts operate at 16 m/min, so there’s no need to hold the flaps down by hand.

This machine handles cartons from W120 × H120 mm up to W500 × H500 mm and works with Kraft or BOPP tape 48–60 mm wide. Width and height adjustments are made using hand wheels, making it ideal for batches of cartons with the same dimensions.

The machine operates on single-phase 220–240 V, 50–60 Hz and uses 240 W; the flap folding mechanism is pneumatic, so compressed air is required. A clear safety guard with doors encloses the folding and taping area, and an emergency stop button is mounted on the frame.

You can use this machine at the end of a packing table, or integrate it into a line after a case erector and conveyor: the carton enters, is closed and taped, and exits at the other end.

Where to use the RUBBER automatic carton sealer in your production line

The RUBBER automatic carton sealer is ideal for operations that package products in standard corrugated boxes, including sectors like food and beverage, electronics, home goods, textiles, and light manufacturing. Common applications are sealing and closing packed cartons after manual or automated filling, before palletizing or putting them into storage.

Boxes that are misshapen, overpacked, or have torn flaps may not seal properly and could lead to jams or poor tape application. The operator should keep an eye on the tape level.

Technical details

RUBBER carton sealer in operation

▶

How the automatic flap folder improves your packaging process

• Hands-free flap closing. The folder automatically folds the front, back, and side flaps, so no one needs to hold the carton closed during taping.
• Seals top and bottom at once. Dual tape heads apply tape to both the top and bottom of the carton in a single pass.
• Consistent speed. Side belts move each carton at 16 m/min, ensuring the tape length is uniform on every box.
• Handles many carton sizes. Accepts cartons from W120 × H120 mm up to W500 × H500 mm, set easily with hand wheels.
• Line integration ready. The machine feeds cartons automatically, so it can be placed after a case erector or conveyor without needing an operator.
• Standard electrical supply. Runs on single-phase 220–240 V, 240 W – no need for a three-phase connection.

Controls, drive system, and safety features

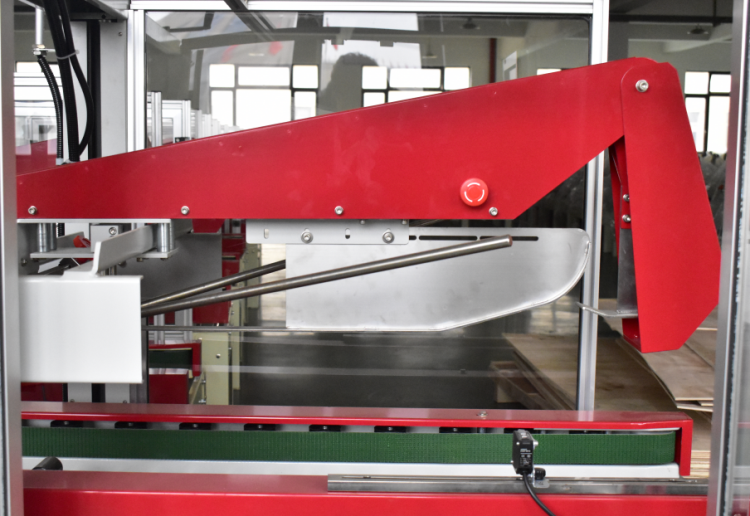

• Automatic top flap folder: folds front flap, back flap, then both side flaps
• Top and bottom tape heads in easily swappable cartridges
• Side drive belts operate at 16 m/min
• Width and height are set using hand wheels
• Photo sensor detects the carton and activates the flap folder
• Flap folder powered by a pneumatic cylinder, includes air filter and regulator
• Clear safety guard with doors covers the folding and taping section

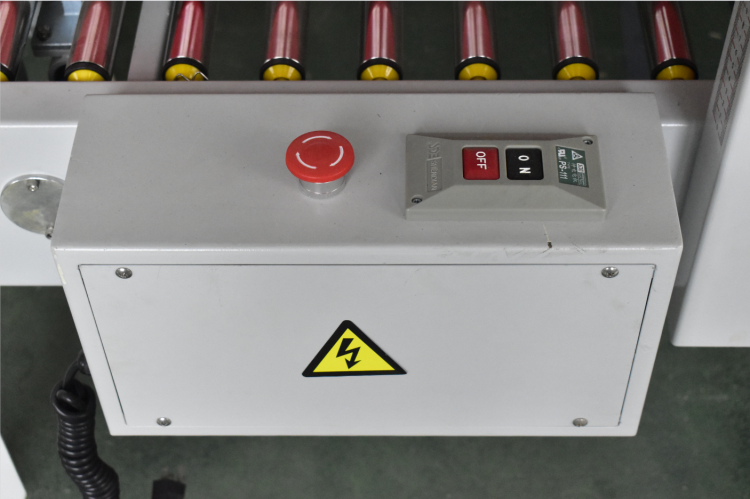

• Emergency stop button located on the frame
• The legs adjust the working height over a range of 350 mm; machine is equipped with casters for mobility
• Tape leg (overlap at carton ends) can be set from 5 to 50 mm

Operating instructions for the RUBBER box taping machine

1. Connect the machine to single-phase 220–240 V power and compressed air; make sure to drain water from the air filter.
2. Adjust the side belt width and the upper tape head height to fit your carton using the hand wheels.
3. Load a roll of Kraft or BOPP tape, 48–60 mm wide, into both the upper and lower cartridges and center it.
4. Press the ON button to start the side drive belts.
5. Insert the carton with the top flaps open and facing upward. The sensor triggers the flap folder, the flaps are closed in sequence, and the carton passes through the tape heads.
6. Remove the sealed carton at the outfeed. If you change carton sizes, reset the width and height.

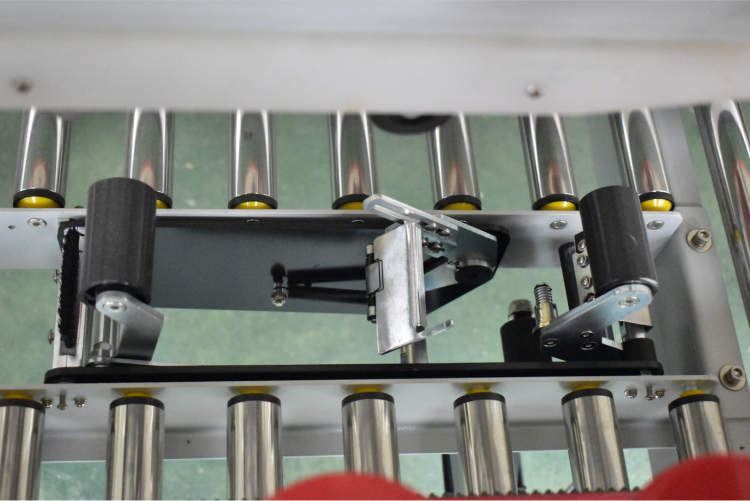

Tape heads: maintenance tips and troubleshooting

• Tape is applied too tightly or too loosely. Adjust the pull spring tension on the tape head; thicker tapes like Kraft require higher tension.
• Uneven or rough tape cut. The blade may be dull or installed incorrectly: reverse or replace the blade as needed.
• Tape leg is too long or too short. Adjust the blade support for the front tape leg and the limit block for the rear tape leg.
• Tape is wrinkled or misaligned. Clean the rubber roller, adjust the tape holder or its spring, and make sure the tape is positioned closely against the carton.
• Pneumatic system. Regularly drain water from the air filter, keep the lubricator topped up with pneumatic oil, and wipe dust from the cylinder rod.
• Maintenance. Always turn off power and air before performing any maintenance. Lubricate the adjustment screws every three months, keep the blade clean and oiled, and ensure the machine stays dry. The side belts will gradually become tighter over time, which is normal.

Before purchasing an automatic carton sealer

The price is listed on this page. Several factors determine if this machine is right for your cartons: please review them before requesting a quote, or send your details to us and we will review them together.

• Carton dimensions. Accepts W120 × H120 mm up to W500 × H500 mm. Please provide your carton length, width, and height so we can confirm compatibility.
• Single or multiple sizes. RUBBER is manually adjusted for each carton size. For operations with varying carton sizes, the AUTO&FOLD-5050 automatically sets width and height.
• Carton requirements. Use dry, clean, undamaged corrugated cartons; plastic-coated cartons are not suitable for taping.
• Tape type. Uses Kraft or BOPP tape, 48–60 mm wide, one width and thickness at a time.
• Electrical and air supply. Requires a single-phase 220–240 V, 50–60 Hz outlet and compressed air for the flap folding unit.
• Footprint. Machine dimensions are approximately 1780 × 950 × 1400 mm, with a weight of about 240 kg; packed in a single crate measuring 1920 × 1000 × 1640 mm, total weight about 330 kg.
