FLEX TAPE Semi Automatic Carton Sealer 48-72mm (Kraft or BOPP Tape)

FLEX TAPE Semi-Automatic Carton Sealer

Carton sealing machines using adhesive tape can significantly accelerate the process of packing boxes, cartons, and other packages. The semi-automatic Carton Sealer automates taping both the top and bottom of each box. This increases packaging efficiency, often multiplying the number of boxes sealed per minute. The automatic box sealer with tape is simple to operate and does not require specialized training. Compatible with adhesive tapes from 48mm to 72mm wide, and suitable for boxes or packages with a minimum length of 150mm, width between 120mm and 480mm, and height between 120mm and 480mm.

This equipment is designed for sealing cartons. Both taping heads apply adhesive tape to the top and bottom of the box at the same time. It is best suited for sealing boxes of fixed size (constant height and width). The box should be placed on the work surface with the top flaps already closed. Its compact design makes it easy to fit into new or existing production setups. These carton sealers are operator-fed and built for demanding applications. The FLEX TAPE Carton Sealer is dependable, efficient, and long-lasting, helping to reduce costs in your packaging process. Additionally, it delivers a clean, professional tape seal.

FLEX TAPE Semi-Automatic Carton Sealer highlights:

• High sealing speed processes up to 20 meters per minute
• with side belts drive
• suitable for heavyweight products

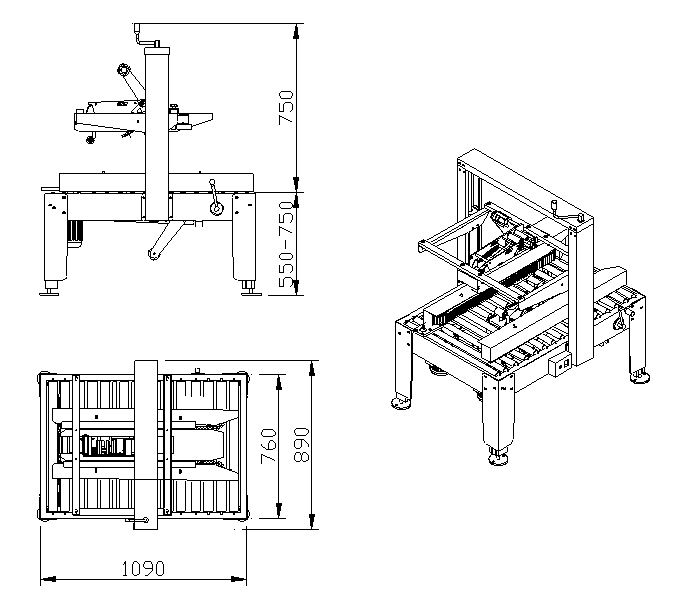

• Worktable height can be adjusted adjustable from 550 mm to 750 mm
• Perfect for sealing cartons of consistent size with both top and bottom sealing
• handles cartons sized L(150-∞)×W(120-480)×H(120-480)mm

FLEX TAPE Semi-Automatic Carton Sealer technical details:

Key benefits of the FLEX TAPE Carton Sealer

• USER-FRIENDLY OPERATION – These machines feature open access, intuitive controls, and are easy to adjust for different carton sizes. Designed for convenience, they allow for fast size changes, cleaning, and maintenance, helping to keep downtime to a minimum.
• SPACE-SAVING DESIGN – Thanks to their compact size, these machines are well-suited for locations with limited floor space or where larger equipment cannot be installed.

• DURABLE BUILD – Built with premium components in a sturdy frame, these machines require little maintenance and are made for continuous use. They are engineered to handle the demands of end-of-line packaging operations.
• ECONOMICAL TO OPERATE – The FLEX TAPE Carton Sealer is engineered to maximize your return on investment by delivering high productivity with minimal downtime.

How the semi-automatic Carton Sealer operates

Semi-automatic Carton Sealers are a great fit for production lines where the operator loads the box, folds the flaps, and then pushes the box into the machine. The semi-automatic sealer applies tape to both the top and bottom flaps and moves the box out the other side. Carton flaps are folded by hand, and the machine then seals both the upper and lower sides. The carton must be centered in the machine for proper sealing. The taping head can use adhesive tapes from 48mm to 72mm wide, and can be customized to meet customer requirements. To ensure the machine works correctly, please consider the carton’s length, width, height, and weight. The machine’s carton size specifications are: Length: (150 to +∞) mm; Width: (120-480) mm; Height: (120-480) mm. Customization is available based on your needs.

Semi-automatic Carton Sealer demonstration video

▶
