    AUTOBOX automatic case erector machine

    The AUTOBOX automatic case erector is a highly efficient packaging machine designed to help manufacturers streamline their box assembly. With a maximum speed of 16 cases per minute, this machine quickly and precisely forms and seals cartons, supporting lower labor costs and increased output.

    A standout feature of the AUTOBOX automatic case erector is its compatibility with both Compatible with Bopp tape and paper tape. This flexibility is ideal for companies that use different tape types or want the option to switch based on their packaging needs.

    This machine is highly adaptable and can be custom-built for various carton sizes (custom builds are available with a lead time of about 12 weeks). The standard AUTOBOX automatic case erector handles cartons with dimensions of L 250–530mm x W 150–400mm x H 225–600mm (after folding and sealing the bottom flaps). We can also configure the machine for 60 or 72-mm tape widths to meet specific tape requirements.

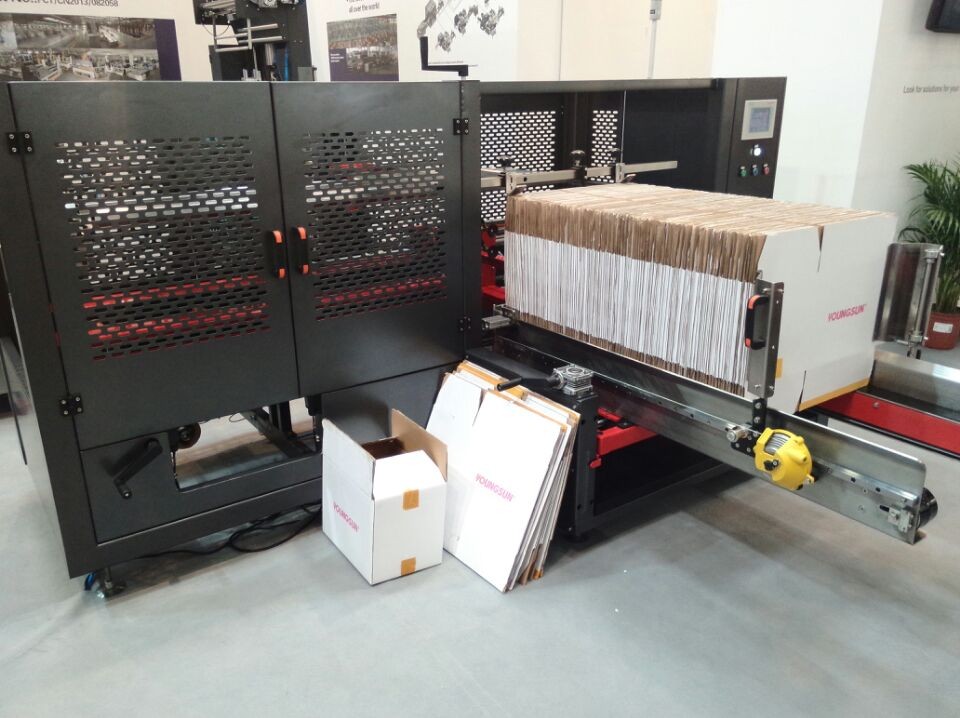

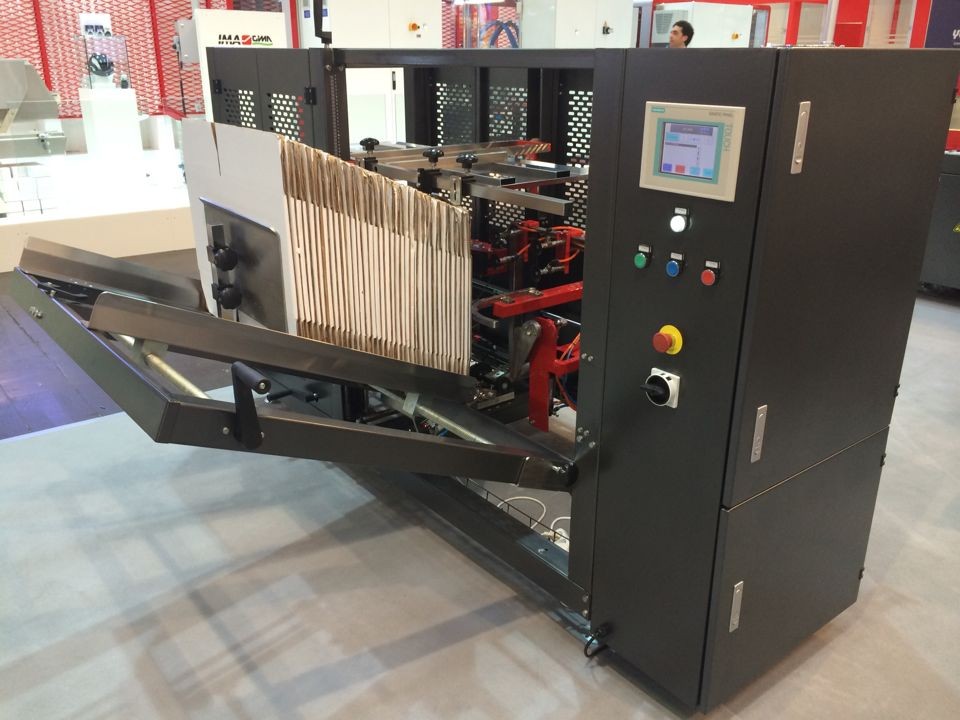

    The AUTOBOX case erector can be equipped with either a sloped or horizontal worktable. The sloped worktable holds approximately 80 cases, while the horizontal worktable accommodates up to 150 boxes. The storage capacity depends on the thickness of the corrugated board.

    The machine operates on 1P 220V 50/60 HZ 400W and needs an air supply of 6Kgf/cm2. The IP54 rated power supply ensures safe operation in various environments. The automatic case erector runs at a noise level of 75 dB, helping to minimize workplace noise.

    To guarantee quality and dependability, the AUTOBOX case erector uses electrical and pneumatic components from leading brands like Siemens, Schneider, Delta, P + F, Airtac, and SMC components. This ensures the machine is built to last and will deliver consistent performance over time.

    In summary, the AUTOBOX automatic case erector machine is a smart solution for businesses needing fast, efficient box forming and sealing. With its customizable options, intuitive design, and top-tier components, the AUTOBOX automatic case erector is a dependable and productive choice that can help companies streamline packaging and cut costs.



    AUTOBOX case erector demonstration video





    AUTOBOX automatic case erector benefits

    • Works with both Bopp tape and paper tape
    • Capable of processing cartons sized L 250–530mm x W 150–400mm x H 225–600mm (after the bottom flap is folded and sealed)
    • Horizontal worktable holds up to 150 double-wall corrugated cases
    • Operates on 1P 220V 50/60 HZ 400W power and needs an air supply of 6Kgf/cm2
    • IP54-rated power supply protection
    • Produces a noise level of 75 dB to help maintain a quieter workspace
    • Built with premium parts from trusted brands including Siemens, Schneider, Delta, P + F, Airtac, and SMC
    • Streamline your packaging operations and lower expenses



    AUTOBOX automatic case erector technical specifications

    The AUTOBOX case erector is a flexible solution that works with Bopp tape or 48mm paper tape, and can be adapted for 60mm or 72mm tape. The speed is adjustable from 0–16 cases per minute (depending on carton size). It handles cartons sized L 250–530mm x W 150–400mm x H 225–600mm (after folding and sealing the bottom flap) or H 150–400mm (after folding and sealing both top and bottom flaps). The AUTOBOX comes with either a horizontal worktable (stores about 150 double-wall corrugated cases) or a sloped worktable (stores about 80 double-wall corrugated cases). Machine weight is G.W. 1000 kg or N.W. 950 kg, and it features IP54 power supply protection. The AUTOBOX case erector runs on 1P 220V 50/60 HZ 400W and requires an air supply of 6Kgf/cm2. This automatic case erector can be tailored for various carton sizes and uses high-quality electrical and pneumatic components from leading brands such as Siemens, Schneider, Delta, P + F, Airtac, and SMC.

    Model AUTOBOX
    Voltage 1P 220V 50/60 HZ 400W
    Machine weight Gross weight 1000 kg / Net weight 950 kg
    Machine dimensions (L / W / H) With sloped worktable: L3045 × W1855 × H1300mm

    With horizontal worktable: L3045 × W2444 × H1300mm

    Worktable height 650mm (standard) – 1000mm (maximum, custom-made)
    Tape Bopp tape or paper tape
    Tape width 4.8 – 7.2 cm

    48 mm (standard) 60/72 mm (custom sizes available)

    Electrical requirements 0.4KW
    Compressed air ≥6 Kgf/cm²
    Protective power supply IP54
    Sound level ≤75DB
    Operating environment Humidity ≤98%, Temperature -10℃ to 40℃
    Production rate 0-16 cases per minute (varies by carton size)
    Carton dimensions L 250 – 530 x W 150 – 400 mm x

    H: (H + W/2: after folding and sealing the bottom flaps) 225 – 600 mm

    H: 150 – 400 mm (after folding and sealing both top and bottom flaps)

    For other box sizes, custom machines can be made

    550 > W/2 + H > 280 mm

    Key electrical and

    pneumatic components

    PLC: “Siemens”

    Touch screen: “Siemens”

    Contactor: “Schneider”

    Switching power supply: “Delta”

    Motor: “Luson” or “SEW”

    Sensor: “P + F”

    Button: “Schneider”

    Alarm light: “Siemens APT”

    Cylinder: “Airtac”

    Vacuum generator: “SMC”

    Available options Inclined worktable (holds about 80 double-wall corrugated cartons)

    Flat worktable (holds about 150 double-wall corrugated cartons)

    The number of cartons depends on the thickness of the cardboard

    Packed dimensions AUTOBOX case erector: L 3.15 x W 1.2 x H 1.75 meters

    Flat worktable: L 1.7 x W 1.5 x H 0.9 meters



    Reference drawing for carton sizes compatible with the AUTOBOX case erector:

    AUTOBOX case erector - Carton size diagram

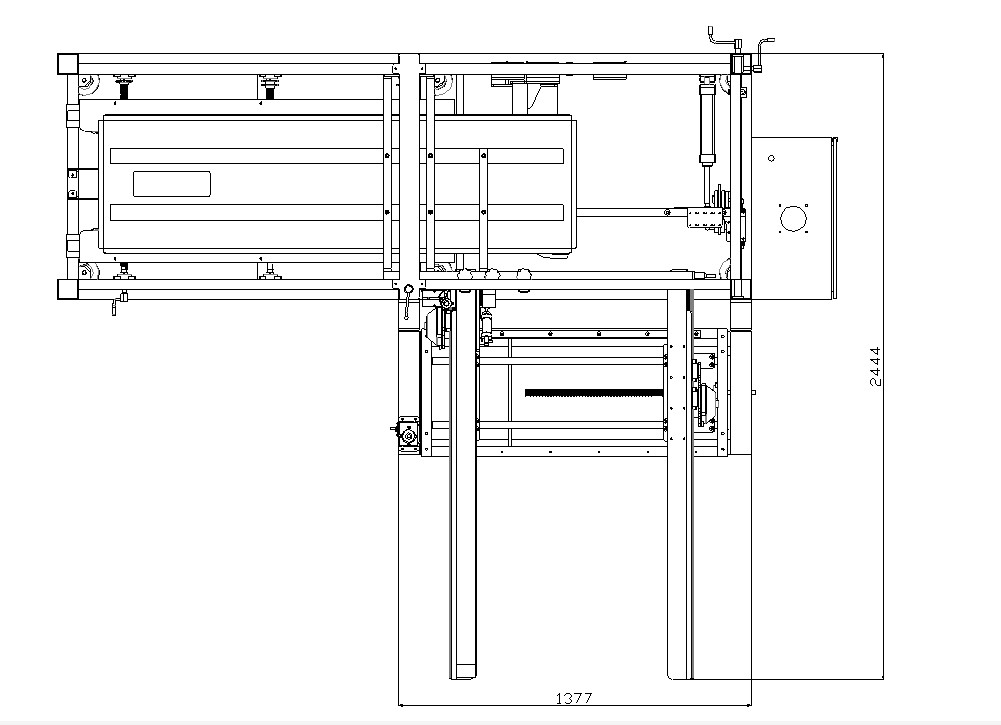

    AUTOBOX case erector layout with horizontal worktable:

    AUTOBOX case erector - Machine layout with horizontal worktable AUTOBOX case erector - Machine layout with horizontal worktable AUTOBOX case erector - Machine layout with horizontal worktable

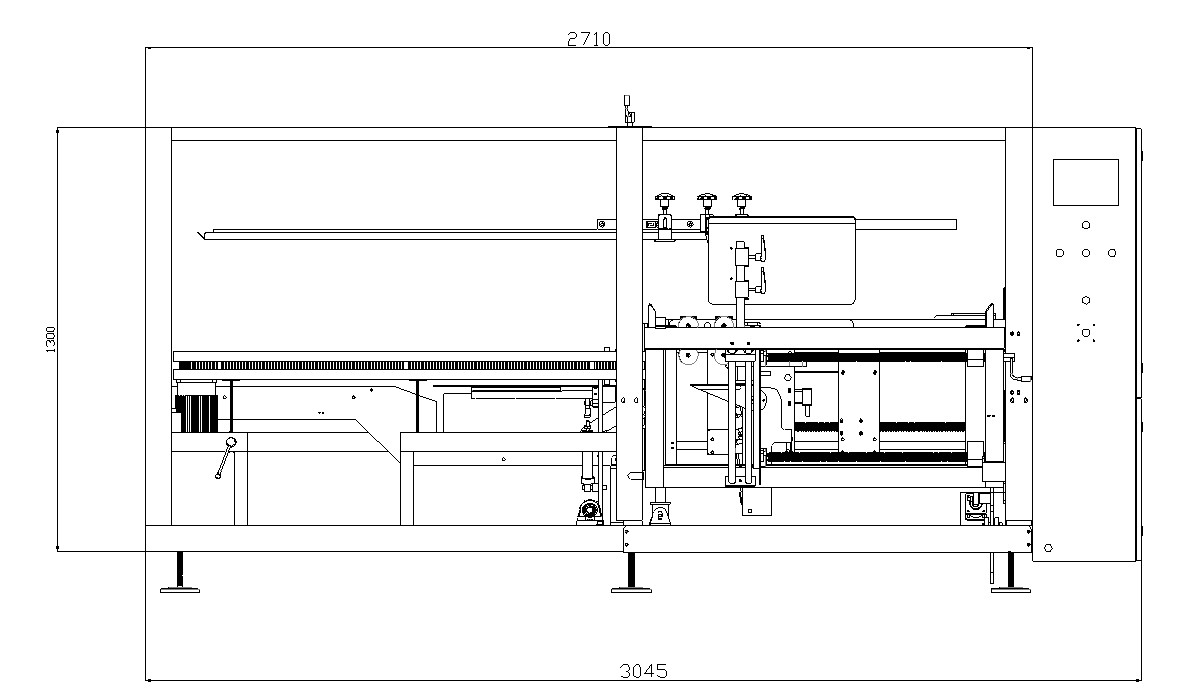

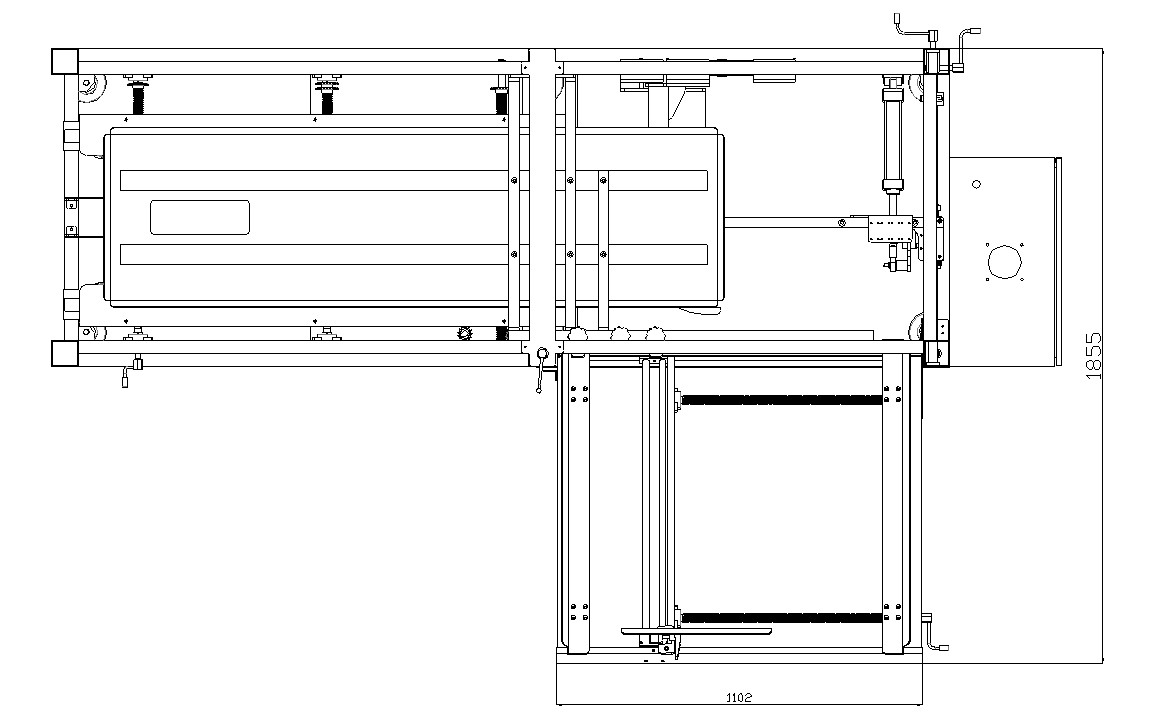

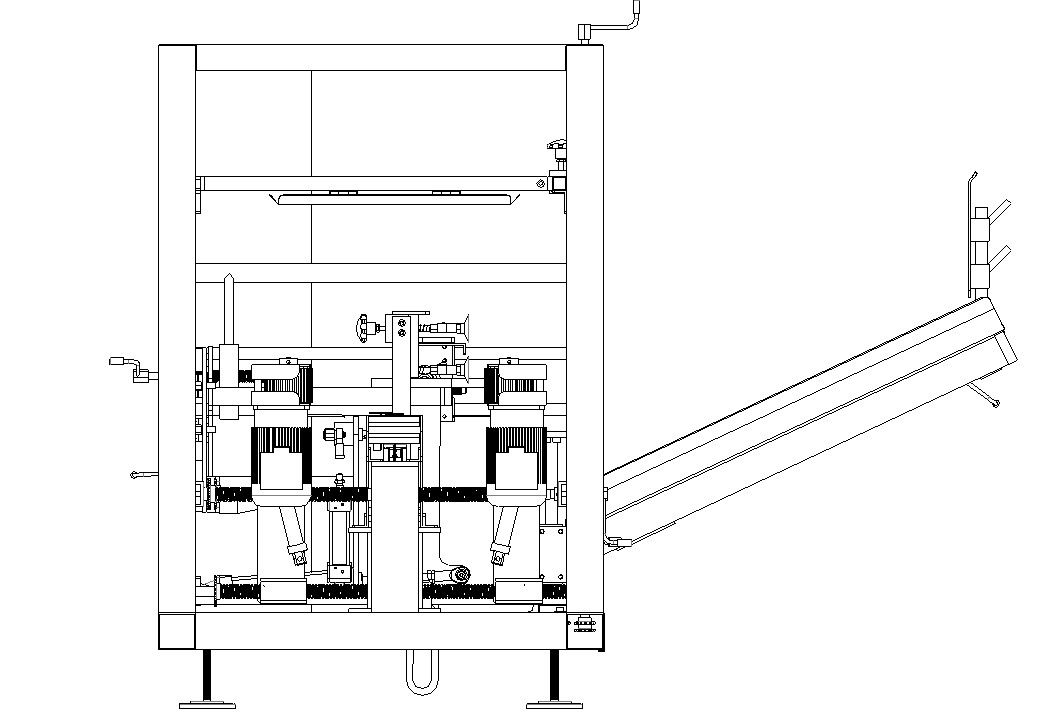

    AUTOBOX case erector layout with inclined worktable:

    AUTOBOX case erector - Machine layout with inclined worktable AUTOBOX case erector - Machine layout with inclined worktable AUTOBOX case erector - Machine layout with inclined worktable



    Orientation of the carton and AUTOBOX machine

    AUTOBOX case erector - Carton orientation and machine orientation



    A. Carton infeed on the right and outfeed on the left (standard AUTOBOX case erector)

    AUTOBOX case erector - Carton orientation and machine orientation



    B. Carton infeed on the left and outfeed on the right (AUTOBOX case erector – Custom configuration)

    AUTOBOX case erector - Carton orientation and machine orientation





    AUTOBOX case erector operation process

    1. Set the machine parameters to match the carton dimensions
    2. Place the carton blank onto the machine’s frame
    3. Carton is drawn into the machine -> Front and back flaps are folded -> Side flaps are folded -> Bottom is sealed with tape



    AUTOBOX case erector - Operation process





    AUTOBOX automatic case erector highlights

    The AUTOBOX automatic case erector forms cartons and seals the bottom flaps using BOPP tape or kraft paper tape.

    This machine feeds flat boxes, forms them, and applies tape to seal the bottom of each assembled carton.

    This equipment is suitable for a wide range of industries, including appliances, textiles, food, general goods, pharmaceuticals, chemicals, ceramics, and stoves.

    Additional information

    Weight 1000 kg
    Dimensions 2.43 × 1.86 × 1.3 m
    Parameter Specification
    Model

    AUTOBOX

    Voltage

    1P 220V 50/60 HZ 400W

    Machine weight

    G.W 1000kgs/ N.W 950kgs

    Machine size (L × W × H)

    Machine with sloping worktable:  L3045×W1855×H1300mm Machine with horizontal worktable:L3045 x W2444 x H1300mm

    Worktable height

    650mm (standard) -1000mm (maximum, customer-made)

    Tape

    Bopp tape or draft paper tape

    Tape size

    4.8 – 7.2cm 48mm (standard) 60/72mm (custom made)

    Power

    0.4KW

    Air supply

    ≥6Kgf/cm²

    Protective power supply

    IP54

    Noise

    ≤75DB

    Environment condition

    Humidity ≤98%, Temperature -10℃~40℃

    Working speed

    0-16 cases/min (depending on the size of the carton)

    Carton size

    L 250 – 530 X W150 – 400mm x H: ( H+ W/2: after folding and sealing the bottom flap of the box) 225 – 600mm H: 150 – 400mm (after folding and sealing both top and bottom flaps of the box) (For other box dimensions machine can be customer-made) 550 > W/2 + H >280mm

    Main electrical and pneumatic parts

    PLC:  “ Siemens” Touch screen: “ Siemens” Contactor:“ Schneider” Switch power supply:“Delta” Motor:“ Luson”or “ SEW ” Sensor: “ P + F” Button:  “ Schneider” Alarm lamp: “ Siemens APT” Cylinder:“ Airtac” Vacuum generator:“ SMC”

    Options

    Sloping worktable ( can store about 80pcs double corrugated cases) Horizontal worktable ( can store about 150pcs double corrugated cases) The quantity of cases depends on the thickness of the cardboard)

    Packing size

    AUTOBOX Carton erector machine: L 3.15 X W 1.2 X H 1.75meter Horizontal worktable:L 1.7 X W 1.5 X H 0.9meter

    What is the top case erecting speed for the AUTOBOX machine?

    The AUTOBOX can assemble up to 16 cases per minute.

    What size cartons can the AUTOBOX process?

    This machine is designed to handle cartons ranging from 250 to 530 mm in length, 150 to 400 mm in width, and 225 to 600 mm in height after folding and sealing.

    Which adhesive tape types are suitable for this case erector?

    The AUTOBOX is compatible with both Bopp tape and paper tape for sealing applications.

    What control system is used in the AUTOBOX?

    A Siemens PLC is integrated for accurate and dependable machine control.

    Is the AUTOBOX adaptable to different worktable setups?

    Yes, the machine can be configured for either horizontal or inclined worktable arrangements.

    What are the electrical requirements for the AUTOBOX case erector?

    This equipment operates on a single-phase 220V, 50/60 Hz power supply and uses 400W of power.

    How much noise does the AUTOBOX produce while running?

    The operational noise level is about 75 dB, helping to maintain a quieter workplace.

    What protection rating does the AUTOBOX electrical system offer?

    The power supply is rated IP54, offering resistance to dust and water splashes.

    Which brands supply the components for the AUTOBOX?

    Key components are sourced from trusted manufacturers such as Siemens, Schneider, Delta, P+F, Airtac, and SMC.

    How does the AUTOBOX enhance packaging productivity and lower costs?

    Automating case forming and sealing with reliable parts, the AUTOBOX increases packaging throughput and helps reduce manual labor expenses.

    Summary

    • AUTOBOX automatic case erector - 16 cases per minute - Siemens PLC - horizontal or sloped worktable
    • Compatible with both Uses Bopp adhesive tape and paper tape
    • Handles cartons sized L 250–530mm x W 150–400mm x H 225–600mm (after folding and sealing the bottom flaps)
    • The horizontal worktable holds up to 150 double-wall corrugated cases
    • Runs on 1P 220V 50/60 HZ 400W and needs an air supply of 6Kgf/cm2
    • IP54 rated power supply
    • Operates at a noise level of 75 dB, helping to maintain a quieter workspace
    • Premium components from trusted brands such as Built with Siemens, Schneider, Delta, P + F, Airtac, and SMC parts
    • Enhance packaging operations and lower expenses
