AUTO&FOLD-5050 Automatic Box Taper for Kraft/BOPP Tape – Automatic Height & Width Adjustment, Top-Flap Closure

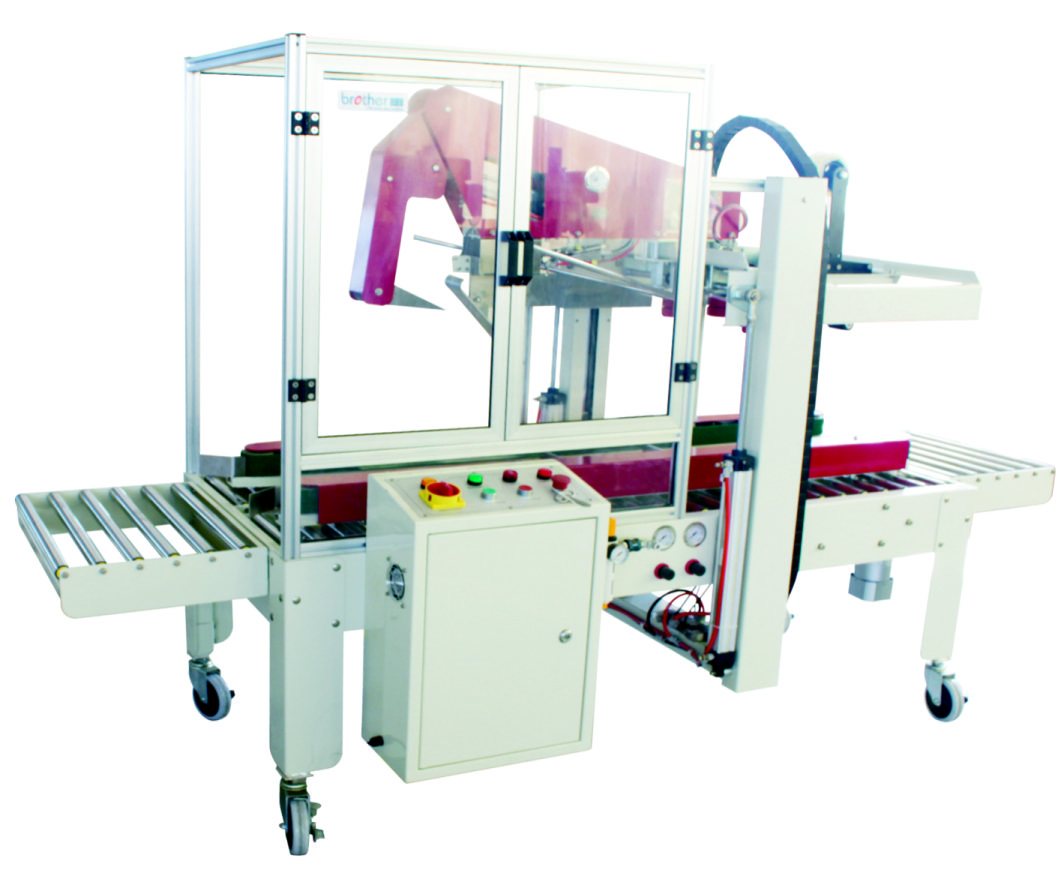

AUTO&FOLD-5050 automatic box sealing machine with self-adjusting features for each box

The AUTO&FOLD-5050 is an automatic box sealing machine that automatically adapts to each box: air cylinders move the side belts to fit the box width and lower the top tape head to the correct height. The machine folds the front, rear, and both side flaps, then applies tape to both the top and bottom in a single pass, while the side belts move the box through at 16 m/min.

It accommodates boxes from L200 × W150 × H150 mm up to L600 × W500 × H500 mm and works with Kraft or BOPP tape 48–60 mm wide. Since the width and height adjust for every box, you can run boxes of different sizes one after another.

This machine operates on single-phase 220 V, 50–60 Hz, drawing 200 W. The size adjustment and flap folding functions use compressed air at 6 bar (6 kg/cm²) with a consumption of 100 Nl/min. The folding area is protected by a safety guard with doors, and the control panel includes start and stop buttons, an emergency stop, and pressure gauges.

It seals boxes at the end of a packing table or in a line after a case erector and conveyor. The working height can be set from 600 to 850 mm, making it easy to align with upstream and downstream conveyors.

Applications for the AUTO&FOLD-5050 box taper

The AUTO&FOLD-5050 is ideal for distribution centers, e-commerce fulfillment, contract packaging, electronics, food and beverage, pharmaceuticals, printing, and logistics. This box taper is designed for operations where carton sizes change often and where reliable, hands-free sealing is required. Common uses include sealing shipping cartons after picking and packing, closing product cases for storage, and preparing mixed-size orders for palletizing or conveyor handling.

Technical details

How automatic size adjustment improves your packaging process

• No manual changeover needed. Width and height automatically adapt to each box, so you can run different sizes without stopping to make adjustments.
• Hands-free flap folding. The mechanism folds the front, rear, and side flaps before the box reaches the taping section.
• Seals top and bottom in one go. Both the upper and lower tape heads apply tape to the box at the same time.
• Protects your boxes. Cylinder pressure is set using regulators, so lightweight cartons won’t be damaged.
• Integrates with your line. Adjustable working height from 600–850 mm and automatic infeed allow operation after a case erector or conveyor.
• Standard electrical requirements. Runs on single-phase 220 V, 200 W; all other functions use compressed air.

Controls, pneumatic system, and safety features

• Automatic width and height setting using pneumatic cylinders
• Automatic flap folding: front flap, rear flap, then both side flaps
• Top and bottom tape heads with adjustable tape leg
• Side drive belts, 16 m/min speed
• Pressure regulators for the lift cylinder, side belts, and flap folding unit
• Micro switch for setting the carton length to control rear-flap folding
• Control box equipped with start and stop controls, emergency stop, and pressure gauges
• Protective enclosure with doors covering the folding section
• Height-adjustable legs for a working height between 600 and 850 mm; includes casters
• Air filter featuring a water separator and oil lubricator

Operating instructions for the AUTO&FOLD-5050 box taper

1. Connect to single-phase 220 V power and 6 bar compressed air; empty water from the separator and confirm the oil level in the lubricator.
2. Load a roll of Kraft or BOPP tape, 48–60 mm wide, into both the top and bottom tape heads, center it, and feed it through with the adhesive side facing outward.
3. Adjust the pressure settings for the side drive belts, lifting cylinder, and flap folding mechanism using the regulators.
4. Expand the folding rods to match your carton width evenly on both sides, and set the length switch to match the carton length.
5. Press ON and insert the carton with the top flaps open and facing upward. The drive belts will pull it in, the machine will close the flaps in sequence, and apply tape to both the top and bottom.
6. Remove the sealed carton at the exit; the next carton can be a different size.

Operator responsibilities and workflow with the AUTO&FOLD-5050

To prevent jams or improper seals, operators should make sure cartons meet the specified size limits, are not overpacked, and have correctly folded flaps. Keeping the tape heads and drive belts clean, along with regularly draining the water separator, will help the box taper run smoothly.

Adjustments, upkeep, and troubleshooting

• Cylinder pressure Set it as low as possible for your carton – excessive pressure can crush lightweight cartons.
• Carton length Slide the micro switch along the frame slot to adjust when the rear flap folds.
• Tape tension too high or too low. Adjust the main spring on the tape head; thicker tapes like Kraft require higher tension.
• Tape leg too long or too short. Adjust the blade support for the front tape leg and the limit block for the rear leg.
• Uneven cut or wrinkled tape. Replace a worn blade or install it correctly; clean the rubber roller and secure the tape holder.
• Maintenance. Turn off power and air before performing any work. Regularly drain the water separator and use only pneumatic oil in the lubricator; clean the cylinder rods; lubricate the screw rods and chain every three months; keep the blade clean and oiled, and ensure the machine stays dry. The belts will gradually tighten over time – this is normal.

Preparing for and selecting the AUTO&FOLD-5050 box taper

Before choosing the AUTO&FOLD-5050, verify that your cartons fit within the machine’s size range and that your tape type and width are compatible. Check your available floor space and confirm you have access to a single-phase 220 V power source and 6 bar compressed air. Set up the box taper on a flat surface with enough space for loading cartons and changing tape rolls.

Frequent issues include using cartons with bent or irregular flaps, running tape that is too thick or thin for the set tension, or forgetting to adjust pressure for lightweight cartons. To minimize downtime, keep spare blades and tape rolls available, and plan regular maintenance for the pneumatic and drive components. If you need to seal cartons of very different sizes one after another, make sure both the smallest and largest cartons will pass through automatically.

Important considerations before purchasing a box taper with automatic size adjustment

The price is listed on this page. A few key details determine if this machine is right for your cartons: please review them before requesting a quote, or send your carton information to us and we will review them with you.

• Carton dimensions. Accepts cartons from L200 × W150 × H150 mm up to L600 × W500 × H500 mm. Let us know the sizes you use and we will confirm compatibility.
• Variety of carton sizes or single size. AUTO&FOLD-5050 automatically adjusts to each carton. If you run only one carton size, RUBBER offers the same function with manual hand-wheel adjustment.
• Carton requirements. Only dry, clean, undamaged corrugated cartons are suitable; cartons with plastic coating cannot be sealed with tape.
• Tape types. Uses Kraft or BOPP tape, 48–60 mm wide, one width and thickness at a time.
• Electrical and air supply. Requires a single-phase 220 V, 50–60 Hz outlet and compressed air at 6 bar, 100 Nl/min.
• Space. The machine is approximately 1780 × 1080 × 1400 mm and weighs about 280 kg; it is packed in a crate measuring 1920 × 1100 × 1750 mm, with a total weight around 310 kg.
