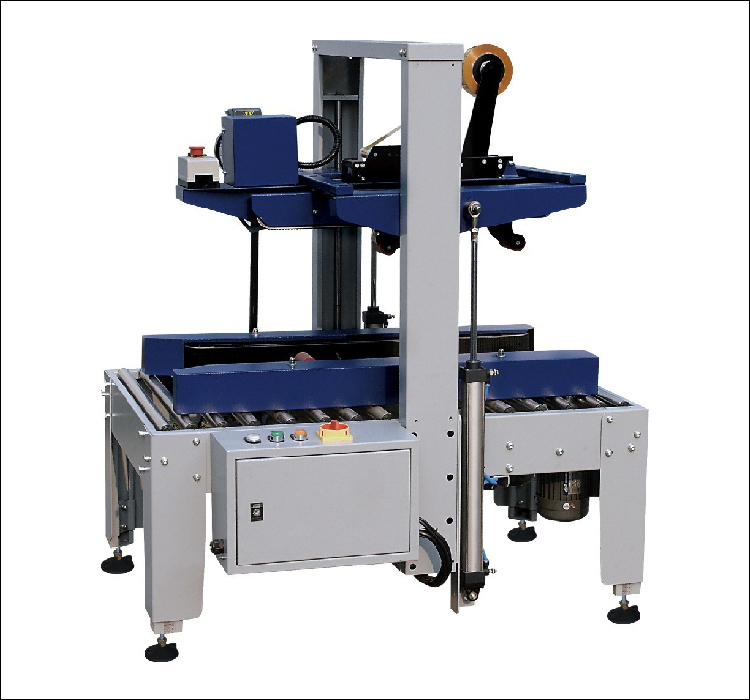

    AUTO-TAPE Automatic Carton Sealer for 48-72mm Kraft or BOPP tape

    The AUTO-TAPE Carton Sealer automatically senses both the height and width of each package, allowing it to seal boxes of varying sizes without the need for manual adjustments. This makes the AUTO-TAPE carton sealer especially useful for businesses that handle boxes of unpredictable dimensions, such as e-commerce fulfillment centers or manufacturers with diverse product lines. The AUTO-TAPE automatic carton sealer is a great solution for companies looking to increase the speed and efficiency of their packing operations.

    If you’re looking to enhance your box packaging process, replace an outdated box taper, or automate your manual hand taping process for greater efficiency, the AUTO-TAPE Automatic Carton Sealer is an excellent option. This automatic carton sealing machine is designed for sealing and packaging cartons, and can be used as a standalone unit or integrated into a production line. It is widely utilized in industries such as electronics, household goods, textiles, food, general merchandise, pharmaceuticals, and chemicals. The machine automatically adjusts to fit different carton sizes. Using a pneumatic system, it automates the packaging process and eliminates issues common with manual or semi-automatic methods, such as inconsistent quality and slower speeds. The machine is engineered to avoid damaging the surfaces of the cartons it seals.

    Automatic case sealers help reduce costs and deliver consistent box sealing, allowing you to control both tape usage and the time required to seal each box. Manual hand sealing can vary greatly between operators—different tape lengths, extra strips, and varying sealing times all affect efficiency. With an automatic case sealer, both sealing time and tape consumption are standardized. The AUTO-TAPE Carton Sealer can process up to 19 boxes per minute, increasing throughput. Its spring-loaded side belt drive is designed to handle narrow boxes effectively. The AUTO-TAPE Automatic Carton Sealer applies tape securely and reliably, without damaging your packages.



    AUTO-TAPE Automatic Carton Sealer Technical Details

    Model AUTO-TAPE Automatic Carton Sealer
    Operating Speed 20 meters per minute
    Carton Dimensions L 150mm~∞;W 120mm~470mm;H 120mm~450mm
    Table height 500-710mm (adjustable)
    Power supply 1P, AC220V, 50Hz, 600W
    Compressed air pressure 0.4MPa-0.6MPa
    Sealing Method Kraft paper tape, BOPP tape
    Tape Width 48mm~72mm
    Maximum Load 30kg
    Machine Weight 240kg
    Table Height 550mm–750mm (adjustable feet)
    Machine Dimensions L1154 × W890 × H (table height + 840 mm)
    Noise Level ≤75DB
    Operating Conditions Humidity ≤98%, temperature range 0–40℃
    Lubrication Standard machine oil for lubrication
    Performance Automatically adjusts height and width to fit each box, delivers cartons in sequence, seals both top and bottom at once, and uses a side belt drive.
    Packing Size L1200 × W1050 × H 1450 mm



    Benefits of the AUTO-TAPE Automatic Carton Sealer

    • This carton sealing machine handles boxes of varying sizes without manual height or width adjustments.
    • Box size range: Length: 150–∞mm; Width: 120–480mm; Height: 120–450mm
    • Provides production flexibility
    • Handles heavy items (up to 30kg)
    • Side-mounted for easy access
    • Carton sealer height is adjustable
    • Manually fold the case lid, then the machine automatically seals both the top and bottom of the box.



    Key Features of the AUTO-TAPE Automatic Carton Sealer

    • Automatically adapts to various carton sizes without manual adjustment; boxes are aligned automatically
    • Sealing pressure can be set to match different carton materials
    • The force of the dual movement arms can be adjusted based on carton weight
    • Dual movement arms automatically position packages correctly
    • Movement frame is air-powered for accurate, smooth, and durable operation
    • Powerful conveyor motor ensures steady transport of cartons up to 30kg
    • Pneumatic and electrical components work together for straightforward, user-friendly operation
    • Reliable and simple to operate



    Recommended Uses for the AUTO-TAPE Automatic Carton Sealer

    The AUTO-TAPE Automatic Carton Sealer offers benefits for a wide range of industries, including:

    • Food and beverages
    • Medical equipment
    • Pharmaceuticals
    • Electronics
    • Retail sector
    • Production facilities and distribution warehouses



    AUTO-TAPE Automatic Carton Sealer Machine Video

    Additional information

    Weight 250.0 kg
    Dimensions 1.1 × 1.2 × 1.5 m
    Parameter Specification
    Model

    AUTO-TAPE Automatic Carton Sealer

    Speed

    20m/min

    Carton size

    L 150mm~∞;W 120mm~470mm;H 120mm~450mm

    Working table height

    500-710mm (tunableness)

    Power supply

    1P, AC220V, 50Hz, 600W

    Compressed air pressure

    0.4MPa-0.6MPa

    Sealing mode

    Kraft paper tape, BOPP tape

    Tape width

    48mm~72mm

    Weight capacity

    30kg

    Machine weight

    240kg

    Table height

    550mm~750mm (foot cup)

    Machine dimensions

    L1154 × W890 × H (table height + 840 mm)

    Noise level

    ≤75DB

    Condition

    Humidity≤98%, temperature 0-40℃

    Lubrication

    General application lubrication oil

    Performance

    Height and width adjust automatically to each carton, automatic timely delivery, sealing top and bottom at the same time, side belt drive.

    Packing dimensions

    L1200 × W1050 × H 1450 mm

    Which tape widths can be used with the AUTO-TAPE Automatic Carton Sealer?

    The machine is compatible with tape widths from 48mm to 72mm and works with both Kraft and BOPP tapes.

    Does the machine automatically adjust for different carton sizes?

    Yes, it automatically measures the height and width of each package and seals boxes of various sizes without needing manual adjustment.

    What are the smallest and largest carton sizes the sealer can process?

    The sealer is designed for cartons with lengths starting at 150mm and up, widths from 120mm to 470mm, and heights from 120mm to 450mm.

    How does the machine maintain stable movement for heavy cartons?

    It is equipped with a high-power conveyor motor that can reliably move cartons weighing up to 30kg.

    Can the sealer’s height be changed to fit different production lines?

    Yes, the height is adjustable from 550mm to 750mm, making it adaptable to different production environments.

    What is the conveyor speed of the AUTO-TAPE Carton Sealer?

    The conveyor runs at a speed of 20 meters per minute, supporting fast and efficient packaging.

    Is the machine built for easy maintenance and access?

    Yes, its side-mounted design provides convenient access for maintenance and servicing.

    Which packaging materials can be used with this carton sealer?

    This machine is designed for sealing cardboard boxes with either Kraft or BOPP adhesive tape.

    Can the AUTO-TAPE Carton Sealer be integrated into automated packaging lines?

    Yes, with its automatic size recognition and adjustable settings, it works well with a range of automated packaging setups.

    Summary

    • AUTO-TAPE Automatic Carton Sealer for 48-72mm wide Kraft or BOPP tape
    • Conveyor speed: 20 meters per minute
    • Automatically senses package height and width and seals boxes of varying sizes without manual adjustments
    • The 30kg carton is moved smoothly by a high-power conveyor motor
    • Box size range: Length: 150-∞mm; Width: 120-470mm; Height: 120-450mm
    • Carton sealer height can be set: 550mm–750mm
    • Supports adaptability in your production process
    • Features easy access with a side-mounted design
