SMARTWRAP X2 Pallet Wrapping Machine

The SMARTWRAP X2 Pallet Wrapping Machine with Scale offers a fast and efficient solution for stabilizing pallet loads for transport. This model features a 1500 mm turntable (other sizes available upon request: 1650 mm, 1800 mm, 2000 mm, 2200 mm), suitable for pallets measuring 1.2 x 1 m, and can wrap up to 2200 mm in height (optional: 2600 mm, 3000 mm) with a maximum overhang of 100 mm. The pallet wrapper supports a maximum pallet weight of 2000 kg and can wrap up to 30 loads per hour.

The mechanical pre-stretch system supports a film width of 500 mm, with a maximum film diameter of 250 mm and a 76 mm film core. The film carriage can handle film rolls up to 15 kg. The machine operates at 1.5 kW and 220V-240V/50/60Hz. The SMARTWRAP X2 Pallet Wrapping Machine measures 2600 x 1500 x 2445 mm and has a weight of 400 kg.

Operating the SMARTWRAP X2 is straightforward with its English-language HMI and Smart Operation Guide. The system includes a SMARTWRAP touchscreen, a SICK proximity switch, an Autonics photoelectric sensor, and an OMRON position switch. The turntable sits 83 mm above floor level, has a thickness of 8 mm, and features 10 double rollers. The turntable uses a chain drive, and the column frame is constructed from aluminum profiles and steel.

The film carriage is equipped with a safety device underneath, a coated rubber pre-stretch roller, a quick-connect plug, and a user-friendly film threading design. The control system features a smart LED status indicator and an intuitive operating interface. The SMARTWRAP X2 is CE-certified and includes a control system PCB for enhanced safety and efficiency.

SMARTWRAP X2 Pallet Wrapping Machine Specifications

SMARTWRAP X2 Pallet Wrapper Video

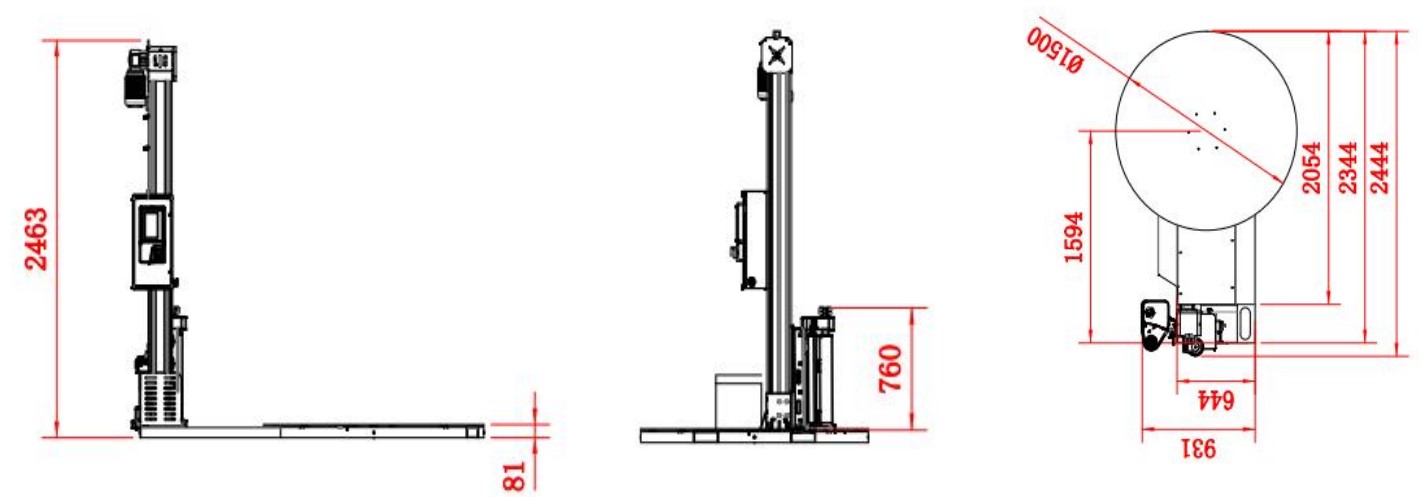

SMARTWRAP X2 Pallet Wrapper Floor Plan

SMARTWRAP X2 Pallet Wrapper Features

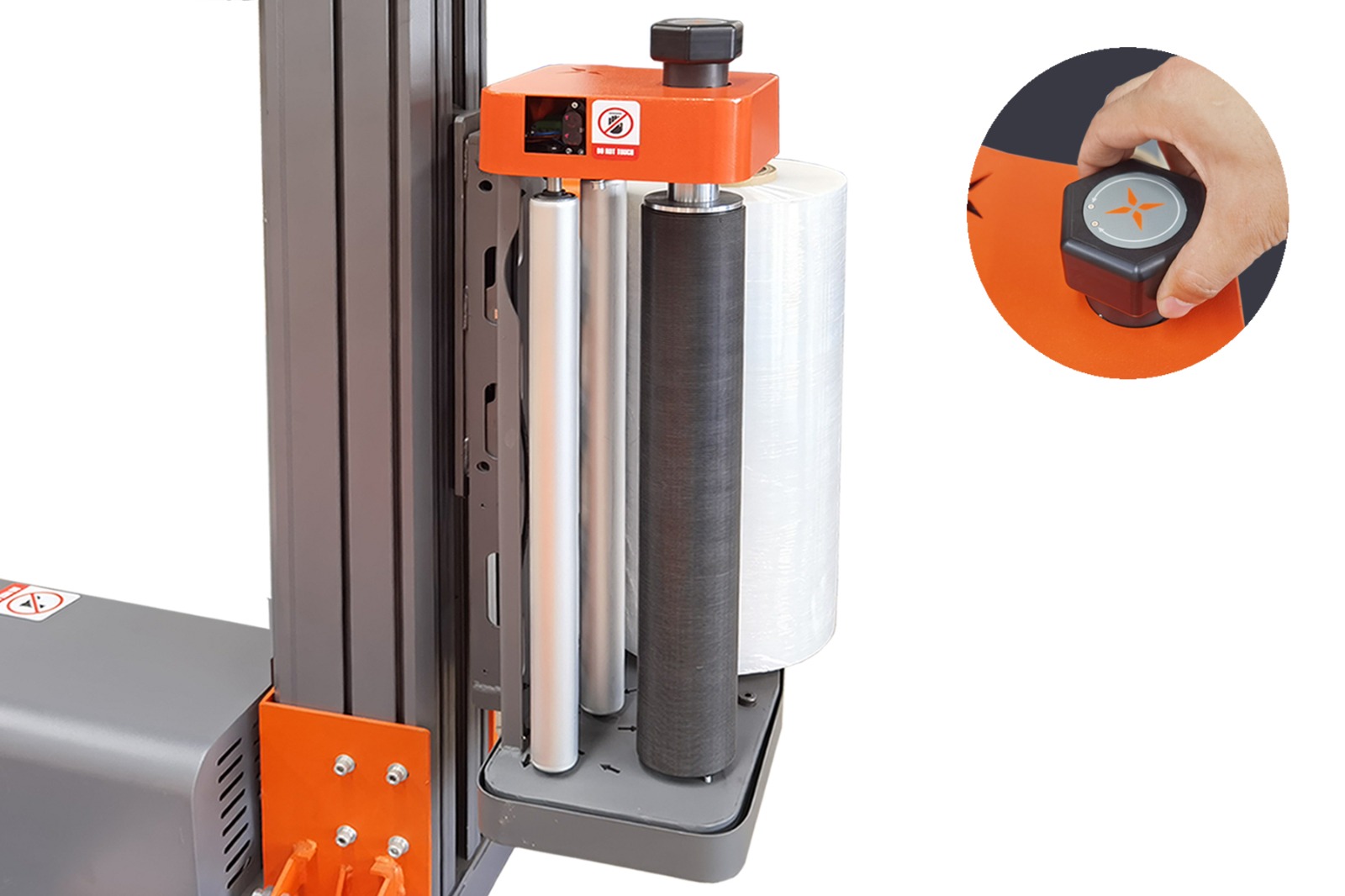

Next-generation mechanical resistance film carriage Knob with tactile feedback for adjusting wrapping tension, making it easier to set Stepwise adjustments help achieve more consistent film application

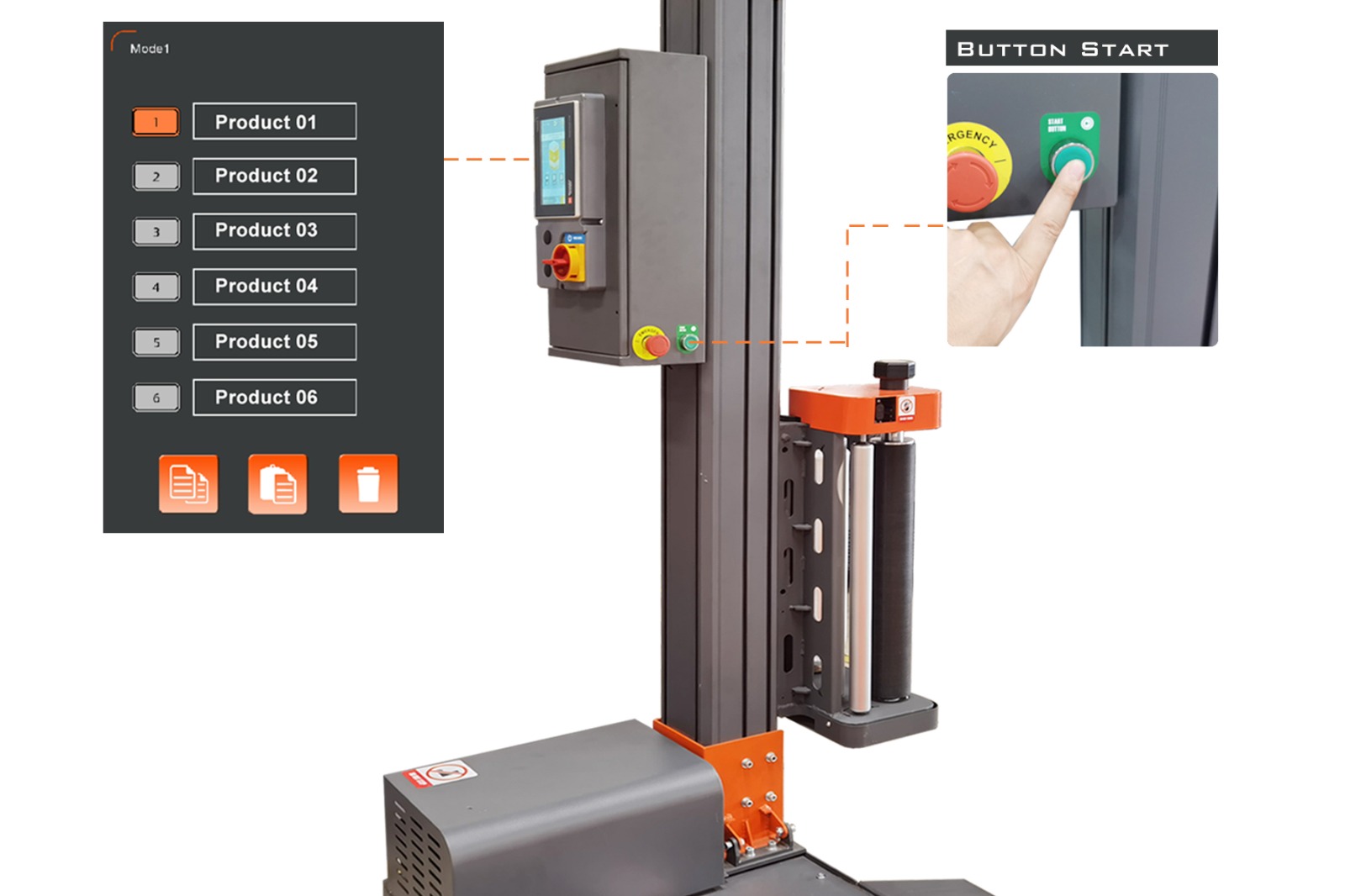

	6 Memory Settings + One-Touch Start Six different memory settings simplify parameter adjustments One-touch start allows for quick and easy operation of the pallet wrapper
PCB-based control system Three separate chips provide robust performance and extended lifespan Integrated circuit design makes maintenance simpler

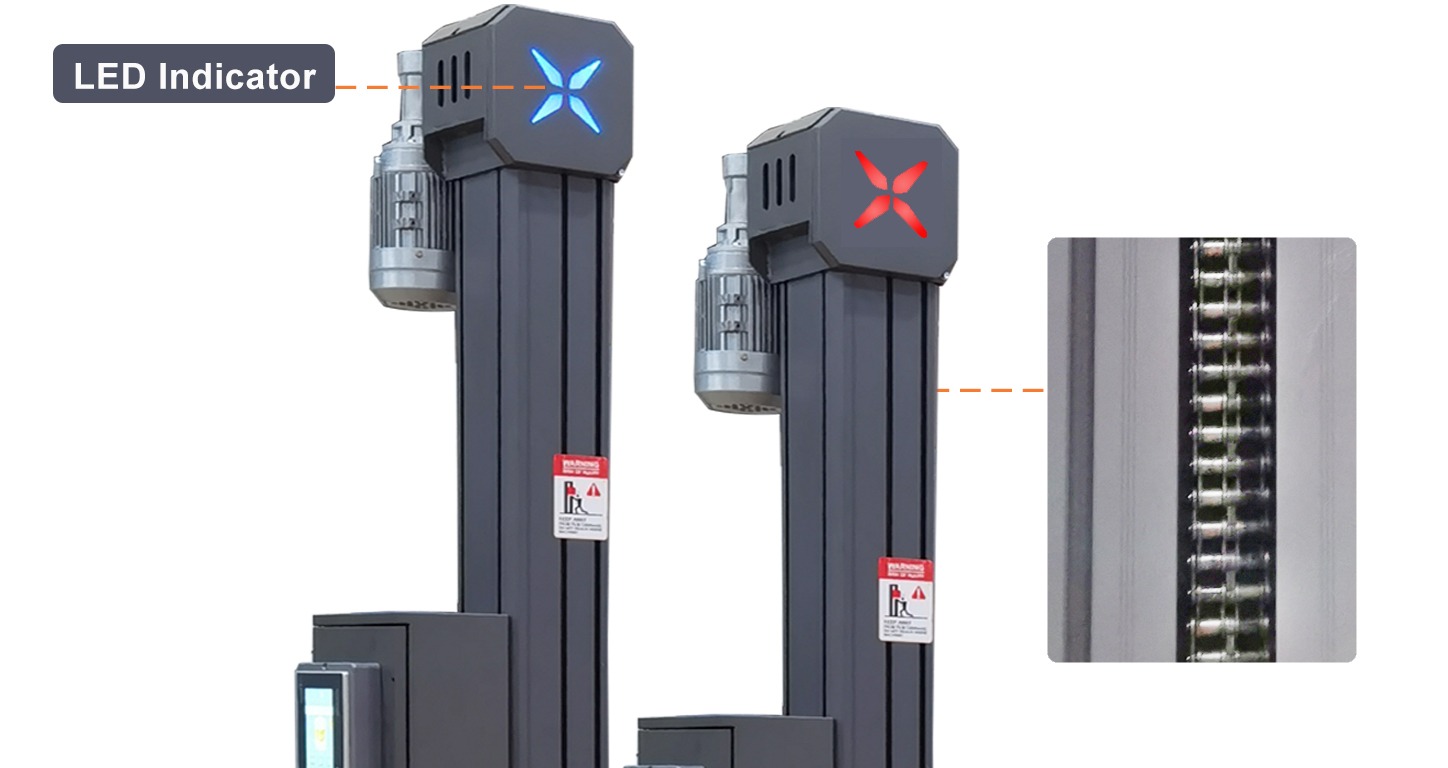

	Integrated alloy aluminum column Column is extruded with 4000 tons of pressure for a solid, one-piece build Modular design for straightforward assembly Dual chain lift system enhances safety LED tri-color indicator changes color according to machine status

SMARTWRAP X2 Pallet Wrapper Advantages

1. Boost productivity: The SMARTWRAP X2 can wrap up to 30 pallets per hour, greatly improving packaging speed and helping to lower labor expenses.
2. Flexible wrapping settings: The SMARTWRAP X2 offers adjustable packaging options, providing secure and customized wrapping for a wide range of products.
3. Strong and dependable: With a 1500mm turntable and a maximum load capacity of 2000kg, the SMARTWRAP X2 delivers reliable performance for various pallet sizes.
4. Simple to operate: The SMARTWRAP X2 includes an advanced mechanical resistance film carriage, a tension adjustment knob with tactile feedback, and stepwise film tension settings for even wrapping. The machine also features six memory settings and a one-touch start for ease of use.
5. Built to last: The SMARTWRAP X2 is constructed with an integrated alloy aluminum column, a dual chain lifting system, and a tri-color LED indicator that reflects the machine’s status, ensuring durability and long-term use.
6. Enhanced safety features: The SMARTWRAP X2 is equipped with a photoelectric sensor to detect the height of your load, a proximity switch from a trusted German manufacturer, and a coated rubber pre-stretch roller, all working together to ensure a safe and reliable packaging process.
7. Easy maintenance: The SMARTWRAP X2 uses a PCB control system with three separate chips for improved performance and extended durability. Its integrated circuit design also simplifies maintenance tasks.
8. Compact footprint: With overall dimensions of 2600 x 1500 x 2445mm, the SMARTWRAP X2 is designed to fit comfortably in your workspace without occupying excessive space.

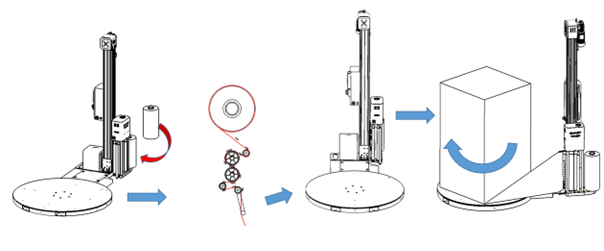

Operating the SMARTWRAP X2 pallet wrapping machine

The SMARTWRAP X2 pallet wrapper streamlines your workflow, allowing a single operator to manage the entire process efficiently. Here’s how the operation works:

1. A forklift is used to move the goods onto the Smartwrap X2 turntable. The operator then manually secures the film to the first side of the load, following the instructions in the user manual.

2. After positioning the load, the operator starts the pallet wrapper. The turntable rotates from its starting point, and the film carriage dispenses film in sync with the turntable’s speed, wrapping the film around the load as it spins.

3. The SMARTWRAP X2 allows you to adjust wrapping settings for different types of loads. After a set number of rotations at the base, the film carriage begins to move upward. The carriage, turntable, and film feed work together to fully and securely wrap the load.

4. When the film reaches the top of the load, the photoelectric sensor detects the load’s height. The film carriage then starts to move downward after the top layer is wrapped.

5. Once the film carriage returns to the bottom, the turntable slows down. The SMARTWRAP X2 automatically stops when the bottom wrap is finished.

6. At the end of the cycle, the film is cut and the wrapping process is complete. The SMARTWRAP X2 remains in standby mode, ready for the next pallet.

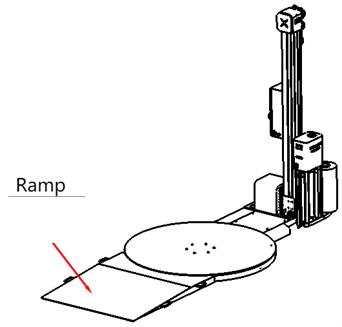

SMARTWRAP X2 pallet wrapper – Ramp option

A ramp can be added as an option to meet specific customer requirements.
