Shrink Machine F7060 – Minimum Product Size: 100×100×30mm, Maximum Product Size: 700×600×300mm

Heat Shrink Machine F7060

The F7060 heat shrink machine is an advanced packaging system for industrial use, combining both sealing and shrinking in a single, space-saving unit. It offers businesses an automated packaging process that removes the need for manual bagging and delivers uniform results for a variety of uses. This machine is well-suited for sectors that require dependable packaging, including industries such as food processing, publishing, logistics, retail distribution, and manufacturing. Featuring a maximum sealing area of 700 x 600 mm and the capacity to handle packages up to 650 mm in length, it meets the needs of medium and large-scale packaging operations. The power rating is 5.0 kW, supporting ongoing use while maintaining energy efficiency. It operates on 110V or 220–240V/50–60Hz power and achieves a throughput of 500–800 units per hour. Built with a sturdy 1720 x 950 x 1100 mm frame and weighing 165 kg, the machine is both robust and easy to move within production facilities. Its dual sealing and shrinking functions help protect packaged products from dust, moisture, and physical damage, enhancing appearance and extending shelf life. The F7060 heat shrink machine is a dependable choice for companies focused on productivity, cost savings, and consistent packaging standards.

Heat Shrink Machine F7060 demonstration video

▶

Frequently Asked Questions about the Heat Shrink Machine F7060

1. Which shrink films are suitable for use with this heat shrink machine?
   The F7060 heat shrink machine is designed for compatible with both PVC and POF shrink films. Both materials deliver strong seals, clear presentation, and lasting performance. POF film is especially recommended for food and consumer products because it is non-toxic.
2. What is the largest package size the heat shrink machine can handle?
   The F7060 heat shrink machine supports packages with dimensions up to W+H < 650 mm, W < 580 mm, L < 650 mm, H < 150 mm. This makes it a good fit for a range of medium and large items in different industries.
3. How many items can the heat shrink machine process per hour?
   The F7060 heat shrink machine is capable of handling 500 to 800 units per hour. Throughput depends on product size, film selection, and operator efficiency, but the machine delivers steady performance in production environments.
4. What are the electrical requirements for the heat shrink machine?
   The F7060 heat shrink machine runs on a 110V or 220–240V, 50–60Hz power source. It draws 5.0 kW of power, providing consistent heat and sealing for ongoing use.
5. Is the heat shrink machine safe for operators?
   Yes, the F7060 heat shrink machine includes a safety sealing hood, built-in safety switches, and alert systems that prevent operation unless the cover is properly closed. These features help minimize hazards from high heat and cutting functions.
6. How robust is the heat shrink machine F7060?
   The F7060 heat shrink machine features a 1720 x 950 x 1100 mm frame and has a weight of 165 kg, offering solid structural support. Durable parts like the nickel chrome cutter and stainless steel heating tube contribute to dependable operation and a long working life.
7. Which sectors commonly use the heat shrink machine?
   The F7060 heat shrink machine is commonly utilized in food and beverage, publishing, logistics, retail packaging, consumer products, and manufacturing. It meets the needs of businesses looking for efficient and consistent packaging processes.
8. What maintenance does the heat shrink machine require?
   The F7060 heat shrink machine should have the sealing blade and shrink chamber cleaned daily, with semi-annual checks for lubrication and part inspection. Replace components such as blades or heating tubes as necessary to maintain reliable performance.
9. What return on investment can be expected from the heat shrink machine?
   The F7060 heat shrink machine helps lower labor expenses, boosts output, and enhances packaging consistency. By streamlining packaging and minimizing product damage, companies benefit from measurable cost reductions and improved productivity.
10. How do I purchase the heat shrink machine F7060?
    The F7060 heat shrink machine is available for direct purchase by clicking Add to Cart, or you can request a customized quote by selecting Get Offer. This allows businesses to choose between standard orders or tailored solutions.

Heat Shrink Machine F7060 Technical Details

ROI for Heat Shrink Machine F7060

The F7060 heat shrink machine helps businesses maximize their investment by cutting down on manual labor and boosting productivity. Traditional hand-packaging is slow and can lead to inconsistent results, which increases costs and waste. With this machine, users can process 500 to 800 packages per hour, speeding up the packaging workflow. Automating both sealing and shrinking reduces the need for extra staff, directly lowering labor expenses. Consistent packaging quality also means fewer damaged products and better protection during storage and transport. By improving shelf life and ensuring a professional look, companies can strengthen their market position. The machine’s efficient energy use further cuts operating costs, and its durable build means less frequent repairs or replacements. Companies that implement this equipment benefit from greater efficiency, fewer mistakes, and the ability to handle more orders without increasing their workforce.

Main Features and Advantages of Heat Shrink Machine F7060

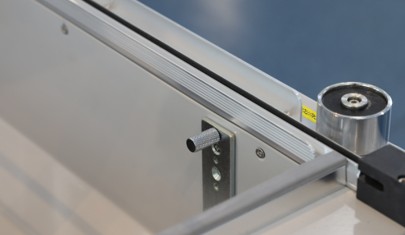

The F7060 heat shrink machine offers a compact footprint with industrial-level performance. Notable features include a clear sealing cover that lets operators observe the sealing and shrinking process for precise adjustments. The machine uses a nickel chrome cutting blade that resists sticking and high temperatures, preventing buildup and smoke during use. A stainless steel heating tube with built-in heat sinks ensures quick heating and long service life. Adjustable maximum product storage height allows for accurate sealing alignment with different product sizes, resulting in optimal packaging. These technical advantages provide consistent packaging quality, minimize film waste, and reduce downtime. For businesses, this means higher output, improved safety, and dependable operation over the long term.

Operating Instructions for Heat Shrink Machine F7060

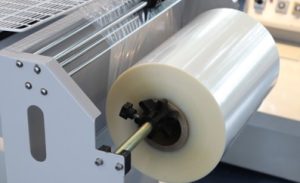

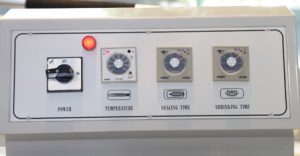

Using the F7060 heat shrink machine involves a straightforward sequence. The operator first powers on the unit and sets the shrinking temperature adjustable from 100°C to 150°C, based on the type and thickness of the film. The sealing and cutting time is adjusted to 0.4–0.6 seconds for clean film separation without damaging the blade. Shrink film is loaded onto the storage rack and threaded through the punch mechanism before being placed in the sealing area. After positioning the product between the film layers, the operator lowers the safety cover, which activates the electromagnetic sealing system. The blade seals the film, and hot air from the built-in fan shrinks the film tightly around the item. When the cycle is complete, the cover lifts automatically, and the operator removes the packaged product. This process ensures even results while maintaining safety and efficiency.

Applications for Heat Shrink Machine F7060

The F7060 heat shrink machine is ideal for businesses that need secure and attractive packaging. It is commonly used for food and beverage items, printed materials, publishing, gift packaging, electronics, and logistics. The ability to work with both PVC and POF shrink films makes it adaptable for various products. Companies looking to streamline warehouse operations or enhance product display in retail settings will appreciate its compact build and reliable performance. The machine is especially beneficial for medium to large businesses with high daily packaging volumes that require efficiency and uniformity. Its flexibility for different product shapes and sizes makes it suitable for a wide range of industries.

Design Features and Compatibility of Heat Shrink Machine F7060

The F7060 heat shrink machine features a 1720 x 950 x 1100 mm frame and has a weight of 165 kg, offering a strong yet mobile solution. Its design merges both sealing and shrinking areas into one compact machine, saving valuable floor space. Compatibility with compatible with both PVC and POF shrink films allows businesses to choose the best material for their needs. The adjustable product storage height ensures accurate alignment for different product sizes, supporting a variety of packaging tasks. The clear hood lets operators visually check the process and make quick adjustments as needed. With a sealing area up to 700 x 600 mm, the machine can handle medium and large packages without the need for separate equipment.

Performance and Operating Capabilities of Heat Shrink Machine F7060

The F7060 heat shrink machine delivers high performance, maintaining an output of 500–800 pcs/h with reliable results. Its nickel chrome cutting blades are designed to prevent buildup, ensuring smooth operation during extended use. The stainless steel heating tube provides steady heat, reducing downtime between cycles. Adjustable settings for sealing and shrinking allow the machine to work with different films and product thicknesses. Features like quick heat-up, steady sealing pressure, and even shrink coverage ensure that products are well-protected from dust, moisture, and impact. These qualities make the F7060 a dependable and efficient choice for businesses seeking long-term productivity.

Safety Features and Durability of Heat Shrink Machine F7060

The F7060 heat shrink machine is engineered to meet current safety requirements, reducing operational hazards. A safety sealing cover prevents accidental contact with the heated blade, lowering the chance of injury. Safety alerts and switches ensure the blade only operates when the cover is securely closed. The unit is built for continuous use without overheating, thanks to its robust stainless steel heating system. Its construction resists wear and tear, extending the machine’s service life. The durable build allows businesses to rely on consistent performance with minimal maintenance. This combination of safety and reliability is essential for industrial packaging environments.

Adjustments and Maintenance Procedures for Heat Shrink Machine F7060

Regular upkeep is key to keeping the F7060 heat shrink machine running smoothly over time. Daily care includes wiping down the work surface, shrink chamber, and sealing blade with a dry cloth to remove film residue. Every six months, a thorough check should be done, including lubricating the motor and inspecting the sealing blade and Teflon cloth. Worn blades, Teflon strips, or heating tubes should be replaced as needed. The machine is designed for easy adjustment of temperature, sealing time, and shrink time, allowing for precise operation with different films. Following maintenance recommendations helps reduce downtime and ensures reliable, long-term use.

Order Heat Shrink Machine F7060

The F7060 heat shrink machine is a dependable industrial solution that streamlines packaging by offering consistent results, efficiency, and lower operating costs. It is a top choice for businesses looking to improve product appearance, safeguard goods, and stay competitive in demanding markets. To purchase, click Add to Cart for a direct order or select Get Offer to request a tailored quote. This allows companies to find solutions that fit their specific needs. With proven reliability, solid construction, and measurable efficiency, the F7060 is a smart investment for industrial packaging operations.
