    P409 Box Wrapping Machine

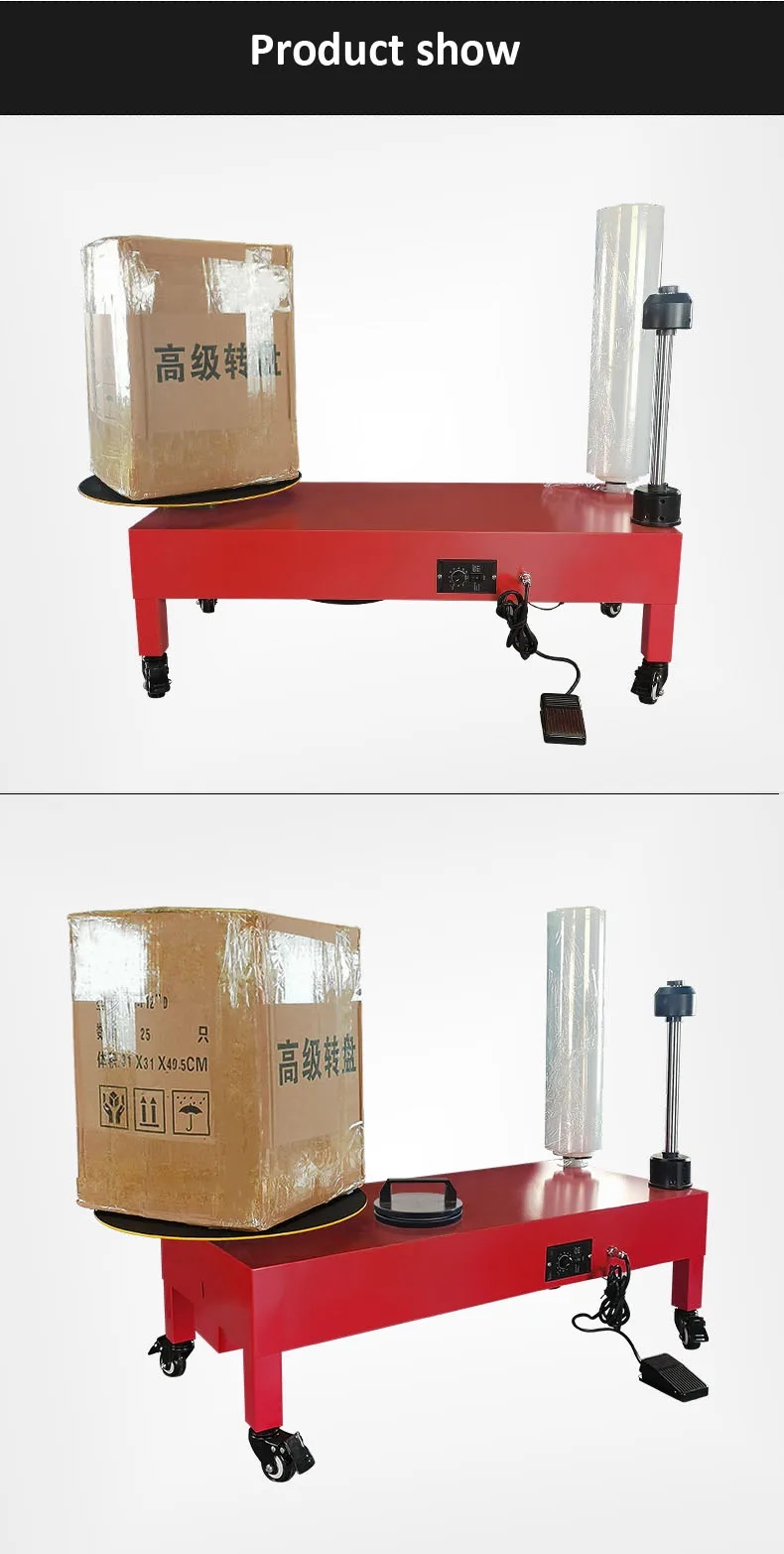

    Box wrapping machine P409 with a carton on the turntable and film loaded on the shaftThe P409 is a box wrapping machine that rotates the carton on its turntable while stretch film is dispensed from a roll on the shaft, wrapping the box quickly and securely in just a few turns.

    The turntable measures 600 mm in diameter, features a rubberized surface, and supports loads up to 70 kg. It spins at speeds up to 30 rpm, adjustable by a dial, and is operated using a foot pedal for start and stop.

    The P409 is designed for use with PE stretch film, which is loaded onto the vertical shaft before operation. Operators attach the film’s starting edge to the box, then position the carton in the center of the turntable. The machine’s hand grip and rubber-coated surface help keep the box steady as wrapping begins. The operator can adjust the rotation speed using the control knob, starting at a lower speed for lighter or taller boxes and increasing as needed once the box is stable.

    This box wrapping machine is suitable for single cartons or small groups, making it a practical choice for small to medium packing tasks or for re-packing returned merchandise. The P409 is commonly used in warehouses, e-commerce fulfillment centers, logistics hubs, and production lines, where it is typically placed near packing benches or shipping stations. Its compact size and lockable wheels allow it to be easily relocated between work areas, integrating smoothly into manual or semi-automatic packing setups.

    Box wrapping machine P409 on lockable wheelsThe film roll is mounted on a vertical shaft, which can be set at 450 mm for shorter cartons or 850 mm for taller packages.

    This machine connects to a standard 220 V outlet and uses 25 W of power. It is equipped with four lockable casters, has a length of 1070 mm, and weighs 30 kg.

    P409 Box Wrapping Machine in Packaging Workflows

    The P409 is ideal for warehouses, e-commerce fulfillment centers, logistics hubs, and production lines where single cartons or small groups need to be wrapped for storage or shipment. It works well for items like electronics, books, spare parts, textiles, and boxed consumer goods. The machine integrates easily into manual or semi-automatic packing setups and is commonly placed near packing benches or shipping stations. Its compact footprint and lockable wheels make it easy to move between work areas as needed.

    The P409 is built for cartons and rectangular packages that can stand securely on the turntable. It is not suitable for unstable, loose, or highly irregular items. Operators can wrap one box at a time, making it a good fit for small to medium packing jobs or for re-packing returned merchandise.



    Technical Details

    Model P409 (P4090)
    Type Box wrapping machine with turntable
    Turntable 600 mm diameter, rubberized surface
    Load up to 70 kg
    Speed up to 30 rpm, adjustable
    Film shaft 450 mm or 850 mm

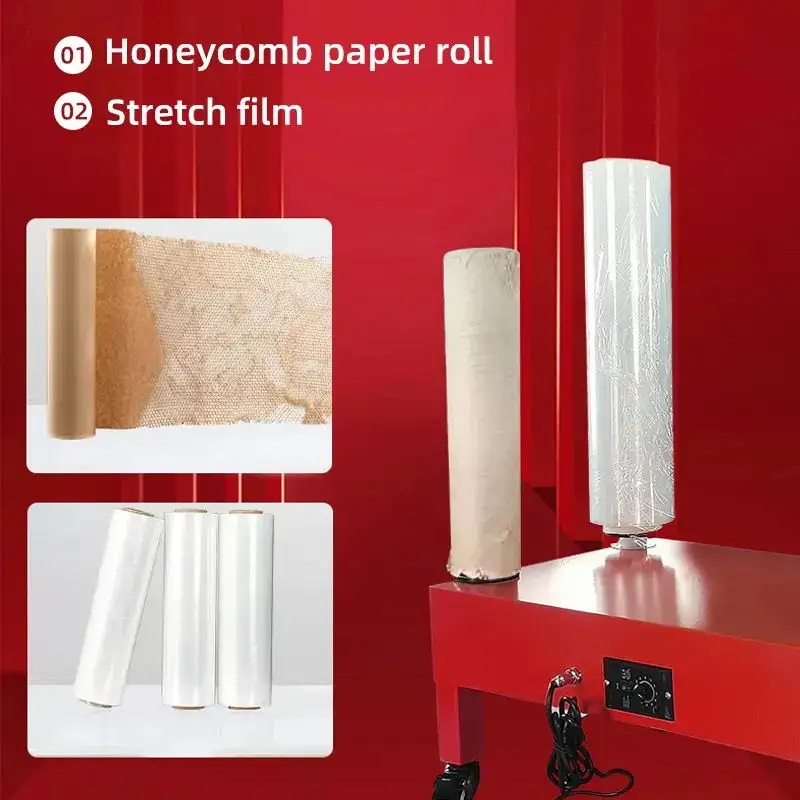

    Film PE stretch film
    Control speed dial, foot pedal
    Electrical requirements 220 volts, 50–60 Hz, 25 watts
    Machine dimensions (L × W × H) 1070 × 420 × 260 mm, weight 30 kg
    Casters Set of four, all lockable
    CE certification Complies with 2006/42/EC, EN 415-10



    P409 box wrapping machine video demonstration



    How the box wrapping machine works

    • Consistent wrapping. The carton rotates while the film is applied at uniform tension throughout.
    • Hands-free operation. Use the foot pedal to control the table, keeping both hands available to guide the film and carton.
    • Accommodates various sizes. Two shaft heights, 450 mm and 850 mm, for both short and tall cartons.

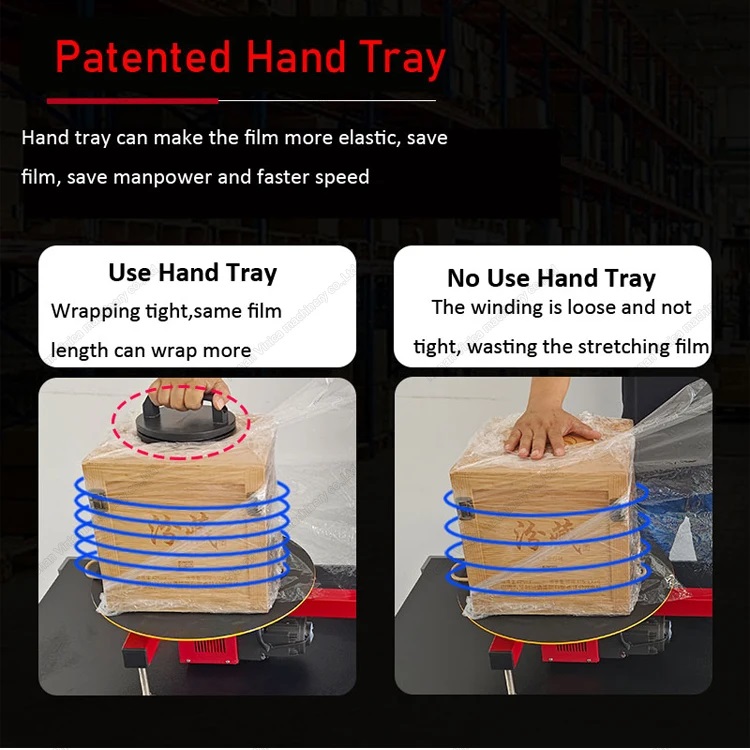

    • Keeps cartons secure. The table’s rubber surface and a hand grip hold the carton steady during wrapping.
    • Easy to relocate. 220 V, 25 W, and equipped with wheels for moving to your packing area.
    • CE compliant. Built according to Machinery Directive 2006/42/EC and EN 415-10.



    Turntable, film shaft, and foot pedal

    • Box wrapping machine with 600 mm diameter turntable
    • Handles loads up to 70 kg
    • Adjustable speed up to 30 rpm, set by dial
    • Foot pedal for start and stop
    • Film shaft available in 450 mm or 850 mm height
    • Compatible with PE stretch film
    • Rubber-coated turntable, with hand grip
    • Four wheels, all with locks
    • 220 volts, 50–60 Hz, 25 watts
    • Machine size: 1070 × 420 × 260 mm, weight: 30 kg



    Operating the P409

    1. Place the film roll onto the shaft and attach the film’s starting edge to the box.
    2. Position the box in the center of the turntable and hold it steady using the hand grip.
    3. Adjust the speed with the control knob.

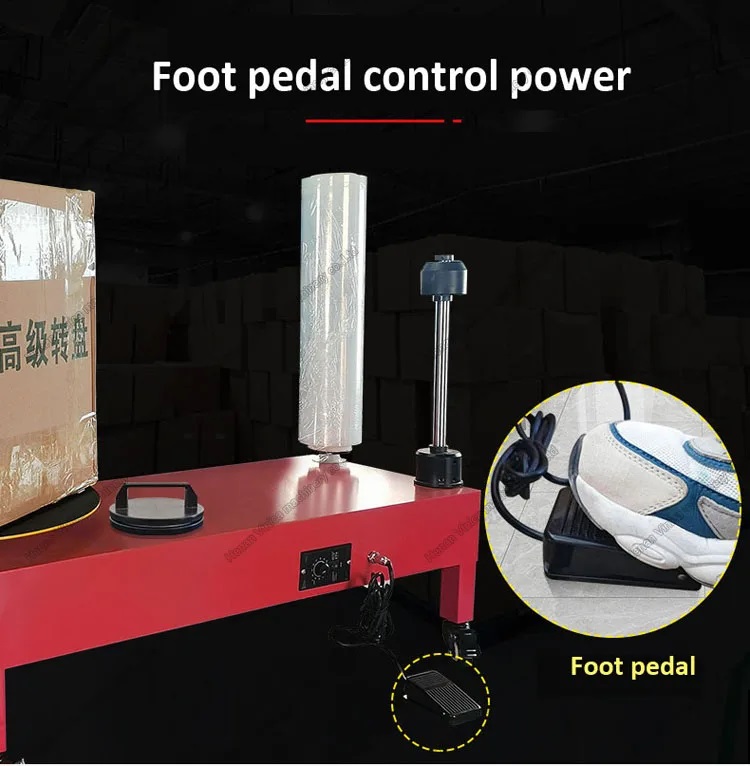

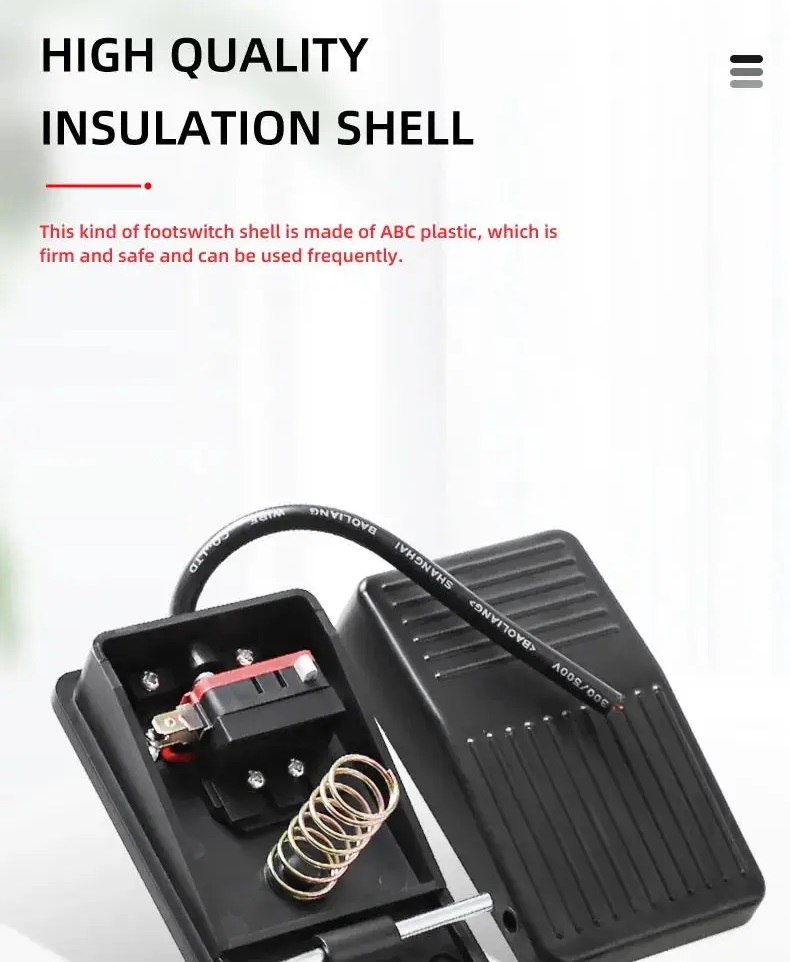

    4. Step on the foot switch to start: the table rotates and the film wraps around the box.
    5. Press the switch again to stop, cut the film, and remove the wrapped box.



    Setup and maintenance

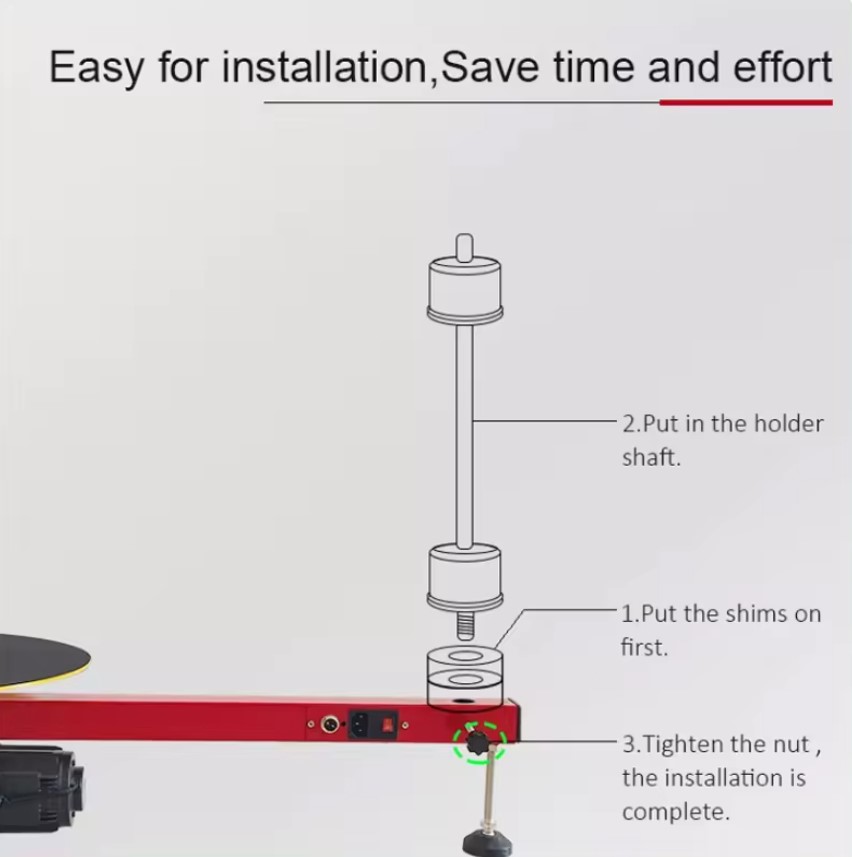

    • Assembly. Attach the four casters, the film shaft, the turntable, and the foot switch. The machine is then ready for use.
    • Shaft height. Use the 450 mm shaft for shorter boxes and the 850 mm shaft for taller ones.
    • Speed. Begin at a low speed for light or tall boxes, and increase speed once they are stable.
    • Weight. Do not load more than 70 kg onto the turntable.
    • Stability. Lock the casters before starting to wrap.

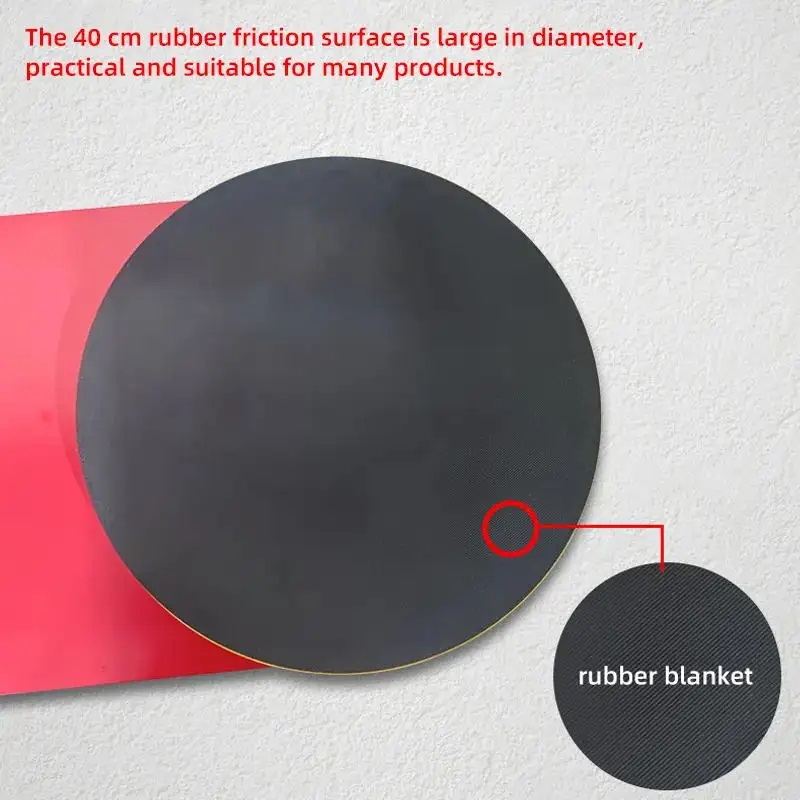

    • Maintenance. Keep the rubber surface of the turntable clean to prevent boxes from slipping.



    Before purchasing

    P409 dimensions: 107 cm length, table height 26 cm, film shaft 45 or 85 cmThe price is listed on this page. Please review the following before purchasing:

    • Your boxes. Maximum 70 kg, turntable diameter 600 mm.
    • Height. Film shaft options: 450 mm or 850 mm, for short or tall boxes.
    • Film. PE stretch film on a roll that fits the shaft size.
    • Power. Standard 220 V outlet, 25 W.
    • Space. Allow about 1070 × 420 mm of floor area, plus space to move around the box.

    P409 box wrapping machine: choosing and integrating

    Frequent errors include using film rolls that are too large or too tight for the shaft, wrapping boxes that are unstable or overhanging, or running the machine on an uneven floor. To prevent film breakage or uneven wrapping, make sure the film tension is set correctly and the box is centered and held securely.

    Additional information

    Weight 45.0 kg
    Dimensions 1 × 0.5 × 0.4 m
    Parameter Specification
    Product name

    Box wrapping machine

    Model

    P409

    Load weight

    70kg

    Turntable size

    60cm

    Wrapping material

    PE film

    Roller height

    Short roller:45cm Long roller:85cm

    Speed

    30r/Min

    Product size

    107*42*26cm,30kg

    Voltage

    220V,50-60HZ(110V also can do, please contact supplier)

    Power

    25W

    Usage

    All kind package outside film wrapping

    Wrapping type

    Electric automatic

    What is the maximum weight capacity for the Box Wrapping Machine P409?

    This machine can handle loads up to 70kg, making it ideal for packaging heavy or oversized items.

    How quickly does the P409 wrap packages?

    It runs at a fast 30 RPM, helping you complete packaging tasks efficiently.

    Are the wrapping settings customizable for different types of packages?

    Yes, you can adjust the settings to best suit a range of products and package dimensions.

    What is the diameter of the rotary table, and what is its significance?

    The rotary table measures 60cm across, which supports efficient processing of various large or irregularly shaped packages.

    Is the P409 simple to move and install at your facility?

    Yes, its compact and lightweight build makes it easy to transport and set up quickly.

    What safety mechanisms are included with the Box Wrapping Machine P409?

    It comes equipped with a secure locking system to ensure stability and operator safety during use.

    How dependable is the motor in the P409?

    The 25W motor is built for consistent, efficient wrapping and long-term reliability.

    Is the machine interface easy for operators to use?

    Yes, the user interface is intuitive, helping operators learn the system quickly and work efficiently.

    Is the P409 appropriate for use in industrial packaging settings?

    Certainly. Its durable build and customizable settings make it well-suited for demanding industrial packaging applications.

    Summary

    • High-speed 30 RPM operation enables fast packaging cycles
    • Customizable controls let you fine-tune the wrapping process for different products
    • Wide 60cm diameter turntable handles a variety of item sizes efficiently
    • Durable build quality keeps the machine running smoothly for consistent results
    • Secure locking mechanism provides stability and safety while in use
    • Compact, lightweight design makes it easy to move and set up
    • Simple user interface makes operation straightforward and minimizes training time
    • Powerful 25W motor ensures dependable and efficient wrapping
    • Supports loads up to 70kg for heavy or oversized packages
    • Handles multiple package sizes for versatile packaging applications
    • Goods are collected EXW; prices do not include VAT
