AUTOBOX10 Automatic Case Erector – 10-15 Cases per Minute

AUTOBOX10 automatic case erector

The AUTOBOX10 automatic case erector is a high-performance automatic case erector machine built to simplify and automate the carton forming process in industrial packaging environments. It plays a vital part in today’s production lines by reliably forming cartons for packing, which boosts efficiency and reduces the need for manual labor. This equipment is ideal for industrial users who need fast, consistent carton forming with minimal operator involvement.

This automatic case erector uses a sturdy servo-driven system along with pneumatic parts to deliver accurate carton forming and handling. The machine measures about 2020mm long, 2080mm wide, and 1396mm high, and has a weight of 530 kilograms. AUTOBOX10 accommodates carton sizes length adjustable from 200mm up to 500mm, width ranges from 200mm to 400mm, and height between 150mm and 350mm, with the total of length plus width not over 900mm and half the width plus height under 550mm. The machine runs at a rate of 10 to 15 cartons per minute, providing a strong mix of speed and accuracy. It uses 50mm or 60mm tape for sealing cartons, with a 75mm tape option available if needed. The table height is set at 650mm to fit most conveyor setups.

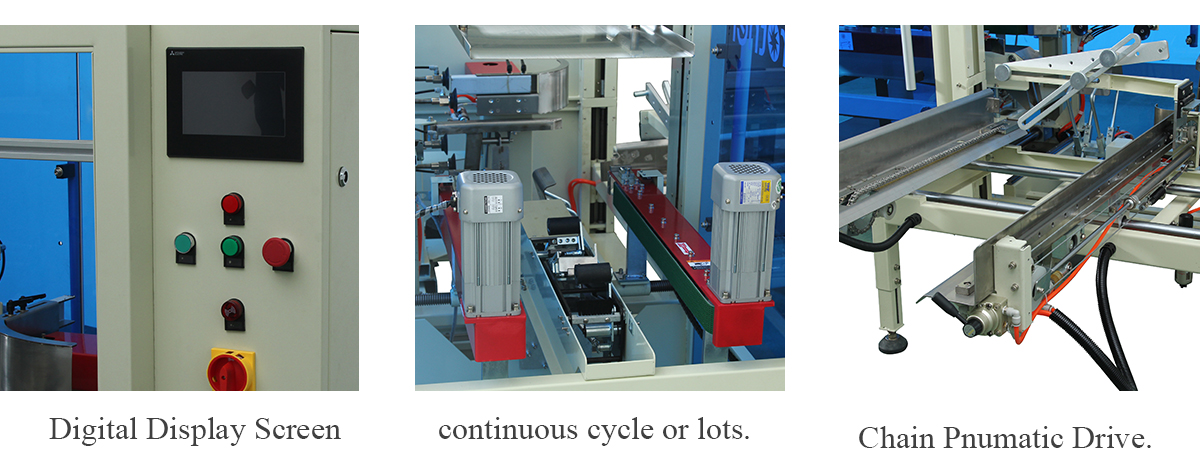

Designed for dependable and precise operation, the AUTOBOX10 features a touchscreen control panel that makes automation easy, including servo teaching and carton size programming. This allows for fast changeovers and custom carton programs to meet a range of packaging needs. Automatic reset and servo zeroing functions keep the system accurate before each cycle, helping to avoid mistakes and cut down on downtime.

In summary, the AUTOBOX10 automatic case erector is made for companies looking to improve packaging precision, speed, and safety. Its advanced servo and pneumatic controls allow it to form cartons with uniform square or rectangular shapes, lowering the risk of product damage and improving packaging quality.

AUTOBOX10 automatic case erector demonstration video

▶

AUTOBOX10 automatic case erector specifications

AUTOBOX10 Automatic Case Erector – Key Features and Advantages

• SERVO motor-powered carton forming system delivers accurate control for opening cartons, ensuring reliable and repeatable setup of square or rectangular boxes.

• Pneumatic controls guarantee efficient carton loading, sealing, and discharge while preventing box deformation or damage.

• Built-in touchscreen interface allows for simple operation in both automatic and manual modes, making it user-friendly for operators and maintenance staff.

• Servo position learning and carton size programming make it easy to switch between different box sizes, supporting a variety of packaging needs and minimizing downtime during changeovers.

• Pressure-regulating solenoid valves and cylinder air pressure controls provide precise management of box forming force and speed, ensuring stable operation with cartons of varying material thickness.

• Always turn off the power before performing maintenance. If someone becomes trapped by a moving part, immediately shut off the power before assisting them.

• The compact footprint and modular build make it simple to add to current packaging lines.

• Together, these capabilities increase packaging precision, minimize material waste, reduce labor expenses, and help create a safer workplace, making the AUTOBOX10 an excellent choice for medium to large packaging operations.

AUTOBOX10 automatic case erector ROI and process efficiency

The AUTOBOX10 automatic case erector delivers strong value for industrial packaging operations by cutting manual labor costs and raising packaging speed and consistency. Its automatic carton forming process reduces human error, leading to fewer damaged cartons and less material waste. With the ability to form up to 15 cartons per minute, the AUTOBOX10 increases throughput on packaging lines, helping businesses reach higher production goals.

The precise servo-driven system ensures every carton is formed accurately and consistently, which helps prevent downtime from misaligned or poorly formed cartons. This steady performance improves coordination with upstream and downstream equipment, maximizing overall line efficiency. Companies also benefit from less operator training thanks to the intuitive touchscreen and straightforward setup.

Automated carton size calibration and servo teaching features make switching between carton sizes faster, boosting flexibility and productivity. Maintenance and adjustment downtime is kept to a minimum with built-in monitoring and pressure control. As a result, the AUTOBOX10 helps achieve a quicker return on investment through lower operating costs, better quality, and higher packaging output.

Operating Instructions for AUTOBOX10 automatic case erector

1. Connect the AUTOBOX10 to a reliable electrical supply and compressed air line.

2. For safety, make sure the power is turned off before making any adjustments to the machine.

3. Start by running the automatic servo zero-return function to reset the system to its home position, which helps avoid errors at startup.

4. Choose the carton size number based on the cartons you plan to run; the system can remember up to ten different carton size settings.

5. Set the servo positions for the conveyor center and carton pickup point using the touchscreen for accurate suction cup placement.

6. Activate automatic mode from the touchscreen to start the full cycle: picking a flat carton, folding the front and back flaps, folding the side flaps, moving the carton onto the conveyor, and preparing for the next cycle.

7. Use manual step-by-step modes for troubleshooting or when training operators.

8. Check the number of cartons formed on the display and reset the count as needed to keep production running smoothly.

9. Always follow all safety guidelines; only trained personnel should make mechanical or pneumatic adjustments.

10. Routinely check and calibrate the suction cups, forming rods, and carton guides to maintain top performance and reliable carton handling.

Uses and Key Benefits of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector is engineered for a wide range of industries that need automated carton forming solutions, such as food and beverage, pharmaceuticals, electronics, consumer goods, and agricultural packaging. Companies aiming to boost packaging line efficiency and achieve consistent packaging results will find this machine ideal for medium to high-volume production.

AUTOBOX10 distinguishes itself from other options with its blend of servo motor accuracy and pneumatic adaptability, making it capable of processing a broader variety of carton sizes with reliable repeatability. The touchscreen panel with position teaching features is designed for ease of use, streamlining setup and enabling quick changes between carton types.

Its mechanical structure addresses typical problems like carton warping and jams that are common in less sophisticated equipment. Adjustable pressure systems and air speed controls make sure the carton forming process can be tailored to different board thicknesses and box styles. These capabilities help maximize uptime and reduce the frequency of maintenance.

Additionally, the modular build lets customers specify custom tape widths (50mm, 60mm, or optional 75mm), making it easier to fit into specialized packaging processes. Business buyers appreciate the strong construction, built-in safety features, and straightforward integration, making AUTOBOX10 a strong choice in its class.

Design, Adjustments, and Maintenance for AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector comes with a compact design measuring just over two meters in both length and width, and stands about 1.4 meters tall, making it easy to install in existing packaging lines. Ergonomic table height set at 650mm matches most conveyor systems, streamlining product handoff.

Machine adjustments include belt width, carton carrier width, bracket height, pressure box guide plate height, forming position rods, suction cups, and carton push rods. These settings are intended for precise tuning to fit different carton sizes and materials. Only trained personnel should adjust pneumatic regulators or solenoid valve pressures to protect system performance.

Maintenance consists of regular cleaning, lubricating moving components, checking pneumatic pressure, and inspecting suction cups and belts for signs of wear. The machine is designed for easy access during service, and the operator manual includes detailed instructions for adjustments and safety.

Following a maintenance schedule helps prevent unexpected downtime and keeps product quality high by ensuring the machine runs within its best settings. The touchscreen control panel also offers troubleshooting with manual debugging modes, helping technicians identify and resolve issues efficiently.

Performance and Features of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector runs at a steady pace of Processes 10 to 15 cartons per minute, offering a balance of speed and dependability. The servo-driven forming system manages carton pickup, flap folding, and ejection with great accuracy, reducing the risk of damage or misshaping. Pneumatic actuators control carton feeding and placement, adjusting for carton thickness to keep operations smooth.

The machine handles cartons from small to medium-large sizes, with adjustable guides and suction cup placement to grip even the widest carton flaps securely. The pressure-regulating solenoid valve keeps air pressure steady (~0.5 mpa), which is essential for consistent forming and suction.

The speed and pressure of cylinder movements can be fine-tuned using dedicated controls, giving operators flexibility for different packaging materials. The servo position teaching feature automates width changes, speeding up product changeovers and keeping cycles consistent.

AUTOBOX10 is designed for large-scale packaging needs, delivering dependable performance that reduces interruptions while maintaining high output and carton quality.

Safety and Longevity of AUTOBOX10 automatic case erector

Operator safety is built into the design of the AUTOBOX10 automatic case erector. Always turn off the power before performing maintenance, and if someone is caught by a moving part, immediately shut off the power before assisting them.

The machine’s controls block automatic operation unless both the cylinder and servo origin indicators confirm the system has reset correctly, helping prevent accidental starts.

Long-lasting performance is achieved by using industrial-grade materials for all mechanical and wear parts, including belts, suction cups, and pressure plates. The machine is built for continuous use in standard industrial settings and is designed to withstand operational demands.

To keep your warranty and ensure the machine’s lifespan, authorized service and following the operator manual are required. Unauthorized changes are not supported and could affect machine safety.

Environmental Considerations for AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector helps meet sustainability goals by minimizing packing material waste through precise and consistent carton forming. This accuracy lowers the number of rejected cartons and reduces product damage, which means less packaging material is used overall.

By automating carton forming, the machine also cuts down on human mistakes and energy loss that come with manual packing. The pneumatic system is set up to use air efficiently and help save energy.

The modular design of the machine makes it easy to take apart and recycle components at the end of its service life. Companies can add AUTOBOX10 to larger packaging systems focused on reducing environmental impact.

AUTOBOX10 automatic case erector for purchase

The AUTOBOX10 automatic case erector is a smart investment in efficient, dependable, and safe carton forming technology for industrial packaging operations. With advanced servo controls, precise pneumatic settings, and an intuitive touchscreen interface, AUTOBOX10 delivers outstanding performance that boosts productivity and packaging standards.

To obtain this solution and enhance your packaging line performance, customers can add the AUTOBOX10 automatic case erector to their cart or request a tailored quote. Our team is ready to help with configuration options to meet your operational needs and support smooth integration.

Choosing the AUTOBOX10 automatic case erector provides a clear return on investment by reducing labor costs, boosting output, and minimizing material waste — making it a valuable resource for progressive businesses.
