SMARTWRAP S3 In-line Fully Automatic Pallet Wrapping Machine

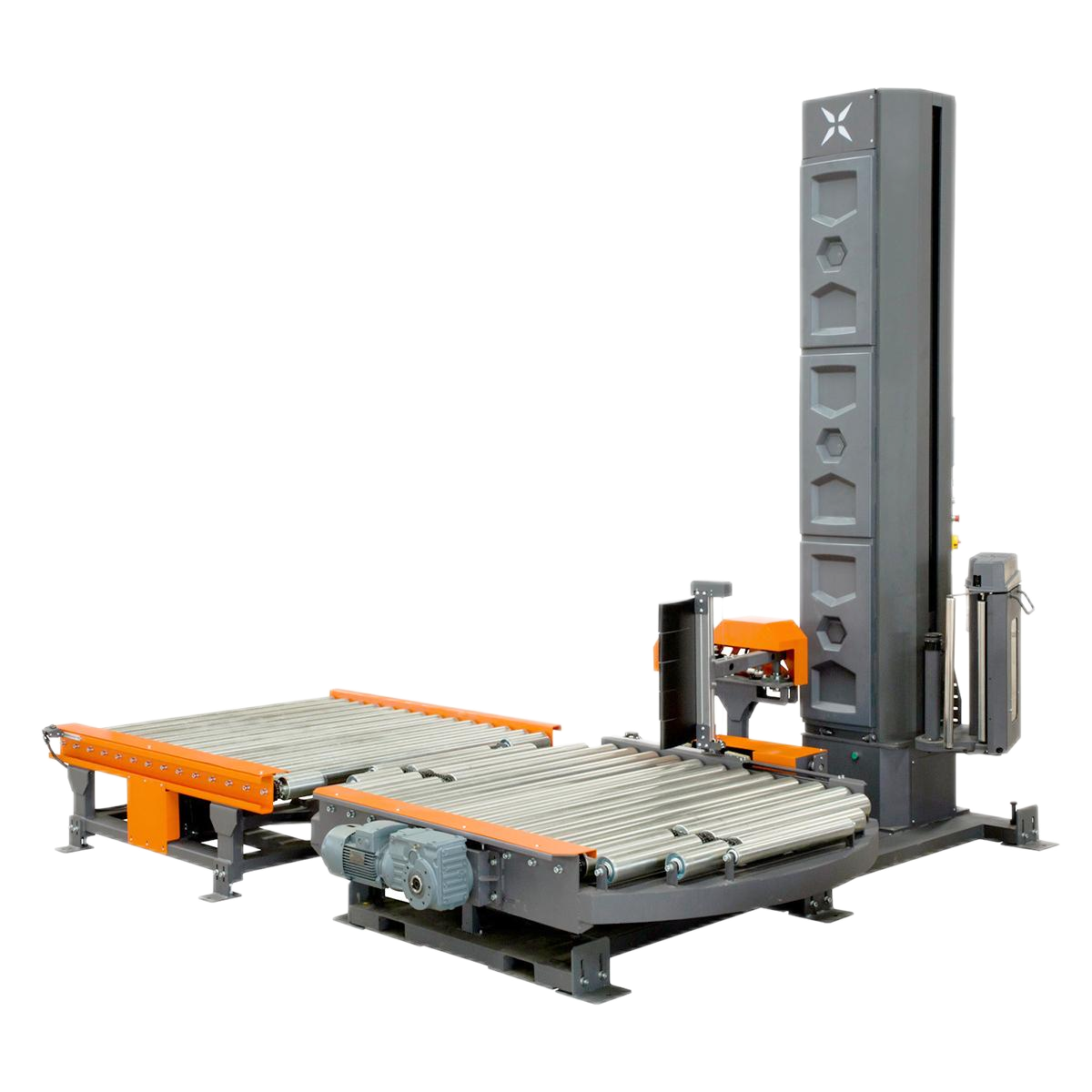

SMARTWRAP S3 in-line pallet wrapper

The SMARTWRAP S3 is an in-line pallet wrapper designed for conveyor systems. Pallets move in automatically, the wrapper secures them, and they exit on the conveyor. No operator is needed to drive the pallet in, attach, or cut the film—the machine automatically clamps, cuts, and seals the film.

Handles pallets weighing up to 3000 kg with a maximum load diagonal of 1753 mm, using a 2000 mm turntable that can be height-adjusted by 550 mm to match the conveyor height.

This wrapper processes 30 to 40 pallets per hour and wraps up to 3200 mm in height. The turntable operates at 0–15 rpm, and the powered film carriage stretches film to 300% at a steady tension, ensuring every pallet is wrapped consistently.

The film rope feature twists the film into a rope at the base of the load to secure goods to the pallet. The wrapper uses a slewing ring with double nylon rollers made from stainless steel 201, is managed by a SIEMENS PLC with a 7-inch touchscreen, and has a weight of 980 kg.

SMARTWRAP S3 uses and integration

The SMARTWRAP S3 is ideal for distribution centers, manufacturing facilities, and logistics operations that need high throughput and reliable pallet securing. It fits operations handling FMCG, food and beverage, building materials, chemicals, paper, and consumer goods. This wrapper is designed for integration into automated conveyor systems, taking pallets directly from upstream equipment like palletizers or order pickers, wrapping them, and moving them on for storage or outbound processing.

Common loads include cartons, bags, drums, shrink-wrapped packages, and irregularly shaped items stacked on pallets. The film rope system is especially effective for loads that may shift or tip during transit, as it secures the goods to the pallet base. The SMARTWRAP S3 is a strong alternative to manual wrapping where speed, uniformity, and operator safety are key concerns.

Technical details

SMARTWRAP S3 pallet wrapper video demonstration

▶

How the pallet wrapper streamlines your shipping process

• Pallets move automatically. When installed in a conveyor system, the pallet wrapper operates unattended: pallets enter, get wrapped, and exit without manual handling.
• Film is managed by the pallet wrapper. The machine clamps the film at the start, cuts it at the end, and heat-seals the tail—no need for anyone to touch the load.
• Handles 3000 kg and loads up to 3200 mm tall. Heavy or tall pallets are wrapped on the same pallet wrapper, using a 2000 mm turntable.
• 300% pre-stretch with steady tension. One meter of film stretches to three meters, and the tension remains consistent from the first wrap to the last.

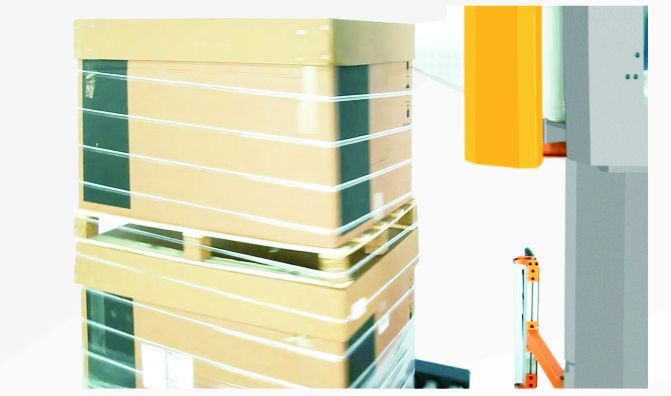

• Film rope secures the load to the pallet. The rope system binds the goods and pallet together, helping keep the load stable during transport.
• Components are maintained, not replaced. SIEMENS controls, SICK sensors, OMRON relays, a slewing ring, and stainless steel rollers.

Film, turntable, and controls

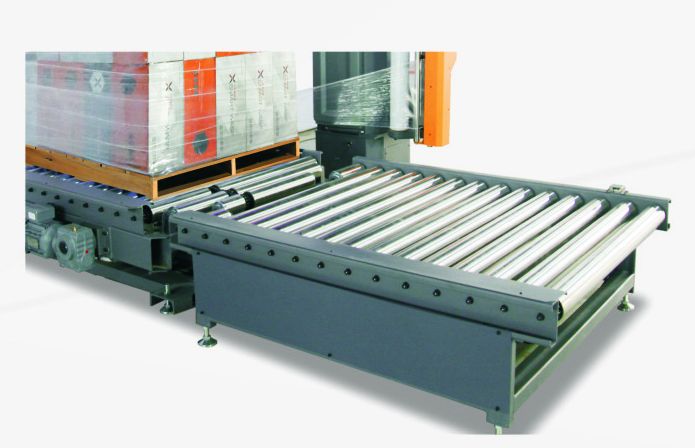

• In-line design: pallets move in and out on the conveyor
• Automatic film clamping, cutting, and heat sealing
• Handles loads up to 3000 kg, maximum load diagonal 1753 mm
• Turntable diameter 2000 mm, speed adjustable from 0 to 15 rpm, height adjustment over 550 mm
• Wraps loads up to 3200 mm high
• Processes 30 to 40 pallets per hour
• Powered film feed with 300% pre-stretch and consistent film tension
• Equipped with a film rope system
• Uses stretch film 500 mm wide, rolls up to 250 mm in diameter

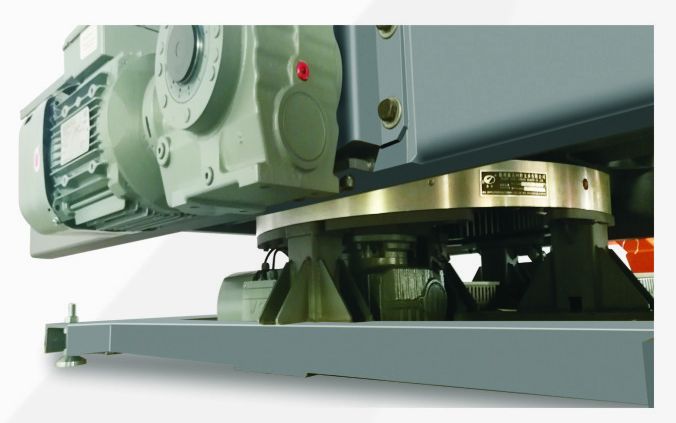

• Slewing ring turntable with double nylon rollers, stainless steel 201, 89 mm

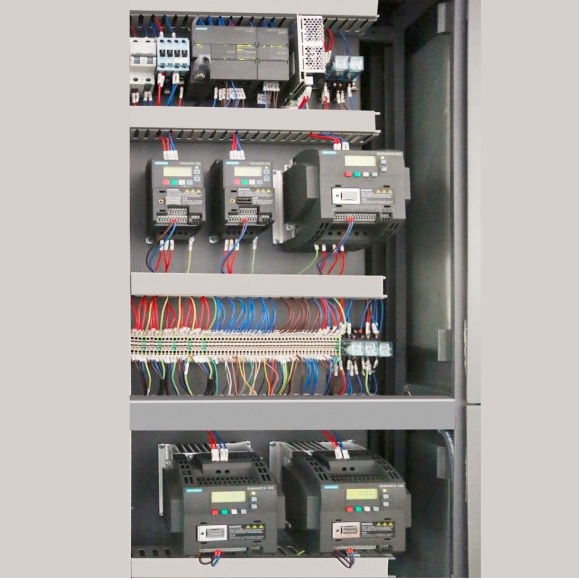

• SIEMENS PLC and 7-inch touchscreen, SICK sensor, X-Line inverter
• Safety belt inside the column, frame made of laser-cut steel and ABS
• 380 V / 220 V, 50 Hz; optional weighing scale available

How the SMARTWRAP S3 operates in-line

1. Place a 500 mm wide roll of stretch film on the carriage and feed it through the pre-stretch rollers.
2. Select the program on the touchscreen: set the number of wraps at the bottom, middle, and top, turntable speed, and film tension.
3. The conveyor moves the pallet onto the turntable and the machine starts automatically.
4. The machine clamps the film, wraps the load from bottom to top and back, ropes the film at the base, then cuts and seals the film tail.
5. The pallet exits on the conveyor and the next one enters.

Settings and maintenance

• Program. Set the number of wraps at the bottom, middle, and top, turntable speed, and film tension on the SIEMENS touchscreen and save for each load type.
• Film tension. The powered film feed maintains a steady tension, which you can adjust for each load: tight for stable pallets, lighter for delicate or uneven ones.
• Film. Uses stretch film 500 mm wide, accepts rolls up to 250 mm in diameter, and stretches film up to 300%.
• Turntable height. Adjustable above 550 mm, so you can set the pallet wrapper to match your conveyor height.
• Maintenance. Always power down the pallet wrapper before servicing. Keep rollers and the cutting and welding unit clear of film, and regularly inspect the slewing ring, belt drive, and safety belt inside the column.

SMARTWRAP S3 operator responsibilities and process checks

At the start of each shift, make sure the film carriage, rollers, and cutting/welding unit are free from leftover film and debris. Check conveyor alignment and verify the safety belt inside the column is undamaged. While running, monitor for film breaks, uneven wrapping, or pallets not centered on the turntable.

What to check before buying a pallet wrapper

Prices are listed on this page. Since an in-line pallet wrapper is always part of a system, a few key details determine the setup: review these before requesting a quote, or send them to us and we’ll help you review them.

• The line. The pallet wrapper is installed in a conveyor line; let us know the conveyor height and which side pallets enter from.
• Pallet. Handles loads up to 3000 kg, with a maximum diagonal of 1753 mm, on a 2000 mm turntable.
• Load height. Maximum load height is 3200 mm.
• Output. Wraps 30 to 40 pallets per hour.
• Space. The pallet wrapper’s footprint is 2000 × 1800 × 3700 mm and it weighs 980 kg; an integrated scale is available as an option.

Selecting and setting up the SMARTWRAP S3

Before choosing the SMARTWRAP S3, make sure your pallet dimensions, weight, and height fit within the machine’s capabilities. Check the installation area for enough space, including room for changing film rolls and performing maintenance. The conveyor height must be within the turntable’s adjustment range, and specify the pallet flow direction for proper integration.

Typical issues include using film rolls that are too wide or too large in diameter, applying too much film tension on light or unstable loads, or not keeping the conveyor and turntable clear. To prevent downtime, install the pallet wrapper where the power supply is stable.

When designing your line, factor in the order of upstream and downstream equipment—such as palletizers, labelers, or stretch hooders—to keep pallet flow efficient.
