ECOBAND-A Banding Machine on Stand for Paper or OPP Band 20/30 mm – Frame 460 × 200 mm

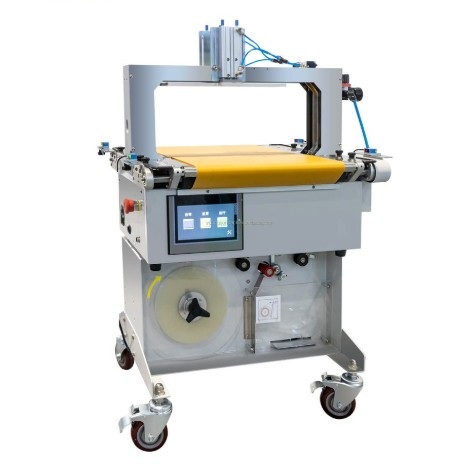

ECOBAND-A banding machine on stand for paper and OPP bands

The ECOBAND-A is an automatic banding machine on a stand that applies a narrow band of paper or OPP film around a bundle or package, tensions it, seals, and cuts the band. A conveyor belt on the table moves the product under the frame, while a top press secures it during banding.

This machine uses bands that are 20 mm or 30 mm wide and 0.12 mm thick, on rolls with a 76 mm core and a maximum outer diameter of 300 mm. The frame opening measures 460 × 200 mm, and products must be at least 50 mm wide.

It can apply Up to 20 bands per minute, with tension adjustable up to 5 kg to keep bundles secure without damage. All settings are managed via the touchscreen. The internal control operates on safe 24 V DC, monitors all ports, and features a resettable production counter to track banding cycles.

The unit is built on its own frame with casters, with a table height of 600 mm, and runs on single-phase power at 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW. It is suitable for applications where products are bundled with a band instead of a strap or stretch film, such as printed materials, food packages, boxes, and trays.

ECOBAND-A banding machine for production and logistics applications

The ECOBAND-A is designed for use in print shops, food production, logistics operations, and light manufacturing. This banding machine secures stacks of flyers, brochures, greeting cards, food trays, candy boxes, small cartons, and bundled retail packages. It is suitable for both presenting products directly to customers and for stabilizing goods for in-house transport or storage. The ECOBAND-A is typically set up at the end of a packing line or beside a manual packing station, and can be easily relocated between work areas as needed.

The banding process is gentle enough for sensitive printed materials and food packaging, while the adjustable tension ensures secure bundling of heavier or more rigid products. In logistics, the ECOBAND-A helps organize small boxes or irregularly shaped items for easier handling.

Technical data

How the banding machine supports your packaging process

• Minimal material use. A slim paper or OPP band secures your bundle, without needing a strap or stretch wrap.
• Choose paper or film. Use a paper band for a natural appearance and easy recycling, or OPP film when product visibility is important.
• Consistent tension for every bundle. Set the tension once on the touch screen, up to 5 kg.
• Hands remain free. The conveyor moves the product under the frame, and the top press keeps it in place while banding.
• Processes Up to 20 bands per minute. Suitable for continuous use at a packing station or at the end of a production line.
• Simple to relocate. The stand is equipped with casters, making it easy to move the machine between work areas.

Operation, feeding, and safety features

• Automatic banding with paper or OPP film bands, 20 or 30 mm wide
• Frame opening measures 460 × 200 mm; accommodates products starting from 50 mm wide
• Table conveyor feeds the product under the frame
• Top press holds the product securely during banding
• Adjustable band tension up to 5 kg
• Touch screen interface for all settings
• 24 V DC control voltage within the machine
• Each port is detected and a resettable production counter is included
• Stand with casters, working height 600 mm
• Single phase, 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW

Operating the ECOBAND-A banding machine

1. Place a roll of paper or OPP band, either 20 mm or 30 mm wide, onto the roll holder at the front of the stand, then feed the band into the machine.
2. Turn the machine on and use the touch screen to adjust the band tension and other settings.
3. Set your product on the conveyor belt; the belt moves it beneath the frame.
4. The top press secures the product while the machine applies the band, tightens it, seals it, and cuts it.
5. Remove the finished, banded product. The on-screen counter tracks each band applied.

Operator responsibilities and workflow integration

To fit into your workflow, the ECOBAND-A can function as a stand-alone unit or as part of a semi-automatic packaging line. It is commonly placed after folding, stacking, or filling operations.

Settings and upkeep

• Band tension. Adjust on the touch screen, up to 5 kg: use a lower setting for soft or lightweight items, and a higher setting for firm bundles.
• Band. Accepts paper or OPP film, 20 mm or 30 mm wide, 0.12 mm thick; rolls must have a 76 mm core and an outer diameter up to 300 mm.
• Production counter. Counts the number of bands applied and can be reset, for example, at the start of a shift or a new job.
• Maintenance. Always turn off the machine before performing any maintenance. Keep the band path and frame clear of paper dust and film scraps, and inspect the belt regularly.

Before purchasing a banding machine

The price is listed on this page. Several factors determine if this machine is right for your products: please review them before requesting a quote, or send your details to us and we will review them with you.

• Product dimensions. The frame opening is 460 × 200 mm, and products must be at least 50 mm wide. Provide your pack dimensions and we will confirm compatibility.
• Band. Compatible with paper or OPP film, 20 mm or 30 mm wide, 0.12 mm thick, on rolls with a 76 mm core and a maximum outer diameter of 300 mm.
• Operating speed. Handles Up to 20 bands per minute.
• Power supply. Single phase, 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW, 2.5 A.
• Space. The machine’s dimensions are 570 × 750 × 1080 mm and it weighs 110 kg; packed dimensions are 620 × 800 × 1130 mm, 130 kg. Goods are collected EXW and all prices exclude VAT.
