ECOBAND-B4620 Banding Machine for Paper & OPP, 30mm

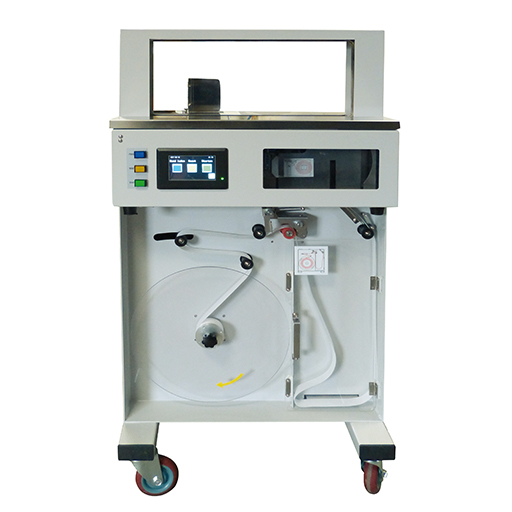

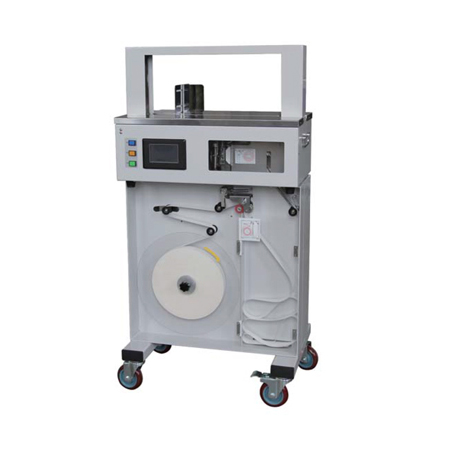

ECOBAND-B4620 Paper & OPP strapping machine

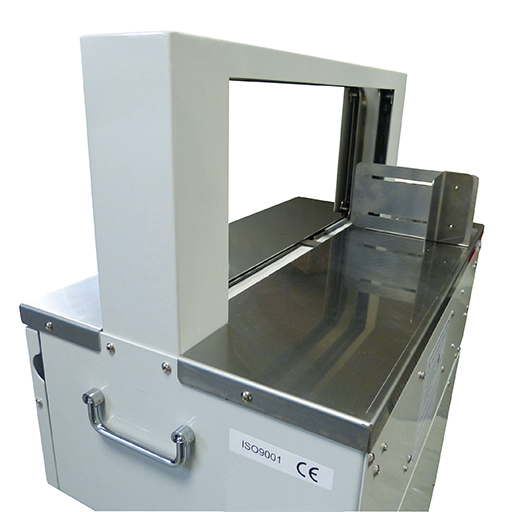

The ECOBAND-B4620 strapping machine is designed for straightforward, dependable operation, using 30 mm wide and 150 meter long paper or polypropylene straps. The ECOBAND-B4620 paper and OPP strapping machine features an arch that is 460 mm wide and 200 mm high, with a strapping speed of up to 26 cycles per minute. It accommodates boxes up to 473 mm × 206 mm and as small as 30 mm × 10 mm. Band tension can be set using the upper knurled nut and the “Tension” adjustment on the touchscreen. The ECOBAND-B4620 supports both manual operation (with pedal) and automatic strapping via sensor.
The ECOBAND-B4620 paper strapping machine is well-suited for traditional applications in graphic arts, bookbinding, and paper processing, and is also ideal for bundling multiple items or combining products for promotional packaging. The ECOBAND-B4620 Paper & OPP strapping machine is a practical solution for packaging in the printing and textile sectors. It enables efficient banding with minimal effort.

Features of the ECOBAND-B4620 Paper & OPP strapping machine

• Microelectronic circuit control for dependable operation
• Supports both manual (with pedal) and fully automatic (with sensor) strapping modes
• Adjustable tightening force and strap size to suit various requirements
• The entire machine has a clean, attractive appearance

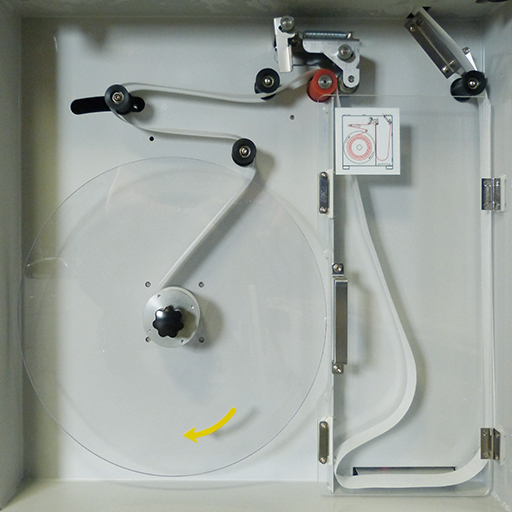

• Large tape magazine enables extended operation without frequent reloads
• Quick and straightforward setup process
• User-friendly control panel
• CE compliant, includes power failure protection
• 24V DC safety voltage

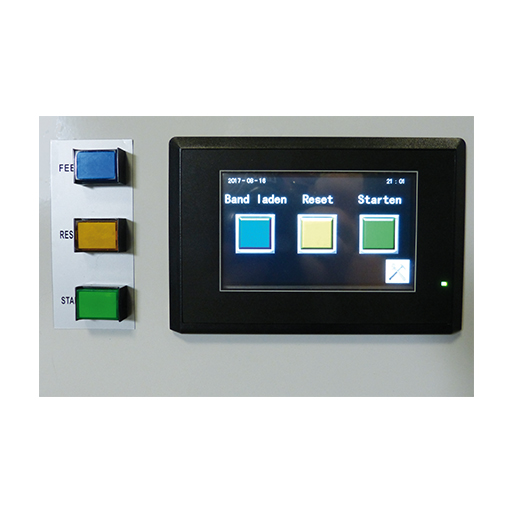

• Operated by both touchscreen and buttons
• Adjust parameters directly on the touchscreen; interface available in 6 languages
• Maximum box size: 473mm × 206mm; minimum box size: 30mm × 10mm

Features of the ECOBAND-B4620 Paper & OPP strapping machine

• This fully automatic OPP strapping machine is designed for quick and simple operation
• Band standby time can be set, so straps are applied within a consistent time frame to help boost output
• Compatible with both paper tape and OPP film straps
• Ready for immediate startup, which significantly increases productivity
• Automatically adjusts to secure the strap tightly
• Ideal for bundling products
• Includes both hand and foot switches
• Works well for banding paper or foil materials
• Equipped with an oversized magazine
• Large contact area designed for gentle handling of soft materials

Technical details

• Overall dimensions: L650 × W360 × H1140 mm
• Maximum box size: 473mm × 206mm; minimum box size: 30mm × 10mm
• Overall height: 1140 mm
• Net weight: 85 kg
• Operating speed: 26 cycles per minute

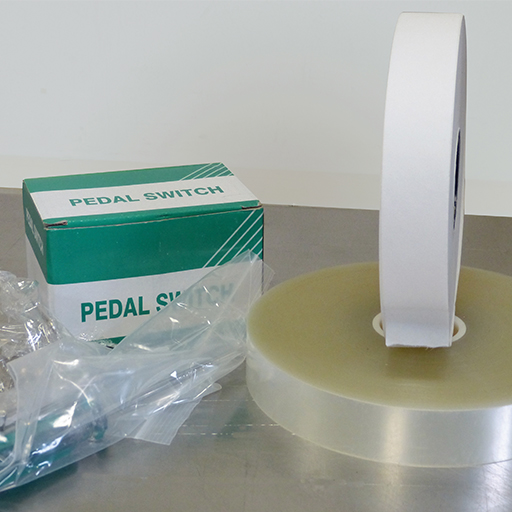

• Included accessories: magazine, foot pedal

ECOBAND-B4620 Paper & OPP strapping machine in operation

This fully automatic banding machine is adaptable for a range of uses. It allows you to bundle products or create compact packaging units. The machine is user-friendly and efficient to operate. It is especially suitable for businesses in printing and textile processing, as it applies only light tension to the strap. Banding machines are used in many industries, including pharmaceuticals, printing, graphics, dairy, currency, cleaning, detergents, cosmetics, beverages, dairy products, hair care, tea, vegetables, fruit, fish, meat, snacks, rice, and flour.

ECOBAND-B4620 Paper & OPP strapping machine technical details

ECOBAND-B4620 Paper & OPP strapping machine demonstration video

▶
