Automatic Stretch Wrapper SMARTWRAP X10 PRE-STRETCH, 2000kg Capacity

SMARTWRAP X10 PRE-STRETCH Automatic Pallet Wrapping Machine, 2000kg capacity

The SMARTWRAP X10 Automatic Pallet Wrapping Machine is a fully automated stretch wrapper that uses LLDPE stretch film to secure bulk goods on pallets, giving added protection during storage and transport against dust, moisture, and damage.

This machine offers several automated functions, including attaching the stretch film to the pallet and enabling the start of the wrapping cycle without operator input. It wraps the pallet load based on preset parameters, cuts the stretch film at the end of the cycle, as well as applies the film to the pallet at the end to keep the load intact during transit.

This pallet wrapping machine is commonly used in industries such as glassware, tools, electrical and electronics, paper, ceramics, food and beverage, and more.

This machine offers a top wrapping speed of 30-40 loads per hour along with a maximum wrap height of 2400mm (with 1800mm or 3000mm as options). This turntable speed can be set from 3 to 12 RPM, plus the turntable diameter is 1650mm (with 1800mm or 2000mm available). The film feed system uses a powered roller featuring Stretch Plus, plus the film width is 500mm as standard. The machine provides a 300% film pre-stretch and supports a film roll diameter up to 250mm.

This control system is Siemens, and the machine includes safety features like an internal safety belt and a double balance mechanism. The automatic pallet wrapper has a weight of 750kg and dimensions of L:2800mm W:1650mm H:2745mm.

The mast height for the automatic pallet wrapping machine is 2745mm, and the turntable is made from 10mm thick steel, precision cut with water-jet technology. The maximum load capacity is 2000kg. Ramp and scale options are available. No air compressor is needed, and the machine operates at temperatures above 0°C.

The X10 Pallet Wrapping Machine is a high-performance solution for securing and protecting palletized goods during storage and transport. This fully automatic system delivers a variety of features and advantages that make it an efficient and effective choice for businesses needing to wrap pallet loads quickly and reliably. Below, we detail the main features and benefits of the X10 pallet wrapping machine.

SMARTWRAP X10 Automatic Pallet Wrapper video

▶

SMARTWRAP X10 PRE-STRETCH Automatic Pallet Wrapper Specifications

• Top wrapping speed: 30–40 pallets per hour
• Diagonal of load: 1753 mm
• Maximum wrap height: 2400 mm
• Turntable rotation speed: 3–12 RPM (variable)
• Turntable diameter: 1650 mm
• Turntable motor: 1 PH
• Film cutting and application to pallet: Automatic
• Film width: 500 mm
• Pre-stretch ratio: 300%
• Film roll diameter: 250 mm

SMARTWRAP X10 Automatic Pallet Wrapper technical information

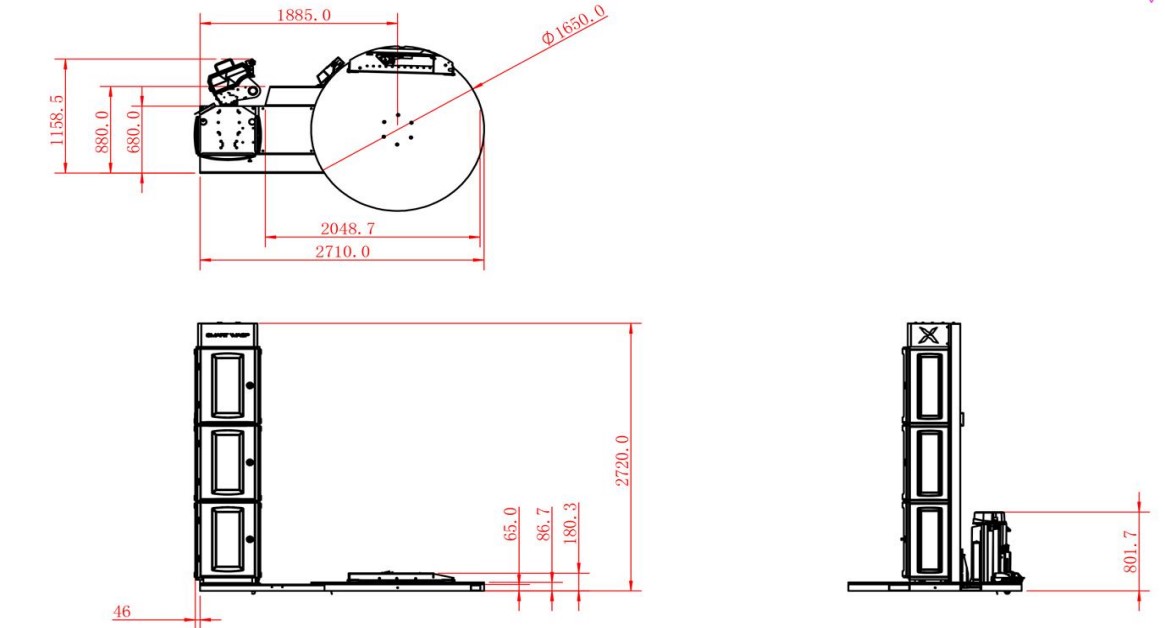

SMARTWRAP X10 Automatic Pallet Wrapping Machine layout

Key features of the SMARTWRAP X10 Automatic Pallet Wrapping Machine

Key Features: Remote machine activation, Smooth start & stop, Smart Alarm System, Returns to home position, Adjustable speed controls, Pallet grid layout, Automatic height detection, Adjustable wrapping tension, with capacity for up to 12 preset programs

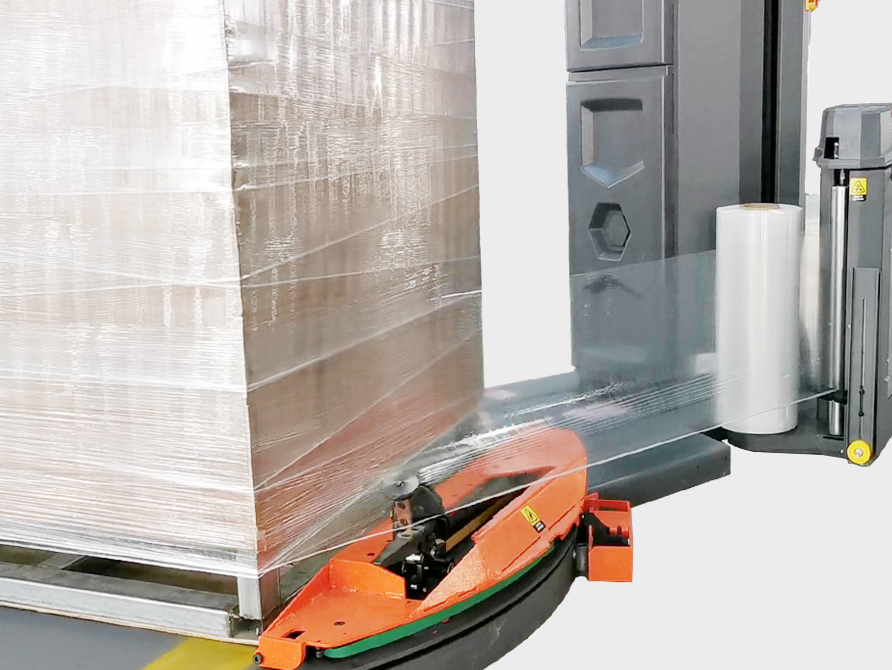

	Automatic Film Cutting and Attachment to Pallet The X10 pallet wrapper is equipped with an automatic film cut-and-clamp system, removing the need for manual handling during the wrapping cycle. This function streamlines the process and boosts productivity by cutting and securing the film automatically.
Pallet Grip Mechanism The X10’s pallet grip mechanism ensures the film is tightly secured around both the pallet and its load. This helps prevent items from shifting or falling during handling and protects goods from potential damage.

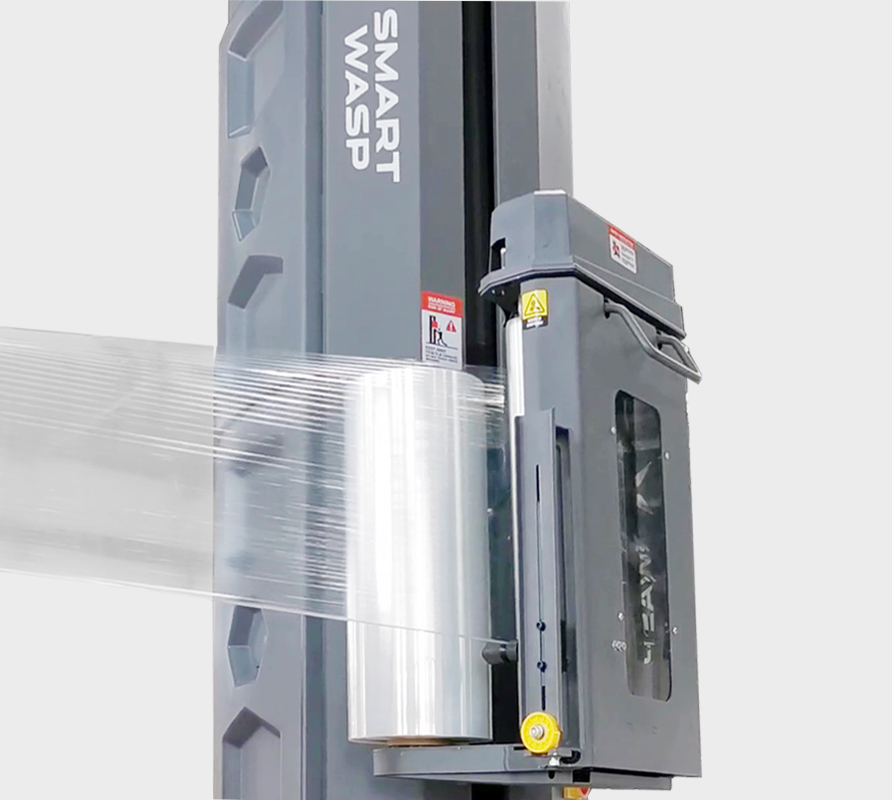

	Film Usage Reduction The X10 automatic wrapper offers a pre-stretch capability of up to 300%, significantly reducing the amount of film needed per pallet. This feature helps lower film expenses and minimizes material waste.

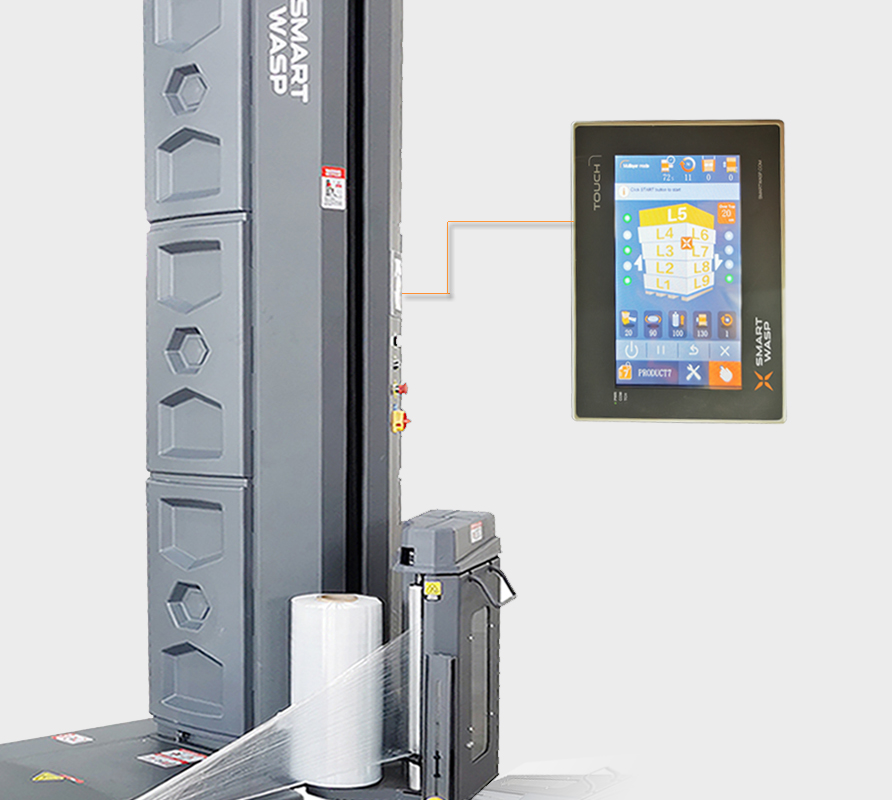

Multi-Layer Wrapping Capability The X10 automatic pallet wrapper allows you to set different wrap cycles and tension at any height, supporting up to 9 layers per pallet. This enables tailored wrapping for each load and ensures secure, reliable protection.
	Premium Components The X10 automatic wrapping machine is built with top-tier components, including a Siemens PLC, SICK proximity switch, AUTONICS photoelectric switch, WEIDMULLER terminal block, X-LINE inverter, and OMRON 24V DC power supply. These parts contribute to the machine’s long-term reliability and durability.

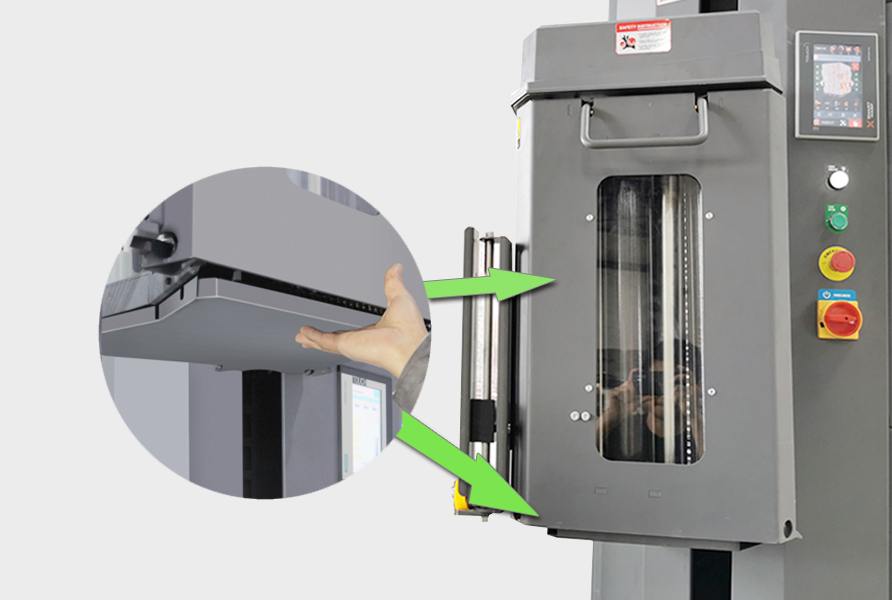

Enhanced Safety Features The X10 is designed with advanced safety systems, such as a protective device beneath the film carriage for operator safety. It also includes a transparent panel for quick troubleshooting, a belt deviation alert, and a damage alarm to prevent the carriage from falling.
	Smart Operation Guidance System The X10 comes with an intelligent guidance system featuring an LED indicator to display machine status: Ready—Blue Operating—Green Alarm—Red The automatic pallet wrapping machine X10 uses a touchscreen interface that provides step-by-step instructions for operation. This makes the machine user-friendly and helps reduce operational mistakes.

Advantages of the SMARTWRAP X10 Automatic Pallet Wrapping Machine

1. Greater Productivity: The X10 pallet wrapper wraps pallets quickly and efficiently, allowing staff to focus on other essential tasks. This improves workflow and reduces manual labor requirements.
2. Lower Film Consumption: The X10 pallet wrapper features a pre-stretch system that extends film up to 300%, helping reduce film usage and cut down on overall costs.
3. Enhanced Safety: The X10 pallet wrapping machine comes with advanced safety elements, including an alarm system, a safety device beneath the film carriage, and a clear panel for easy problem identification. These features help protect operators and minimize workplace hazards.
4. Reliable Wrapping Quality: The X10 pallet wrapper delivers uniform wrapping results every time, thanks to its advanced automation that removes inconsistencies from the process.
5. Flexible Application: The X10 pallet wrapper is capable of wrapping pallets in a variety of shapes and sizes, making it adaptable for many industries and uses.
6. Greater Customer Confidence: The X10 pallet wrapping machine helps ensure products arrive in top condition. Its accurate and dependable wrapping keeps goods protected during handling and storage, leading to higher customer satisfaction.
7. Adjustable Wrap Force: The X10 includes a variable wrap force setting, allowing users to control film tension for tailored wrapping and secure loads.
8. Steady Film Tension: The X10 maintains a consistent film delivery force, ensuring even application and proper tension for a tight, secure wrap.
9. Optional Built-In Scale: The X10 can be equipped with an integrated scale, letting you weigh loads as they are wrapped. This helps confirm weight limits and reduces the risk of damage during handling.

How does the SMARTWRAP X10 automatic pallet wrapping machine operate?

The SMARTWRAP X10 pallet wrapping machine is engineered to wrap palletized items quickly and securely for safe storage and transport. Here’s how the machine works:

1. The operator places the goods on the wrapping machine’s turntable and manually attaches the film to the first side of the load, following the instructions.
2. After starting the machine, the turntable rotates from its starting point while the film carriage dispenses film in sync with the turntable’s speed, wrapping the goods as the table turns.
3. Based on the load’s packaging needs, the film rises after a set number of turns at the base. The film carriage, turntable, and film feed work together to complete the wrapping process.
4. When the film reaches the top of the load, a photoelectric sensor detects the height. The film carriage then lowers after the top layer is wrapped.
5. Once the film carriage returns to the bottom, the turntable slows down and the film is cut in coordination with the turntable. This completes one wrapping cycle, and the machine stands by for the next pallet.
6. After the machine cuts the film and secures the film end to the pallet, the wrapping cycle is complete, and the machine waits in standby mode for the next load.

The SMARTWRAP X10 automatic pallet wrapper streamlines your packaging operations and keeps your products secure for transport and storage. Its built-in automatic film cutting and clamping system allows the X10 automatic pallet wrapper to remove the need for manual handling during the wrapping process. The pallet gripping system holds your load firmly in place throughout transport, so your goods stay secure even when exposed to strong vibrations. With multi-layer wrapping and a smart operation guide, you can easily adjust the wrapping settings to fit your specific packaging needs. The SMARTWRAP X10 also helps lower your film usage costs thanks to its high pre-stretch rate, which reduces the amount of film required for every wrapping cycle. Advanced safety features protect your team during operation, while the transparent panel, belt tracking, and damage alert system make it simple to spot issues and avoid accidents.

The SMARTWRAP X10 automatic pallet wrapper will significantly boost your packaging productivity, cut down on labor expenses, and enhance workplace safety for your staff. If you are considering buying the SMARTWRAP X10 automatic pallet wrapper or if you have any questions, please place an order or request a quote, please fill out the inquiry form on our website or contact our sales representatives. We will respond promptly to your inquiry and provide you with all the information that you need to make an informed decision.
