Pallet Threading Tool B190cm

B190 Pallet Threading Tool

The B190 is a pallet threading tool that lets you feed strap under a pallet without having to kneel or reach underneath by hand.

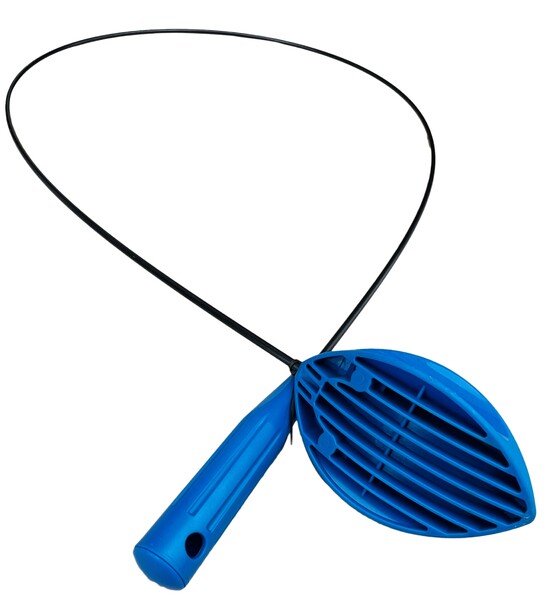

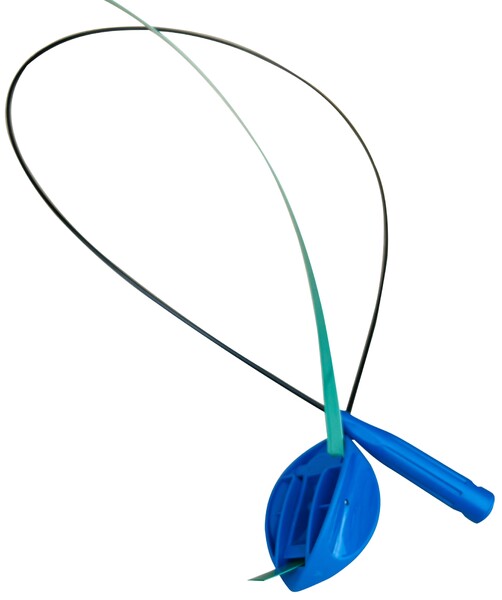

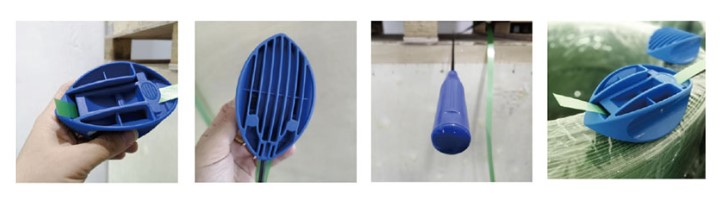

This tool features a 190 cm flexible fiber rod with a handle on one end and a polyurethane clip head on the other. Secure the strap in the clip, and the rod guides it through the pallet.

Handles PP and PET strapping up to 25 mm wide and 1.5 mm thick. The rounded head glides smoothly over pallet boards without snagging.

Weighing less than 300 g, this tool is lightweight and easy to keep nearby at your strapping station.

B190 Pallet Threading Tool: Uses and Workflow

The B190 pallet threading tool is designed for warehouses, logistics operations, manufacturing sites, and retail distribution centers where plastic strapping is used to secure pallet loads. It works well for strapping cartons, drums, bags, and other unitized products for storage or transport. This tool is suitable for both manual and semi-automatic strapping processes, especially when many pallets need to be strapped each shift.

Technical Details

How the Threading Tool Helps

• Work upright. The rod slides under the pallet so you don’t have to kneel or bend over.

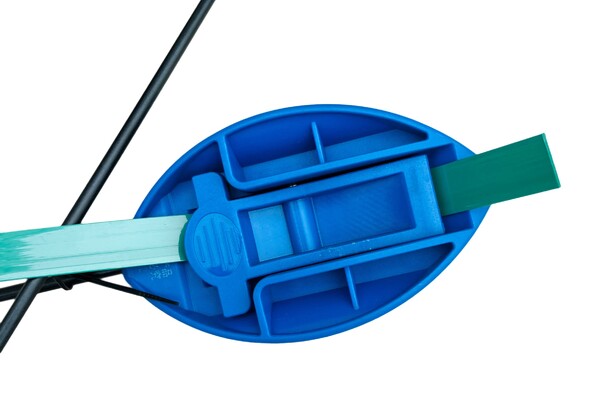

• Strap stays secure. The polyurethane clip holds the strap in place until you pull it out the other side.
• No snagging. The rounded head glides smoothly over pallet boards and won’t get stuck midway.
• Flexible, not brittle. The fiber rod bends easily to follow the gap beneath the pallet.

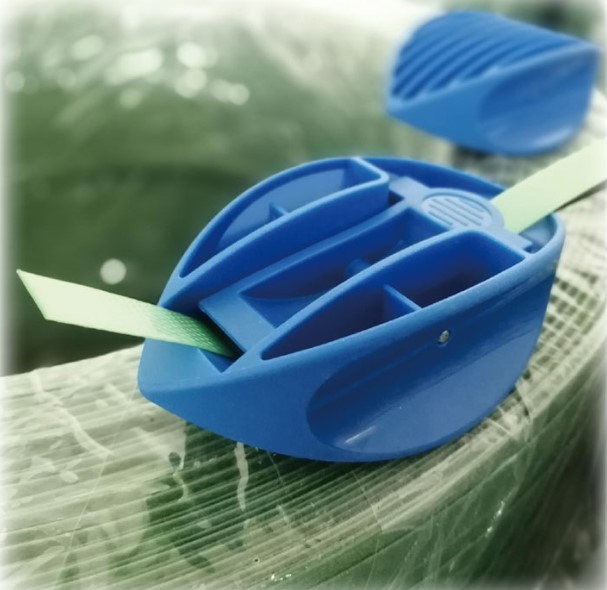

• PP and PET compatible. Designed for plastic strap up to 25 mm wide and 1.5 mm thick.
• Lightweight. Weighs less than 300 g, making it easy to move from pallet to pallet.

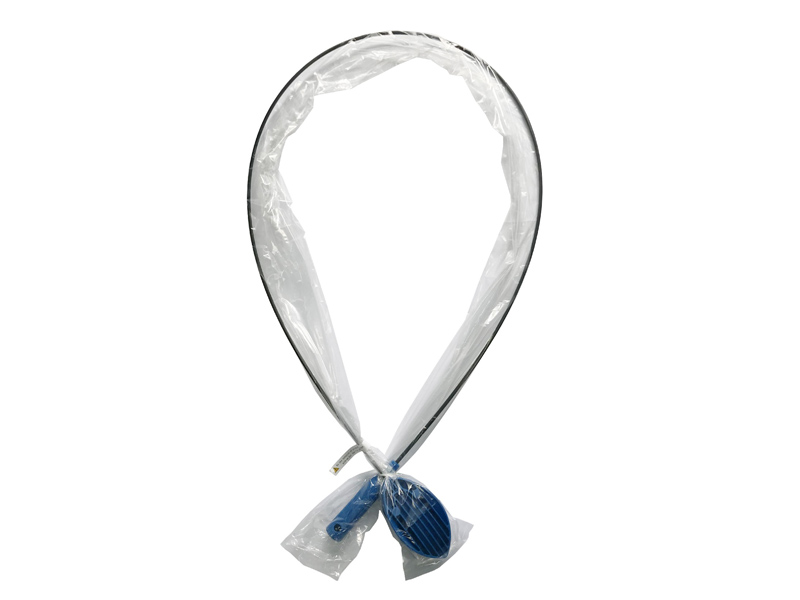

Included with your purchase

• Threading tool for pallets, 190 cm in length
• Highly flexible fiber rod with ergonomic handle

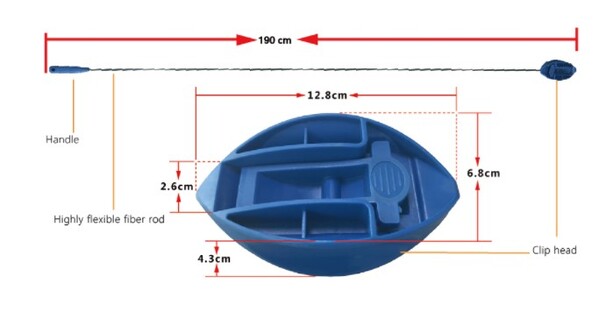

• Clip head made from tough, flexible polyurethane, 128 × 43 × 68 mm
• Works with PP, PET, and other plastic strap up to 25 mm wide and 1.5 mm thick
• Rounded head for smooth movement over pallet boards
• Total weight under 300 g

B190 threading tool: operator instructions and best practices

When using the B190, make sure the strap is straight and untwisted before securing it in the clip. If the strap comes off the roll with a curve, it may be harder to thread unless it lines up with the rod. Guide the head through the pallet opening that matches your intended strap path, steering clear of nails, debris, or damaged boards that could block the head. The flexible rod will follow the gap under the pallet, but don’t force it around sharp bends or through spaces smaller than the head size.

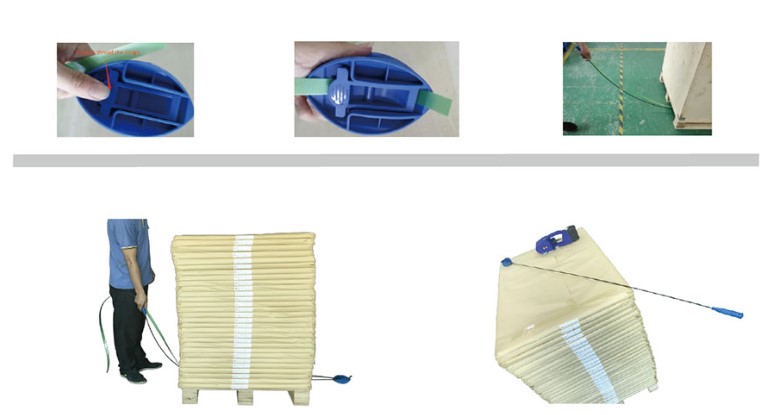

How to thread the strap

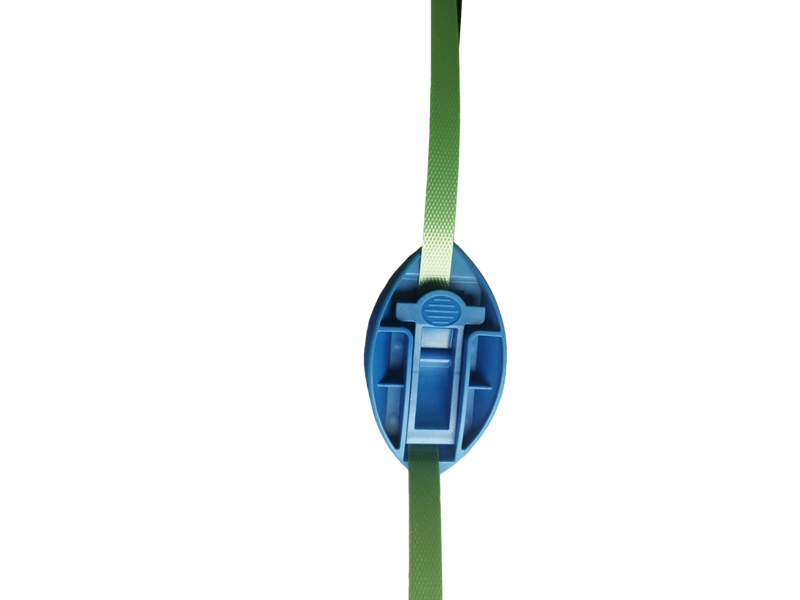

1. Place the end of the strap into the clip head and lock it in place.
2. Hold the handle and push the head through the pallet opening from one side.
3. Guide the rod until the head exits on the opposite side.
4. Remove the strap from the clip and pull it up to the top of your load.
5. Tighten and seal the strap as you normally would.

Usage tips

• Strap dimensions. Accepts strap up to 25 mm wide and 1.5 mm thick; larger straps will not fit the clip.
• Correct threading direction. Push the head through the pallet opening along the intended strap path.
• Secure the strap. If the strap is only placed in the clip and not locked, it may slip out under the pallet.
• Keep the rod straight. The rod is flexible, but avoid sharp bends or stepping on it.
• Between uses. Store the tool at your strapping station so it’s ready for the next pallet.

Important information before purchase

Pricing is listed here. Please review the following before placing your order:

• Your strap. Works with PP or PET strap, up to 25 mm wide and 1.5 mm thick.
• Your pallets. The threading tool head measures 43 mm high by 68 mm wide and must fit through your pallet openings.
• Length. The rod is 190 cm long, so you can reach completely under a pallet from one side.
• More strapping locations. Having a threading tool at each strapping point reduces walking.

B190 threading tool: choosing and integrating

Before selecting the B190, make sure the pallet openings at your facility are large enough for the 43 mm × 68 mm head to fit through. For block pallets or those with narrow stringers, measure the gap to confirm.
