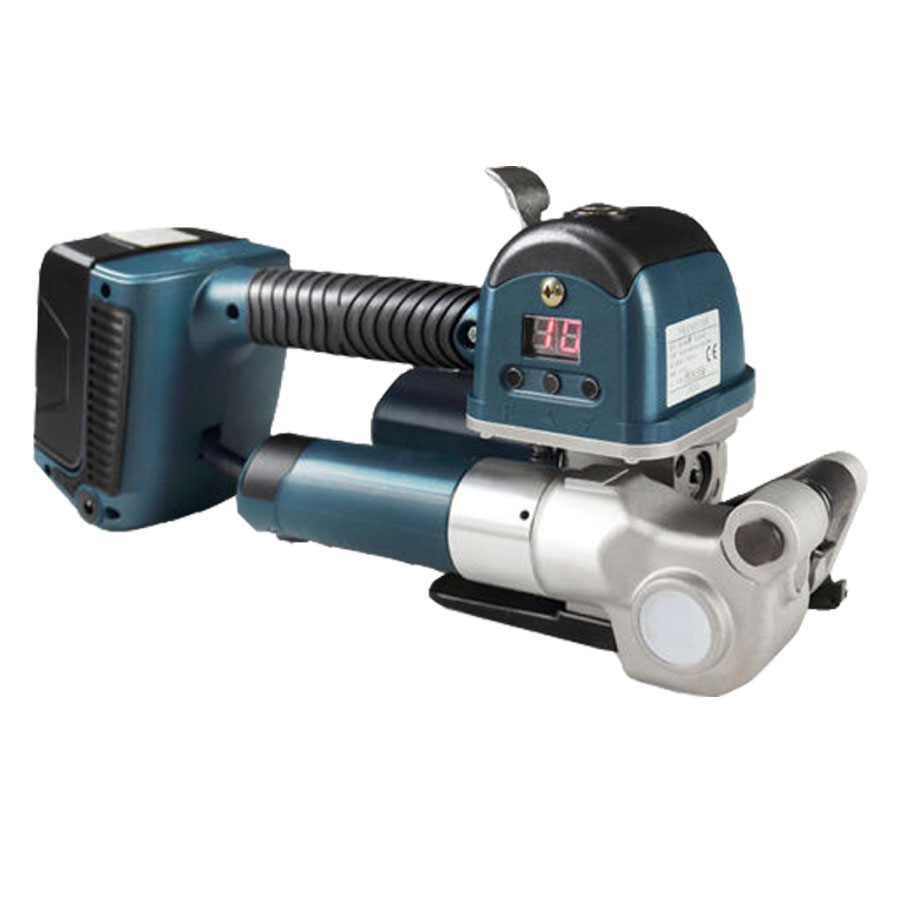

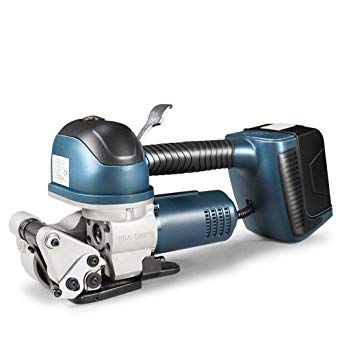

Portable Strapping Machine TES EXTREME 19-25mm – DD25A/0.5 to 1.2mm – 5000N (3.0Ah Lithium) with 1 Charger and 2 Batteries

Battery-powered strapping tool for 19-25mm PET/PP strap TES EXTREME with 2 batteries and charger

The TES EXTREME Battery Strapping Tool features advanced technology and outstanding durability, making it an excellent choice for demanding industrial strapping jobs. Built to manage PET polyester PP and polypropylene straps, this powerful tool delivers both flexibility and high efficiency. Its strap compatibility covers strap widths from 19 mm up to 25 mm and strap thicknesses between 0.8 mm and 1.2 mm, so you can use it for a wide range of strapping tasks. With its adjustable tension settings of 400 to 5000 N, you get accurate control for securing loads of different sizes.

Running on a 14.8 V – 4.0 Ah lithium-ion battery, the TES EXTREME delivers extended run time and quick operation, with a tensioning speed of 180 mm per second. Its ergonomic shape, weighing just 4.32 kg, helps reduce operator fatigue while still providing strong performance. The friction weld sealing method ensures tough seals with up to 75% adhesion strength, making it well-suited for challenging jobs in logistics, warehousing, and manufacturing.

This strapping tool is designed for productivity, offering a quick 90-minute charge time and supporting a broad voltage range (100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A). Its compact size of L 350 mm × W 135 mm × H 170 mm makes it easy to handle in tight workspaces, and the gross package weight of 7 kg allows for simple, secure transport.

Whether you need to bundle products for distribution or secure heavy-duty materials, the TES EXTREME Battery Strapping Tool is built to provide dependable performance with exceptional convenience. The TES EXTREME Battery Strapping Tool is a top-tier solution for securing loads with outstanding accuracy and efficiency. Designed for use with both PET (polyester) and PP (polypropylene) strapping, this advanced tool is made to handle the tough requirements of industrial use. With its sturdy build, strong tensioning power, and easy-to-use controls, the TES EXTREME is the go-to tool for professional strapping jobs.

Main features of the 19-25mm PET/PP battery strapping tool

1. Strap Compatibility:

• Width: 19 – 25 mm
• Thickness: 0.8 – 1.2 mm
• Strap Material: PET and PP

Thanks to its wide compatibility, the TES EXTREME is well-suited for many uses, from light packaging tasks to demanding industrial strapping.

2. Adjustable Tension Range:

• Tension: 400 – 5000 N

With its adjustable tension feature, this tool adapts to different load needs, making sure each strapping job uses the right force to secure the load without causing any damage.

3. Rapid Tensioning Speed:

• Speed: 180 mm/sec

The TES EXTREME is designed for maximum efficiency. Its fast tensioning speed allows for quick and dependable operation, helping to minimize downtime and boost productivity.

4. Bonding Strength:

• Typical Bonding Strength: Up to 75%

The friction weld sealing method ensures strong, lasting seals for stable loads during storage and handling. Seal quality depends on the strap material, giving you flexibility for different applications.

5. Enhanced Battery Technology:

• Battery: 14.8 V – 4.0 Ah Lithium-ion battery
• Charge Time: 90 minutes
• Charging Voltage: 100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A

The durable lithium-ion battery delivers long run times, making it perfect for high-volume strapping work. With a quick 90-minute recharge, you can keep interruptions to a minimum.

6. Slim and Lightweight Build:

• Tool Dimensions: L 350 mm × W 135 mm × H 170 mm
• Weight (including battery): 4.32 kg

Its ergonomic shape and lightweight build help reduce operator fatigue, so the TES EXTREME stays comfortable to use even during long shifts.

7. Packing Dimensions:

• Box Size: L 440 mm × W 280 mm × H 185 mm
• Box Volume: 0.023 CBM
• Gross Weight: 7 kg

The tool is packed securely and compactly to protect it during storage and when being picked up.

Technical details for battery-powered strapping tool for 19-25mm PET/PP strap

Why Choose a 25 mm Wide PET Strap Over a 16 mm, 19 mm PET Strap, or Steel Strap?

Selecting the correct strapping material and width is key to keeping loads secure and operations efficient. Here’s why a 25 mm PET strap outperforms narrower options like 16mm or 19mm, as well as traditional steel strapping:

1. Increased Load Support

• 25mm PET straps provide a larger contact area, helping to spread tension more evenly over the load. This helps prevent deformation or damage, especially when securing heavy or delicate products.
• When compared to 16mm or 19mm straps, the 25mm size delivers higher strength, giving extra stability for bigger and heavier pallets.

2. Lower Chance of Load Damage

• PET straps are less likely to scratch and do not rust like steel straps, so they won’t leave marks or cause corrosion on your products. This makes 25mm PET straps a good choice for sensitive or valuable items.

3. Cost Savings and Long-Lasting Performance

• PET straps are more economical than steel straps, offering similar performance without the risk of breaking or losing tension over time.
• The 25 mm strap width adds to the strap’s strength and lifespan, so you’ll need to replace them less often than narrower straps.

4. Flexible for Many Uses

• A 25 mm PET strap is versatile enough for a broad range of uses, from lighter packaging to securing heavy-duty industrial loads, making it a practical solution for different strapping requirements.

5. Safer for Operators

• Steel straps can be dangerous due to sharp edges and the risk of snapping back. PET straps, especially in 25 mm strap width, are lighter and easier to handle, helping to reduce the chance of injury during use.

Choosing 25mm PET straps delivers better performance, safety, and cost savings, making them the best fit for today’s strapping requirements.

Instructions for Using the Battery-Powered Strapping Tool with 19-25mm PET/PP Straps

Operating the TES EXTREME Battery Strapping Tool is simple and designed for user productivity. Follow these steps for the best results:

1. Set Up the Tool

• Make sure the battery is fully charged and snap it into the tool until it locks in place.
• Choose the correct strap width (19mm to 25mm) and check that the tool is set for that size.

2. Place the Straps

• Wrap the PET or PP strap around your load, making sure the ends overlap.
• Feed the overlapping ends of the strap into the tool’s guide slot.

3. Set the Tension

• Adjust the tension setting using either the control knob or the digital panel, depending on your specific model.
• Raise the tension for heavier loads, or lower it for lighter items as needed.

4. Tension the Strap

• Hold down the tension button. The tool will automatically pull the strap tight to your chosen tension.
• Let go of the button when the strap reaches the desired tightness.

5. Seal the Strap

• Start the friction weld process by pressing the seal button. The tool will weld and trim the strap at the same time, creating a strong seal.
• Wait for the tool to signal that welding is finished, usually by a beep or an LED indicator.

6. Remove the Tool

• Lift the tool away from the strap. Check the seal to confirm it is secure and properly fused.

7. Repeat as Needed

• Continue strapping more loads and recharge the battery when necessary.

By following these instructions, you’ll achieve safe, efficient, and consistent strapping every time.

Where is the Battery Strapping Tool for 19-25mm PET/PP Straps used?

The TES EXTREME Battery Strapping Tool is built for use across many industries and applications. Its strong construction and flexibility make it a reliable option for securing loads quickly and safely. Here are some examples of where this tool performs well and why:

1. Logistics and Warehousing
   • Example: Securing pallets with mixed products for shipping.
   • Reason: With adjustable tension from 400-5000 N, every load can be tightly strapped to prevent shifting during transport. The lightweight build helps warehouse teams use the tool comfortably during extended work periods.
2. Manufacturing
   • Example: Bundling finished products for delivery to several retailers.
   • Reason: The tool works with 19-25mm PET/PP straps, fitting different product sizes, and the tough friction weld seals keep loads secure during shipping.
3. Construction
   • Example: Strapping heavy construction materials such as bricks, wood, or steel rods for transport to job sites.
   • Reason: The tool can apply up to 5000 N of tension, making sure even the heaviest loads are strapped safely and stay in place during transit.
4. Retail and Distribution
   • Example Use: Securing bulk items like beverages or electronics for retail distribution.
   • Reason: PET straps won’t rust or leave marks, making them perfect for strapping valuable or delicate products.
5. Agriculture
   • Example Use: Securing hay bales, produce, or fertilizer for transport from farms to distributors.
   • Reason: The tool’s fast tensioning speed of 180 mm/sec helps save time on large strapping jobs, which is especially important during harvest.

These examples show how the TES EXTREME Battery Strapping Tool supports a wide range of industries, ensuring safety, efficiency, and reliability in every use.

What’s included when you pick up the battery-powered Strapping Tool for 19-25mm PET strap?

The TES EXTREME package contains:

• TES EXTREME Battery-Powered Strapping Tool
• 2 Lithium-ion Batteries (14.8 V – 4.0 Ah)
• Battery charger (100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A)
• User Guide
• Warranty Card
