Battery Banding Tool PET GT SMART Plus 9-16mm (3/8″-5/8″) for PET/PP Strap with Battery & Charger

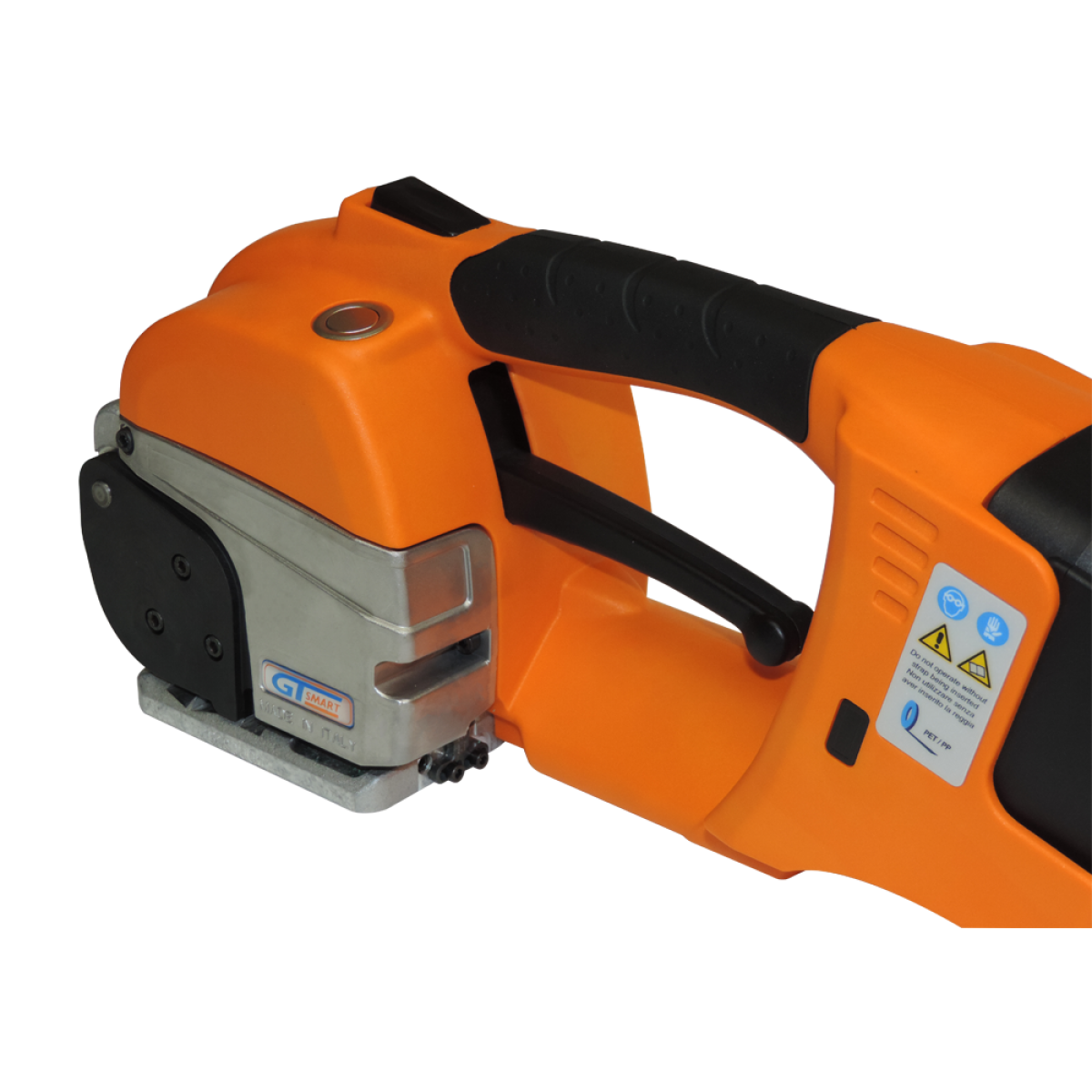

SIAT GT-SMART Plus battery-powered strapping tool

The SIAT GT SMART Plus is a next-generation, lightweight, and fast battery strapping tool. The GT ONE battery banding strapping tool offers extensive customization and is suitable for 9-16mm or 3/8″ to 5/8″ wide polyester (PET) or polypropylene (PP) strap. Designed for one-handed operation, this battery strapping tool is cost-effective and user-friendly. The strapping tension can be adjusted up to 1800 N (400 lbs). The GT SMART Plus battery strapping tool is supplied with one battery and a charger, so you can begin strapping as soon as you collect your equipment. Its maneuverability and straightforward operation make it suitable for both vertical and horizontal strapping tasks. The GT SMART Plus battery banding tool is engineered to provide a strong friction weld seal. Service is available in Europe and it comes with a 12-month warranty. The GT SMART Plus 9-16mm (3/8″ to 5/8″) battery strapping tool is widely used across various industries and warehouse settings. It offers one of the most straightforward and secure methods for strapping pallets. The tool supports both manual and soft modes. Tensioning is activated with the tension button, and sealing is initiated with a separate weld button. It is simple to operate and adjust. The tool is well-balanced and relatively light. The brushless motor is powered by the latest Li-Ion battery technology. With this battery strapping tool, you can streamline your workflow and accelerate your packaging process. The tool features adjustable modes to suit your application: manual and soft. It is easy to use and adjust, and its balanced design allows for both vertical and horizontal strapping. The brushless motor is powered by advanced Li-Ion battery technology. This battery strapping tool is engineered for durability and can handle demanding use in factories or warehouses. Goods are collected EXW and prices exclude VAT.

Key features of the GT-SMART Plus battery-powered strapping tool:

• POWER SUPPLY:
  • 14.4V Li-Ion battery made in Germany by AKKU POWER using high-performance LG cells
• PRIMARY MOTOR:
  • AMETEK 14.4V motor (brushless, sensorless, high-speed)
  • the motor’s counterclockwise rotation is used for tensioning, while clockwise rotation is used for welding
  • motion is transmitted through mechanical one-way clutch bearings
  • the main electronic board’s Microchip CPU controls the main motor
• MAIN ELECTRONIC BOARD
  • the Microchip CPU board manages the main motor, the stepper linear actuator, tool settings and adjustments, and tool errors
• USER INTERFACE ELECTRONIC BOARD
• Mechanical drive with a speed reduction gearbox for the tensioning system
• Welding system with a semi-automatic lowering mechanism on the carriage support
• Aluminum frame

Technical Details for SIAT GT-SMART Plus Battery Strapping Tool

GT SMART Plus Battery Strapping Tool Technical Details:

• Maximum tension: 1800N
• Tool weight: 3.2kg without battery (the lightest tool available)
• Operating modes: manual/soft
• Maximum tensioning speed: 14 meters per minute
• SP3 Battery (Akku Power) 14.4V – 4.0Ah Li-Ion
• Brushless motor
• Excellent handling (outperforms all competitors)
• Durable plastic housing with a natural rubber grip
• Front and rear guides can be adjusted for any strap size
• A unique system for changing strap sizes. No need to swap guides—just make an extremely simple adjustment that takes no more than 30 seconds.
• With this feature, both distributors and end users can quickly switch strap sizes without changing the guide, saving significant time
• The GT SMART Plus design immediately conveys a sense of modernity and durability
• Intuitive touch control panel
• Highly ergonomic design
• The plastic housing provides a quality feel and an instant impression of “premium construction”

GT-SMART Plus Battery Strapping Tool – Brushless Motor

Brushless DC motors offer several benefits over traditional brushed DC motors. The main advantage is the absence of brushes and a physical commutator, resulting in fewer components that can wear out or require replacement. As a result, brushless DC motors (BLDC) are typically more dependable, have a longer lifespan, and operate more efficiently. BLDC motors can last over 10,000 hours. Additionally, they are capable of running at speeds above 10,000 rpm, whether under load or not. Their enclosed design helps minimize noise and electromagnetic interference compared to standard DC motors. For these reasons, we estimate an energy saving of about 25% in our applications compared to AC motors.

Benefits of the GT SMART Plus Battery Strapping Tool

• Feed-wheel with a redesigned opening system enables a shorter base plate and requires less force to open
• Natural rubber handle – double “die-casting” process ensures the rubber is perfectly aligned with the plastic housing. The handle is engineered for optimal grip in any position (vertical or horizontal).
• Exceptional handling – perfectly balanced center of gravity – can be operated with just one finger
• Simple to use with fast strapping performance
• Reliable operation throughout the process
• Intuitive controls featuring a key lock option
• Compatible with a range of PET strap widths (from 9mm up to 16mm)
• Consistent performance powered by advanced Li-Ion battery technology (no “memory effect”)
• A professional-grade industrial tool designed for continuous use, weighing just 3.2kg without the battery (the lightest tool available)
• Affordable battery strapping tool with low total cost of ownership
• Durable construction & reduced maintenance expenses due to the brushless motor
• Highly efficient manual operation (perfectly balanced)
• Versatile use enabled by its compact build

SIAT GT SMART Plus battery strapping tool demonstration video

▶
