    SMARTWRAP X2 PRE-STRETCH Pallet Wrapper with Integrated Scale

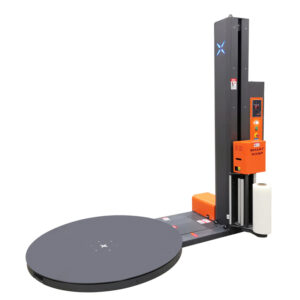

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale

    The SMARTWRAP X2 PRE-STRETCH is a turntable pallet wrapper with an integrated scale, engineered for warehouse, logistics, and production settings where weighing and wrapping pallets in one process is essential. With its built-in scale and powered pre-stretch film system, operators can capture the weight of each pallet as it is wrapped, eliminating the need for a separate weighing step.

    This product line is configurable with turntable diameters of 1500, 1650, 1800, 2000, and 2200 mm, and wrapping heights of 2200, 2600, and 3000 mm, allowing you to match the machine to your pallet and load height requirements. All versions support loads up to 2000 kg.

    Featuring a powered pre-stretch system, touchscreen interface, and a German-made SICK height sensor, this pallet wrapper with scale is designed for consistent, efficient operation shift after shift.

    SMARTWRAP X2 PRE-STRETCH Pallet Wrapper with Scale — Technical Details

    Product Series SMARTWRAP X2 (New X0)
    Turntable Diameter 1500 / 1650 / 1800 / 2000 / 2200 mm
    Wrapping Height 2200 / 2600 / 3000 mm
    Overall Machine Height 2000 mm (with 2200 mm wrapping height); 3000 mm (with 3000 mm wrapping height)
    Maximum Load Capacity 2000 kg
    Turntable Height 81 mm
    Turntable Speed 0–12 rpm (adjustable)
    Film Carriage Speed 0–5.9 m/min (adjustable)
    Wrapping Throughput Up to 30 pallets/hour
    Film feed Motorized pre-stretch, 250% (up to 350%)
    Film width 500 mm
    Film core diameter 76 mm
    Built-in scale Included
    Height detection SICK photoelectric sensor (Germany)
    Mast Extruded aluminum (4000 t), dual chain lift, lifetime warranty
    Controls Integrated PCB circuit (4 separate chips), touchscreen, 6 programmable memories, single-button operation
    Electrical supply 220 V, 50/60 Hz, 1PH
    Power consumption 1.5 kW
    Sound level 75 dB
    Machine weight (for 2200 mm wrap height) 550 kg
    Available features Top press, loading ramp
    Certification CE (2006/42/EC, 2014/35/EC, 2004/30/EC)
    Warranty 12-month warranty
    Manufacturing location China
    Package dimensions 200 x 300 x 140 cm
    Package weight 460 kg

    Main Features and Advantages of the SMARTWRAP X2 Pallet Wrapper with Scale

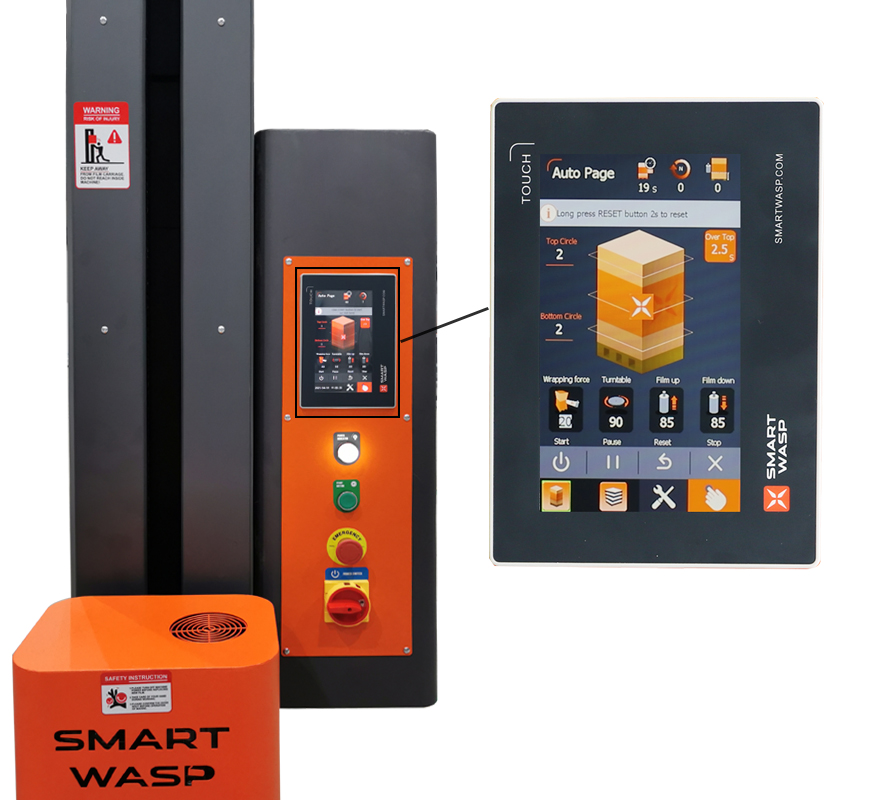

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale – touch screen

    • Built-in scale — weighs each pallet as it is wrapped, so you can record pallet weights without a separate scale and document them for shipping, freight, and inventory in one step.
    • Powered pre-stretch 250% (up to 350%) — stretches film before application, allowing each roll to cover more surface area. This reduces film use per pallet and improves load security by applying film at a controlled tension.
    • 2000 kg load capacity — supports heavy pallets typically found in warehouses and production areas, whether stacked high or placed near the floor.
    • Extruded aluminum mast (4000 t) with dual chain lift — a strong, long-lasting column with a smooth carriage; the mast is covered by a lifetime warranty.
    • SICK (Germany) photoelectric height sensor — automatically senses the height of each load, so film is only applied where needed, preventing unnecessary wrapping above the pallet.
    • Touchscreen with 6 memory settings and single-button operation — save programs for frequent load types and run them consistently for every operator and shift.
    • Turntable speed adjustable from 0 to 12 rpm; carriage speed adjustable from 0 to 5.9 m/min — set the cycle to match load stability and throughput, slowing down for unstable loads or speeding up for well-built ones.
    • Multiple turntable diameters and wrapping heights available — five turntable sizes and three wrapping heights allow you to match the machine to your pallet sizes, instead of settling for a single option.

    Operating the SMARTWRAP X2 Pallet Wrapper

    • Set your loaded pallet on the low-profile turntable, which is just 81 mm tall for easy access with a pallet jack.
    • Secure the start of the 500 mm stretch film to the pallet.
    • Choose one of the 6 saved wrapping programs on the touchscreen, or adjust the turntable and carriage speeds for your current load.
    • Press the single start button; the soft start/stop function and SICK photoelectric sensor will automatically run the cycle and measure the load height.
    • View the pallet weight on the built-in scale as wrapping takes place, and record it for your shipping or inventory needs.
    • Once the program is complete, remove the stabilized and weighed pallet for pickup.

    Applications for the SMARTWRAP X2 Pallet Wrapper

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale – pre stretch 250

    The SMARTWRAP X2 is ideal for warehouses, logistics hubs, distribution centers, and production lines that handle palletized shipments. With its ability to weigh and wrap in a single operation, it’s especially useful for businesses that require documented load weights for dispatch, freight calculation, or inventory management—eliminating the need for a separate scale and saving both space and handling time.

    Construction and Compatibility

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale

    This machine features an extruded aluminum column manufactured under 4000 t of pressure, with a dual chain lift system for smooth film carriage movement. It accommodates 500 mm wide film on a 76 mm core and applies it using powered pre-stretch. Optional accessories, such as a top press and ramp, make it suitable for unstable loads and allow for easy pallet truck loading.

    Performance and Features

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale – inverter

    This pallet wrapper with integrated scale can process up to 30 pallets per hour. The turntable speed adjusts from 0 to 12 rpm, and the film carriage speed ranges from 0 to 5.9 m/min, giving operators control over wrap quality and throughput. Powered pre-stretch at 250% (up to a maximum of 350%) increases film coverage per roll, helping manage costs while maintaining secure load containment up to 2000 kg. The machine operates on 220 V, 50/60 Hz single phase, using 1.5 kW, and runs at a moderate noise level of 75 dB.

    Safety and Reliability

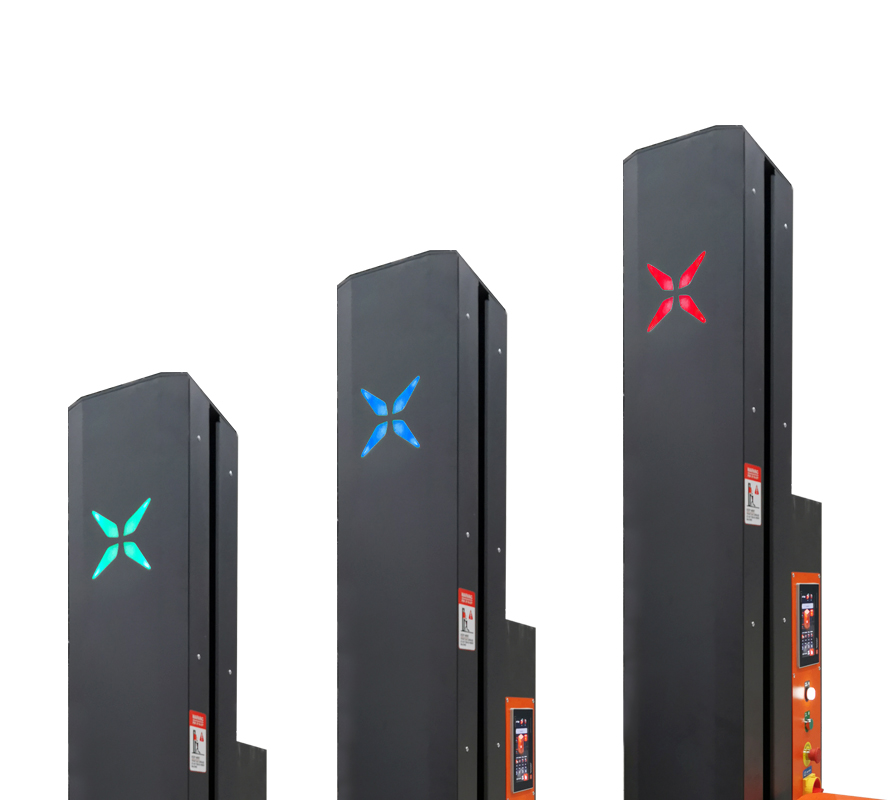

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale – led indicator

    Safety features include soft start and stop, a smart alarm, anti-pressure and anti-fall protection at the base of the film carriage, an emergency stop button, and a three-color LED status light. The machine is CE certified to 2006/42/EC, 2014/35/EC, and 2004/30/EC standards. The aluminum column is backed by a lifetime warranty, underscoring its robust design for continuous industrial operation.

    Settings and Maintenance

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale – film carriage

    All wrapping adjustments are made through the touchscreen, where you can set and recall turntable speed, carriage speed, and six memory programs without tools. The film carriage uses standard 76 mm film cores and 500 mm film width, making it easy to source consumables. The extruded aluminum column with dual chain lift is engineered for long-term durability and is covered by a lifetime warranty.

    Purchase the SMARTWRAP X2 PRE-STRETCH Pallet Wrapper with Scale

    SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale

    The SMARTWRAP X2 brings together an integrated scale, powered pre-stretch, and a durable aluminum column in one stretch wrap solution, available in five turntable diameters and three wrapping heights, all rated for 2000 kg. It comes with a 12-month warranty. Select the SMARTWRAP X2 PRE-STRETCH pallet wrapper configuration that matches your load requirements and combine weighing and wrapping in one efficient process.

    Additional information

    Weight N/A
    Dimensions N/A
    Turntable size

    1500mm, 1650mm, 1800mm, 2000mm, 2200mm

    Wrapping height

    2200mm, 2600mm, 3000mm

    Parameter Specification
    Model

    SMARTWRAP X2 PRE-STRETCH (New X0)

    Turntable diameter

    1500 / 1650 / 1800 / 2000 / 2200 mm

    Wrapping height

    2200 / 2600 / 3000 mm

    Machine height

    2000 mm (at 2200 mm wrapping height); 3000 mm (at 3000 mm wrapping height)

    Maximum load

    2000 kg

    Turntable height

    81 mm

    Turntable speed

    0-12 rpm (adjustable)

    Film carriage speed

    0-5.9 m/min (adjustable)

    Packing speed

    Up to 30 loads/h

    Film delivery

    Powered pre-stretch 250% (max 350%)

    Film width / core

    500 mm / 76 mm

    Film thickness

    14 micron

    Integrated scale

    Yes

    Label printer

    No

    Control

    Touch screen, 6 wrapping memory programs, one-button start

    Height sensor

    SICK (Germany) photoelectric

    Column

    Extruded aluminium (4000 t) with double chain lifting

    Power

    1.5 kW

    Power supply

    220 V, 50/60 Hz, 1PH, 10 A

    Noise level

    75 dB

    Operating temperature

    0-40 C

    Humidity

    Max 70%

    Machine weight

    550 kg

    Certification

    CE (2006/42/EC, 2014/35/EC, 2004/30/EC)

    Warranty

    12 months

    Country of origin

    China

    What is the maximum pallet weight the SMARTWRAP X2 PRE-STRETCH can handle?

    This machine is rated for pallet loads up to 2000 kg.

    How does the built-in scale enhance the wrapping process?

    The integrated scale weighs the pallet as it is wrapped, so there’s no need for a separate weighing station, and you can document the weight in a single step.

    What turntable diameters and wrapping heights are offered?

    Turntable diameters are available from 1500 mm to 2200 mm, and wrapping heights come in 2200 mm, 2600 mm, and 3000 mm options.

    How does the powered pre-stretch system optimize film usage?

    The film is stretched up to 250% (maximum 350%) before being applied, covering more area per roll and helping to lower film usage.

    Can the wrapping speed be changed for different types of loads?

    Yes, you can set the turntable speed anywhere from 0 to 12 rpm, and the carriage speed from 0 to 5.9 meters per minute.

    What safety systems are included with this pallet wrapper?

    This model features soft start and stop, an emergency stop button, smart alarm notifications, anti-crush and anti-drop mechanisms, and a three-color LED status light.

    Is this machine appropriate for loads that are unstable or uneven?

    You can add optional top pressure and ramp attachments to help secure unstable loads and make it easier to load with pallet jacks.

    What kind of stretch film does the SMARTWRAP X2 require?

    It takes 500 mm wide film on standard 76 mm cores, designed for use with powered pre-stretch systems.

    How does the machine detect the height of the load during wrapping?

    A SICK photoelectric sensor from Germany automatically measures the load height so film is applied only where it's needed.

    What warranty is provided for the machine’s structural parts?

    The extruded aluminum column comes with a lifetime warranty, highlighting its robust industrial construction.

    Summary

    • SMARTWRAP X2 PRE-STRETCH turntable pallet wrapper with built-in scale — weigh and wrap your pallet in one step
    • Handles loads up to 2000 kg for demanding warehouse and production use
    • Powered pre-stretch film system delivers 250% stretch (up to 350% max) to help reduce film usage
    • Wraps up to 30 pallets per hour
    • Turntable speed adjustable from 0–12 rpm; film carriage speed adjustable from 0–5.9 m/min
    • Available turntable diameters: 1500, 1650, 1800, 2000, and 2200 mm
    • Available wrapping heights: 2200, 2600, and 3000 mm
    • Touchscreen controls, 6 programmable wrap cycles, single-button start
    • SICK (Germany) photoelectric sensor for automatic load height detection
    • Safety features: soft start/stop, smart alarm, anti-fall protection, emergency stop, three-color LED; CE certified
    • Extruded aluminum column (4000 t) with dual chain lift and lifetime warranty
    • 500 mm film width, fits 76 mm core; includes a 12-month warranty
