Automatic Side Sealer A450 – 15m/min – Maximum Packing Height 150mm

Automatic Side Sealer A450

Automatic Side Sealer A450 is a packaging machine built for industrial use, providing efficient and dependable sealing with shrink film. It is engineered for industrial settings that handle tall and lengthy products like doors, wood panels, and other items that need secure shrink wrapping. The equipment accommodates product heights from 5 cm to 25 cm, making it suitable for a range of shapes and ensuring uniform shrink results. This machine is essential for manufacturers and businesses looking to improve packaging quality and productivity.

This equipment runs on a 220V, 50/60Hz electrical supply and uses 1.35 kW of power. It comes with an automatic film feed and a waste film collection system to keep the workspace organized and minimize material waste. The sealing area allows for unlimited product length, with a maximum seal width of 350 mm and a maximum packing height of 120 mm. The machine delivers a fast sealing rate of 15 meters per minute and operates at an air pressure of 0.5 Mpa, supporting efficient and continuous packaging operations.

Automatic Side Sealer A450 demonstration video

▶

Automatic Side Sealer A450 Frequently Asked Questions

1. What are the smallest and largest product dimensions that the Automatic Side Sealer can handle?
   This machine can handle products with a minimum size of 5 cm in length, 5 cm in width, and 2 cm in height. The sum of width and height must not exceed 420 mm. The maximum height is 150 mm, and there is no limit on product length, making it ideal for packaging long or tall items.

2. Which shrink film materials can be used with this machine?
   This unit works with POF, PVC, and PP shrink films, providing options to match your packaging and product protection requirements.

3. What are the electrical requirements and recommended operating conditions for the Automatic Side Sealer?
   The unit operates on a 220V, 50/60Hz power source and consumes about 1.35 kW, making it suitable for typical industrial electrical environments.

4. What is the maximum sealing speed of this machine?
   This model seals at speeds up to 15 meters per minute, supporting efficient, high-volume production with reliable sealing quality.

5. Is the machine equipped with automatic controls, manual controls, or both?
   The machine is equipped with automatic film feeding and waste collection, and offers both manual setup and automatic packaging modes, all managed through an operator interface.

6. How does the machine keep operators safe?

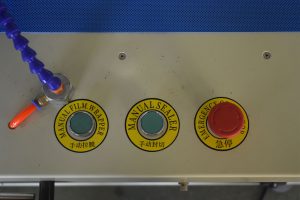

   Safety measures include an automatic retraction of the sealing blade if something blocks its path, protective guards over moving components, and emergency stop buttons to help prevent injuries.

7. What maintenance is needed to keep the machine operating efficiently?
   Regular upkeep includes wiping down the sealing blades before they cool below 70°C, draining water from the air compressor once a month, and inspecting and replacing worn components as needed to prevent interruptions.

8. Can the machine package products of different shapes?
   Yes, it is designed to accommodate a variety of product shapes within its size range, making it suitable for many packaging needs.

9. How does the machine help cut down on material waste?
   The system features automatic collection of excess film and efficient sealing, which helps reduce the amount of shrink film used and supports both cost savings and environmental responsibility.

10. What are the machine’s size and space requirements for production planning?
    The equipment is about 1650 mm long, 800 mm wide, and 1450 mm high, with a weight of roughly 300 kg. It should be placed on a stable surface with enough room around it for maintenance access.

Automatic Side Sealer Specifications A450

ROI for the Automatic Side Sealer A450

The Automatic Side Sealer A450 streamlines packaging by automating the sealing process, which cuts down on manual work and reduces mistakes. It produces reliable, high-quality seals that help protect goods during shipping and storage, lowering the risk of damage and returns. With a sealing speed of up to 15 meters per minute, it boosts output, helping companies keep up with demanding production schedules. The automatic waste film collection also helps reduce material costs. As a result, businesses benefit from faster packaging, improved quality control, and reduced operating expenses, leading to a strong return on investment.

Main Features and Advantages of the Automatic Side Sealer A450

This model is equipped with automatic film feed and waste film take-up systems for smooth, uninterrupted packaging. It handles products of different shapes and sizes thanks to its flexible sealing width and unlimited length capacity. The machine operates at a high-speed sealing capability and offers dependable performance with adjustable sealing temperature and timing, which can be set for various film types and thicknesses. These features help reduce downtime, cut waste, and enhance the overall packaging process—ideal for businesses focused on operational efficiency.

Operating Instructions for the Automatic Side Sealer A450

To operate the Automatic Side Sealer, make sure it is plugged into a 220V power source and the air pressure is adjusted to 0.5 Mpa. Load the shrink film by threading it through the rollers and clamping chains, then adjust the set squares to fit the product size. Set the temperature controls for both the longitudinal and transverse sealing, based on the film’s thickness and type—typically around 180°C for horizontal sealing and 300°C for the sub knife. Start the conveyor and switch to automatic mode; sensors will detect products and activate the sealing blade automatically. For maintenance, regularly clean the sealing blades and drain moisture from the air compressor to keep the machine running smoothly.

Applications for the Automatic Side Sealer A450

The Automatic Side Sealer A450 is well-suited for manufacturers in sectors like wood products, hardware, food, pharmaceuticals, and electronics where shrink wrapping of tall or long items is needed. It is designed for medium to high volume packaging operations for businesses seeking automated solutions that reduce manual handling and increase output. Companies focused on product protection, appearance, and minimizing packaging waste will find this machine highly beneficial.

Construction and Compatibility of the Automatic Side Sealer A450

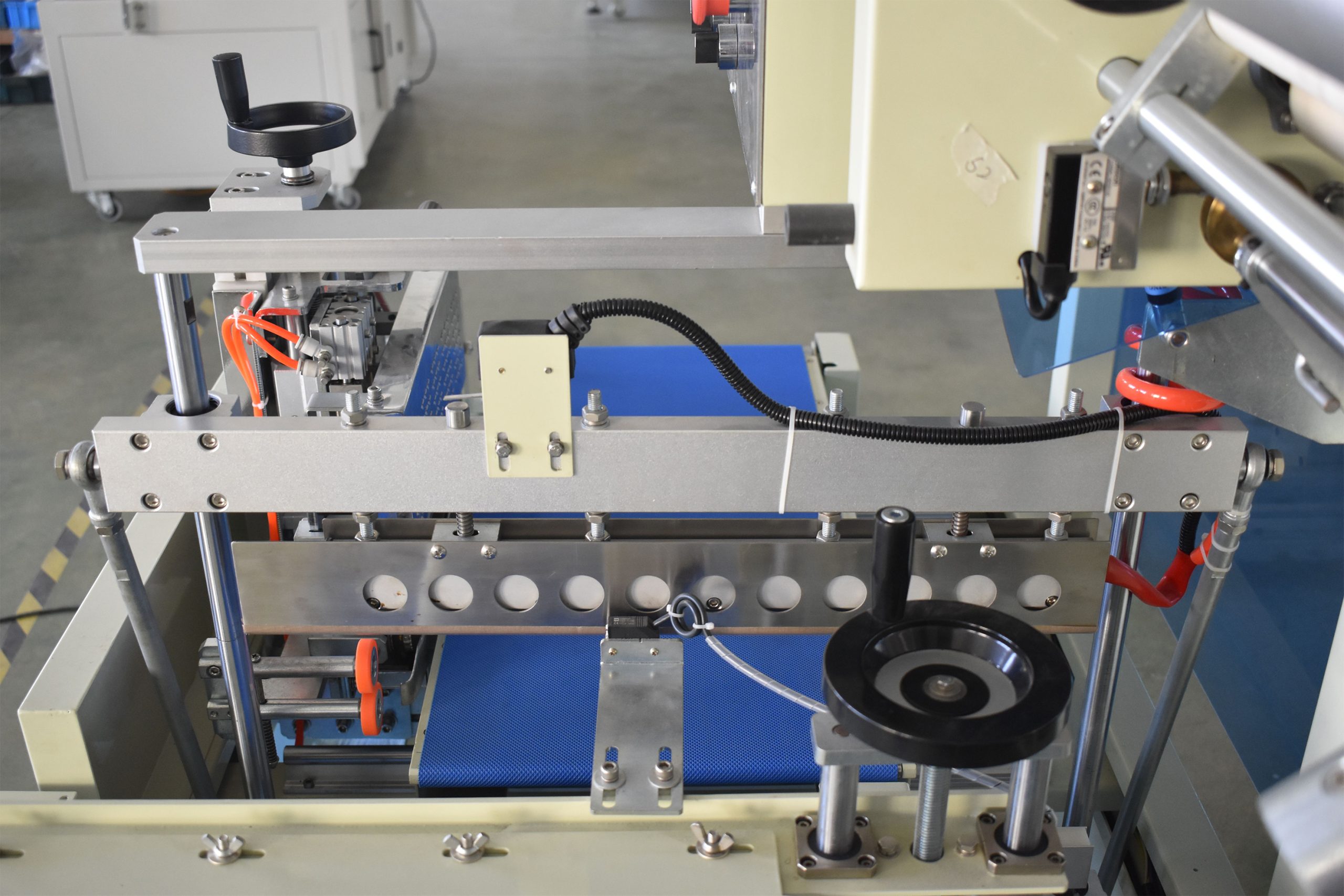

The machine features an ergonomic design with dimensions of 1650 x 800 x 1450 mm and a weight of 300 kg, built mainly from carbon steel for strength and longevity. It works with a range of shrink films including POF, PVC, and PP, and can handle products with a combined width and height of up to 420 mm and unlimited length. Adjustable set squares and a conveyor platform make it easy to package products of different shapes and sizes, allowing for flexible integration into existing production setups.

Capabilities and Performance of the Automatic Side Sealer A450

The Automatic Side Sealer delivers sealing speeds up to 15 meters per minute and precise temperature management for consistent seal quality. It uses photoelectric sensors to automatically gauge product size, enabling efficient handling of items with varying lengths on the same line. The sealing system features a constant temperature blade for both longitudinal and transverse sealing, ensuring strong, airtight seals that improve product safety and appearance.

Safety Features and Durability of the Automatic Side Sealer A450

With a full set of safety features, including automatic retraction of the sealing blade if an obstruction is detected, the Automatic Side Sealer helps protect operators. A plexiglass safety door allows for monitoring while keeping users safe. The sturdy carbon steel frame and premium components provide long-lasting durability in tough industrial environments. Regular maintenance routines help preserve machine performance and ensure safe operation over time.

Adjustments and Upkeep for the Automatic Side Sealer A450

Operators can fine-tune sealing temperature, timing, and conveyor speed to achieve the best packaging results for different shrink films and product types. Routine care includes cleaning the sealing blades before they cool below 70°C to avoid damage, and applying a protective layer to the blades. The air compressor system should be drained of moisture and checked for oil regularly to maintain stable air pressure. Proper maintenance helps ensure continuous operation and extends the lifespan of the machine.

Purchase the Automatic Side Sealer A450

The Automatic Side Sealer A450 is a valuable addition for businesses looking to enhance their packaging process, improve product safety, and boost operational productivity. Buyers who need a reliable, high-performance sealing machine for industrial packaging applications will find this equipment fits their requirements well. To purchase the Automatic Side Sealer A450, use ADD TO CART for a direct order or choose GET OFFER to request a customized quote based on your needs. Choose the Automatic Side Sealer A450 to improve packaging results and increase your production output.
