Turntable Stretch Wrapper with Printer and Scale SMARTWRAP X2 | 2000 kg Capacity, Wraps up to 3000 mm High

Overview

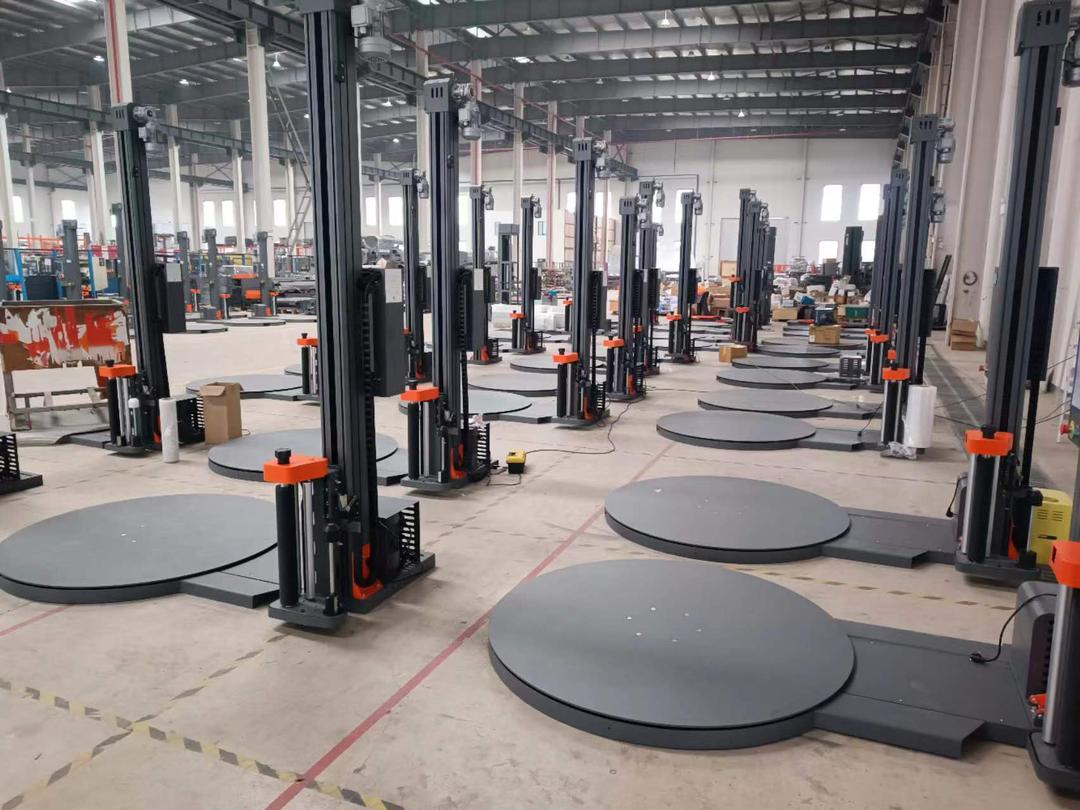

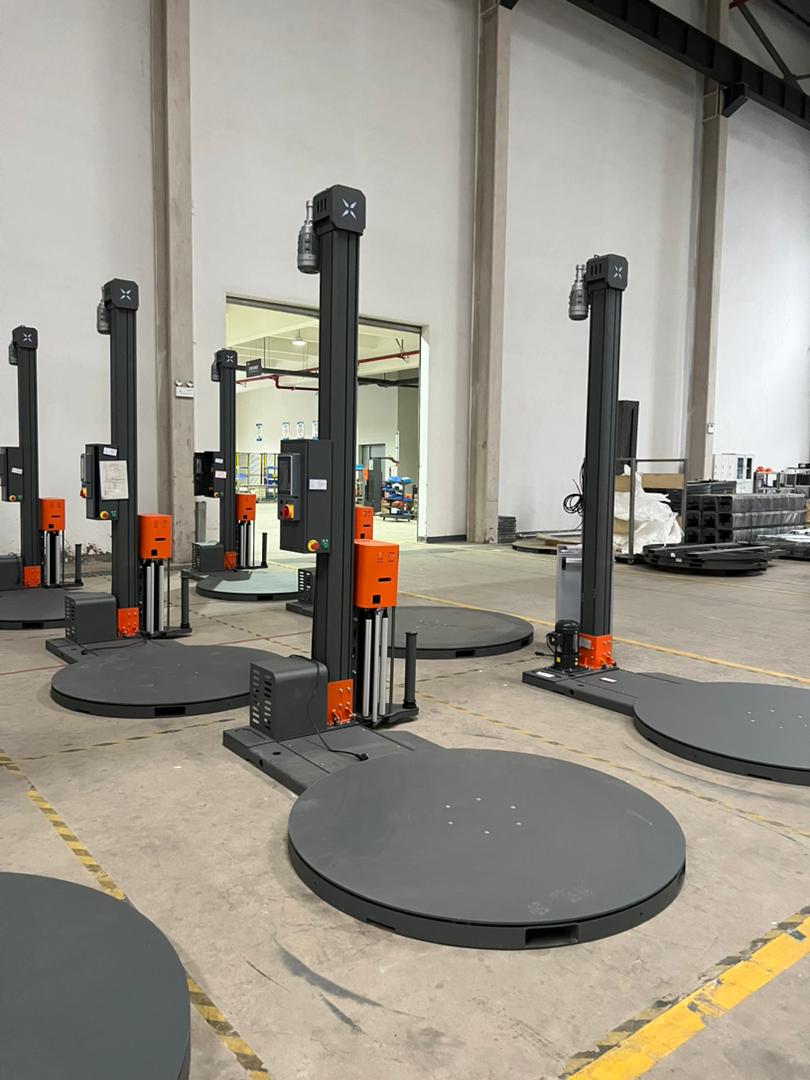

SMARTWRAP X2 Pallet Wrapper with Integrated Scale and Label Printer

The SMARTWRAP X2 is a turntable pallet wrapper designed for professional warehouse, logistics, and manufacturing settings where dependable load security, precise weighing, and labeling are required. This all-in-one pallet stretch wrapper with built-in scale integrates film wrapping, a built-in scale, and a label printer, enabling you to secure, weigh, and label each pallet in one seamless process.

This product line is customizable: choose from five turntable diameters (1500, 1650, 1800, 2000, and 2200 mm) and three wrapping heights (2200, 2600, and 3000 mm) to fit your pallet dimensions and workflow. With a maximum load capacity of 2000 kg, it is engineered to handle heavy, dense, or mixed pallets in high-demand operations.

By combining weighing and label printing on one platform, this pallet stretch wrapper with built-in scale eliminates extra handling steps, minimizes double-handling, and ensures consistent shipping data as soon as the pallet is wrapped.

SMARTWRAP X2 Stretch Wrapping Machine with Scale: Technical Details

Main Features and Advantages of the SMARTWRAP X2 Stretch Wrapping Machine with Scale

• Built-in scale and label printer: weigh and label pallets as they are wrapped, capturing weight and shipping label data without extra steps.
• Extruded aluminum mast (4000 t) with lifetime warranty: a strong, corrosion-resistant column that keeps the film carriage steady even at the full 3000 mm height.
• Twin chain lift system: ensures smooth, balanced movement of the carriage, reducing wear and supporting even film application.
• SICK (Germany) photoelectric height sensor: automatically senses pallet height so film is applied only where needed, minimizing material use.

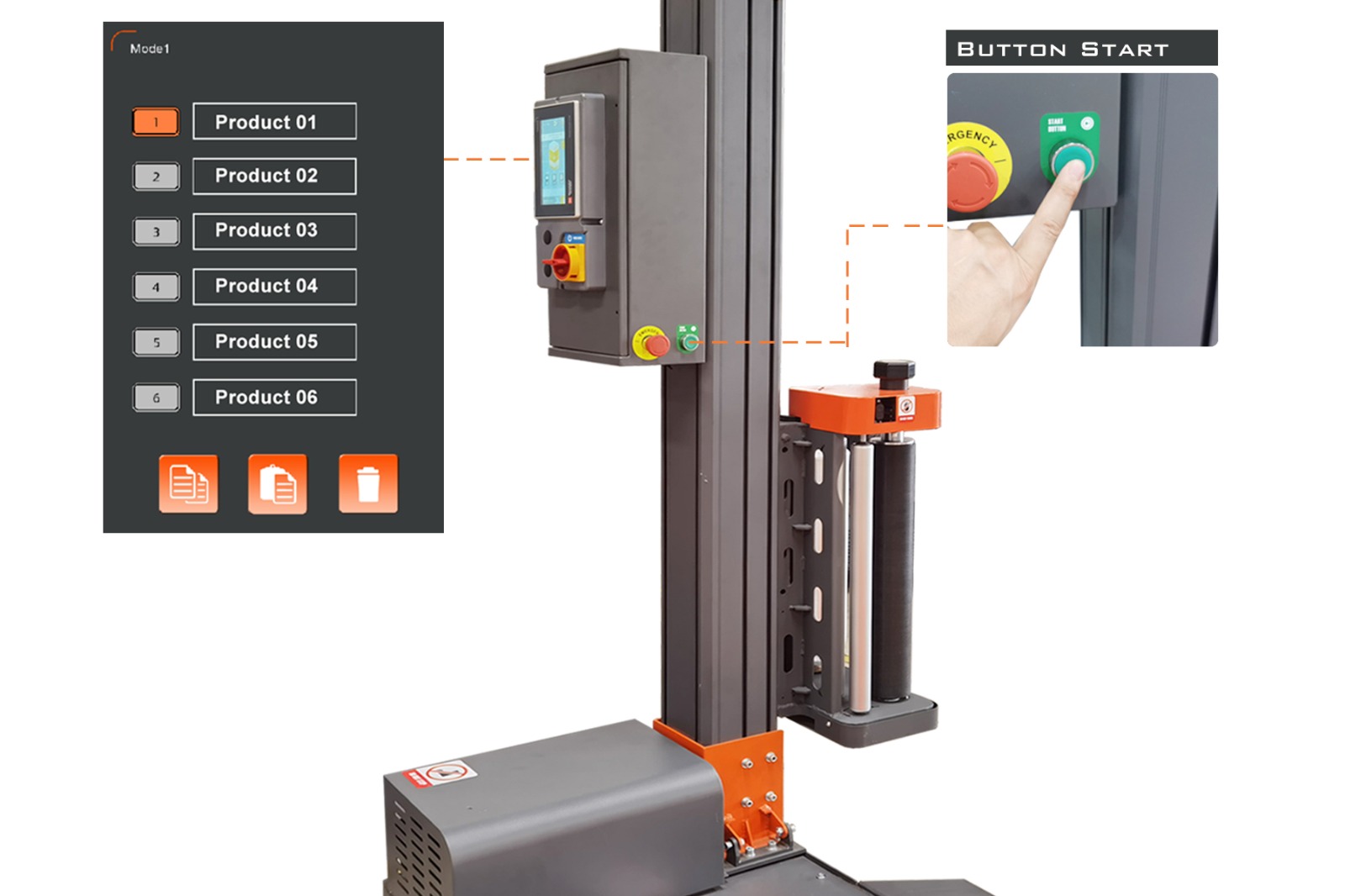

• Touchscreen controls with 6 memory settings: save and recall wrapping programs for different loads, enabling one-touch operation and consistent results.
• Adjustable turntable and carriage speeds: tailor the wrapping process to match load stability and film usage requirements.
• 2000 kg load capacity: designed to handle heavy or mixed pallets commonly found in industrial shipping.

Operating the SMARTWRAP X2

• Select one of the six saved wrapping programs from the touchscreen, or adjust the turntable and carriage speeds for your specific load.
• Press the single start button; the SICK photoelectric sensor will automatically determine the pallet height.
• The machine wraps the load while the built-in scale logs the weight and the printer generates the label.
• Once the wrapping cycle is finished, remove the pallet that has been wrapped, weighed, and labeled, ready for collection.

Applications for the SMARTWRAP X2 Stretch Wrapping Machine with Scale

The SMARTWRAP X2 is ideal for warehouses, logistics centers, and production environments that ship palletized products and require weight data at the time of wrapping. With its integrated scale in the turntable, this stretch wrapper is well suited for shipping zones, distribution hubs, and manufacturing lines where every pallet must be stabilized, weighed, and labeled before moving forward.

With the scale and printer included in the wrapping process, you can eliminate the need for a separate weighing station and manual labeling, combining both steps into one—providing a pallet scale and wrapper in a single unit. This saves floor space and reduces the number of times each load is handled. The machine’s footprint is 260 × 150 × 80 cm, and the turntable diameter can be configured, making it easy to fit into existing shipping lanes and pallet workflows. This is a practical solution for operations handling a mix of standard and oversized pallets that require reliable, traceable weight information as pallets leave the facility.

Construction and Compatibility

This machine features an extruded aluminum column (4000 t) with dual chain lifting and a low-profile 81 mm turntable for easier pallet loading. A ramp is available as an option for use with pallet trucks. It uses mechanical stretch film delivery and is designed for 500 mm wide film on a 76 mm core, which is the standard for industrial applications. The anti-pressure and anti-fall safety device is positioned at the base of the film carriage to protect both the operator and the load if the carriage encounters an obstacle. Turntable Diameters can be set from 1500 to 2200 mm, and wrapping heights from 2200 to 3000 mm, allowing you to match the machine to your pallet size and load height. An optional top pressure plate is available to secure lighter or unstable loads during wrapping.

Performance and Features

The turntable operates at speeds from 0 to 12 rpm, and the carriage moves at 0 to 5.9 m/min—both speeds are adjustable. The SMARTWRAP X2 can wrap up to 30 pallets per hour, supporting loads up to 2000 kg. The 1.2 kW drive runs on a 220 V, 50/60 Hz single-phase power supply. The PCB controller uses four independent chips to manage the wrapping cycle across six memory programs, ensuring precise operation. This makes the pallet stretch wrapper with built-in scale a reliable option for consistent, medium- to high-volume shipping needs.

Safety and Reliability

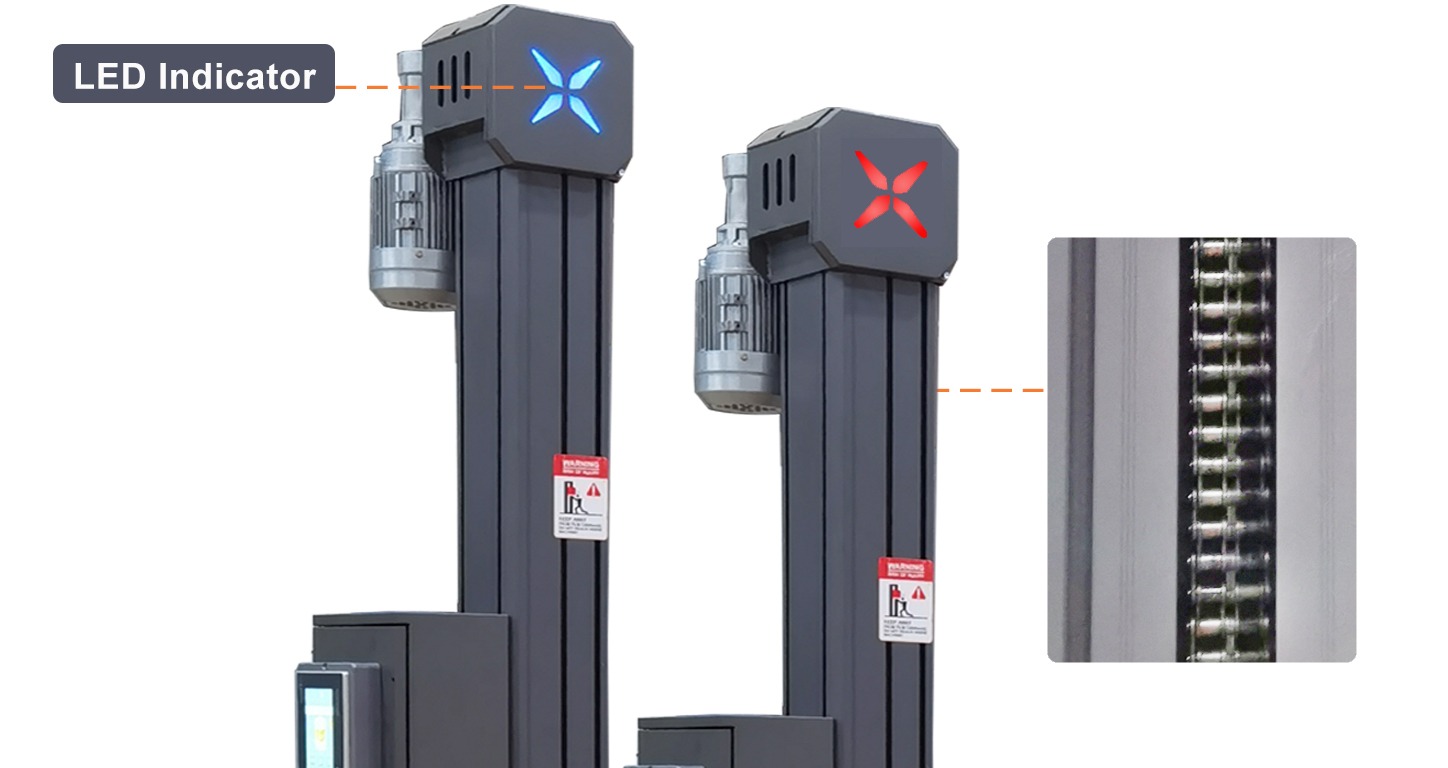

Safety features include soft start and stop, an intelligent alarm system, an anti-pressure and anti-fall device at the base of the film carriage, an emergency stop button, and a three-color LED indicator for quick status checks across the work area. The aluminum column is backed by a lifetime warranty, and the machine operates at a moderate noise level of 75 dB. It is CE certified to 2006/42/EC, 2014/35/EC, and 2004/30/EC standards.

Order the SMARTWRAP X2 Stretch Wrapping Machine with Scale

The SMARTWRAP X2 combines wrapping, weighing, and labeling in a single, durable, CE-certified machine, with five turntable diameters and three wrapping heights available, supporting up to 2000 kg. If you need a reliable pallet wrapper with integrated scale and label printer for daily shipping, choose this pallet stretch wrapper with built-in scale. The unit includes a 12-month warranty.
