ASTRA High-speed Automatic Strapper 9-12mm

ASTRA automatic strapper for packages and cartons

ASTRA is an automatic strapper: place your package on the table under the arch and press start. The machine automatically feeds the strap around your load, tightens it, heat-seals the strap, and cuts it. The operator does not have to thread the strap by hand or handle the weld area.

This strapper uses 9–12 mm PP strapping from a coil with a 200 mm core. The strap is heat-sealed at a preset temperature, and you can adjust the tension with a dial, from gentle for cartons to tight for heavier packages.

The arch is available in three sizes: 600 × 400 mm, 800 × 600 mm, or 1000 × 800 mm. The arch size determines the largest package you can strap. The smallest package size is 80 mm wide by 30 mm high. The table height is 800 mm, matching standard conveyors and packing tables.

Each strapping cycle takes less than two seconds, so the strapper keeps up with fast packing lines. The machine is built on a steel frame, measuring 1250 × 600 × 1510 mm and weighing about 185 kg. It is mounted on casters with floor locks and operates on either single-phase 220 V or three-phase 380 V power.

ASTRA automatic strapper: uses and integration

The ASTRA automatic strapper is designed for logistics, manufacturing, warehousing, e-commerce fulfillment, pharmaceuticals, and automotive assembly. It is ideal for high-volume packing lines where packages, cartons, or bundles of pipes need secure, consistent strapping. The strapper is commonly set up at the end of a conveyor, at a packing station, or in a dedicated strapping cell.

Technical data

How the strapper improves your packaging process

• One button per strap. The strapper automatically feeds, tensions, seals, and cuts the strap; the operator just positions and removes the package.
• Cycle time under two seconds. Your packing line keeps moving, with no waiting for strapping, even during continuous operation.
• Consistent tension every cycle. Set the tension once on the dial and it stays fixed, so light cartons aren’t crushed and heavy packages stay secure.
• Arch sized for your loads. Choose from 600 × 400 mm, 800 × 600 mm, or 1000 × 800 mm arches to match your package dimensions.
• Works at conveyor height. The 800 mm table height fits between your conveyor and packing table.
• Stays in place where you need it. Fitted with casters for easy movement and floor bolts to secure the strapper during operation.

Controls, arch and safety

• Automatic strapping with 9–12 mm wide PP strap
• Arch sizes: 600 × 400 mm, 800 × 600 mm, or 1000 × 800 mm (W × H)
• Minimum package size: 80 mm wide by 30 mm high
• Cycle time less than 2 seconds
• Heat-sealed joint, heater temperature preset at the factory

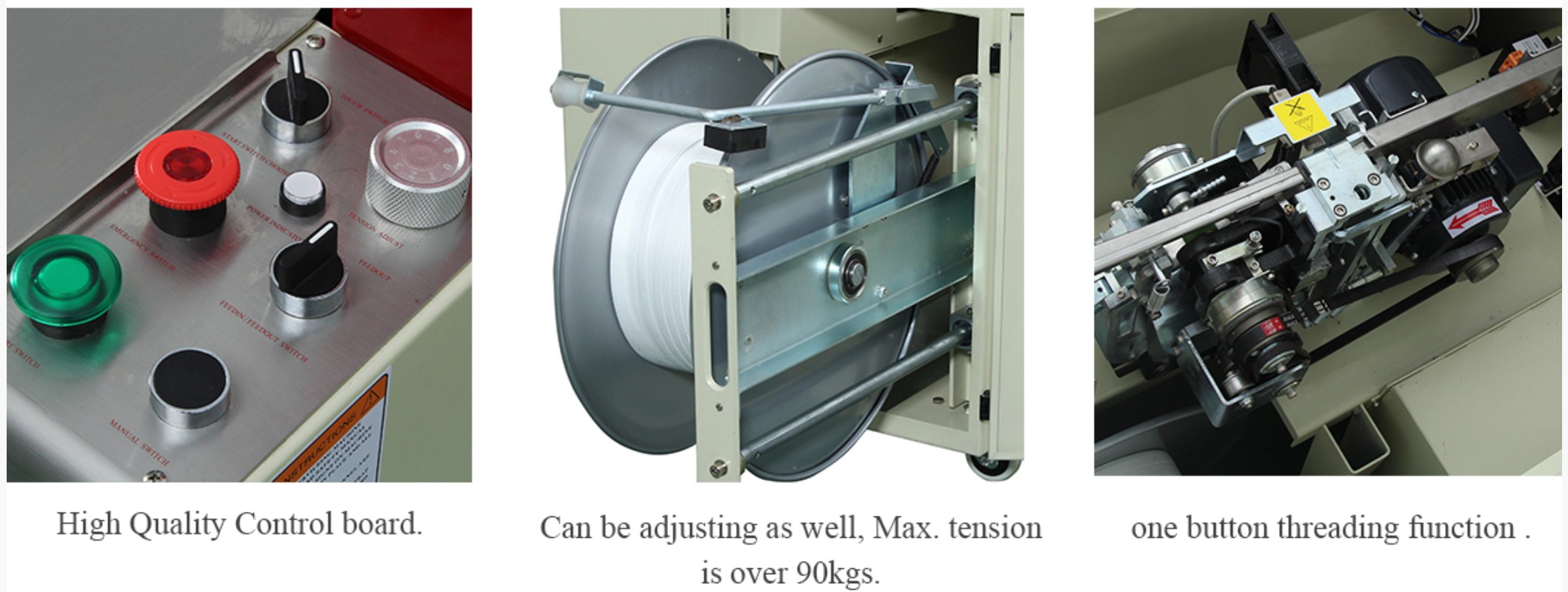

• Tension adjustment dial on the control panel, maximum tension exceeds 90 kg
• Single-button strap loading
• Green start button, red stop button, black jog for sealer and strap reverse
• Strap coil with 200 mm core located beneath the table
• Motor automatically shuts off 15 seconds after the last cycle
• Steel frame on casters with floor-lock bolts, table height is 800 mm
• Single-phase 220 V or three-phase 380 V, 50–60 Hz, 5 A

Operating the ASTRA strapping machine

1. Place the strap coil onto the reel under the table and feed the strap into the strapping machine until the start button lights up.
2. Turn on the strapping machine and allow the heater to reach temperature; the exhaust fan runs while the machine is powered on.
3. Adjust the strap tension using the dial: use less tension for cartons, more for heavier loads.
4. Set your package on the table under the arch and press the green start button.
5. The strapping machine feeds the strap around the package, applies tension, seals and cuts the strap. Remove the package; if not used for 15 seconds, the motor shuts off automatically.

Settings and maintenance

• Tension. Rotate the tension dial to your preferred setting; higher numbers give tighter straps, with a maximum tension over 90 kg.
• Weld temperature. Factory-set for the strap we supply, typically no adjustment needed.
• Strap width. The strapping machine is designed for 9–12 mm strap. Using a different width requires changing several parts, so let us know your strap width before ordering.
• Strap out of guide. Use the reverse feed switch to back out the strap and reload, or move the sealer with the jog button until it resets.
• Maintenance. Always turn off the strapping machine before servicing. Keep the strap path clean; the machine is lubricant-free and the feed rollers must remain dry and oil-free.

Before purchasing a strapping machine

The price is listed on this page. A few details determine which version fits your packaging needs: review them before requesting a quote, or send them to us and we’ll help you choose.

• Package size. The arch size sets the maximum package: 600 × 400 mm, 800 × 600 mm or 1000 × 800 mm. Minimum package size is 80 mm wide and 30 mm high.
• Strap. PP strap, 9–12 mm wide, on a coil with a 200 mm core.
• Speed. Each cycle takes less than 2 seconds.
• Power supply. Operates on single-phase 220 V or three-phase 380 V, 50–60 Hz, 5 A.
• Dimensions. The strapper is 1250 × 600 × 1510 mm, features a table height of 800 mm, and has an approximate weight of 185 kg.
