AUTOSHRINK Automatic Shrink Wrapping Machine with Sealer and Shrink Tunnel, Up to 50 Packs per Minute

AUTOSHRINK Automatic Shrink Wrapping Machine

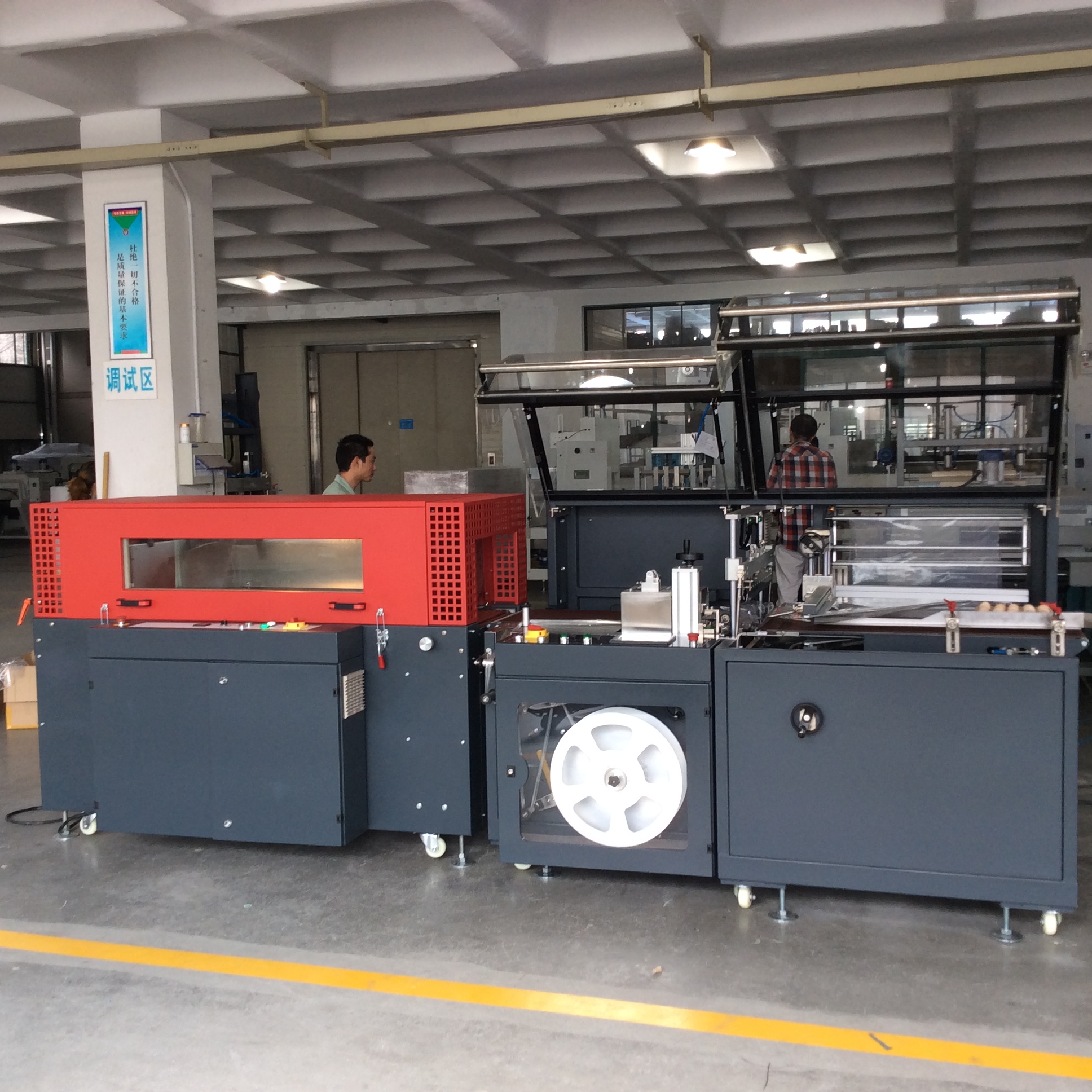

The AUTOSHRINK is a fully automatic shrink wrapping machine made up of two sections: an automatic side sealer wraps each item in center-folded film and seals it, while the shrink tunnel applies heat to tightly shrink the film around the product. The system can process up to 50 packs per minute, depending on the product type.

Handles products from 90 × 90 × 10 mm up to 500 × 400 × 120 mm (L × W × H), with a combined width and height of up to 400 mm. Designed for single, uniform items with a flat base.

The sealer uses a Teflon-coated stainless steel blade, operating at 180–230 °C, to cut and seal in less than one second per cycle. The shrink tunnel runs at approximately 150 °C, with an opening of 450 × 250 mm and a tunnel length of 1500 mm.

Both units operate on 3-phase 380 V power; the sealer also requires compressed air. The machine works with POF film, thickness between 0.01 and 0.03 mm. A Siemens PLC with touch screen manages the sealer, and a Siemens servo motor provides drive.

Industries and Uses: AUTOSHRINK Automatic Shrink Wrapping Machine

The AUTOSHRINK is widely used in food, cosmetics, printing, publishing, household goods, electronics, and logistics. It shrink wraps individual retail products such as books, magazines, boxes, trays, cartons, and consumer items. This machine is ideal for products that require a clear, snug film for retail display or protection during storage and handling. It is typically placed at the end of a packaging line, after filling or cartoning, to create a finished retail pack or a dust- and tamper-resistant wrap for distribution.

Technical Details

AUTOSHRINK video demonstration

▶

How the line improves your packaging

• Wraps and shrinks in one process. The sealer wraps and seals, then the tunnel shrinks the film, so your product is ready at the end.
• Handles up to 50 packs per minute. Products move on the conveyor and are wrapped automatically, no operator needed between steps.
• Quick, clean sealing. Each cycle takes less than a second, with a Teflon-coated blade that prevents sticking.
• Touchscreen operation. Switch between automatic and manual modes, adjust settings, and view shift output right on the screen.
• Automatic stop feature. If a product is under the blade, the sealer pauses until the item is cleared and the system is reset.
• Reliable brand components. Siemens PLC and servo motor, plus electrical parts from Schneider, OMRON, and FOTEK.

Sealer, shrink tunnel, and controls

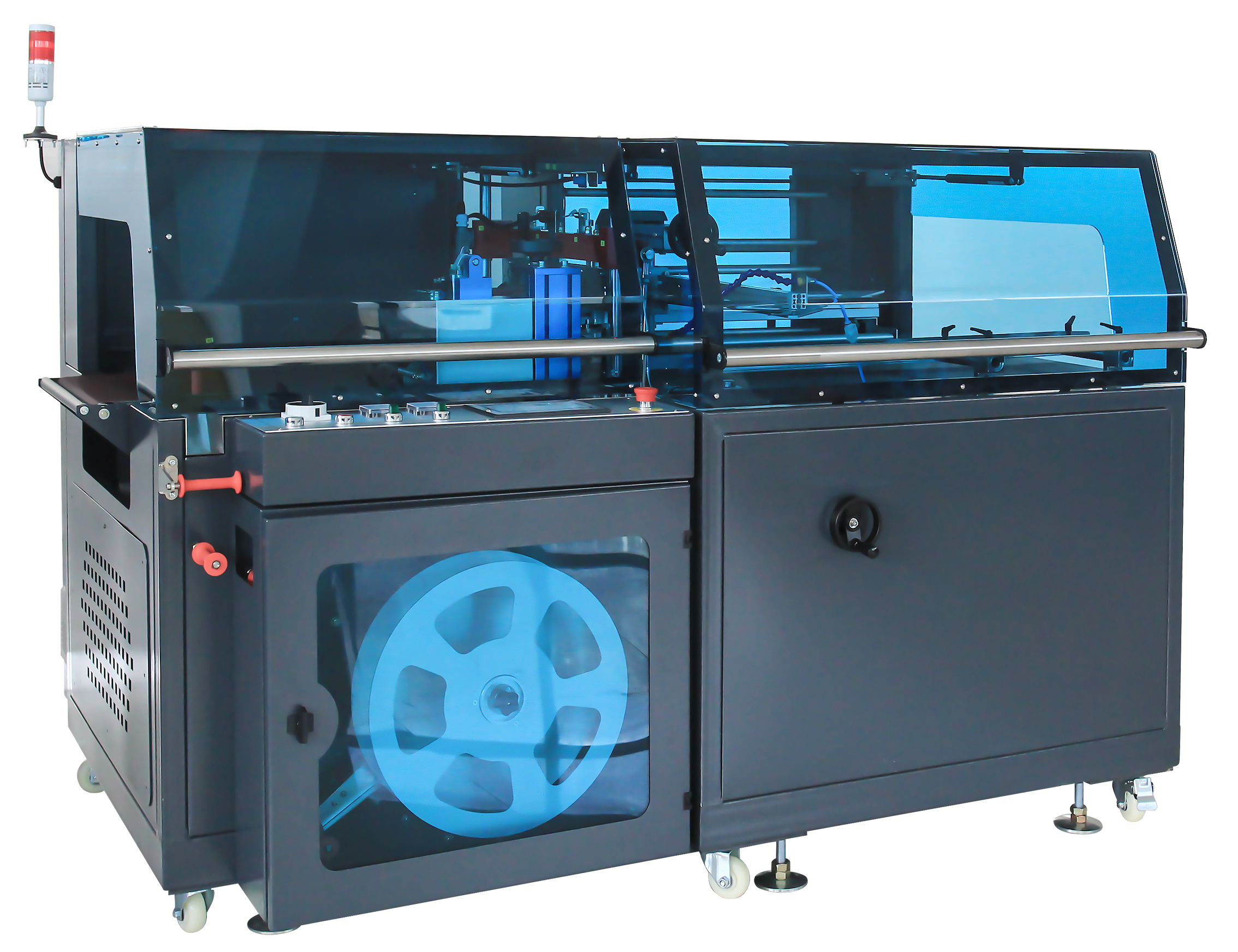

• Automatic shrink wrapping system with side sealer and shrink tunnel
• Processes up to 50 packs per minute, depending on product type
• Handles products from 90 × 90 × 10 mm up to 500 × 400 × 120 mm, with a combined width and height up to 400 mm
• Seals and cuts in less than 1 second per cycle, blade temperature 180–230 °C, Teflon-coated

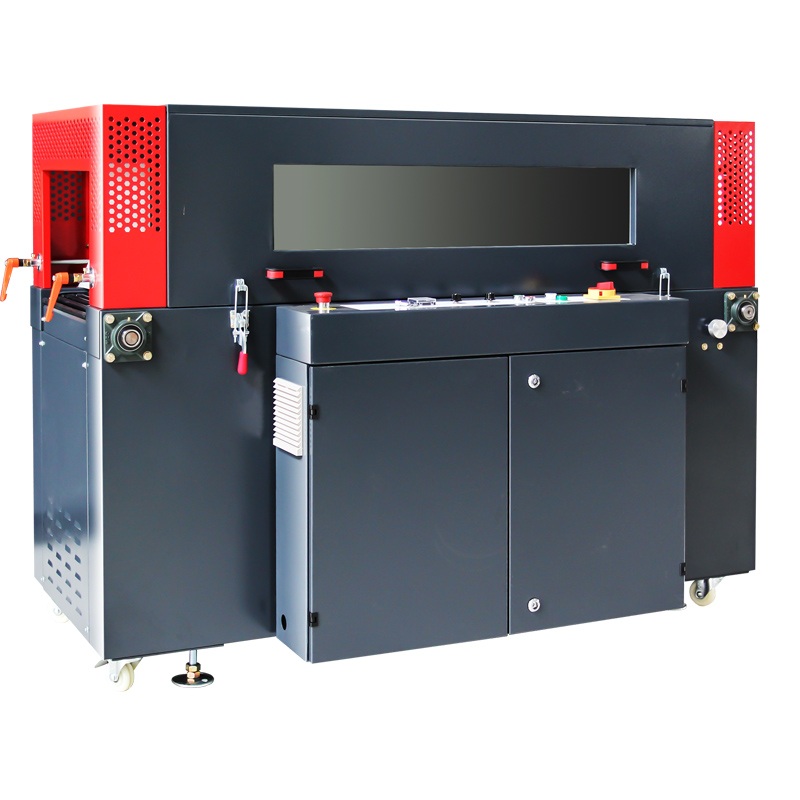

• Shrink tunnel operates around 150 °C, entrance 450 × 250 mm, tunnel length 1500 mm
• POF film from 0.01 to 0.03 mm thick, film rolls up to 250 mm in diameter and 550 mm wide
• Equipped with Siemens PLC and touch screen, Siemens servo motor, and Schneider frequency converter
• Conveyor speed up to 30 m/min, working table height 850 mm
• Waste film is collected on a take-up roller
• 3-phase 380 V, compressed air up to 0.3 MPa

Operator responsibilities and workflow: AUTOSHRINK automatic shrink wrapping machine

The operator monitors the film feed and waste collection, and checks finished packs for proper sealing and shrink quality. When changing product sizes or film types, adjust the film length and knife temperature as needed.

Operating the AUTOSHRINK

1. Turn on the main power and set the temperatures for both the horizontal and vertical knives.
2. Mount the film roll on the holder, guide the film through the separator boards and pressing wheels, and direct the waste strip to its roller.
3. Adjust the separator board and knife unit heights to match your product, positioning the knife line 10–20 mm below the center of the product height.
4. Set the belt width, check the compressed air supply, and activate automatic mode using the touch screen.
5. Place products on the infeed belt along the side guide; the sealer wraps and seals them, and the tunnel shrinks the film.

Settings and maintenance

• Film length per product. Set this on the touch screen as the delay before cutting; start at about 0300 for short products and 0500 for taller ones, then fine-tune after a few packs.
• Knife temperature. Set between 180 and 230 °C. If the seal tears open, the temperature may be too low, the cutting time too short, or the knife may be worn.
• Compressed air. Keep pressure below 0.3 MPa and regularly drain water from the air filter regulator.
• Daily care. After each shift, wipe film residue from the knife with a soft cloth, ideally right after shutting down, while the temperature is between 90 and 100 °C.
• Cleaning. Clean plastic parts with a soft cloth and a suitable cleaner, never with water or solvents.
• Do not wrap. Avoid loose or wet products, unpackaged liquids, flammable or explosive items, and aerosol cans. For food items, always use food-grade film.

Selecting and preparing for AUTOSHRINK

Frequent issues include using film that is too thick or too thin, incorrect knife temperature settings, or feeding products that are unstable or irregular. To prevent jams, make sure products are spaced properly and the infeed belt is set to the correct width. For optimal performance, test your film and machine settings with your actual products before starting full production.

Before purchasing a shrink wrapping line

The price listed here applies. A few key specifications determine if this line fits your packaging needs: please review them before placing your order, or send your details to us and we’ll help you assess compatibility.

• Product size. Handles items from 90 × 90 × 10 mm up to 500 × 400 × 120 mm, with a combined width and height up to 400 mm; for single products with a flat base.
• Output. Processes up to 50 packs per minute, depending on the product type.
• Film. Uses POF film, 0.01–0.03 mm thick, on rolls up to 550 mm wide and 250 mm diameter.
• Utilities. Requires 3-phase 380 V power for both units (sealer 3 kW) and compressed air supply.
• Space. Sealer dimensions approximately 2000 × 1325 × 1300 mm, tunnel 1800 × 1000 × 1320 mm; total length about 3.8 m.
• Collection. Includes two units: sealer (500 kg) and tunnel (300 kg), plus a set of spare parts. Goods are collected EXW, and prices do not include VAT.
