Cord Strap Dispenser Cart HC2 for Cord/PP Band – Ø200mm

HC2 dispenser cart for cord and PP strap

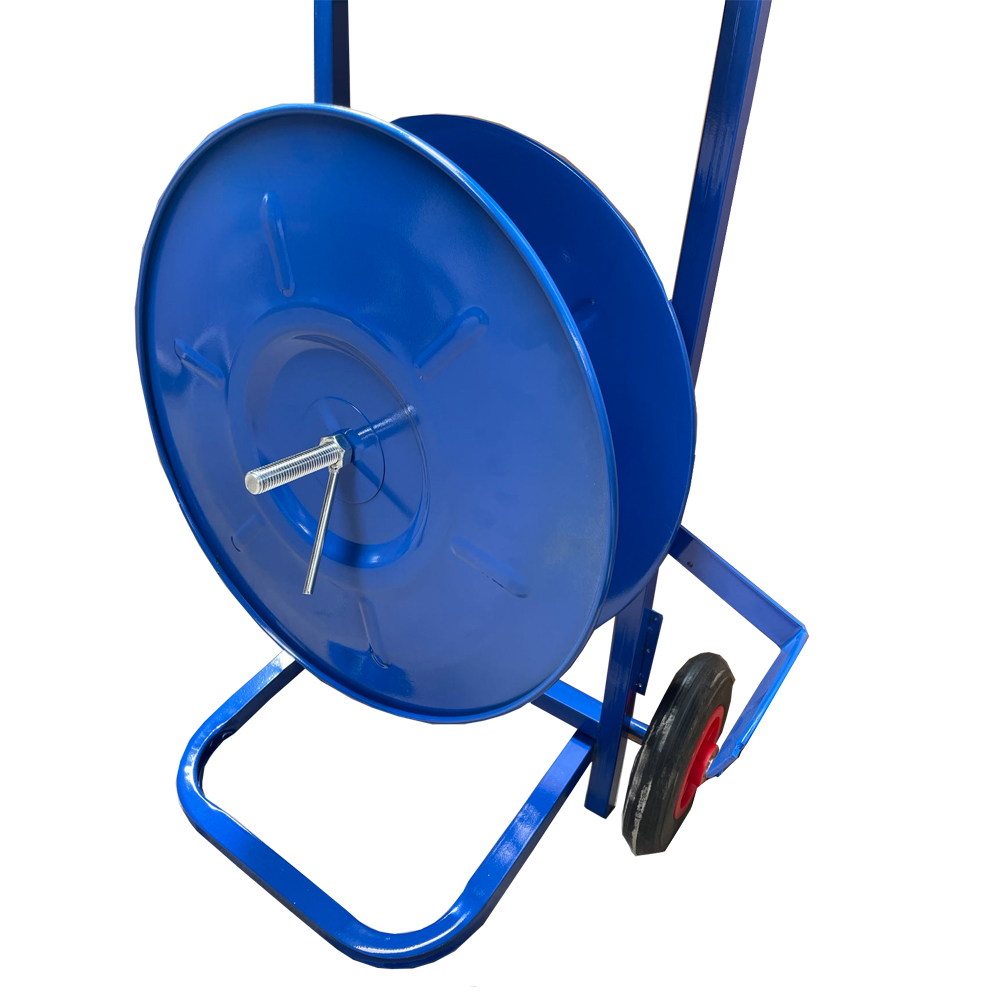

The HC2 is a dispenser cart designed for cord (composite) and PP strap on a 200 mm core. The coil is placed on the cart, allowing you to pull off the strap as needed without the coil rolling away or the strap getting tangled.

A brake keeps the coil from spinning when you stop pulling, so the strap stays in place and doesn’t unravel.

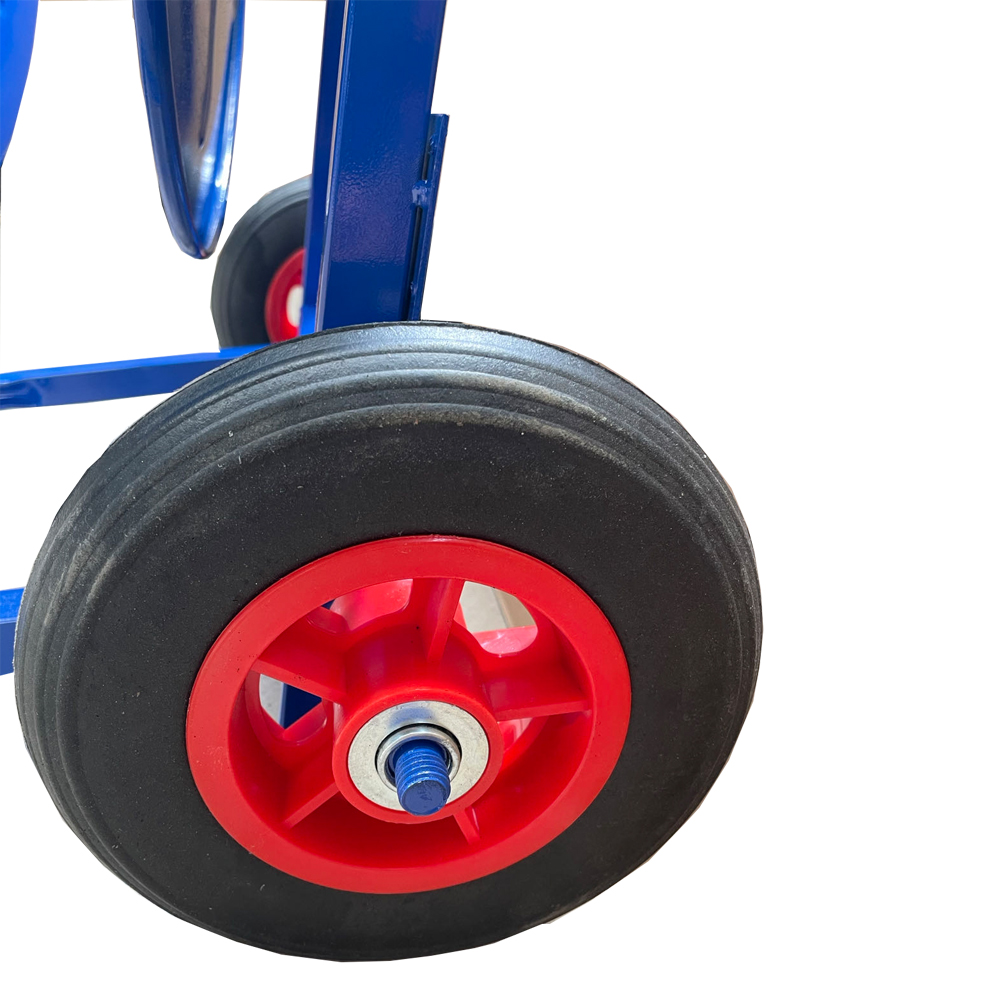

The cart is equipped with wheels and a handle, making it easy to move the coil along pallets as you strap them. There’s a tray for holding your tensioner, seals, and cutter right on the cart.

It holds coils weighing up to 50 kg and measures approximately 550 × 400 × 1050 mm. The cart itself weighs about 6 kg.

HC2 dispenser cart in packaging operations

The HC2 dispenser cart is ideal for warehouses, distribution centers, and manufacturing plants where cord or PP strap is used to secure loads for storage or transport. It’s suitable for strapping pallets, crates, bundles, and other items that need to be kept together securely. The cart is designed for workflows where the operator moves along rows of pallets or workstations, keeping both strap and tools within reach at all times.

This cart is also used in logistics and shipping departments to prepare loads for pick-up, as well as on production lines where products are strapped for in-house movement or delivery.

Technical specifications

Function of the dispenser cart

• The coil moves with you. Thanks to wheels and a handle, your strap supply stays right by the pallet.
• No strap loops on the ground. The brake stops the coil as soon as you stop pulling.

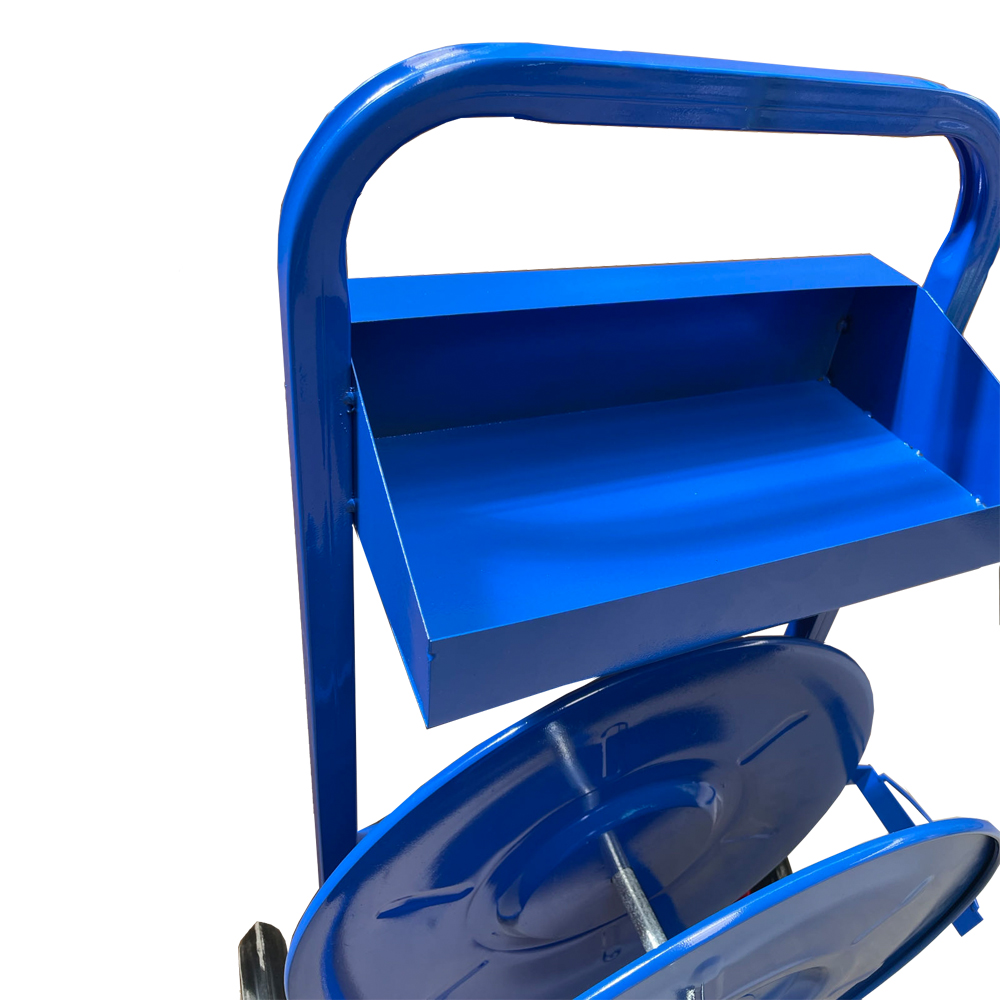

• Keep your tools close. The 370 × 200 × 100 mm tray holds your tensioner, seals, and cutter.
• Designed for 200 mm cores. Cord and PP strap with a 200 mm core fit directly onto the cart.
• Handles up to 50 kg. Holds a full coil of cord or PP strap with no problem.
• Lightweight. Weighs about 6 kg, so it’s easy to move around.

Included with your purchase

• Dispenser cart for cord (composite) and PP strap
• Fits coils with a 200 mm core
• Brake to prevent the coil from spinning out
• Equipped with wheels and a handle
• Tool tray, 370 × 200 × 100 mm
• Carries loads up to 50 kg
• Dimensions approx. 550 × 400 × 1050 mm, weight approx. 6 kg

How to use the cart

1. Place the coil onto the cart’s holder.
2. Pull the strap end from the coil in the direction you need.
3. Roll the cart to your pallet and pull off the required length of strap.
4. Store your tensioner, seals, and cutter in the tray.
5. When you stop pulling, the brake holds the coil in place.

Care and handling tips

• Core size. This cart is built for 200 mm cores; use a different cart for other sizes.
• Load limit. Maximum 50 kg on the cart.
• Brake function. The brake keeps the coil from spinning; check it still works when the coil is almost empty.
• Storage. Store the cart and strap indoors in a dry place.
• Moving it. Use the handle to push or pull the cart.

Selecting the HC2 dispenser cart

Before choosing the HC2 dispenser cart, make sure the strap type and coil core diameter fit the cart’s specifications. Using a coil with the wrong core size or exceeding the weight limit can cause problems. Think about your work area: check the floor surface where the cart will be used. If you need to move the cart often or over long distances, its lightweight build and wheels make transport easier, but be sure the route is clear and free of obstacles.

Typical errors include using the cart with the wrong strap type, not checking the brake, or overloading the tool tray. To prevent tangling or strap spills, always feed the strap in the correct direction and confirm the brake works properly. For best performance, keep the cart and strap in a dry location and regularly inspect moving parts.

Before you buy

The price is listed on this page. Choose a dispenser cart based on the strap you use, so please confirm the following before purchasing:

• Your strap. Cord (composite) or PP strap with a 200 mm core.
• Coil weight. Maximum 50 kg.
• Tools. The tray holds the tensioner, seals, and cutter.
• Collection. Packed in a carton, total weight about 7 kg. Goods are collected EXW and prices do not include VAT.
