Shrink Wrapping Machine B4255

Shrink Wrap Machine, All-in-One Cutting, Shrinking, and Wrapping Sealer B4255

The Shrink wrapping machine B4255 is a chamber-style shrink wrapping machine. It is engineered for straightforward, single-step operation, where both sealing and shrinking take place within the same chamber. The sealing area measures W420mm x L550mm, and products should not exceed 200mm in height. The working plate height (with stand) is 920mm, making it easy to integrate into your packing workflow. The B4255 weighs 89kg, with a width of 750mm and a length of 1230mm, resulting in a compact footprint and user-friendly operation for a professional finish. Capable of wrapping up to 8 pieces per minute, this machine is well-suited for companies aiming to optimize production and consistently meet high demand. The chamber shrink wrapping machine is a valuable addition to any operation. This shrink wrap machine uses POF film to package products and cartons by heating the shrink film. This method enhances the appearance and perceived value of items. Additionally, the machine helps protect items from external impact and prevents breakage, especially for containers. Goods are collected EXW at our warehouse, and all prices are exclusive of VAT.

Shrink Wrapping Machine B4255 Key Features

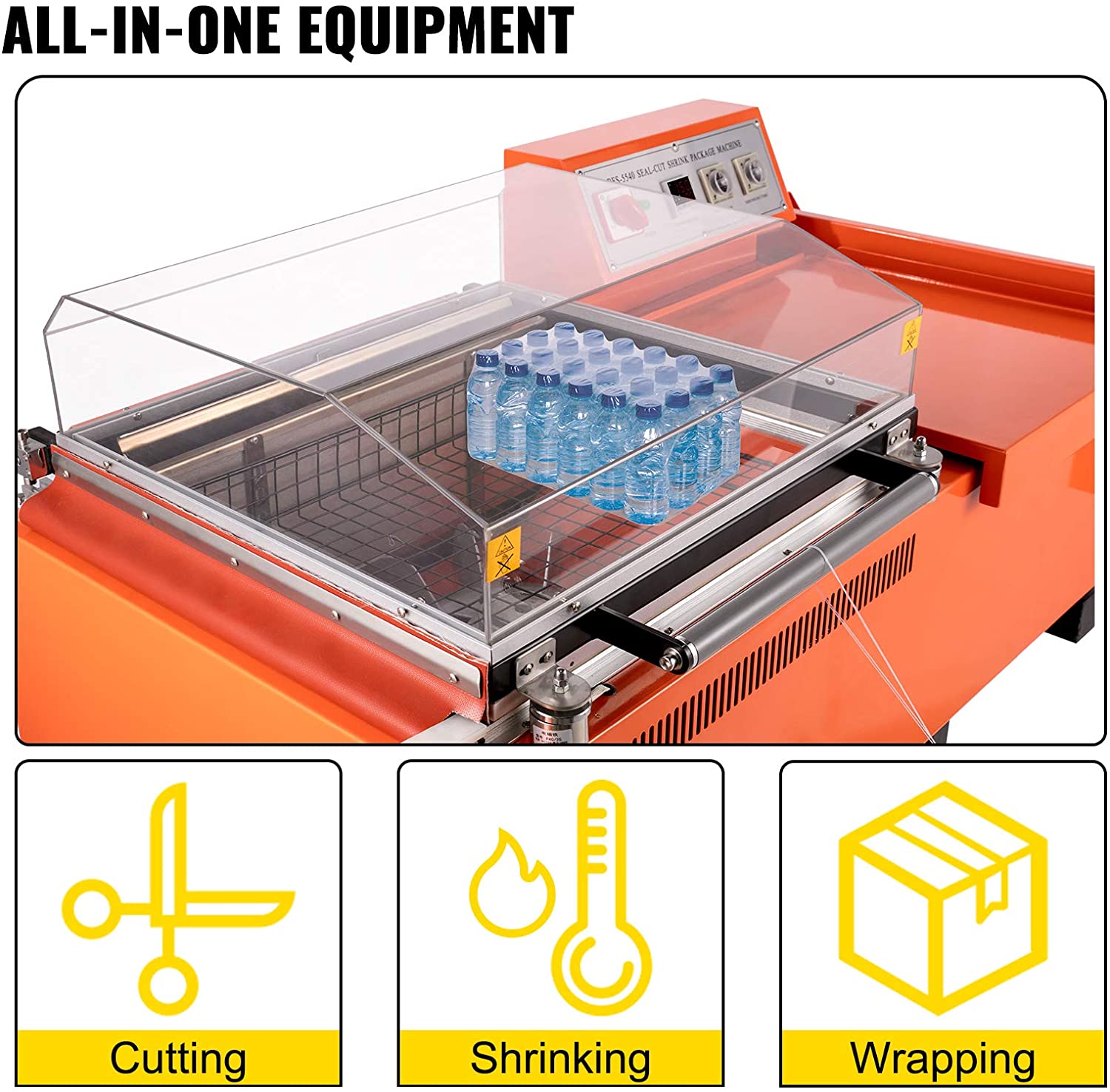

• 3-in-1 Shrink Wrapper – This shrink wrap machine performs cutting, shrinking, and wrapping in one step, streamlining the process and reducing manual effort.
• Adjustable Control Panel – All shrink and wrap settings are managed via the main modules on the panel: Temperature Adjustment, Sealing Time, and Shrinking Time.
• High Wrapping Production rate – With a maximum package size of W420mm x L550mm, this machine delivers up to 420 packages per hour, supported by a robust alloy cutting blade and a large fan.
• Advanced Technology – The shrink process is visible through the transparent plexiglass hood during operation. The film separation template ensures efficient film handling.
• Exceptional Versatility – This machine is suitable for shrink packaging metal goods, beverages, consumer products, and books in everyday chemical, beverage, pharmaceutical, and office supply sectors.
• High Productivity – Only one operator is needed to complete both sealing and shrinking steps

Shrink Wrapping Machine B4255 Technical Specifications

Shrink wrapping machine B4255 highlights

• Clear Packaging Process – The transparent chamber cover, made from organic glass, lets you observe the heat shrink process during packaging. Once the cycle is complete, the hood lifts automatically.
• High Performance Packaging – With a maximum pack size of W420mm x L550mm x H200mm, this unit delivers up to 420 packs per hour, utilizing an alloy cutting blade and large fan blades for efficient operation.

This chamber shrink wrapping machine operates semi-automatically: after the operator closes the hood and starts the sealing cycle, a solenoid activates, and the rest of the sealing and shrinking process is handled automatically. (See the demonstration video below.) Thanks to its low turbulence design, this machine can be used with both polyolefin and PVC shrink films. This versatility makes the shrink wrap chamber machine a reliable choice for continuous production in business settings.

How does the Shrink wrapping machine B4255 operate?

Wrapping products in film is straightforward. First, cover the item with film and place it inside the chamber. When the chamber is closed, the machine automatically trims the excess film. Inside, the film is drawn tightly around the product, a process you can watch through the clear lid. The film shrinks to form a secure wrap around the item. Once finished, the operator opens the lid and removes the packaged product.

Shrink wrapping machine B4255 demonstration video

▶
