Recycling Baler TONNA10, 10 Tons, 100kN, 80kg Bale

Recycling baler TONNA10, 10 tons, 100kN, 80 kg bale

The TONNA10 recycling baler is a popular choice for compressing materials like cardboard, cotton yarn, plastic, wood, and more. This vertical hydraulic press is a highly effective solution for lowering waste disposal costs and maximizing safe storage space. The cardboard baler features a vertical design and operates using hydraulic power. The TONNA10 recycling baler delivers a pressing force of 10 tons. Operators manage the baling process through an electrical control panel. After compression, the operator manually secures the bale using wire or a plastic strap. Bale dimensions are 700 mm x 500 mm x 1000 mm (W x D x H), with a maximum bale weight of up to 80 kg, depending on the material loaded into the baler. The machine can produce between 6 and 8 bales per hour. Dimensions of the TONNA10 cardboard compactor are 1050 mm x 730 mm x 2300 mm (W x D x H) and the vertical baler weighs 270 kg. The machine comes with a warranty; goods are picked up EXW and prices exclude VAT.

What is the cost of the Recycling baler TONNA10

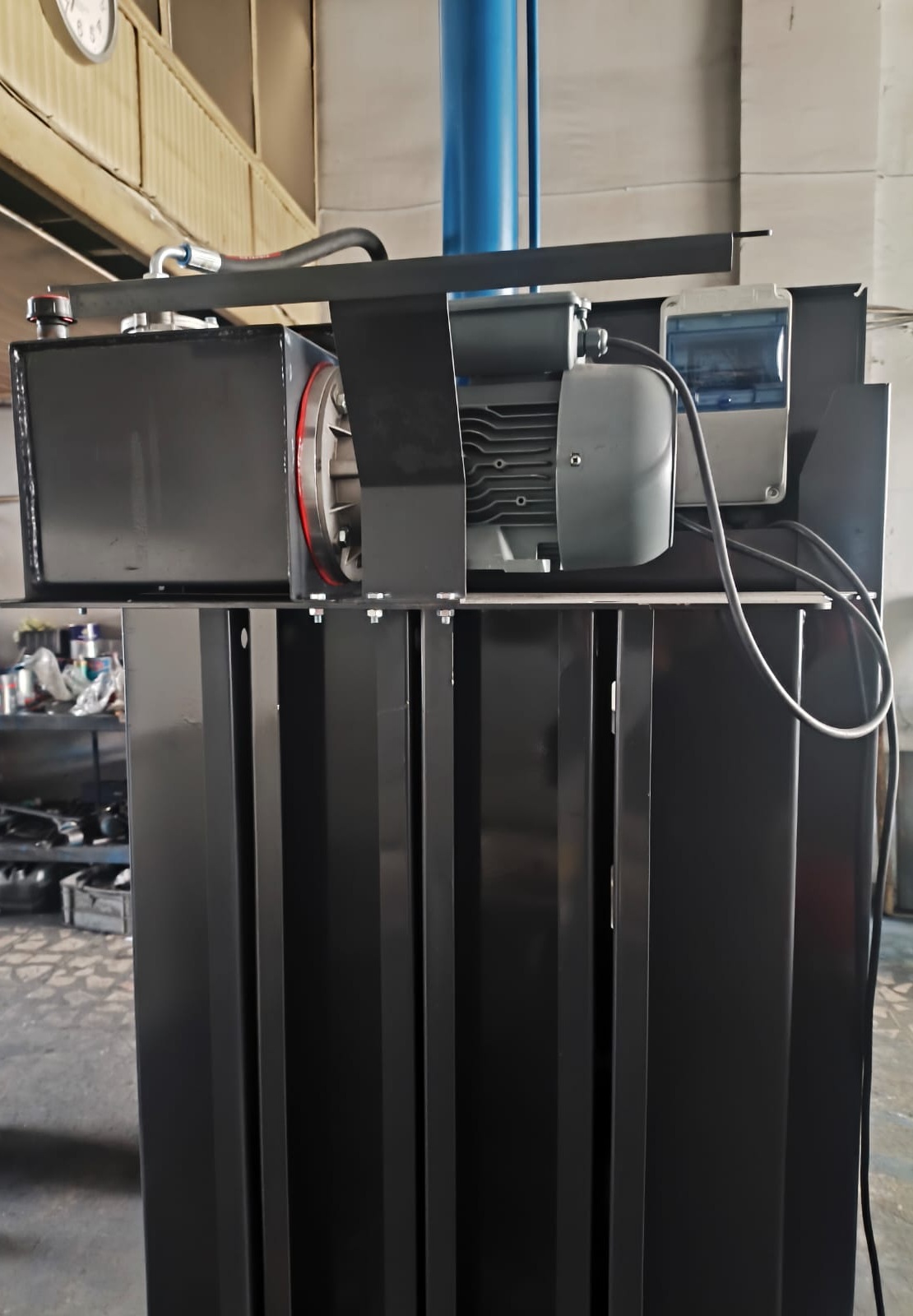

Cardboard baler TONNA10 is constructed from high-quality materials, it features a robust 1.5 kW single oil cylinder motor, delivering 10 tons of pressing force and is capable of compacting plastic, wood, paper, glass, and other waste materials with ease. The price for the Cardboard baler TONNA10 remains highly competitive. The TONNA10 recycling baler price is shown at the top of this page. It stands out as the cheapest cardboard compactor with these features on the market. Still, the TONNA10 recycling baler’s price does not compromise on quality. Even at this price point, the vertical baler is is built from premium-grade metal and features durable, dependable components. The TONNA10 recycling baler is equipped with all the necessary certificates and even additional exceeds industry standards and specifications.

Key Specifications of cardboard compactors TONNA10

• Cost-effective and low-maintenance Recycling baler TONNA10
• Compacting force: 10 tons
• Motor: 1,5 kW, single oil cylinder
• Electrical requirements: 220 – 230 V, 1.5 kW, 13 Amp
• Bale size: 700 mm x 500 mm x 1000 mm (W x D x H)
• Bale weight: 70-80 kg
• Throughput: 6-8 packages per hour
• Machine dimensions: 1050 mm × 730 mm × 2300 mm (W × D × H)
• User-friendly operation and straightforward installation
• Machine weight: 270 kg
• Sound level: 72 dB
• Cycle duration: 25 seconds
• Electronic control panel

Key features of the vertical baler TONNA10

• Ideal for locations with limited space
• Handles small to medium waste volumes
• Features a hydraulic drive system
• Consumes less energy while maintaining high operational force
• Electric button controls allow for manual and semi-automatic operation
• Separate feed opening with automatic pull-out system to minimize manual labor
• The vertical baler TONNA10 is primarily intended for baling cardboard, cotton yarn, plastic, wood, and similar materials.
• Cardboard compactors are built with a vertical design, equipped with hydraulic transmission and electronic controls. Binding is performed manually

Collection of Recycling baler TONNA10 is EXW; prices do not include VAT

The recycling baler can be relocated easily using a pallet stacker or forklift. For transport, it fits in a van or truck. The cardboard baler is secured on a wooden pallet, making it simple to move into production areas or warehouses.

Technical details for Recycling baler TONNA10

How does the Cardboard baler TONNA10 operate?

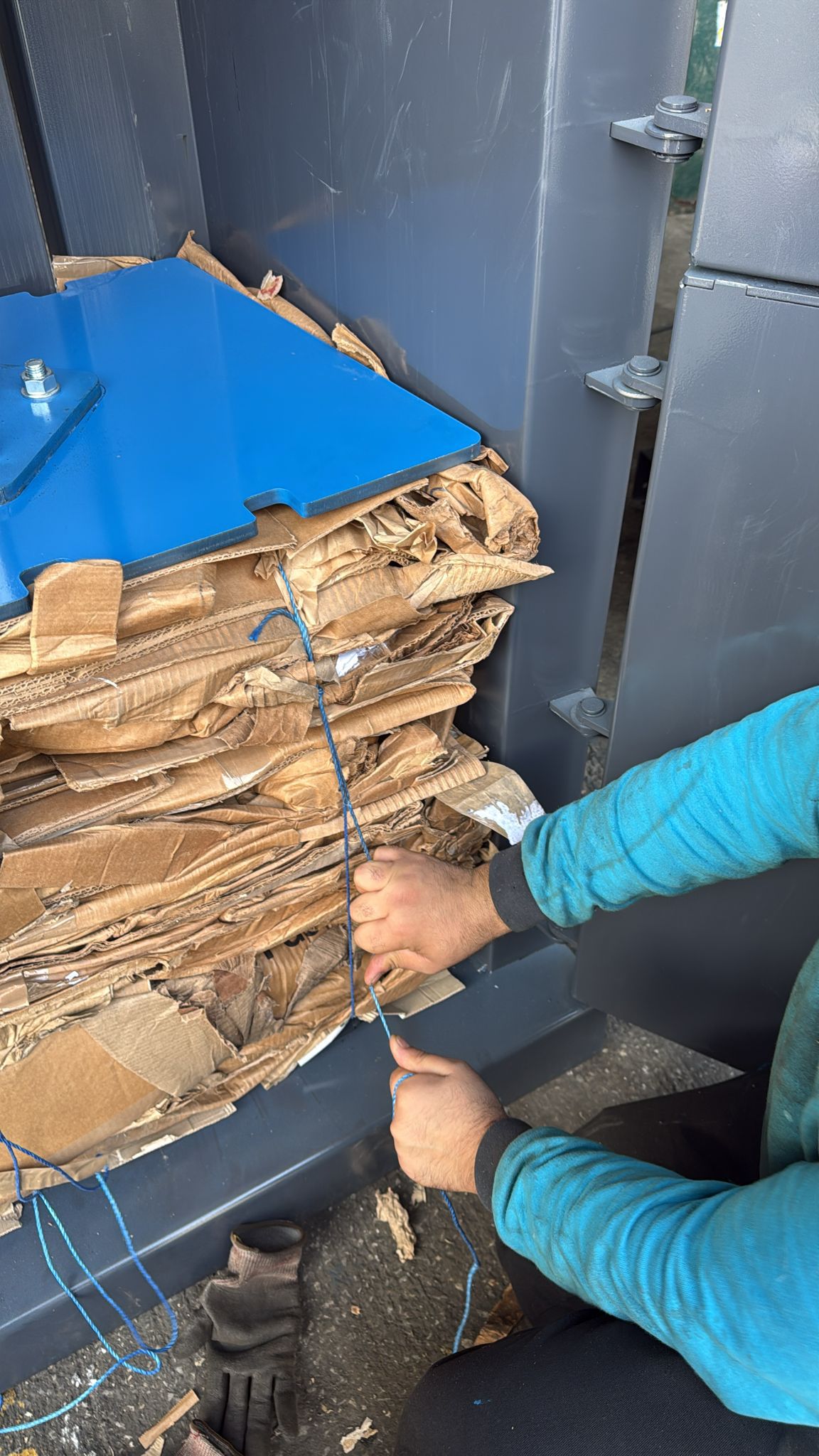

Setting up the vertical baler TONNA10 is straightforward. To begin, connect the air supply and plug in the electrical cord. Once installed, raise the pressing plate to clear the chamber for loading waste. This is done by moving the handle. Next, place your waste material into the cardboard baler. The vertical baler can handle plastic, wood, cardboard, paper, glass, and similar materials. Fill the chamber up to the top edge. Press the handle to activate the hydraulic plate, which will compress the material. The pressing cycle takes a few minutes. When finished, move the handle to lift the plate. The compressed bale must then be manually tied with wire or strapping. Once secured, open the recycling baler door and remove the bale by hand or with a forklift.

Video: How the recycling baler operates

▶

▶
