Trash Baler HSM V-Press 610 eco, 12 Tons, 120kN·m, 100kg Bale Capacity

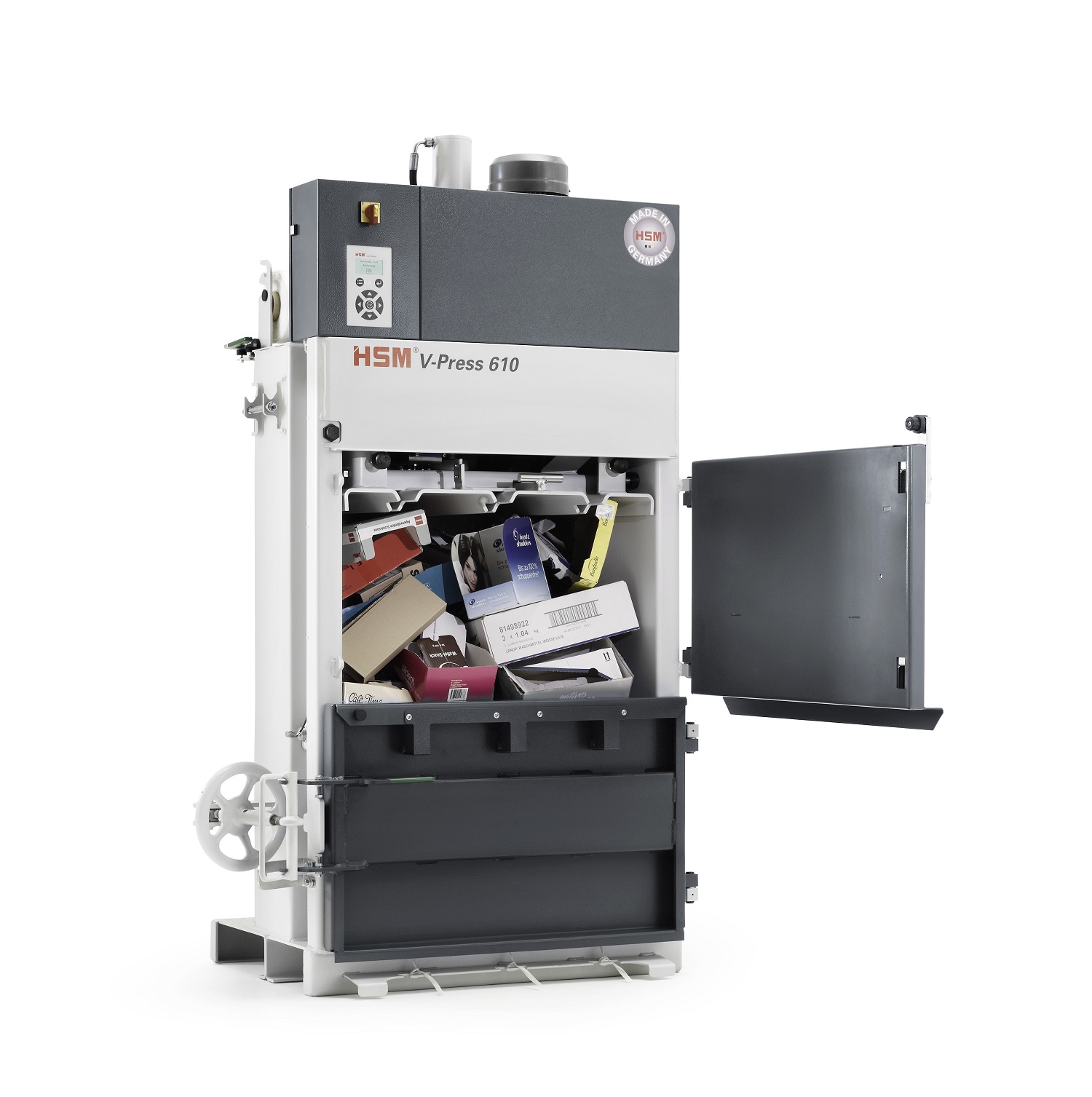

Waste baler HSM V-Press 610 eco

The HSM V-Press 610 automatic baler is designed for compacting packaging materials like film, cardboard, and paper into bales. This baler is most effective when placed where packaging waste is generated. Manage your packaging waste efficiently.

• 12 tons of pressing force or 120 kN
• Bale weight: up to 100 kg (varies by material)
• Bale dimensions: L 800 x W 600 x H max. 600 mm
• Made in Germany – Premium quality
• Goods are collected EXW; prices do not include VAT
• Ready to use – straightforward installation and operation
• Dimensions: 1198 x 823 x 1986 mm (Width x Depth x Height)
• Machine weight: 540 kg
• Filling opening: W 800 x D 495 mm
• Press chamber size: W 800 x D 600 x H 1045 mm
• Motor power: 3 kW
• Power supply: 3 x 400 V / 50 Hz
• Sound level during operation: 80 dB

With the HSM V-Press 610 automatic baler, you can compress used packaging materials such as film, cardboard, or wrapping paper into solid bales for recycling. With a compact footprint of only 2-3 m², the baler can be installed right at the point of waste generation. This minimizes internal transport distances and streamlines your packaging material handling.

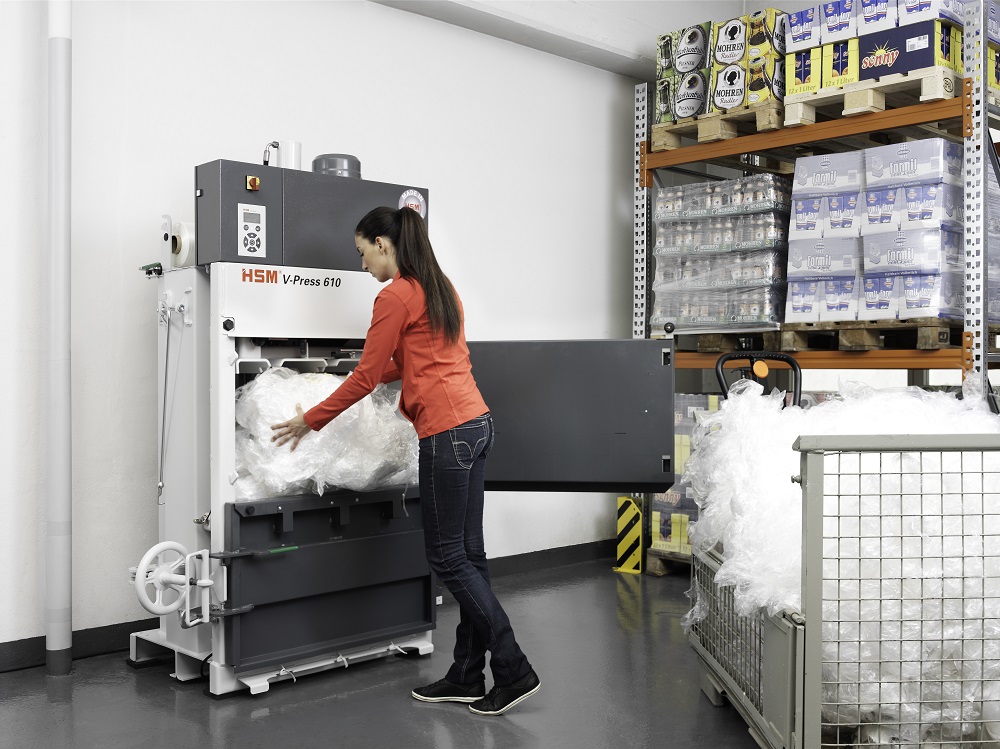

To operate, simply load the packaging waste into the upper section of the machine. A safety switch triggers the pressing cycle automatically when the door is closed, and the process stops if the door is opened during operation. A heavy-duty press plate compacts the material into bales weighing up to 100 kg, guided by robust press plate rails and delivering a pressing force of 120 kN. The integrated TorsionControlSystem (TCS) continuously monitors the press plate’s angle in all directions, preventing uneven loading and ensuring optimal performance. The HSM V-Press 610 can produce 3 to 6 bales per hour. Each bale is automatically secured with a strap. The mechanical bale ejector makes it easy to remove the finished bale, which can then be moved using a pallet truck. Compressed bales are less likely to catch fire, reducing fire hazards. The stackable bales can be safely stored until picked up by your recycling provider. Depending on your disposal company, finished bales may be eligible for compensation.

You can purchase the HSM V-Press 610 automatic baler from our shop to reduce your packaging waste volume into compact bales.

Features of the HSM V-Press 610 eco waste baler

• Digital display – User-friendly membrane keypad with text readout to indicate machine status
• Number of bales per hour: 3–6
• 400 V three-phase power connection
• HSM TCS (Torsion Control System) monitors the movement of the press ram
• Mechanical bale ejection system
• Handwheel door lock – Simple to use with counter-rotating threads for fast opening and closing
• Efficient use of space for recycling packaging waste
• Heavy-duty press ram and highly durable press plate guidance
• Special retaining claws improve material compaction and minimize the number of loading cycles
• Pressing cycle starts automatically after the door is closed
• Heavy-duty press ram and highly durable press plate guidance
• To load the press, swing the upper half of the doors to the right

Technical details for the HSM V-Press 610 eco waste baler
