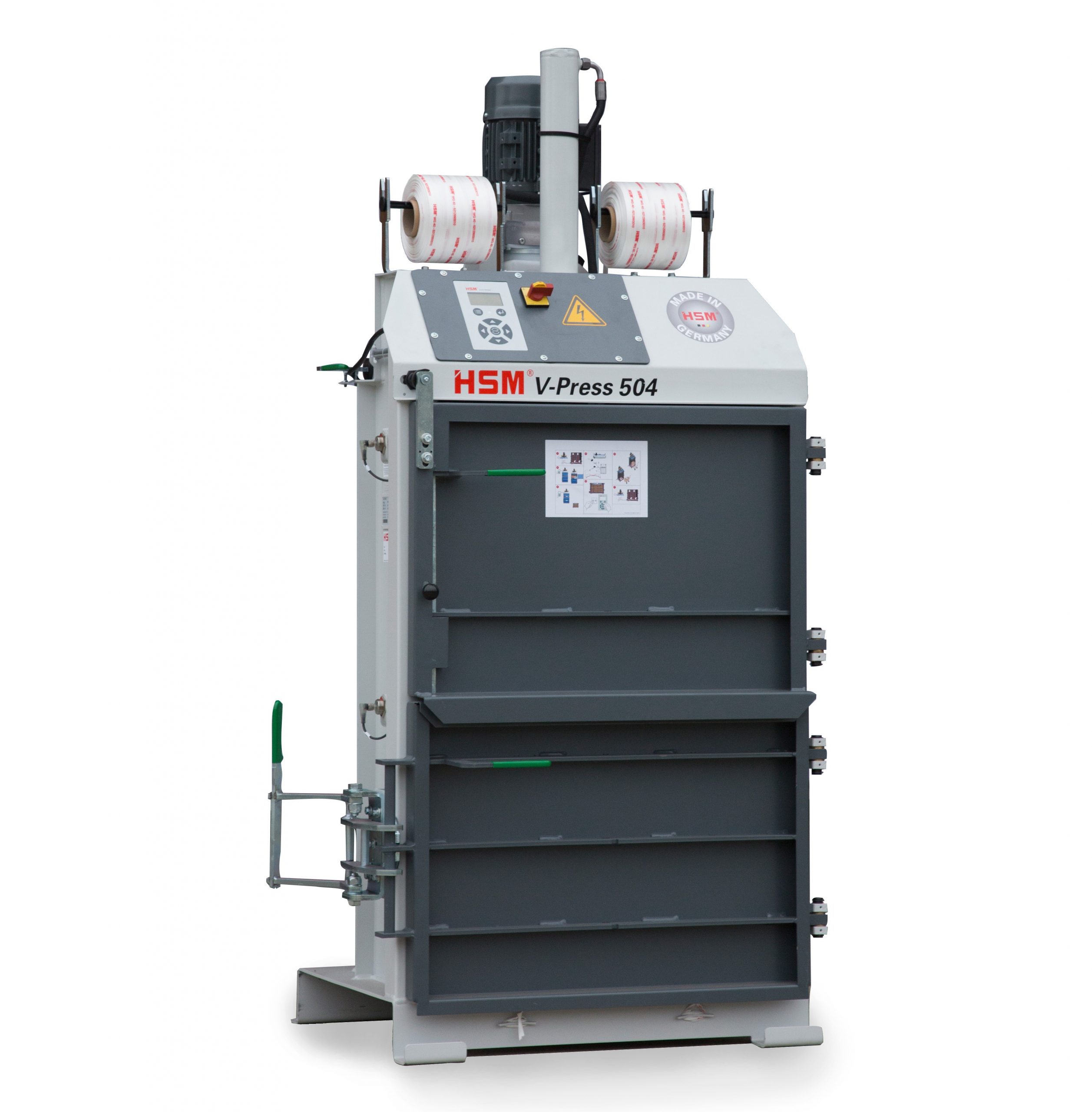

Cardboard Compactor HSM V-Press 504 4T, 40 kN, Bale Weight 60kg

HSM V-Press 504 Cardboard Box Baler 4T, 40 kN, bale weight 60kg

The HSM V-Press 504 cardboard box baler delivers a pressing force of 4 tons, helping your business cut down on waste costs and save valuable space. This trash baler is commonly used in warehouses, retail stores, hotels, restaurants, and manufacturing facilities across a range of industries, and is even chosen by landfills for its reliability and unique features. With a pressing force of 4 tons, the HSM V-Press 504 can compact a variety of materials, including plastic, paper, cardboard, and stretch film. The finished bale can weigh up to 60 kg, depending on the material being compacted. Once baled, recyclables are much easier to handle and move, which helps lower handling expenses and simplifies material disposal. If your operation generates a large volume of waste and you want to reduce your environmental impact, this baler is an excellent solution.

The HSM V-Press 504 cardboard box baler features a double door with a bell-crank lever. It comes equipped with a modern microprocessor controller, membrane keypad, and a text display. You can choose from different programs to press either cardboard or plastic film. With its strapping system, you can securely tie the finished bale, keeping it compact and easy to handle. The included discharge trolley makes bale removal and transport straightforward. Designed with a small footprint, the HSM V-Press 504 fits well in tight areas and is suitable for both indoor and outdoor use. This vertical baler is built for durability and can last 20 years or longer. Its dimensions are 1922 mm (H) x 1020 mm (W) x 812 mm (D), and it weighs 290 kg. The machine comes with a 1-year warranty. Goods are collected EXW and prices do not include VAT.

Key Features of the HSM V-Press 504 Cardboard Box Baler

• Double doors with bell-crank lever
• Includes operating manual and declaration of conformity
• Durable, compact construction
• Space-saving footprint
• State-of-the-art microprocessor control system featuring a membrane keypad and a text display
• Program selection for compressing cardboard or plastic film
• Bale ejection and movement using discharge cart
• Bales are manually removed and placed onto the included discharge cart
• HSM TCS (TorsionControlSystem) monitors the movement of the press ram
• Automatic return of the press ram
• Standard features: 2 rolls of polyester strapping

Dimensions and required space for HSM V-Press 504 eco

The HSM V-Press 504 cardboard box baler stands 1922 mm tall, so a minimum ceiling height of 2000 mm is necessary. Its width and depth are 1020 mm and 812 mm, but you will need a total depth of 1825 mm to allow for the pressing door’s swing range.

HSM V-Press 504 technical details
