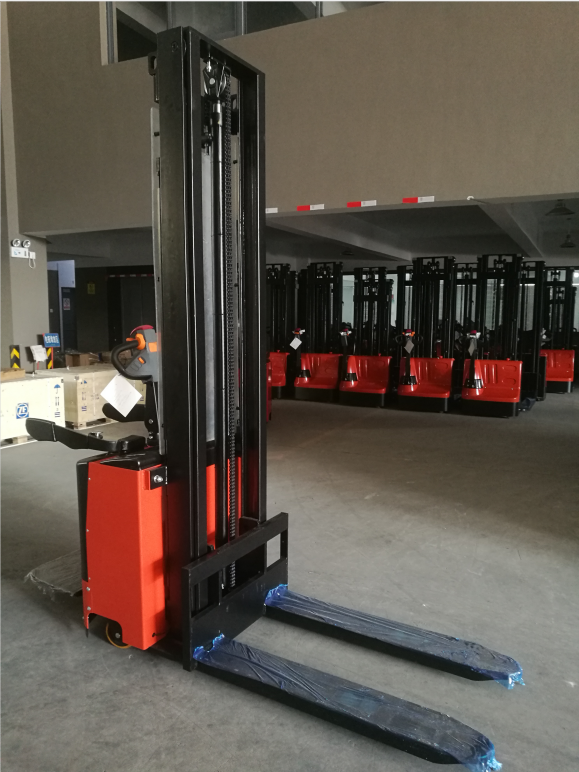

Pallet Lift Stacker SMITH S-Ride with Stand 2.6m 260cm 1500 kg

SMITH Electric Stacker with Stand S-Ride 2,6m 260cm 1500 kg

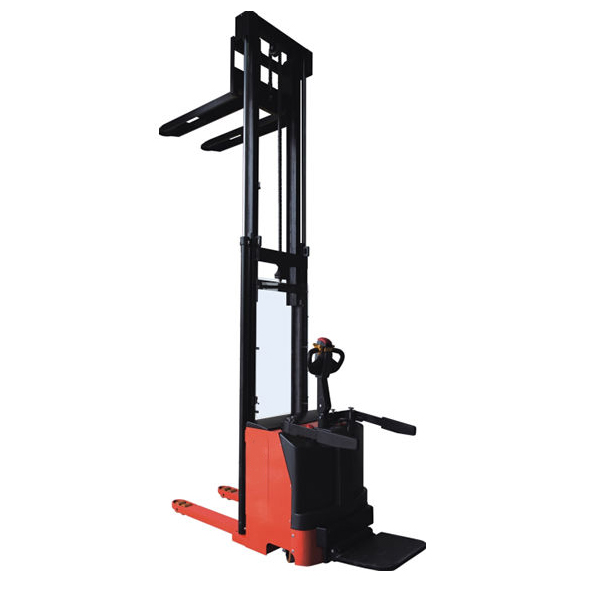

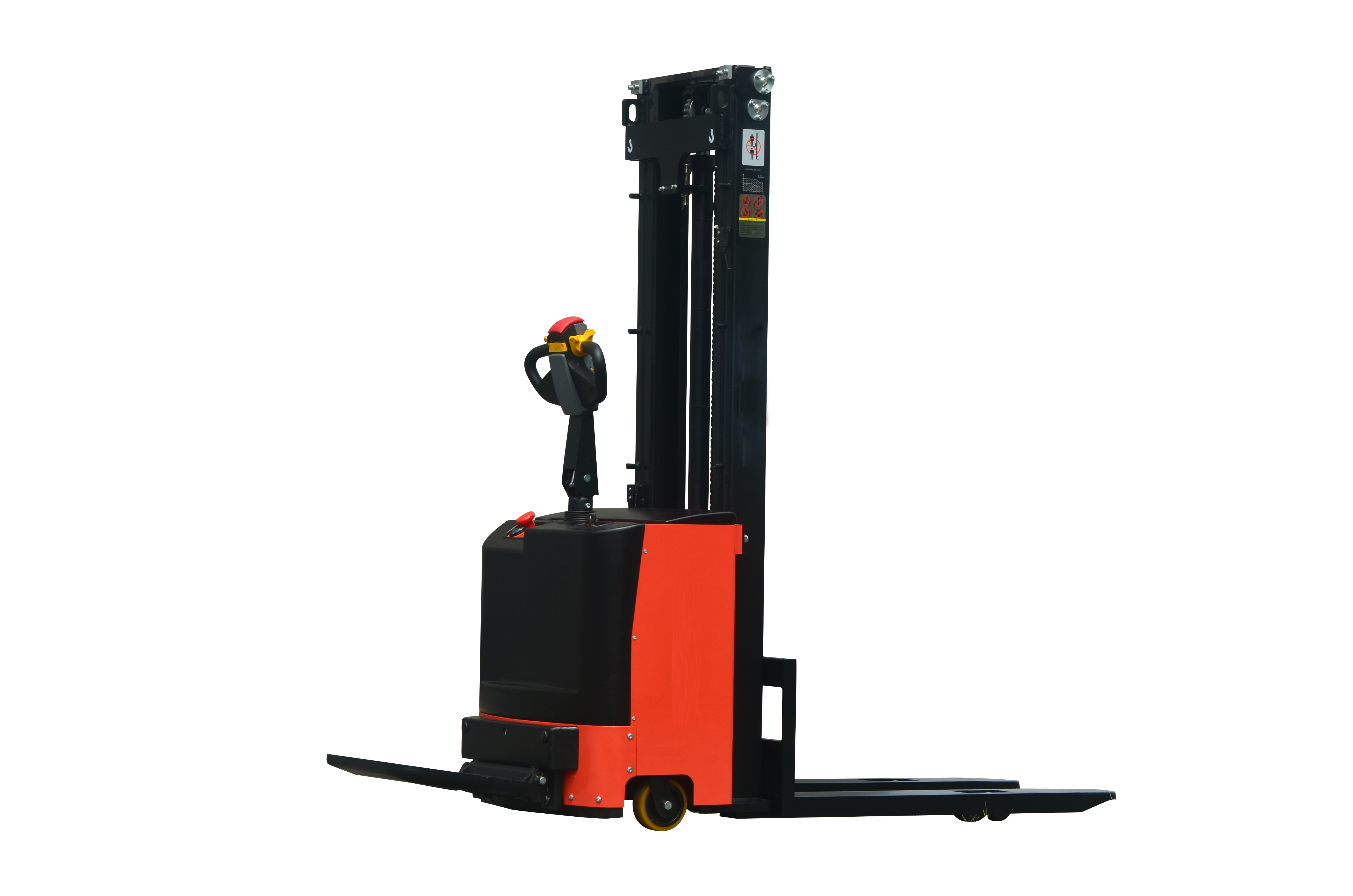

The ergonomic and durable build of the electric pallet stacker featuring a standing platform SMITH S-Ride is designed to maximize operator comfort during use. Its sturdy stand allows the operator to ride, eliminating the need to walk alongside the stacker, which increases productivity and improves employee satisfaction. The electric stacker SMITH S-Ride features side arms on both sides for safer and more convenient operation. It is simple to control, and its two-handed operation system ensures accurate lifting. The SMITH S-Ride electric stacker is suitable for moving and lifting heavy loads and pallets. With continuous use, the battery lasts about 6 hours. Recharging is quick. The unit is assembled in China with components sourced from Japan, Germany, and Taiwan. If warranty service is needed and not available locally, we will arrange and cover the cost of a local repair team during the warranty period. Standard components make replacement straightforward. The stacker uses a car battery, which is easy and affordable to replace if necessary. Most replacement parts are readily available. This electric stacker is a lightweight, powerful, and economical forklift solution. The paddle-equipped electric pallet stacker is designed for two-handed use and offers the highest stability in its class of electric pallet stackers with stand. The S-Ride electric stacker weighs 720 kg, providing excellent stability and the ability to lift a variety of loads and pallets. When fully lowered, its height is 1877 mm. The stacker is equipped with two motors: one for lifting and one for driving. The lifting motor delivers 24V/2,2KW of power, while the drive motor provides 24V/0.75KW. This electric stacker is supplied with 2 batteries and includes a charger. The batteries have a high capacity of 2×12V/120Ah, allowing for several hours of operation on a single charge. Fast recharging means less downtime. Its maneuverability and ease of use make this electric stacker ideal for lifting pallets or goods from the floor to shelves or trucks, or for unloading trucks. The SMITH S-Ride electric stacker is also designed for easy handling and efficient use of space. It includes a 12-month warranty and service is available in the European Union.

What is the price for the SMITH S-Ride electric stacker with paddle?

The SMITH electric stacker with stand is among the most competitively priced electric stackers available. However, its affordable price does not compromise its quality. Despite its cost-effectiveness, the electric stacker with paddle and side arms is constructed from premium materials and incorporates the latest advancements in lifting and driving technology. The current price for the electric pallet stacker is listed above. The electric stacker comes with a 12-month warranty and includes two batteries (2*12V/120AH).

Electric stackers are powered by batteries, using a DC motor on the drive wheel to enable movement. The DC motor converts high-speed, low-torque output into low-speed, high-torque performance through the gearbox, which is then applied to the drive wheel. Walking speed is managed by the accelerator.

Key benefits of the SMITH e stacker with stand:

• A durable and stable electric stacker with stand and side arms, designed for fast and safe lifting and driving. Operators can safely stand on the paddle and drive while working.
• The stand and side arms are foldable and can be quickly removed or attached as needed.
• Although this is an electric stacker with a platform, it features a high-performance, high-power lifting pump station for reliable lifting.
• The turtle speed switch on the handle allows for more precise low-speed control.
• German-imported waterproof micro-switches are designed for use in cold, wet, dusty, and other challenging environments.
• The YONGCI motor drive system features a compact design, is lightweight, minimizes energy loss, and delivers high efficiency.

Applications for the SMITH e-stacker with stand

The SMITH electric stacker with stand is a cost-effective electric forklift that quickly demonstrates its value when integrated into packaging or material handling operations across industries. It fits smoothly into daily routines and can significantly boost productivity—sometimes even doubling or tripling output. Using the electric stacker eliminates the need for manual heavy lifting, helping to reduce workplace accidents in factories or warehouses. Powered by electricity, this stacker operates cleanly without emitting harmful gases, making it suitable for indoor use. There are no cords to manage or trip over, as the stacker runs on batteries and includes two batteries as standard. This setup supports uninterrupted work, as the batteries recharge quickly and do not require workflow pauses. The electric pallet stacker is engineered for stability and durability, making it well-suited for moving and lifting heavy loads of various shapes.

The SMITH electric stacker is commonly found in industries such as paper, aluminum, textiles, steel, logistics, agriculture, chemicals, and metals. The SMITH S-Ride electric pallet stacker with stand features a rugged construction and is user-friendly. It moves at a good pace but remains easy to steer and control. The electric stacker combines strength with an attractive design. With this pallet stacker, you can streamline operations and accelerate lifting and transport tasks. The SMITH electric pallet stacker offers a high level of automation, straightforward controls, and is simple to operate. Its frame is constructed from high-strength alloy materials and engineered plastics for long-lasting performance. The stacker is easy to maneuver and accommodates packages of different sizes.

Technical Specifications: SMITH S-Ride Electric Stacker with Platform

Platform Pallet Stacker SMITH lift curve

Instructions for operating the SMITH S-Ride electric pallet stacker with stand

To operate the electric stacker, turn the key switch to start the machine. The handle features two controls: one for raising and lowering the forks, and another for driving the stacker. To pick up a pallet, drive the stacker under the pallet and lift it slightly. Then, use the drive control to move the stacker to your chosen location. Once in position, press the lift switch to raise the pallet to the required height, and move the stacker forward to place the pallet into a truck or onto a rack. Lower the forks so the pallet rests on the floor, then back the stacker out. The same steps apply for lifting other items. If an item cannot be lifted directly, place it on a pallet and secure it for stability. The SMITH S-Ride electric stacker weighs approximately 720 kg and is equipped with a powerful lifting and drive motor. It can lift up to 1500 kg to a height of 2.6 m (2600 mm). The travel speed is about 4.5 km/h. The stacker uses two 12V/120AH batteries. The SMITH electric stacker is engineered for durability and reliable operation in warehouse or factory settings. The electric pallet stacker comes with a one-year warranty and is serviced in the European Union.

How to operate the control system on the SMITH S-Ride pallet stacker with platform?

1) Turn the key to the “on” position to power up the e-stacker. Move the handle into the operating area.
2) Use the accelerator knob to select the desired direction or to reverse.
3) Adjust your speed by pressing the movement button until you reach the preferred speed.
4) Carefully drive the stacker to your destination. The speed can be fine-tuned using the travel controller.

Braking system of the SMITH S-Ride electric stacker:

Braking performance is affected by surface and load conditions.
The braking function can be used in these ways:
1. Move the travel controller to position ‘0’ to bring the stacker to a stop.
2. Move the travel switch in the opposite direction to stop and reverse the stacker.
3. The stacker will brake if the handle is moved up or down into the braking area (“B”). When the handle is in the braking area (“B”), the stacker will stop.
4. The belly switch is an emergency stop button. When pressed, it helps prevent the operator from being trapped or injured.

SMITH electric stacker video:
