SMITH Self-Lifting Electric Pallet Stacker Truck 500kg 1500mm

SMITH Self-lifting electric stacker 500kg 1500mm

The self-lifting electric stacker is designed for loading, unloading, and moving goods on pallets, and can be lifted into and out of vehicles along with the cargo. It features a compact build, smooth operation, reliable performance, and user-friendly handling. The automatic climbing pallet stacker includes a lifting cylinder, inner and outer mast columns, chassis, movable mast seat, lifting forks, handle, power supply, and other electrical parts.

The SMITH Self-lifting electric stacker is a flexible and high-performing material handling solution that helps make moving goods safer and more efficient. With a supports a maximum load of 500kg and offers a lifting height up to 1500mm, making this stacker well-suited for use with vans and delivery trucks. A standout feature of the SMITH Self-lifting electric stacker is its self-lifting system, allowing the stacker to raise itself into a van or truck. This self-lifting function enhances ergonomics and ease of use. Operators no longer need to manually lift heavy items, helping to lower the risk of workplace injuries and boost efficiency.

The stacker’s small footprint and tight turning radius make it simple to operate in confined spaces, such as narrow aisles or busy storage rooms. Another benefit of the SMITH Self-lifting electric stacker is its robust construction and dependable performance. Built from premium materials like steel and aluminum, it handles demanding workloads and tough conditions. The hydraulic system is designed to be maintenance-free, so users can focus on their tasks without worrying about downtime or repairs. For safety, the SMITH Self-lifting electric stacker includes multiple features to safeguard both the operator and the load.



Uses for Self-loading Pallet Truck

The self-loading pallet stacker is compatible with a wide range of delivery vehicles, including wagons, trucks, and container trailers.



Dimensions and Main Specifications of SMITH Self-loading Electric Stacker

• Total Length: 1555mm
• Total Width: 790mm
• Total Height: 1817mm
• Minimum Turning Radius: 1120mm
• Fork Dimensions: 540*1150mm
• Curtis Control System
• Battery (2*12V/75AH)
• External Charger (24V/10A)
• Charging Duration: 7-8 hours
• Operating Time: 50 cycles (one cycle is a full load and unload)



SMITH Self-lifting Electric Stacker Video

▶



Main Features of SMITH Self-lifting Electric Stacker

• Dual Oil Circuit Control System:
  This electric stacker features a dual oil circuit control system for accurate movement management. The cylinder piston rod moves in both directions, providing flexibility for different work requirements.
• Independent Inner Door Frame:
  The inner door frame operates independently and is directly connected to the fork bolt. Its vertical movement removes the need for roller board transfers, making the lifting process more efficient.
• Movable Door Seat:
  The door seat moves in relation to the lifting rack or cargo fork, extending when goods reach platform height. This smooth operation helps improve workflow.



SMITH Self-lifting Electric Stacker Features

1. Multi-purpose design: Combines transport, stacking, and climbing functions for a comprehensive material handling solution.
2. Streamlined loading and unloading: Capable of entering vehicle cargo areas, assisting drivers with efficient cargo handling.
3. Lightweight and easy to use: Built for simple operation, its low weight makes handling comfortable for the operator.
4. Improved handling: Features support legs with a swinging guide wheel to help move the equipment smoothly into the vehicle. Also uses a double linkage cylinder for efficient, alternating locking and lifting actions.



Technical details for SMITH Self-lifting electric stacker 500kg 1500mm

Model	SXCDS0515
Load Capacity	500	Q(Kg)
Load center	400	C(mm)
Lifting method	Electric
Operation type	Walk-behind
Material	Nylon/PU
Wheelbase	850	y(mm)
Front wheelbase	380	W1(mm)
Rear wheelbase	672	b10(mm)
Number of steering/bearing/balance wheels	2/2/6
Bearing wheel dimensions	Φ80×50	mm
Steering wheel dimensions	Φ100×45	mm
Balance wheel dimensions	Φ40×30	mm
Auxiliary wheel dimensions	Φ30×30	mm
Minimum fork height	90	mm
Maximum fork height	1300	h3(mm)
Fork width (outside)	540	W3(mm)
Fork width (inside)	220	mm
Fork Length	1150	L(mm)
Individual fork size	160X60	e/s(mm)
Total length	1555	L1(mm)
Total width	790	W(mm)
Total height	1817	H1(mm)
Height with tape file shelf installed	3070	H4(mm)
Minimum turning radius	1120	Wa(mm)
Lifting speed (with/without load)	70/100	mm/s
Lowering speed (with/without load)	100/80	mm/s
Lift Motor	12/0.8	Kw
Battery Capacity	12/33	V/Ah
Battery Weight	10	Kg
Net Weight	235	Kg

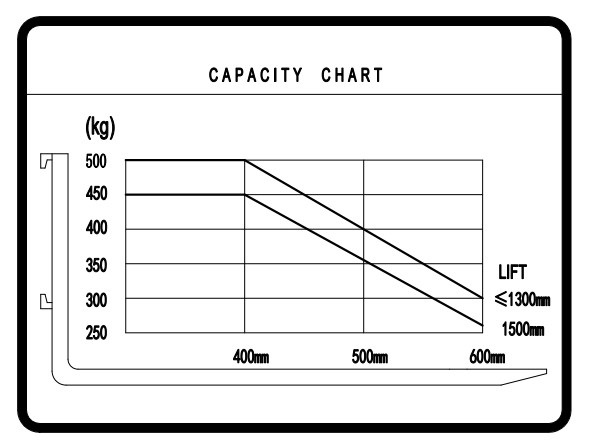

Lifting curve for SMITH self-loading pallet truck:



Advantages of the SMITH self-loading pallet truck:

1. Multi-Function Logistics Solution:
   • Integrates both stacker and taillift features for streamlined material handling.
2. Engineered for Precision:
   • Equipped with essential parts including a lifting system, sturdy frame, and CURTIS handle.
3. Space-Saving and Productive:
   • Small footprint, easy operation, and strong performance for a variety of handling tasks.
4. Self-Lifting Feature:
   • Innovative self-lifting design improves ergonomics and ease of use.
5. Perfect for Vans and Trucks:
   • Handles up to 500kg with a lift height of 1500mm, making it suitable for use with delivery vehicles.
6. Easy Handling in Small Areas:
   • Compact build and tight turning radius make it simple to move in restricted spaces.
7. Built to Last:
   • Made from premium materials such as steel and aluminum for extended service life.
8. Hydraulic System Requires No Maintenance:
   • Engineered to reduce downtime and maintenance, so operators can stay focused on their work.
9. Dual Oil Circuit Control:
   • Enables accurate movement control with a two-way cylinder piston rod.

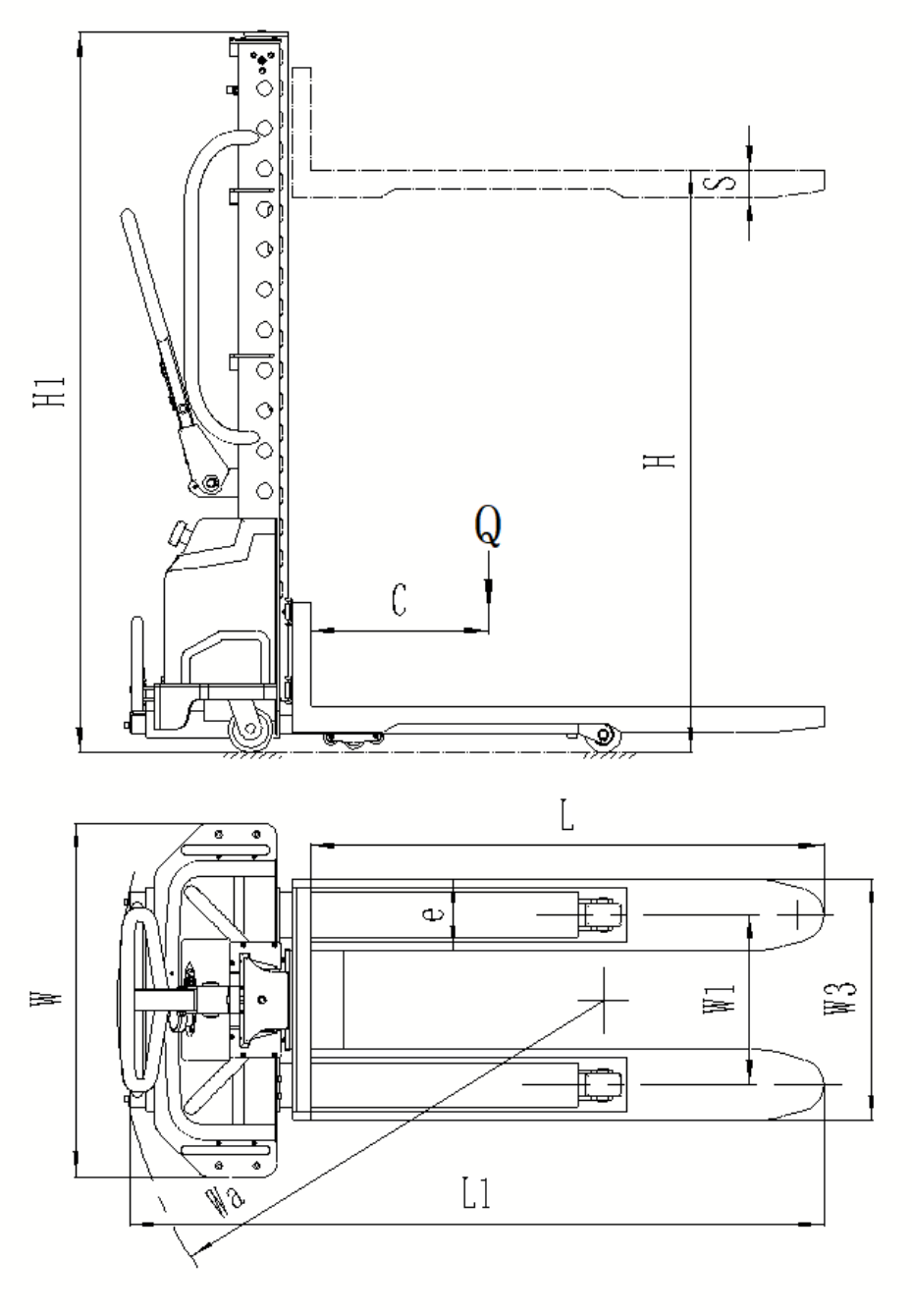

SMITH Self-lifting electric stacker 500kg 1500mm dimensions



How does the SMITH self-lifting electric stacker operate?

Steps for Loading and Unloading with the Self-Lifting Pallet Stacker:

Prior to Use:

• Verify that the cargo weight does not go over the rated capacity of the self-lifting pallet stacker
• Slide the forklift forks under the pallet, making sure the load is centered at the load center
• Press the upper (right) button to raise the load slightly, then let go of the button and move the forklift

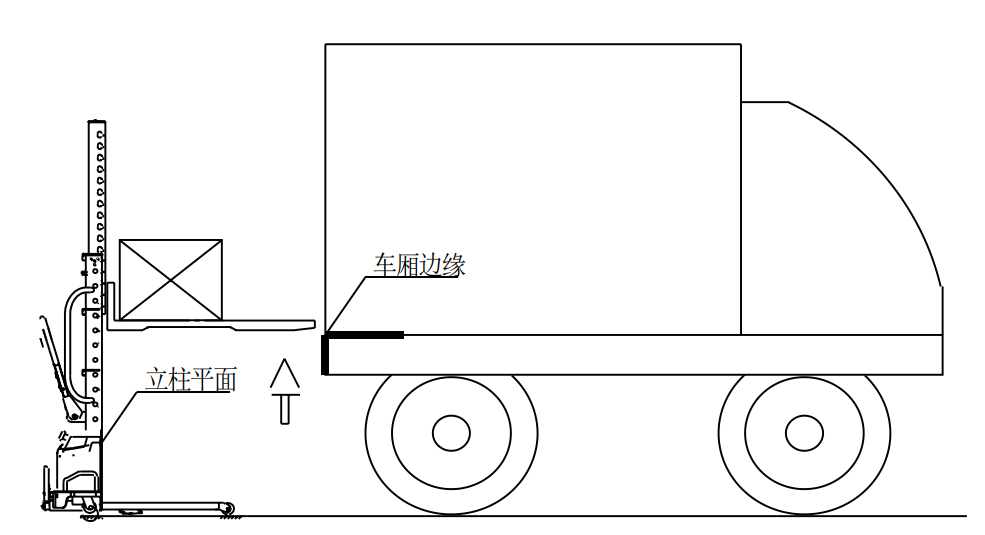

• Make sure the forklift mast is no more than 80mm from the edge of the vehicle bed, keeping clear of any vehicle parts.



Loading Goods into the Vehicle:

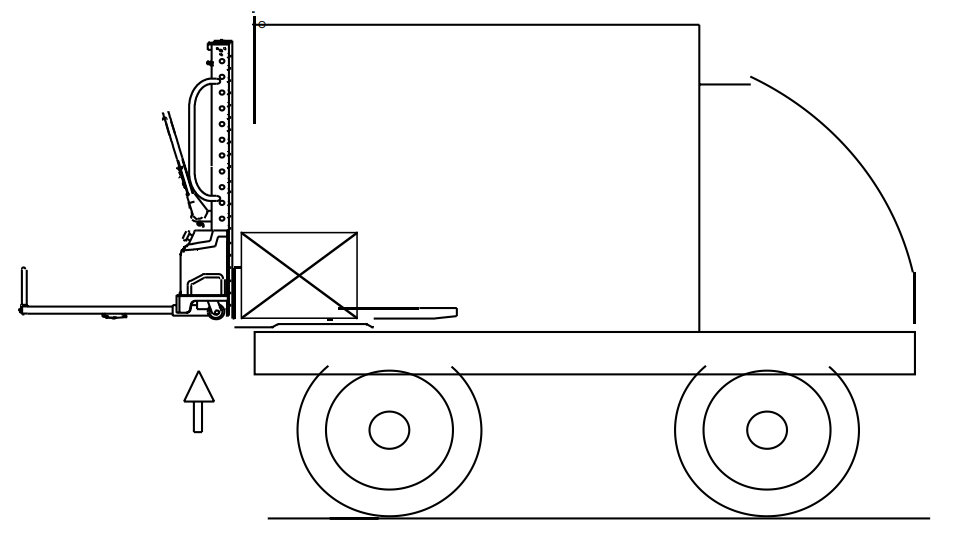

a. Move Toward the Vehicle:

• Place the self-lifting pallet stacker alongside the delivery vehicle
• Make sure the tip of the cargo fork is positioned at least 10 cm away from the vehicle.
• Press the lift button to raise the load.

b. Placing Goods into the Carriage:

• Once the load is slightly above the level of the vehicle platform, let go of the lift button.
• Carefully move the self-lifting pallet stacker into the vehicle.
• Make sure the forklift mast is no more than 80mm from the edge of the vehicle bed, keeping clear of any vehicle parts.

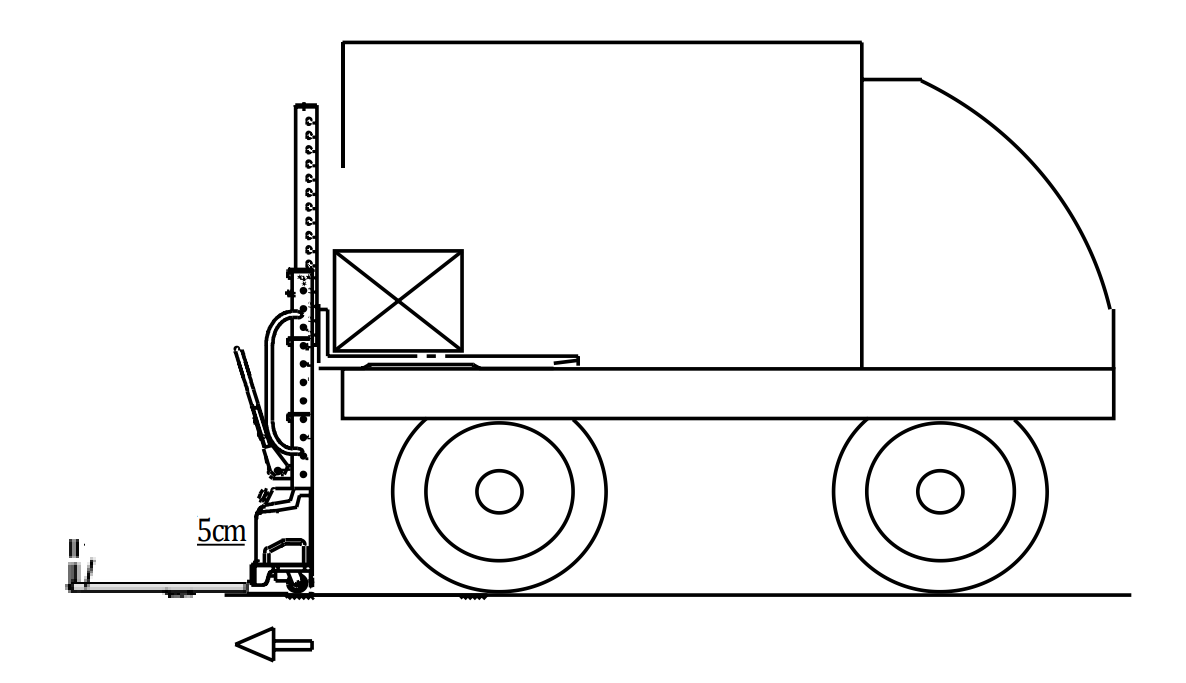

c. Pulling the Platform:

• Press the lower button to bring the fork down to the level of the vehicle platform.
• Raise the rack until the door seat is more than 5 cm above the ground.
• Hold the stacker and pull the platform on the stacker back until it reaches the stop.



d. Raising the Frame and Door Seat:

• Grip the frame with one hand.
• Press the lower button to lift both the frame and the stacker’s platform.



e. Positioning the Platform and Wheels:

• When the frame reaches the upper stop, release the lower button.
• Move the platform forward so the guide wheel enters the vehicle.

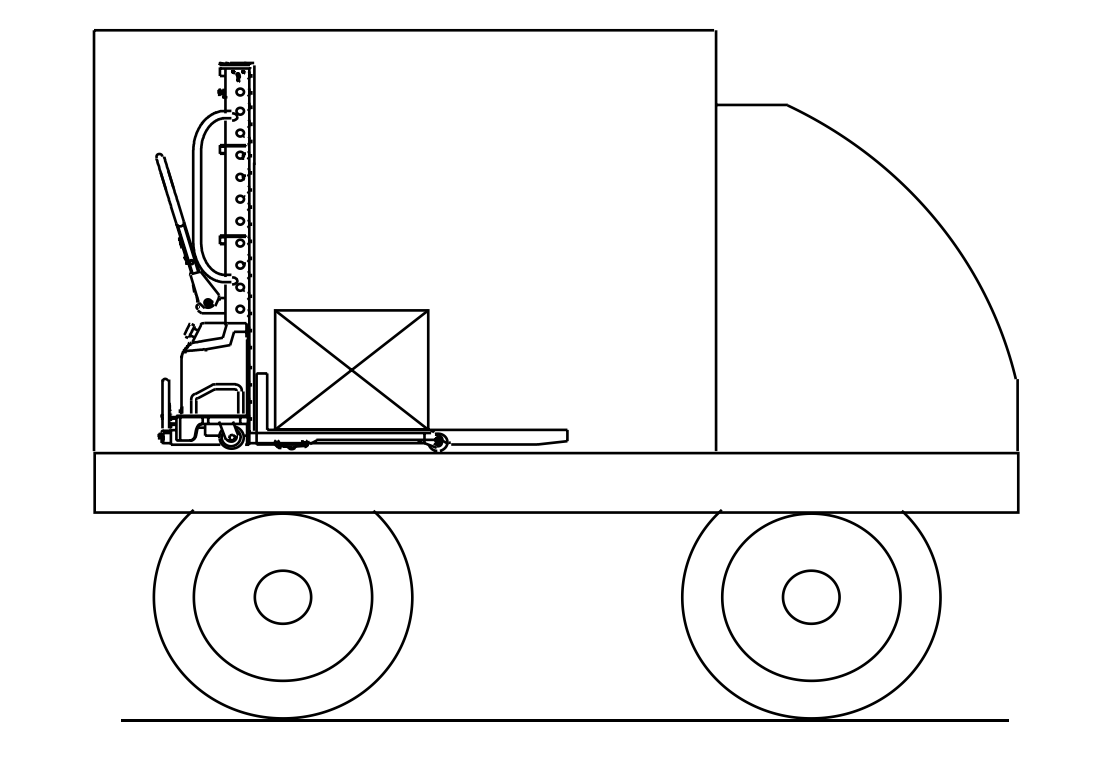

f. Moving the Electric Stacker Inside the Vehicle:

• Press the lift button to slightly raise the load.
• Push the rack so the swivel wheel moves into the vehicle interior.



g. Parking and Final Procedures:

• Press the lower button to bring the fork down onto the vehicle platform

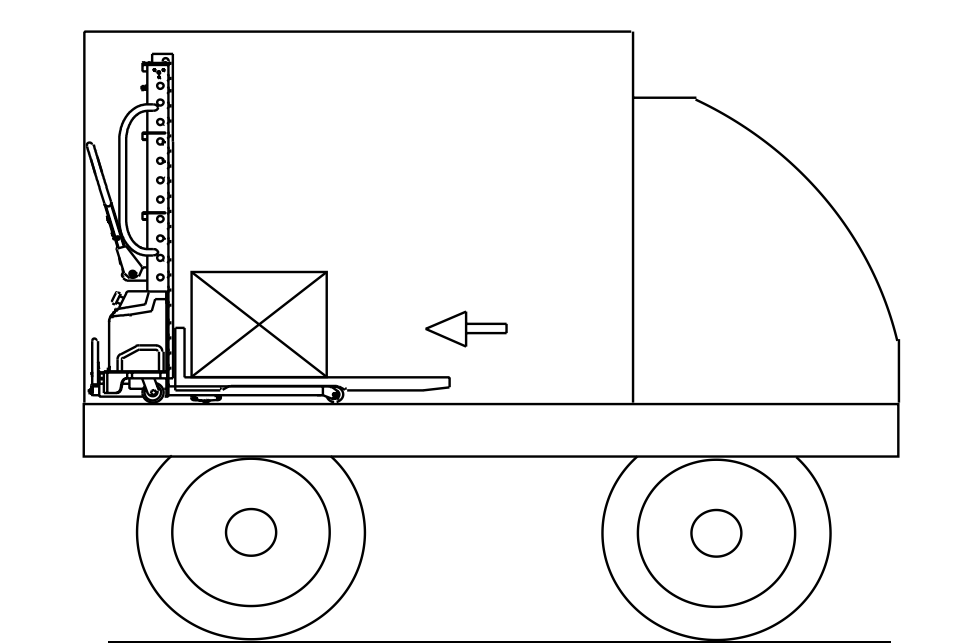

Instructions for Exiting the Vehicle and Operating the Stacker:

Steps Before Leaving:

a. Positioning the Forklift:

• Press the lift button to raise the fork up to the edge of the vehicle

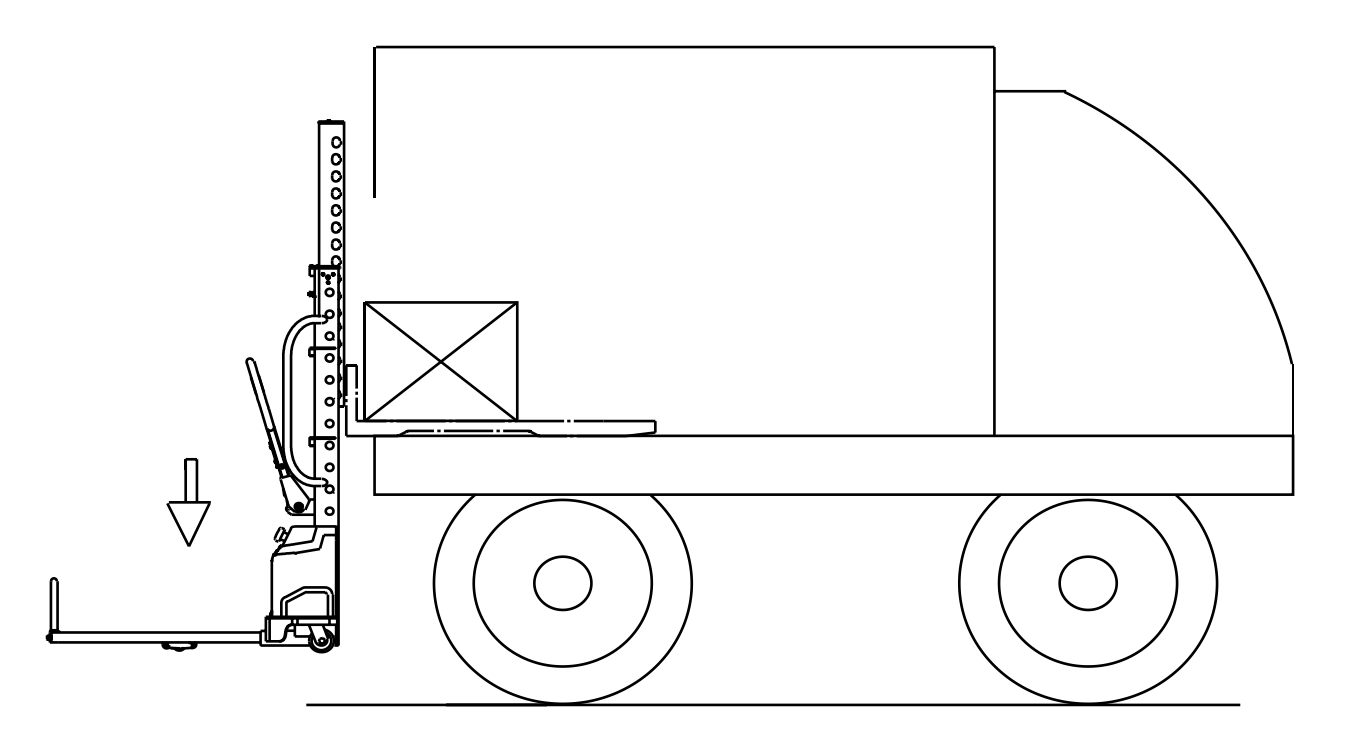

Exiting the Vehicle:

b. Moving the Forklift:

• Drive the forklift slowly toward the exit of the vehicle
• Press the lower button to bring the fork down to the platform

c. Lowering the Rack:

• Hold the frame and pull the stacker’s platform out, aligning it from front to back
• Press the lift button to lower the frame



d. Move the Door Seat Toward the Rear Seat:

• If the frame is more than 5 cm above the ground, release the brake and push the platform forward



Final Steps for Exiting the Vehicle:

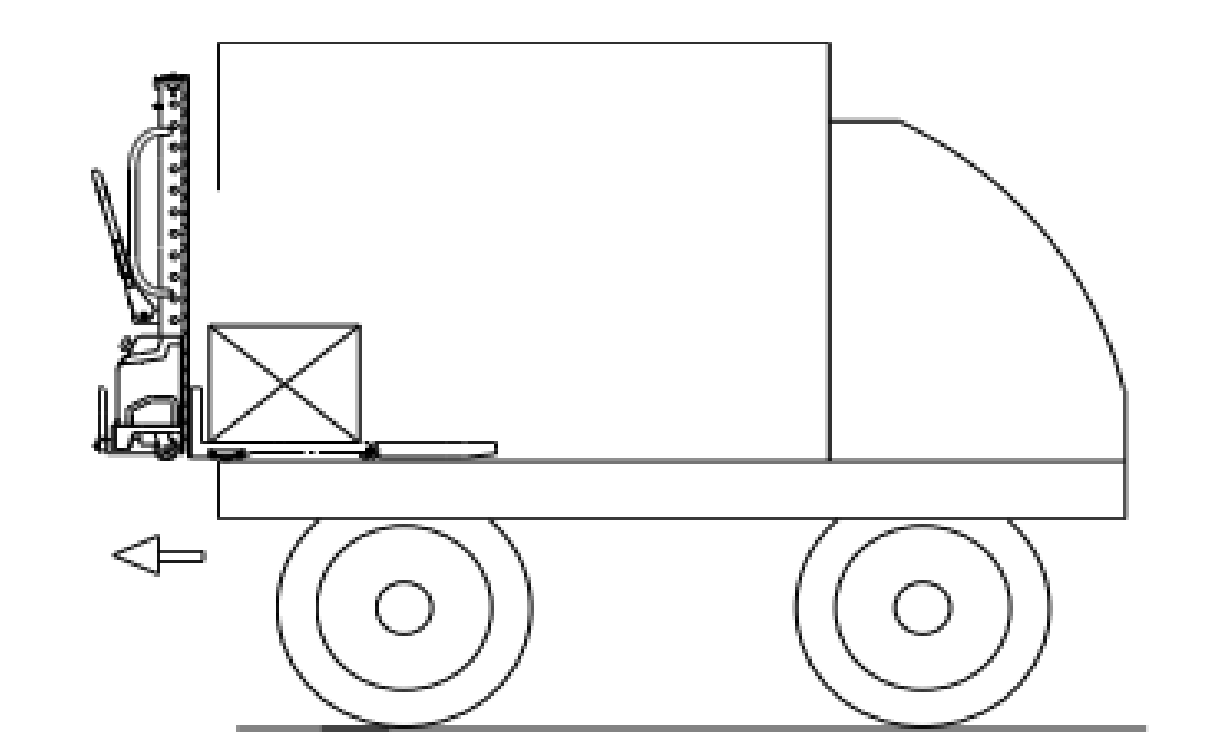

e. Exit the Vehicle:

• Press the lift button to lower the rack and door seat all the way to the ground
• Slightly lift the cargo fork
• Drive the forklift out of the delivery vehicle

Note:

• Always check that the path is clear before moving the stacker
• Always follow the safety instructions outlined in the manufacturer’s manual



Self-loading pallet stacker

Setting itself apart from standard stackers or taillifts, the SMITH is a significant innovation in lifting technology. By combining the strengths of both, this advanced equipment provides a complete solution, delivering notable cost reductions and improved workflow efficiency. Its integrated design eliminates the need for extra lifting devices, streamlining the loading process and removing the need for double pallet handling. The SMITH is known for its intuitive controls, which help speed up operations and reduce physical strain and fatigue, greatly lowering the risk of workplace injuries, especially those involving the back.

The SMITH is unique as the only semi-electric stacker/lift loader that can independently raise itself into and out of delivery vehicles. This feature removes the need for specialized trucks or the costs linked to taillifts, and also eliminates the need to transport separate pallet trucks.

Designed to work with open-bottom pallets, skids, and crates, the SMITH is an excellent option for moving a wide variety of heavy goods. Whether handling medical equipment, office machines, large appliances, or UPS systems, the SMITH delivers convenience, efficiency, and adaptability, setting a new standard for material handling in business environments.



Purchase a self-loading pallet stacker or request a quote

To purchase a self-loading pallet stacker online, simply click the ADD TO CART button and proceed to Checkout. If you need a formal quote for a self-loading electric pallet stacker, click GET OFFER and our team will provide a customized quote for your business. Goods are collected EXW at our warehouse and all prices are exclusive of VAT.
