Electric Hand Stacker SMITH Heavy-duty 2000kg, 2 Tons, 4500mm, 4,5m

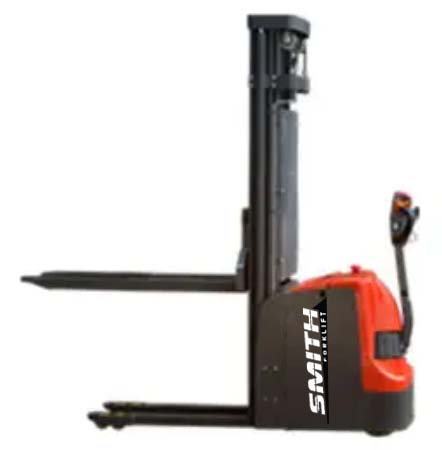

SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

The SMITH Heavy-duty Electric Stacker is built for tough material handling jobs and is engineered to perform in demanding industrial settings. Featuring a 2000kg load capacity along with a maximum lift height of 4500mm, this electric stacker delivers dependable results across a range of applications. Outfitted with premium components and advanced features, the SMITH Heavy-duty Electric Stacker provides outstanding lifting performance, accurate control, and improved safety, making it a smart choice for warehouses, production plants, and distribution centers.

Main Features of the SMITH Heavy-duty Electric stacker 2000kg 450cm

1. High-Performance AC Motor and ZF Friedrichshafen Transmission: This stacker is equipped with a robust AC motor and ZF Friedrichshafen transmission, delivering excellent acceleration, greater productivity, and energy efficiency. This setup ensures smooth, effective handling of heavy materials.
2. High-Power MOSFETS Drive System: The stacker is built with a high-power MOSFETS drive system that operates at high frequency for efficient and quiet performance. It provides variable speed control and reverse braking for enhanced safety and handling. Advanced temperature protection and compensation features help maintain stable output and protect the system, supporting long-term reliability.
3. All-in-One Control Handle: The control handle combines all key functions, such as the key switch, electric meter, horn, lift and lower controls, and turtle speed switch, for straightforward operation. Its extended, ergonomic design gives operators comfortable and intuitive control.
4. Side Drive Configuration: The side drive setup minimizes the width needed for operation, making it easy to use the stacker in tight spaces. Its compact turning radius and enhanced visibility make it ideal for navigating restricted areas, helping to maximize productivity.
5. YONGCI Motor Drive System: This stacker features a YONGCI motor drive system, recognized for its compact build, lightweight design, low energy loss, and high efficiency. The system delivers dependable and responsive performance, boosting the stacker’s overall capabilities.

Technical Details for SMITH Heavy-duty Electric Stacker 2000kg, 2 tons, 4500mm, 4,5m

• Brand: SMITH
• Model Number: CXL20GF
• Power Source: Electric
• Operation Type: Walk-behind
• Maximum Load: 2000 kg
• Lowered Mast Height: 2100 mm
• Maximum Lift Height: 4500 mm
• Free Lift Height: 1686 mm
• Load Center Distance: 600 mm
• Fork Dimensions: 570 × 1150 mm
• Curtis Control System
• Load Capacity at Full Height: 550 kg
• Distance from Axle Center to Fork Face: 672 mm
• Wheelbase: 1384 mm
• Total Weight with Battery: 1126 kg
• Wheel Material: PU
• Continuous Operation Time: 5–6 hours
• Battery: 24V/210 Ah
• External Charger: 24V/30A

Electric stacker 450cm, 2000kg SMITH video

▶

Advantages of the SMITH Electric stacker 2t 4,5m

The SMITH Heavy-duty Electric Stacker is engineered for the challenges of industrial material handling, delivering top performance, accurate maneuvering, and advanced safety. Its modern motor and transmission, ergonomic handle, and space-saving design make this electric stacker a dependable and efficient option for many handling tasks. Whether you’re working in tight aisles or tough environments, the SMITH Heavy-duty Electric Stacker supplies the strength, control, and reliability to boost productivity and maintain safety.

• Heavy-duty Electric Stacker: Durable equipment designed for demanding material handling tasks.
• High-performance AC Motor: Delivers strong acceleration and efficient energy use.
• Accurate Operation: MOSFETS controller provides smooth speed adjustment and reverse braking.
• Built-in Operation Handle: Easy-to-use controls for efficient handling.
• User-friendly Design: Extended handle offers comfortable and intuitive operation.
• Space-saving: Side-mounted drive allows use in narrow aisles and tight spaces.
• YONGCI Motor: Compact, lightweight, and highly efficient drive motor.
• Enhanced Safety Features: Waterproof micro-switches ensure dependable use in tough environments.
• High Lift Capacity: Efficient pump station for handling heavy loads.
• Turtle Speed Switch: Allows for careful movement during sensitive tasks.
• Compact and Agile: Well-suited for navigating tight warehouse spaces.
• Multiple Uses: Works well in warehouses, production facilities, and distribution centers.

Technical details for the SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

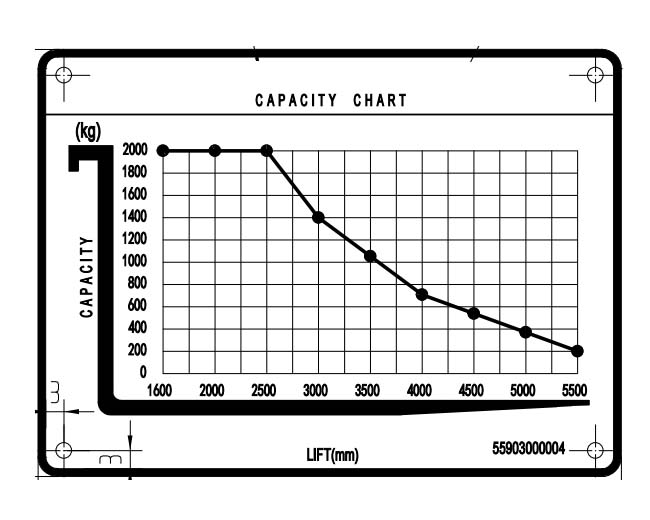

Lifting curve for SMITH 2000kg electric stacker

Purchase the 2000kg, 450cm electric stacker or request a quote

Discover the power and efficiency of the Electric Stacker 2000kg with a 450cm lift height—an excellent fit for your heavy-duty material handling requirements. Improve your workflow with fast acceleration, precise handling, and advanced safety systems. If you want to purchase this durable electric stacker or need a custom quote, you can do so by clicking ADD TO CART or GET OFFER to match your needs. Benefit from easy operation, ergonomic design, and a compact build, making it suitable for a wide range of industrial applications. Enhance your material handling performance—buy the Electric Stacker 2000kg, 450cm online or request a quote to fit your specific needs. Boost your efficiency with a stacker made for your workspace demands.
