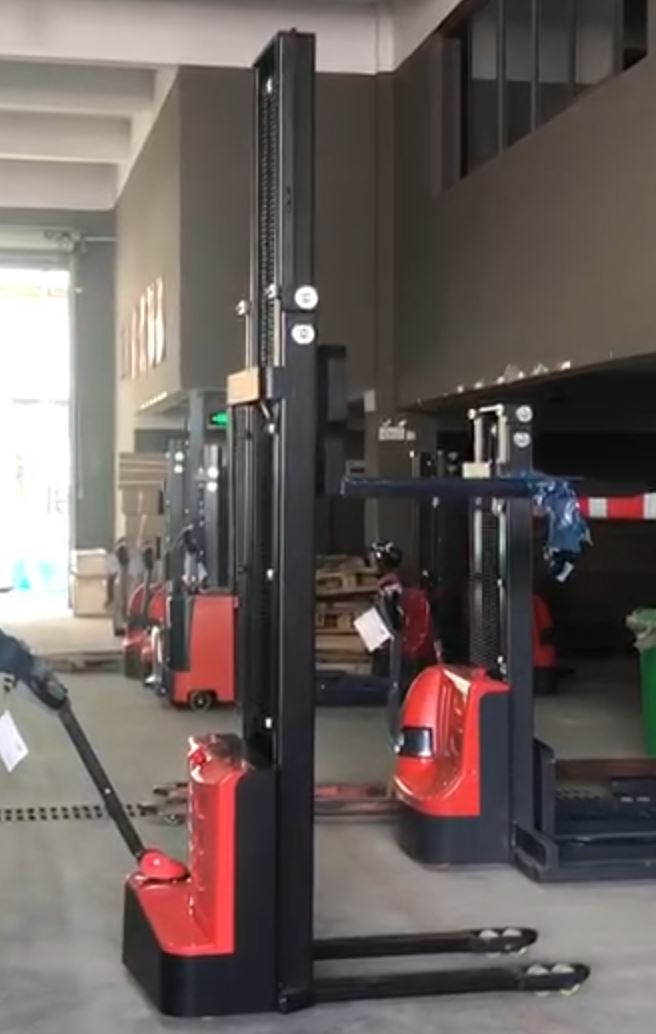

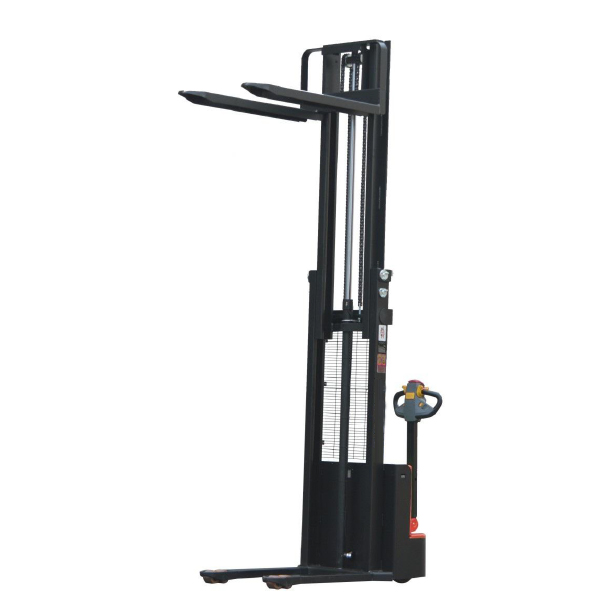

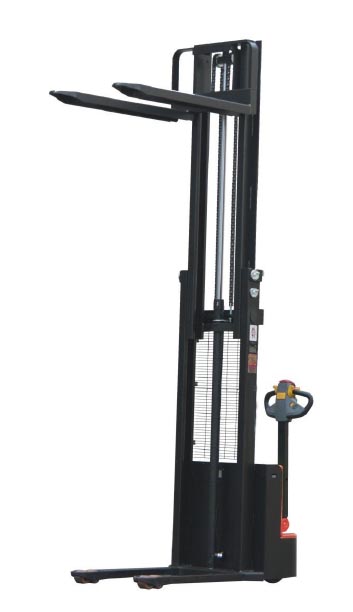

    Electric pallet stackerSMITH Electric Pallet Stacker 3,5 m 350 cm 1500 kg

    The SMITH electric pallet stacker is designed for lifting and moving heavy items and pallets. This electric stacker is a cost-effective, lightweight, and strong forklift solution. It is intended for two-handed operation, providing the best stability in its class. The stacker can be tailored to your needs and is capable of handling a range of objects and pallets. It features two motors: one for lifting (24V/2,2KW) and one for driving (24V/0.75KW). The unit is supplied with 2 batteries and a charger. The batteries deliver high performance, allowing for extended use between charges. Fast recharging means less downtime. Its maneuverability and user-friendly controls make it easy to lift pallets or items from the floor and place them on racks, shelves, or into trucks. The SMITH electric stacker is compact and easy to operate, requiring minimal space. This product includes a 12-month warranty, with service available exclusively in the European Union.



    What is the cost of a SMITH electric pallet stacker?

    The SMITH electric pallet stacker is among the most affordable options available. Despite its low price, it is constructed from premium materials and incorporates advanced lifting and drive technology. The current price for the electric pallet stacker is shown above. The stacker includes a 12-month warranty and is equipped with two 12V/100AH batteries.



    Benefits of the SMITH electric pallet stacker:

    • The side-mounted drive design minimizes the width needed for operation. With its compact turning radius and improved visibility, this stacker is ideal for tight work areas.
    • Even as a budget-friendly electric pallet stacker, it features a high-performance lifting pump station, delivering reliable lifting power.
    • The turtle speed button on the handle allows for more accurate low-speed maneuvering.
    • Waterproof micro-switches imported from Germany are engineered for reliable operation in cold, wet, dusty, and other demanding conditions.
    • The YONGCI drive motor system is compact, lightweight, energy-efficient, and delivers high performance.



    Applications for the SMITH electric pallet stacker:

    Electric pallet stackerThe SMITH electric pallet stacker offers excellent value as a powered forklift, making a significant impact on packaging and material handling operations across industries. It integrates smoothly into workflows, helping users increase productivity two or even three times. Manual lifting is no longer necessary, reducing the risk of workplace injuries. Powered by electricity, the stacker operates cleanly and produces no harmful emissions, making it suitable for indoor use. There are no cords to manage or trip over, as the stacker runs on batteries and comes with two batteries as mentioned. This ensures continuous operation. With quick battery charging, workflow interruptions are minimized. The SMITH electric pallet stacker is engineered for stability and durability, easily handling heavy loads of various shapes.

    The SMITH electric pallet stacker is commonly used in industries such as paper, aluminum, textiles, steel, logistics, agriculture, chemicals, and metals. The SMITH electric pallet stacker features a highly durable frame and is simple to operate. It moves quickly but remains easy to control and steer. The stacker is both attractive and rugged. With this electric pallet stacker, you can streamline your processes and accelerate lifting and transport tasks. The SMITH electric pallet stacker offers a high level of automation, straightforward controls, and intuitive operation. Its frame is constructed from high-strength alloy and engineered plastics for long-lasting performance. The stacker is easy to maneuver and accommodates a variety of package sizes.



    Technical specifications for the SMITH Electric Pallet Stacker 350cm 1500 kg

    Model: SMITH electric pallet stacker 1535
    Power source Electric-powered
    Operation method Walk-behind
    Maximum load capacity kg 1500
    Load center distance c (mm) 600
    Distance from axle center to fork face x (mm) 720
    Wheelbase length y (mm) 1167
    Wheel type PU
    Drive wheel dimensions Ø x w (mm) Ø210 x 70
    Load wheel dimensions Ø x w (mm) Ø80 x 70
    Additional wheels (size) Ø x w (mm) Ø115 x 55
    Number of wheels, front/rear (x = drive wheel) 1x+1/4
    Track width (front) b10 (mm) 522
    Track width (front) b11 (mm) 410/535
    Mast height, lowered h1 (mm) 2245
    Free lift height h2 (mm) 0
    Lifting height h3 (mm) 3500
    Mast height, raised h4 (mm) 3924
    Total height (including handle) h14 (mm) 700/1225
    Total length l1 (mm) 1740
    Fork face length l2 (mm) 590
    Total width b1/b2 (mm) 795
    Fork size s/e/l (mm) 60/160/1150
    Fork width b5 (mm) 570/695
    Minimum ground clearance m2 (mm) 26
    Aisle width with 1000 x 1200 pallet across forks Ast (mm) 2074
    Aisle width with 800 x 1200 pallet along forks Ast (mm) 2040
    Minimum turning radius Wa (mm) 1342
    Travel speed, loaded/unloaded (km/h) 4.0/4.2
    Lifting speed, loaded and unloaded (mm/s) 92/136
    Lowering speed with/without load (%) 112/98
    Maximum gradeability with/without load 6/8
    Service brake (kW) Electromagnetic
    Drive motor, 60-minute rating (kW) 0.75
    Lift motor output at S3 15% 2.2
    Battery per DIN 43531/35/36 A, B, C, number no
    Battery voltage/nominal capacity (V/Ah) 2×12/100
    Battery weight (± 5%) (kg) 2×27
    Drive control type DC
    Sound level at operator position (dB(A)) 69
    Steering system Mechanical
    Total weight kg 525

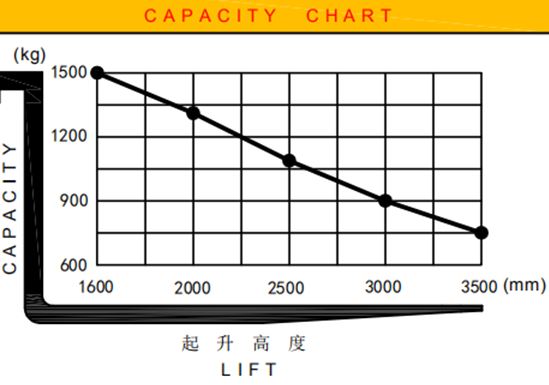

    Lifting performance chart for SMITH Electric Stacker 350cm 1500 kg

    Electric stacker 250cm 350cm 1500kg lifting curve



    How do you operate the SMITH electric pallet stacker?

    The ergonomic and sturdy construction of this electric pallet stacker ensures optimal comfort for the operator. It is simple to use, and its two-handed control provides flexibility during operation. The stacker starts with a single key turn. The handle features two switches: one for raising and lowering the forks, and another for moving the stacker. To pick up a pallet, drive the stacker under the pallet and lift slightly. Then, use the other switch to move the stacker to the desired spot. Once in position, press the lift switch to raise the pallet to the required height, then move the stacker forward to place the pallet onto a truck or shelf. Lower the forks so the pallet rests on the surface, then back the stacker out. The same method applies for other items. If an item cannot be lifted directly, place it on a pallet and secure it for stability. The SMITH electric pallet stacker is equipped with powerful lift and drive motors. It can handle up to 1500kg, with a 900kg capacity at 3000mm and 750kg at the maximum lift height of 3.5m or 3500mm. Travel speed is about 4 km/h. The stacker weighs approximately 465 kg and includes two 12V/100AH batteries. The SMITH electric pallet stacker is built for durability in warehouse or factory environments. This electric pallet stacker comes with a one-year warranty and is serviced in the European Union.

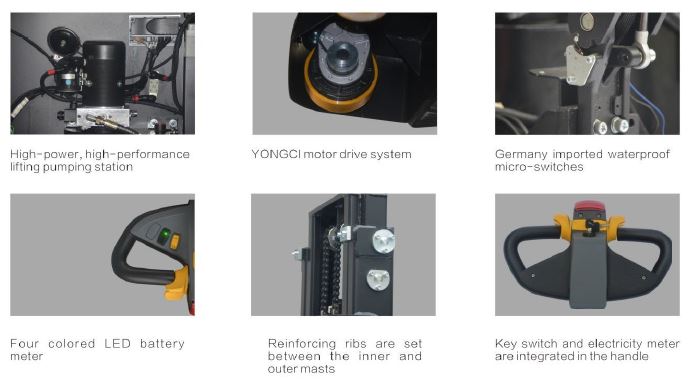

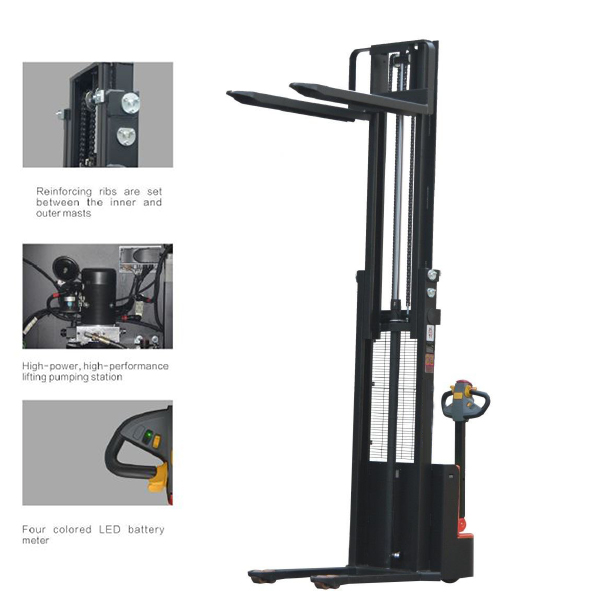

    Key features of the SMITH electric pallet stacker:

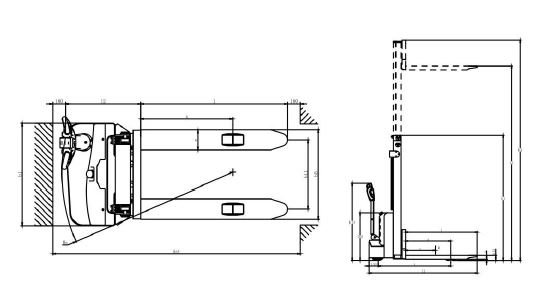

    Electric stacker specification



    Watch the SMITH electric pallet stacker in action:

    Additional information

    Weight 525.0 kg
    Dimensions 1.8 × 0.8 × 2.45 m
    Parameter Specification
    Model: SMITH electric stacker
    Power unit
    Operation
    Rated traction weight

    kg

    Load center

    c (mm)

    Axle center to fork face

    x (mm)

    Wheelbase

    y (mm)

    Wheels type
    Driving wheel size

    Ø x w (mm)

    Bearing wheel size

    Ø x w (mm)

    Additional wheels (dimensions)

    Ø x w (mm)

    Wheels, number front/rear (x = driven)
    Track width

    b10 (mm)

    Track width

    b11 (mm)

    Height of mast, lowered

    h1 (mm)

    Free lift

    h2 (mm)

    Lift

    h3 (mm)

    Height of mast, extended

    h4 (mm)

    Overall height (with handle)

    h14 (mm)

    Overall length

    l1 (mm)

    Length to fork face

    l2 (mm)

    Overall width

    b1/b2 (mm)

    Fork dimensions

    s/e/l (mm)

    Fork width

    b5 (mm)

    Minimum ground clearance

    m2 (mm)

    Aisle width with pallet 1000 x 1200 across forks

    Ast (mm)

    Aisle width with pallet 800 x 1200 along with forks

    Ast (mm)

    Minimum turning radius

    Wa (mm)

    Travel speed, laden/unladen

    (km/h)

    Lifting speed, with/without load

    (mm/s)

    Lowering speed with/with load

    (%)

    Maximum climbing ability, with/without load
    Service brake

    (kW)

    Driving motor, 60-minute rating

    (kW)

    Lift motor rating at S3 15%
    Battery according to DIN 43531/35/36 A, B, C, no
    Battery voltage/rated capacity

    (V/Ah)

    Battery weight (± 5%)

    (kg)

    Type of driving control
    Noise level at operator's ear

    (dB(A))

    Steering type
    Weight

    kg

    What is the maximum weight the SMITH Electric Stacker can lift?

    This stacker is rated to lift up to 1500 kg (1.5 tons), with a capacity of 900 kg at 3000 mm and 750 kg at its maximum lift height of 3500 mm.

    What are the fork measurements for this electric pallet stacker?

    The forks are 570 mm wide and 1150 mm long, making them suitable for EURO pallets.

    What is the maximum lifting height of the stacker?

    The lifting height reaches 350 cm or 3500 mm.

    Is the electric pallet stacker straightforward to use and adjust?

    Yes, it is built for ease of use and can be easily adjusted for different applications.

    Which batteries are included with the stacker?

    The stacker is supplied with two 12V/100AH batteries and a 24V/10A charger that meets European specifications.

    How stable and ergonomic is the SMITH Electric Stacker in use?

    This stacker offers excellent stability and ergonomic features to help minimize operator fatigue.

    What is the warranty coverage for this electric pallet stacker?

    A 12-month warranty is provided with this product.

    Is the SMITH Electric Stacker built for heavy-duty industrial applications?

    Yes, its 1500 kg load capacity and sturdy construction make it well-suited for tough industrial settings.

    What kind of maintenance does this electric pallet stacker need?

    Thanks to its electric drive and rugged parts, maintenance requirements are minimal.

    Summary

    • Cost-effective electric pallet stacker & requires minimal maintenance
    • Fork dimensions: 570*1150mm – designed for EURO pallets
    • Ergonomically designed – extremely stable
    • Maximum load capacity 1500 kg or 1.5t
    • 12-month warranty
    • Lift height: 350cm or 3500mm
    • User-friendly and easy to adjust
    • Electric pallet stacker includes 2 batteries (2*12V/100AH) and charger (24V/10A, European standard)
