Vertical Baling Press TONNA20, 20 Tons, 200kN, 150 kg Bale

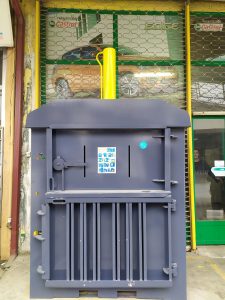

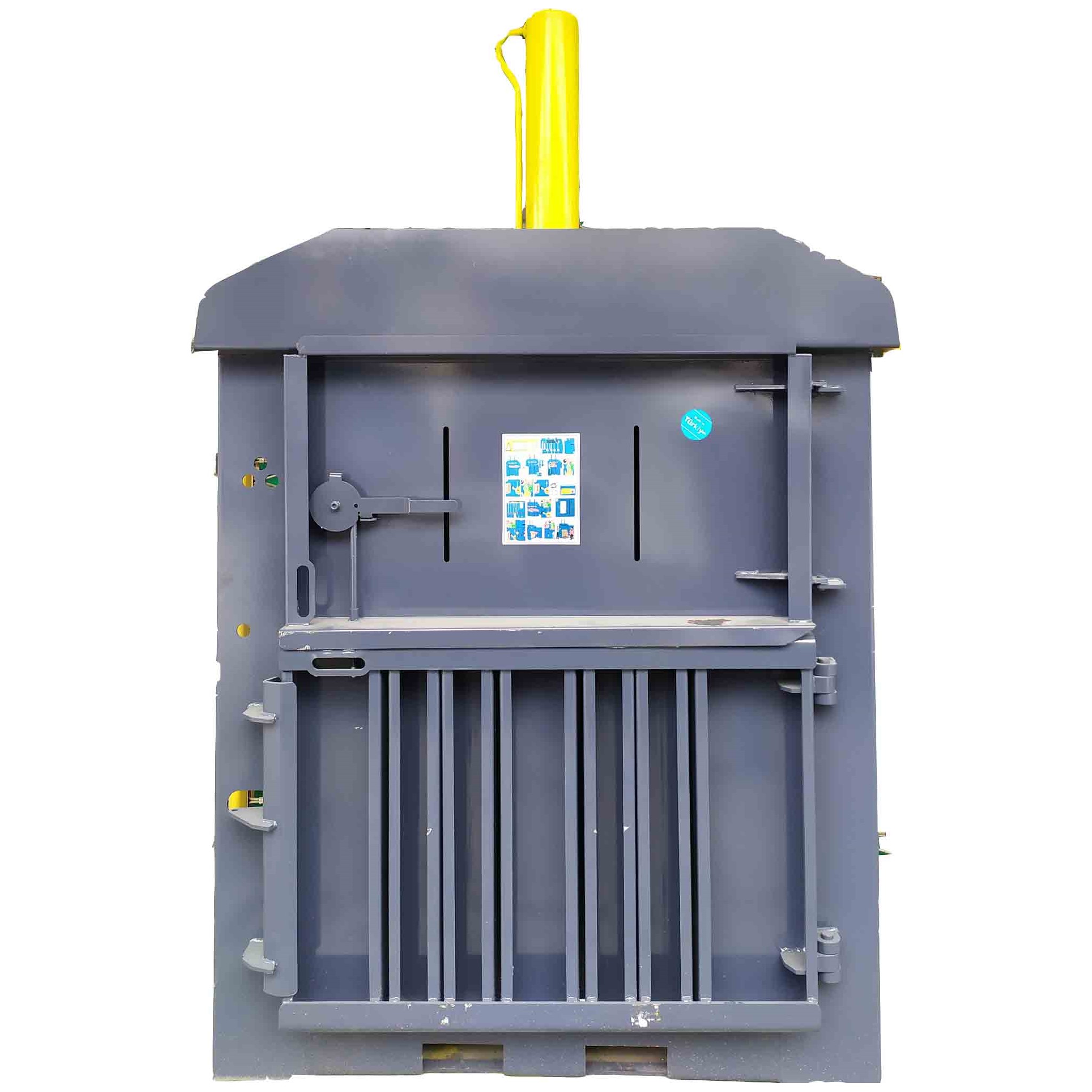

TONNA20 Vertical Baler, 20 Tons

The TONNA20 vertical baler, with 20 tons of pressure, is designed to significantly reduce waste costs and save space in your facility. This model is commonly used in warehouses, retail locations, hotels, restaurants, and manufacturing plants across many industries, and is also chosen by landfills due to its quality and unique features. The TONNA20 vertical baler delivers 20 tons of pressing force, making it suitable for compacting a variety of materials, including paper, cardboard, plastics, plastic bottles, stretch film, and more. Depending on the material, the finished bale can weigh up to 150 kg. The TONNA20 features an advanced automatic bale ejection system, allowing you to remove bales from the machine with minimal effort. Thanks to its wire technology, bales can be easily tied off, resulting in a compact, secure bundle. The TONNA20 is built for both indoor and outdoor use, and is engineered for long-term durability, with a service life of 20 years or more. The baler’s dimensions are 2600 mm (H) x 1560 mm (W) x 1030 mm (D), and its weight is 780 kg. The machine comes with a 1-year warranty. Goods are collected EXW and prices do not include VAT.

Key Features of TONNA20 Cardboard Compactors

• Includes an automatic bale ejection system
• Produces bales of waste materials up to 150 kg

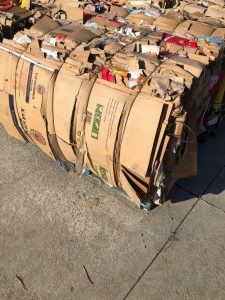

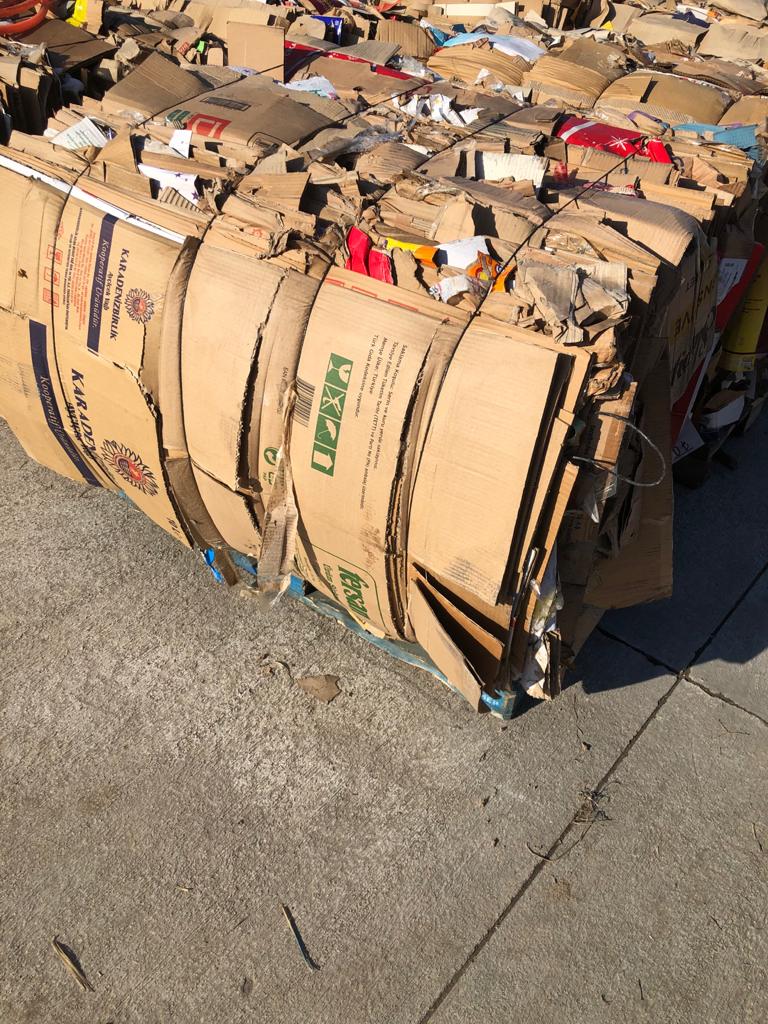

• Bale size: 975 mm x 800 mm x 1000 mm (W x D x H)
• 6–8 bales per hour
• Machine dimensions: 1560 mm x 1030 mm x 2600 mm (W x D x H)
• Perfect for spaces with height or area restrictions
• User-friendly design and straightforward setup
• Sound Level: 72 dB
• Cycle Duration: 40 seconds

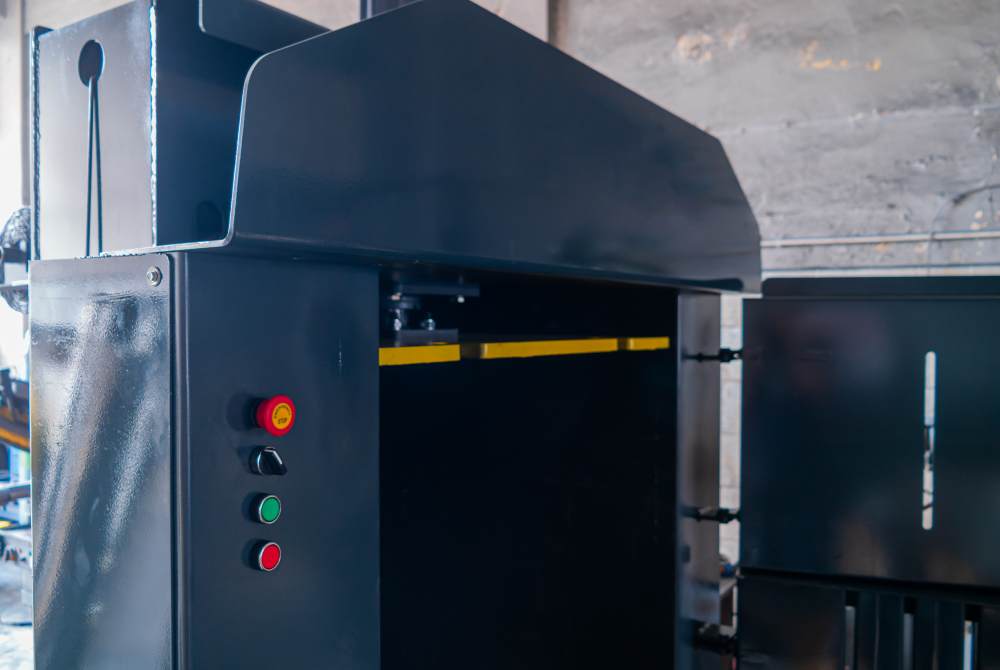

• Electronic control panel
• Motor: 2,2 kW, single oil cylinder

Specifications for Vertical baler 20 tons TONNA20

Vertical baler TONNA20 Video

Key Features of the Vertical baler 20 tons TONNA20

• Bale output weight 150 kg
• Mid-range baler designed for easy loading of large cardboard boxes

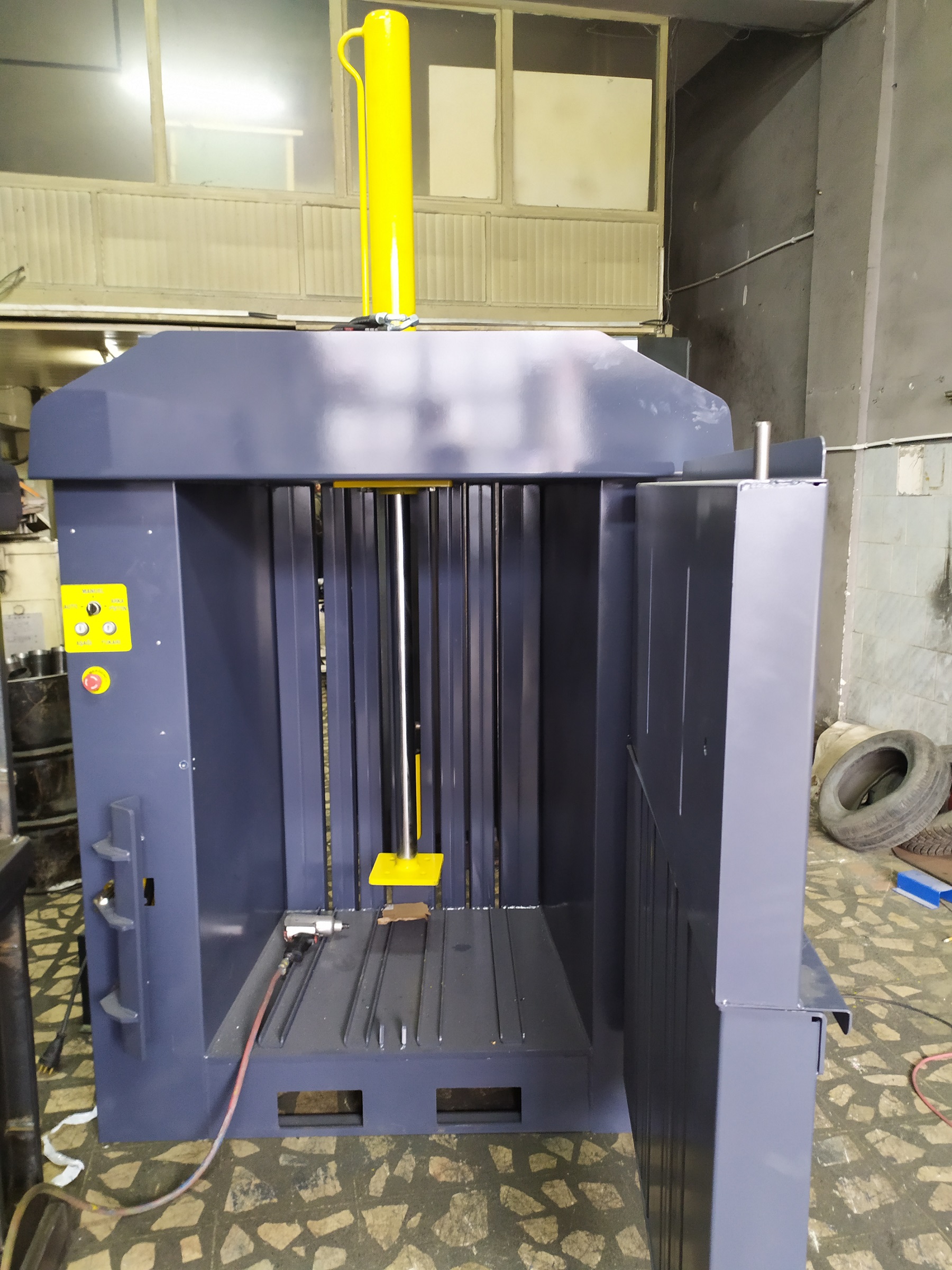

• Retaining claws help minimize material spring-back inside the chamber
• Fully automatic bale ejector: makes bale removal easier

How the Vertical Baler TONNA20 operates

Site Requirements

When choosing a location for the TONNA20 vertical baler, please consider the following factors:

• The machine requires a stable surface. The floor must be able to support the machine’s weight, as well as accommodate pallet trucks and other load-bearing equipment.
• There should be enough space around the machine for loading, monitoring, maintenance, and removing bales.
• The electrical supply (220v / 240v) should be located near the machine.
• Lighting in the machine area should comply with local occupational health and safety regulations.
• The area where the machine is installed should have adequate ventilation.

Loading waste material into the machine

Once the cardboard compactors are secured, the machine is ready to be loaded. Begin by closing the lower door, then start filling the machine. When starting a new bale, place a large piece of cardboard (or similar suitable material) at the bottom of the hopper. This will help catch all the ties and solid waste used to secure the bale. Ensure that only waste material is loaded into the machine. Once full, you can proceed to bale the material.

Compacting

The hydraulic hoses provide the clamping force needed to compress the waste. The material is compacted to reduce its volume. The baling process is as follows:

1. Fill the bale chamber to the top of the machine.
2. To start compacting, choose the compression setting on the control panel, press the green button, and activate the “compress” command. The machine will run the compression cycle and stop automatically when finished. (The clamping plate can remain in this position until you reload the machine.)
3. To return the clamping plate to the upper position, press the green button and move it to the “pinch” setting. During the clamping cycle, the machine will stop automatically and the plate will return to its starting position.
4. The machine will stop immediately if you press the red button.
5. Repeat this process until you have filled and compacted the desired number of bales.
