Vertical Cardboard Baler HSM V-Press 503 eco 3T, 30KN, 50kg Bale Weight

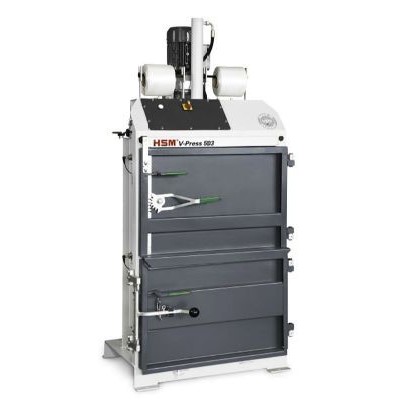

Vertical Cardboard Baler HSM V-Press 503 eco

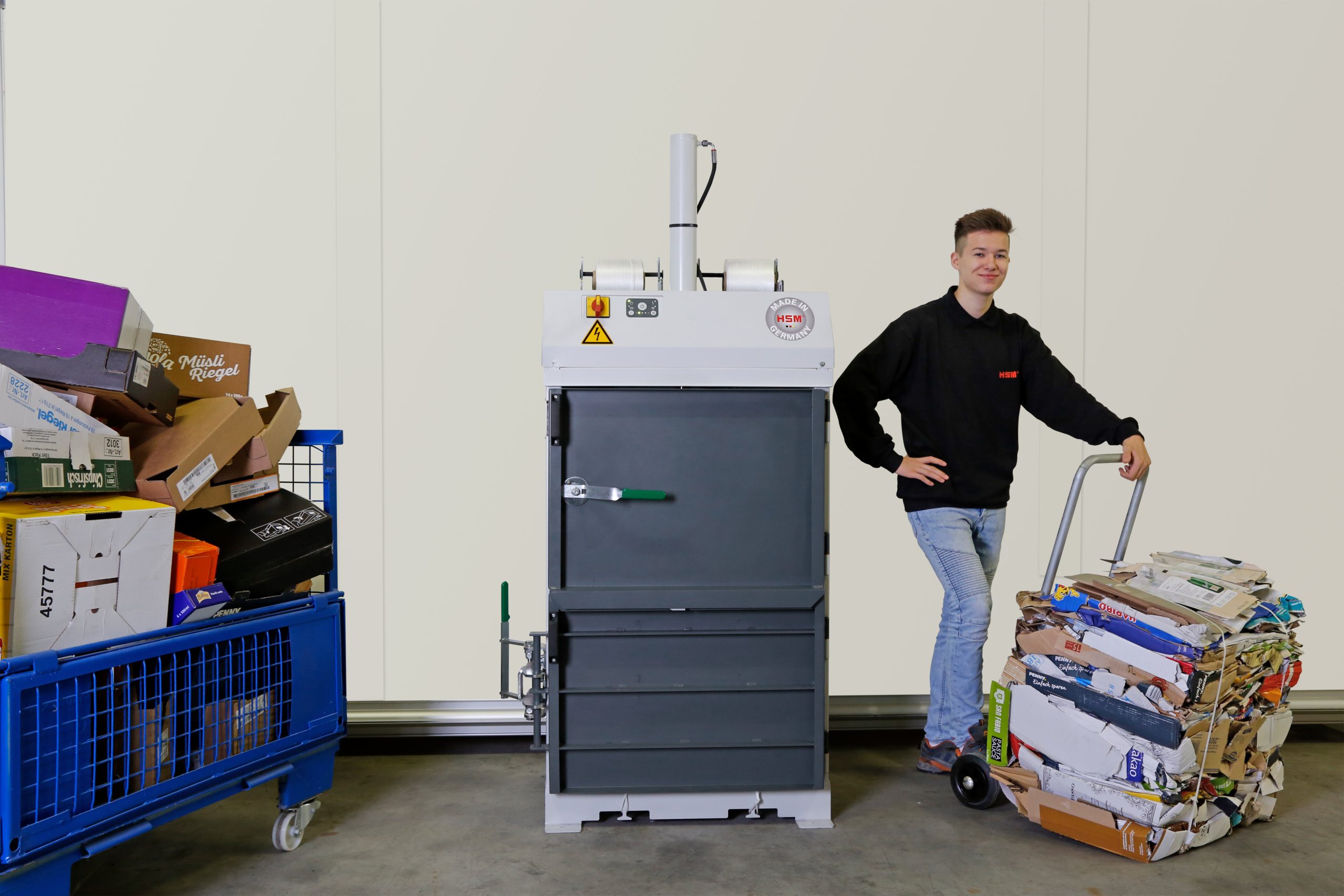

The HSM V-Press 503 vertical baler is designed to compact film, mixed paper, and cardboard to a minimum size. This model is ideal for smaller material volumes in printing, packaging, logistics, freight forwarding, retail, and manufacturing environments. By using this waste compactor, you can significantly reduce waste volume, which helps save time on disposal and can lower your costs.

The HSM V-Press 503 vertical baler features a double door design, so you only need to open the upper section to load material. This makes handling much easier, as waste cannot fall back out. The door lock automatically engages when you close the press door. A knee lever is used to fully close the hatch, allowing you to start the pressing cycle. The knee lever ensures safe operation and is positioned at an ergonomic height for user convenience.

• Press force: 3 tons / 30 KN
• Produces bales weighing up to 50 kg
• Manufactured in Germany – premium quality
• Goods are collected EXW; prices do not include VAT
• Ready to use – straightforward installation and operation

Key features of the Vertical Cardboard Baler HSM V-Press 503 eco

• Handles both cardboard and plastic film
• Bale removal and movement with discharge cart
• Standard features: includes 2 rolls of polyester strapping
• User-friendly, space-saving design with compact dimensions
• Easy to use with single-button operation
• Door setup: double-door configuration

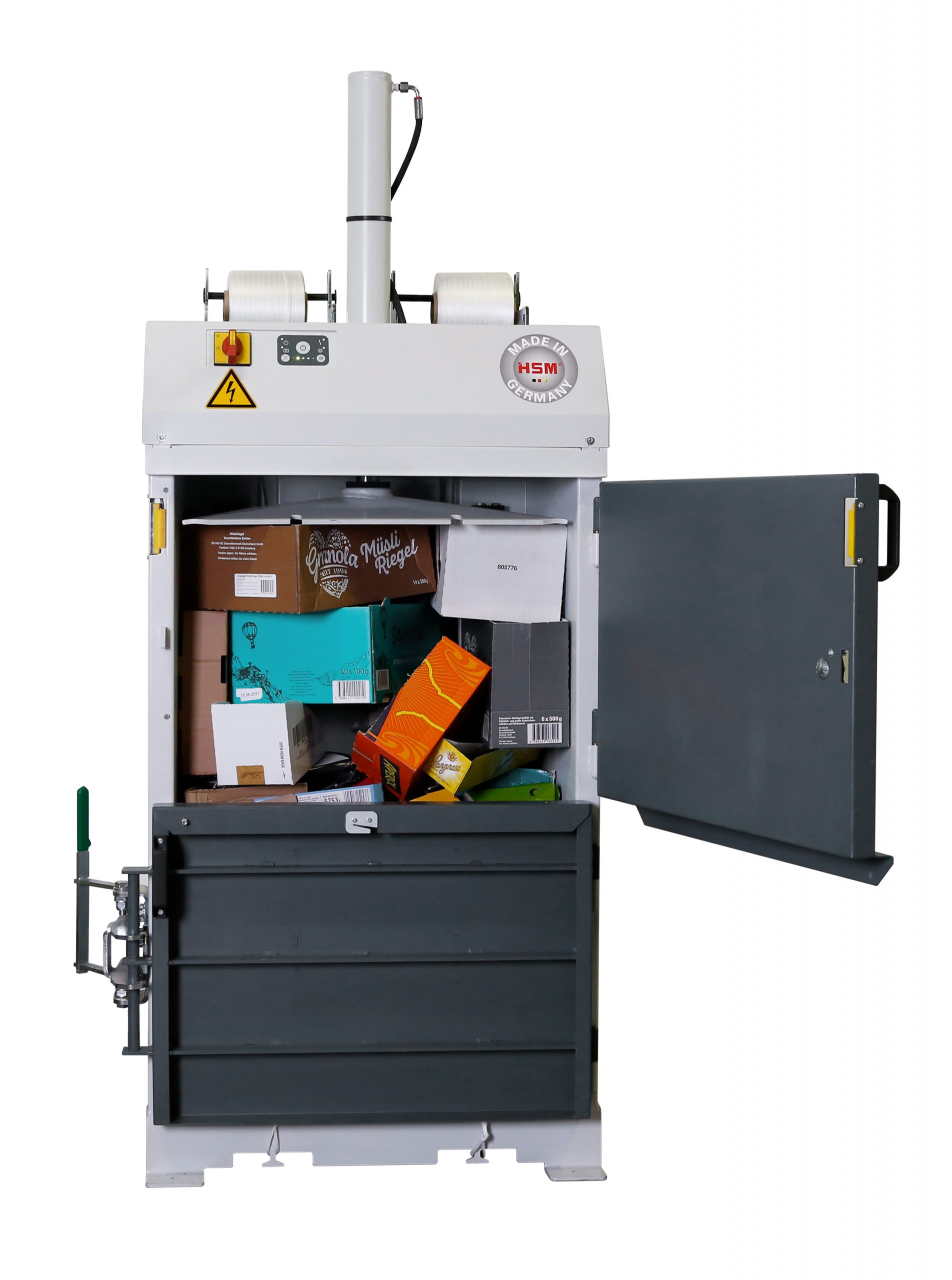

• To load material, swing the upper section of the doors to the right
• Door locking system: bell-crank lever
• Features self-latching closure technology
• Pressing cycle begins automatically when the door is closed
• Door opens quickly and safely
• When the door is opened, a safety switch ensures the pressing cycle stops automatically
• Automatic return of the press ram

Technical details for the HSM V-Press 503 eco vertical cardboard baler

HSM V-Press 503 dimensions and required space

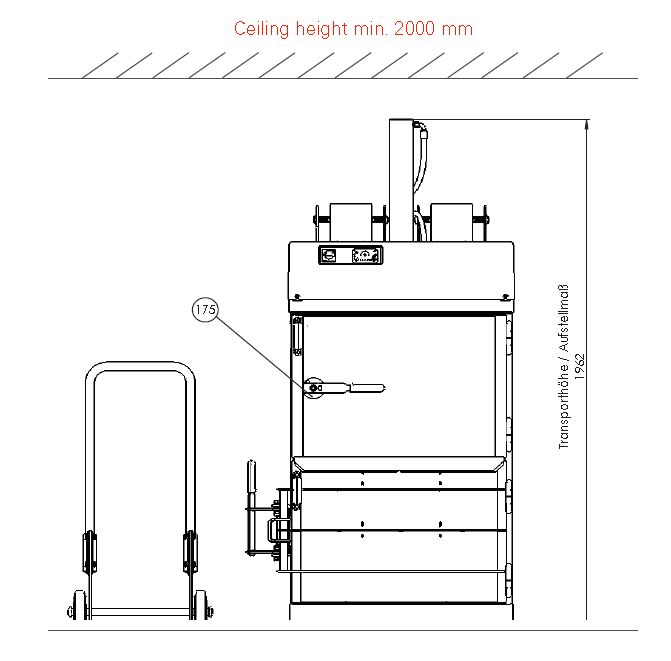

The HSM V-Press 503 eco vertical cardboard baler stands 1962 mm tall, and requires a minimum ceiling height of 2000 mm. The machine is 953 mm wide and 678 mm deep.

Operation of the HSM V-Press 503 eco vertical cardboard baler

To set up the HSM V-Press 503 vertical cardboard baler, first insert the strap and set the strap brake. Switch to automatic mode and load the waste material. The press cycle will begin automatically once the door is closed. When pressing is finished, the bale ready indicator will light up. Release the strap, pull it out, and cut it. Open the lower door and tie the straps together. Use the cart to remove the bale. Watch the video below for a demonstration of the baling process.

How to strap a bale from the HSM V-Press 503 vertical cardboard baler:

• Press the lit button
• The press ram returns to its initial position
• Release the tape brake (move lever left)
• Open the loading door (angle greater than 90°)
• Pull the straps from the back wall forward (toward the bale ejection door)
• Extend the straps about 400 mm over the bale ejection door and cut them
• Shut the loading door
• Press the lit button
• The press ram moves down onto the material again and stops
• Open both the loading door and the bale ejection door (doors open to more than a 90° angle)
• Take the end of the strap off the securing hook and tie it securely to the strapping tape at the top of the bale
• Repeat these steps for each of the two strapping tapes
• Close both the bale ejection door and the loading door
• Press the lit button
• The press returns to its starting position
• Open both the loading door and the bale ejection door (doors open to more than a 90° angle)
• Remove the bales using the bale removal cart
• Secure the straps in the press chamber back onto the fixing hooks
• Close both the bale ejection door and the loading door
• The press is now ready to be used again
