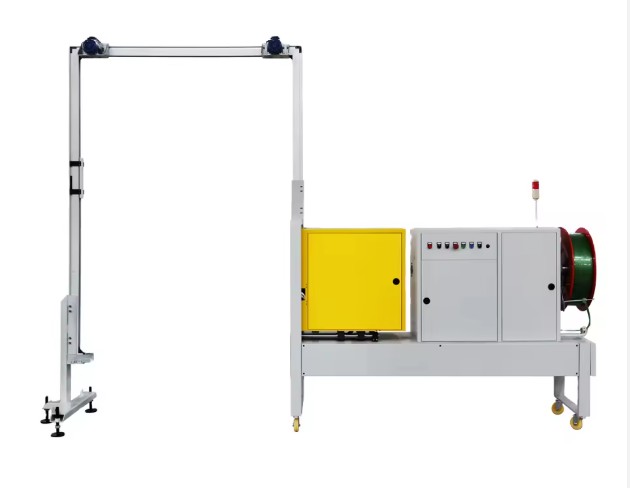

    ARCUS automatic pallet strapping machine

    ARCUS automatic pallet strapping machine with 1500 × 2200 mm aluminum archThe ARCUS is an automatic pallet strapping machine: place the pallet inside the arch, and the machine automatically feeds the strap vertically around the load, applies tension, seals it by welding, and cuts the strap. Each strap cycle takes about 15 seconds.

    The arch measures 1500 × 2200 mm (width by height), allowing a fully loaded pallet to fit through. The arch is constructed from aluminum alloy and comes in three sections for on-site assembly.

    This machine uses PP or PET strap, 11–12 mm wide and 0.55–1.0 mm thick. The strap guide is adjusted to match the strap thickness. Tension can be set anywhere from 0 to 90 kg. Each pallet can be secured with one or two parallel straps per cycle.

    A PLC manages the strapping process. Strapping starts automatically when a photoelectric sensor detects the pallet, or can be triggered manually from the control panel. The machine operates on 380 V, three-phase power, 1550 W, and requires a compressed air supply for its pneumatic cylinders.

    ARCUS automatic pallet strapping machine: uses and integration

    The ARCUS pallet strapping machine is ideal for logistics centers, manufacturing facilities, contract packaging, and distribution warehouses that need consistent load securing and reliable cycle times. It is suitable for strapping palletized consumer products, industrial parts, chemicals, ceramics, appliances, and printed goods. The machine can be used as a stand-alone unit for batch operations or integrated into a conveyor system with upstream palletizing and downstream wrapping equipment.



    Technical data

    Model ARCUS
    Type Automatic vertical pallet strapping machine with arch
    Arch (W × H) 1500 × 2200 mm
    Strap PP or PET, 11–12 mm wide, 0.55–1.0 mm thick
    Strapping force 0–90 kg
    Speed approximately 15 seconds per strap
    Straps per pallet one or two, parallel
    Operation manual, automatic (photo sensor), continuous
    Sealing Heat-sealed joint, bonds at least 90% of the strap area
    Controls PLC system, emergency stop button
    Power requirements 380 V, 50 Hz, 3-phase, 1550 W, 4 A; requires compressed air
    Sound level 75 dB
    Operating environment 0 to 40 °C, humidity up to 98%
    Machine dimensions (L × W) 3890 × 640 mm
    Net weight 350 kg
    Collection Packed in wooden crates, approx. 3 m³, 400 kg
    Warranty period 12 months



    ARCUS pallet strapping machine in action



    How the pallet strapping machine supports your shipping process

    • Each strap applied in about 15 seconds. The strap is automatically fed, tensioned, sealed, and cut; the operator only needs to position the pallet inside the arch.
    • Straps twice in one cycle. Select one or two straps on the control panel; the strapping head moves between positions, so pallets get parallel straps without manual repositioning.
    • Three operation modes. Choose manual, automatic with photo sensor, or continuous mode for single pallets or a steady conveyor line.
    • Adjustable tension from 0 to 90 kg. Set the force to match your load so the strap secures the pallet without damaging the top layer.
    • Large arch for full pallets. 1500 × 2200 mm clearance accommodates tall pallet loads.
    • Aluminum arch and premium electronics. PLC system uses OMRON, MCN, and TE components; the arch is made from aluminum alloy.



    Arch, strapping head, and user interface

    • Vertical pallet strapping through a 1500 × 2200 mm arch
    • Uses 11–12 mm wide PP or PET strap, thickness 0.55–1.0 mm; strap guide adjusts to strap thickness
    • Adjustable tension from 0 to 90 kg
    • Cycle time about 15 seconds per strap; applies one or two parallel straps per pallet
    • Manual, automatic (photo sensor), and continuous operation modes
    • Automatic strap accumulator; strap feed and return controlled on the panel
    • Seals under load, with at least 90% strap surface adhesion
    • PLC, OMRON, MCN, and TE electrical parts; emergency stop included
    • Three-piece aluminum alloy arch, assembled with screws on site
    • Power: 380 V, 50 Hz, three-phase, 1550 W, 4 A; requires compressed air; noise level 75 dB



    How to operate the ARCUS pallet strapping machine

    1. Place the strap coil on the holder, feed the strap into the mechanism, and let the machine load the strap accumulator.
    2. Turn on the main power, then use the SEND switch to feed the strap around the arch until the path is full.
    3. Allow about 30 seconds for the heater to reach operating temperature.
    4. Set the desired number of straps and the required tension for your load.
    5. Position the pallet inside the arch: in automatic mode, the photo sensor starts strapping; in manual mode, press the strap button once for each strap needed.



    Settings and maintenance

    • Tension setting. Adjustable from 0 to 90 kg. Use lower tension for flexible loads, higher for solid, heavy loads.
    • Number of straps. Choose one or two on the control panel; the strapping head moves side to side to apply parallel straps.
    • Strap thickness. Adjust the strap guide gap to match your strap, ensuring smooth feeding and return.
    • Emergency stop. Pressing the emergency stop immediately halts the machine; reset by turning in the direction shown by the arrow.
    • Maintenance. Always turn off main power before servicing. Regularly remove strap debris and dust from the strapping head and oil the points listed in the manual; avoid getting oil on the feed rollers.



    Before purchasing a pallet strapping machine

    The price is listed on this page. A few key details determine if this machine fits your operation: review them before ordering, or send them to us and we can discuss them with you.

    • Pallet and load size. The loaded pallet must fit through the 1500 × 2200 mm arch.
    • Strap. Uses 11–12 mm wide, 0.55–1.0 mm thick PP or PET strap; let us know which strap you use.
    • Utilities. Requires 380 V, 50 Hz, three-phase power with grounding, 1550 W, and a compressed air supply.
    • Space. The machine footprint is 3890 × 640 mm and its weight is 350 kg.
    • Collection. The cabinet and three arch sections are packed in wooden crates, total volume about 3 m³ and total weight around 400 kg. The arch is assembled at your site.

    ARCUS automatic pallet strapping machine: operator responsibilities and selection guidelines

    Before selecting the ARCUS machine, verify your standard pallet sizes, load weight, strap type and thickness, and how many straps you need per pallet. Make sure your facility’s power and compressed air meet the machine’s specs, and that the installation space is dry, well-ventilated, and free from corrosive substances. Avoid issues like using the wrong strap thickness, applying too much tension to delicate loads, or skipping regular cleaning and maintenance of the strap guide.

    Additional information

    Weight 400 kg
    Dimensions 0.55 × 0.86 × 0.84 m
    Parameter Specification
    Model

    ARCUS

    Power supply

    380 V / 50 Hz / 1550 W / 4 A

    Cycle time

    ≤ 15 seconds per strap

    Tension range

    0 – 90 kg adjustable

    Strap type

    PP or PET strap, 11–12 mm width, 0.55–1.0 mm thickness

    Strapping mode

    Parallel strapping; photoelectric or manual initiation

    Machine dimensions

    3890 × 640 × 2200 mm

    Arch (frame) size

    1500 × 2200 mm

    Net weight

    350 kg

    Noise emission

    ≤ 75 dB

    Operating temperature

    0 – 40 °C

    Relative humidity

    ≤ 98 % (non-condensing)

    Structure

    Aluminum alloy chassis; low-maintenance design

    Control

    PLC control with photoelectric sensing and E-stop

    Typical industries

    Logistics, manufacturing, chemicals, appliances, ceramics, publishing

    Which strapping materials are compatible with the ARCUS machine?

    The machine is designed for use with PP or PET strap, 11–12 mm wide and 0.55–1.0 mm thick.

    What is the highest tension force the machine can apply?

    This machine provides adjustable tension up to 90 kg.

    How long does a typical strapping cycle take?

    Each strapping cycle completes in 15 seconds or less.

    Can the ARCUS machine be integrated into automated production lines?

    Yes, it works with automatic conveyors and high-speed packaging lines for smooth integration.

    What are the dimensions of the arch opening, and which pallet sizes will fit?

    The arch opening is 1500 × 2200 mm, making it compatible with standard pallet dimensions.

    What safety systems are included for positioning pallets?

    The machine uses photoelectric sensors to automatically and accurately position pallets.

    How loud is the machine when running?

    This machine runs at a noise level of 75 dB or below, supporting a pleasant workplace.

    Which materials are used in the machine’s build to ensure durability?

    The frame is made from aluminum alloy, offering lasting strength and reliability.

    What are the power specifications for the ARCUS strapping machine?

    The machine requires a 380 V / 50 Hz power source and uses 1550 W.

    Summary

    • ARCUS automatic pallet strapping machine equipped with a PLC control system
    • Runs on 380 V / 50 Hz / 1550 W electrical supply
    • Cycle time of up to 15 seconds per strapping cycle
    • Provides adjustable tension up to 90 kg to secure your loads
    • Accepts PP or PET strap, 11–12 mm wide and 0.55–1.0 mm thick
    • Includes photoelectric sensors for automatic pallet alignment
    • Built with a frame made of aluminum alloy for lasting strength
    • Machine dimensions are 3890 × 640 × 2200 mm for integration into your line
    • Arc opening measures 1500 × 2200 mm to accommodate standard pallets
    • Operates at a noise level of up to 75 dB for a quieter environment
    • Works with automatic conveyor systems and high-speed packaging lines
    • EXW pickup – one-year warranty
