SMITH Semi-electric Walkie Stacker Forklift 1500kg 350cm 3500mm

SMITH Semi-electric stacker with 1500kg lifting capacity and 350cm or 3500mm lifting height

The SMITH Semi-electric stacker 1500kg 350cm is a dependable and adaptable machine built to make lifting and moving heavy loads simpler and more productive. This semi-electric stacker can handle loads up to 1500kg and offers a maximum lift height of 350cm (3500mm). It’s well-suited for warehouses, manufacturing plants, and other industrial environments where efficient and safe material handling is essential. The SMITH Semi-electric stacker stands out for its semi-electric operation, combining electric power for lifting and manual effort for moving. This approach offers a more cost-effective and versatile solution compared to fully electric stackers. The electric motor handles lifting and lowering, while the operator manually moves the stacker as needed. This blend of power sources gives operators better control and accuracy when working with heavy loads.

The SMITH Semi-electric stacker is engineered with operator safety as a priority. It includes important safety features such as an emergency stop button, a safety brake, and a protective guard to shield the operator from falling items. Its low center of gravity helps prevent tipping and keeps loads stable during movement. Along with these safety measures, the SMITH Semi-electric stacker is designed for straightforward operation. The user-friendly control panel makes it easy to set the lift height and manage the stacker’s movement. Its compact build and easy maneuverability allow it to move smoothly through tight aisles and confined spaces.

Durability is another highlight of the SMITH Semi-electric stacker. Built from premium materials, it’s made to handle the demands of daily industrial use. The stacker features a robust steel frame and a reinforced mast that can support heavy loads without bending or deforming. It also comes with high-quality wheels for smooth, stable movement, even under heavy weight. Routine maintenance for the SMITH Semi-electric stacker is straightforward. Regular checks and upkeep help ensure safe and efficient operation, including monitoring hydraulic oil levels, inspecting wheels and axles, and lubricating moving parts. The battery should also be charged regularly to keep the stacker ready for use.

In summary, the SMITH Semi-electric stacker 1500kg 350cm is a versatile and dependable machine suitable for a variety of industrial applications. Its semi-electric design, built-in safety features, user-friendly controls, and rugged construction make it a strong choice for businesses aiming to improve their material handling operations. Whether you’re moving heavy items in a warehouse or on a factory floor, the SMITH Semi-electric stacker offers a reliable and efficient way to get the job done safely and quickly.

SMITH Semi-electric Stacker demonstration video

▶

Main Features of SMITH Semi-electric stacker 1500kg 350cm

• Model: SXPN1535
• EU charger
• Maximum Capacity: 1500kg
• Maximum Lifting Height: 3500mm
• Operation Style: Semi-electric (Electric lifting, manual movement)
• Brand New: Comes with battery and charger included
• Run time: 5-6 hours
• Recharge time: 7-8 hours
• Battery charge indicator
• Maximum load at full height: 750 kg
• Load center: 600 mm
• Power Source: Semi-electric. Electric lift function; manual movement
• Walk-behind use; no operator license required

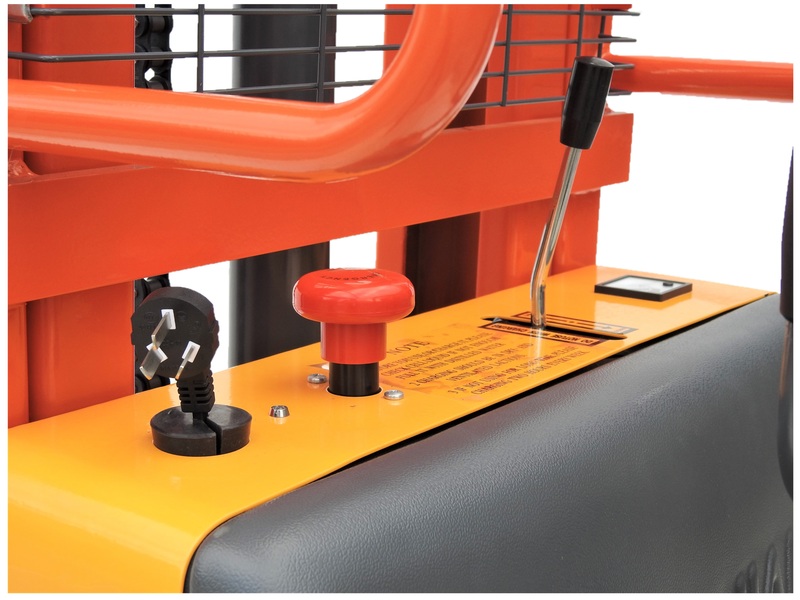

• Control Panel: Panel-mounted controls with lift/lower buttons, emergency stop, battery gauge, and hour meter
• The built-in EU charger is single-phase (wall outlet) and can be easily replaced

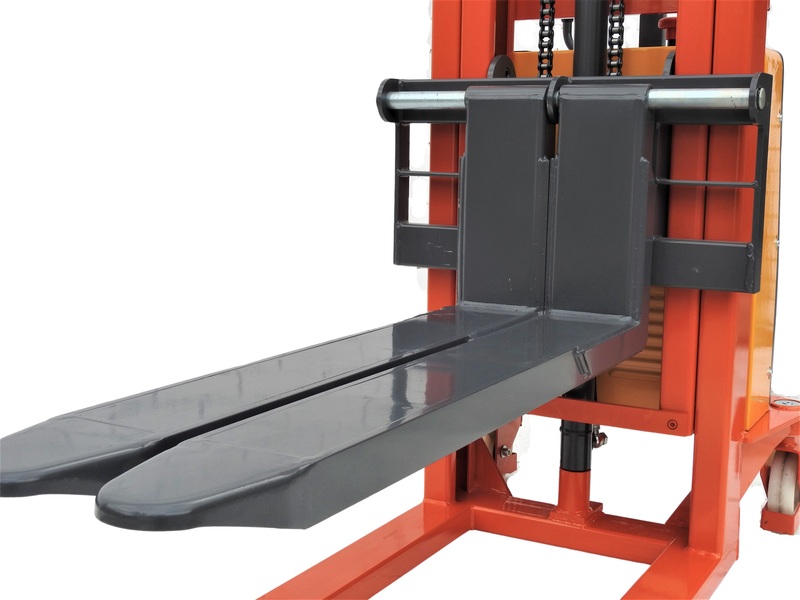

• Adjustable Forks: Forged forks with adjustable spacing
• Simple to service and maintain
• Locking wheel

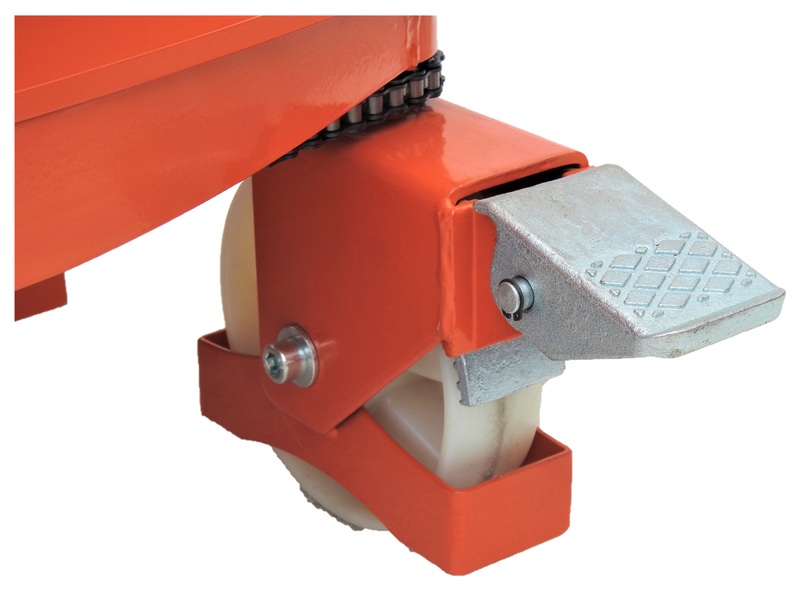

• Wheels: Brakes included, 360-degree rotation. Large rear steering wheel for smooth movement on all surfaces
• Electric lifting with manual movement
• Performs well in factories, warehouses, and logistics facilities. Ideal for narrow aisles, floors, and high-bay storage
• Versatile, quiet, and environmentally friendly
• Warranty
• With electric lift and manual movement, the semi-electric pallet stacker is simple to operate and energy efficient

Technical Details for SMITH Semi-electric Walkie Stacker Forklift 1500kg 350cm

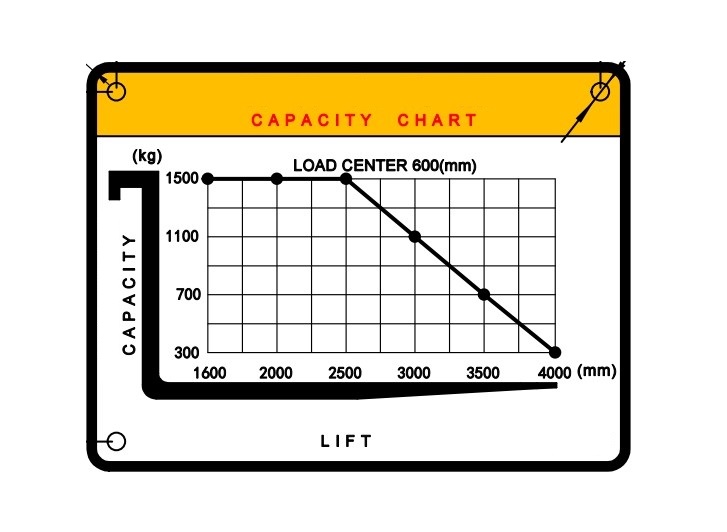

Lifting chart for SMITH Semi-electric stacker 1500kg 350cm

Main Features of SMITH Semi-electric stacker 1500kg 350cm

Semi-Electric Operation: The SMITH Semi-electric stacker uses a combination of electric and manual power for both lifting and moving. This design makes it more affordable and adaptable than fully electric models.

Prioritizing Safety: Outfitted with key safety features like an emergency stop, safety brake, and protective guard, the stacker helps keep operators safe from hazards such as falling objects. Its low center of gravity reduces the risk of tipping and keeps loads steady during transport.

User-Friendly: The stacker is built for easy operation, with a simple control panel that lets operators adjust lift height and control movement with ease. Its compact, agile design makes it easy to maneuver through narrow aisles and tight spots.

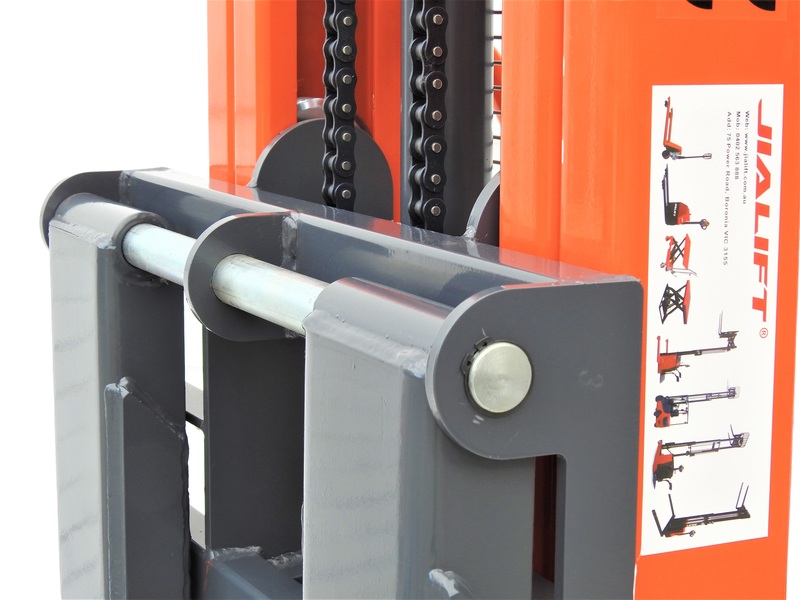

Durability: Designed for the rigors of everyday industrial applications, this stacker features a robust steel frame, a reinforced mast, and premium wheels to ensure stability. These components enhance its durability, enabling it to manage heavy loads without bending or deforming.

Easy Maintenance: Keeping the stacker in top condition is straightforward with routine checks of hydraulic oil levels, inspection of wheels and axles, and lubrication of moving parts. Regular charging is necessary to keep the battery fully powered and ready for operation.

Operation of the SMITH Semi-electric stacker

The SMITH Semi-electric stacker uses both electric and manual functions, offering a versatile and effective way to lift and move heavy items in industrial settings. Here’s a summary of its operation:

1. Electric Lift System:
   • This stacker uses an electric motor to operate the lifting system. The motor raises and lowers the forks or platform, letting you set the load height as needed.
   • The operator manages the electric lift system through an easy-to-use control panel, usually featuring up and down buttons for accurate lift control.
2. Manual Travel Control:
   • Unlike fully electric stackers, the SMITH Semi-electric stacker uses manual force for movement. The operator pushes or pulls the stacker to move it around the work area.
   • Manual movement gives the operator flexibility and makes it easy to steer the stacker through narrow aisles and tight spots.
3. Hydraulic Assist:
   • The lifting system is supported by hydraulics. When the electric motor is engaged, hydraulic fluid is pressurized to move the cylinder, which lifts the forks or platform.
   • The hydraulic system delivers smooth, controlled lifting, so you can position loads accurately at different heights.
4. Operator Safety Features:
   • The stacker includes safety features to help protect the operator and reduce risk. This often features an emergency stop button that immediately stops all electric and hydraulic functions if needed.
   • A safety brake keeps the load stable during movement, and a protective guard shields the operator from falling items or other hazards.
5. Compact, Easy-to-Maneuver Build:
   • The stacker is built to be compact and easy to handle, making it ideal for use in tight areas. This is especially useful in warehouses or manufacturing spaces with limited room.
6. Power Supply:
   • The stacker runs on a rechargeable battery, and the built-in charger makes recharging convenient. Regular charging is important to keep the battery ready for operation.

To sum up, the SMITH Semi-electric stacker delivers electric-powered lifting along with manual maneuverability. Its built-in safety features, hydraulic system, and intuitive control panel make it a dependable and adaptable choice for a wide range of material handling needs in industrial environments.

How to Operate the SMITH Semi-electric Stacker: Step-by-Step

1. Pre-Use Inspection:

• Before using the stacker, perform a visual check. Look for any visible damage, loose bolts, or worn parts. Make sure the wheels, forks, and lifting system are all in good working order.

2. Battery Inspection:

• Verify that the stacker’s battery has enough charge. If it needs charging, connect the stacker to a power outlet with the built-in charger. Regular battery checks and maintenance help extend battery life and keep the stacker running efficiently.

3. Powering On:

• Start the stacker by turning on the power switch or using the key. This will power up the control panel and electrical systems.

4. Get Acquainted with the Control Panel:

• Familiarize yourself with the control panel, which usually includes lift and lower buttons, an emergency stop, and other controls. For details specific to your stacker, consult the user manual.

5. Set Fork Width (if needed):

• If your stacker has adjustable forks, set them to the correct width for your load. This helps keep the load secure and stable while lifting.

6. Move Toward the Load:

• Move the stacker in front of the load, lining up the forks with the pallet or item you need to lift. Use the manual push feature to position the stacker accurately.

7. Raise the Load:

• Press the “raise” button on the control panel to engage the electric lift. Slowly raise the load to the needed height, keeping an eye on both the load and your surroundings.

8. Move the Load:

• After lifting the load to the desired height, use the manual push feature to move the stacker to where you need it. Be careful when maneuvering, especially in tight or crowded areas.

9. Lower the Load:

• When it’s time to lower the load, press the “lower” button on the control panel. Lower the load gently and steadily, avoiding any sudden drops. Make sure the load is secure before moving the stacker.

10. Emergency Stop Procedure:

• If an emergency occurs or you notice unsafe conditions, immediately press the emergency stop button. This will stop all electric and hydraulic functions to protect both the operator and others nearby.

11. Power Down:

• When finished, turn off the stacker with the power switch or key. Park it in the designated area and, if needed, plug it in to charge for the next use.

12. After-Use Inspection:

• After use, inspect the stacker to confirm it’s still in good condition. Check for any wear, damage, or other issues that might need attention. Report any problems to your maintenance team.

Request a quote or purchase a Semi-electric stacker

To purchase the semi-electric stacker, click ADD TO CART and proceed to checkout. Orders are processed for customer pick-up at our warehouse (EXW). All prices are listed without VAT. If you require a formal quote, select GET OFFER to receive an official offer for the SMITH semi-electric stacker with a 1500kg load capacity and 350cm lift height.
