EXW · collection by the customer at our warehouse in Slovenia

SKU: 770040

Original price was: €4,000.Current price is: €3,199.

Export price without VAT • Goods collected for export are invoiced without VAT

In stock

🔒 Secure checkout • PCI-DSS compliant

    • Export price without VAT Goods collected for export are invoiced without VAT
    • CE-compliant Machines from ISO-certified manufacturers
    • Secure payment Card, PayPal or bank transfer
    • In stock EXW · collection by the customer at our warehouse in Slovenia
    • 12-month warranty Register it in the customer portal · service and spare parts from us
    • Returns and complaints No fee if the product is faulty or not as ordered

    10,000+ products sold across Europe 30+ years of team experience

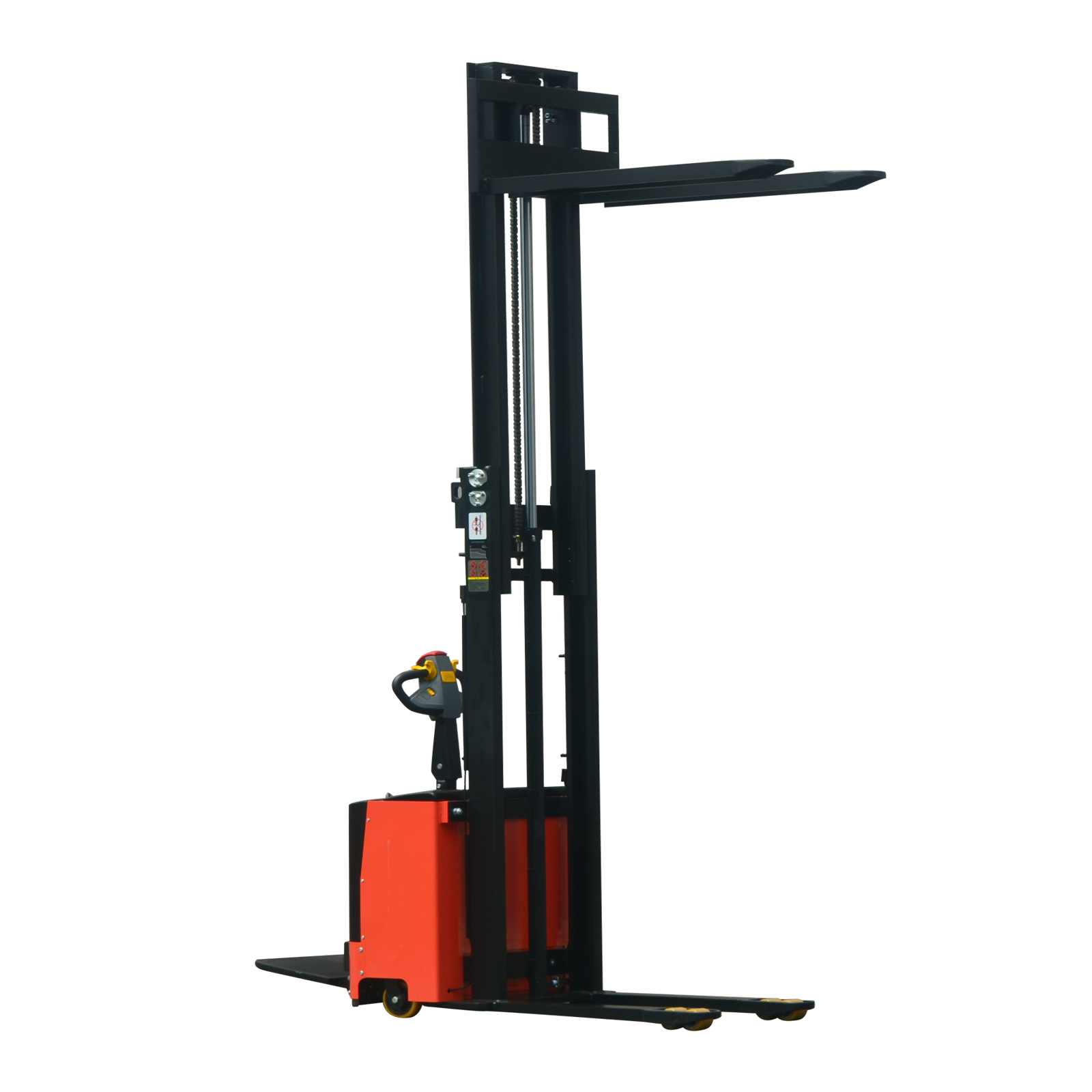

    SMITH Electric Stand-on Stacker S-Ride 3.6m 360cm 1500 kg

    SMITH Electric stacker stand-on 1500kg 260cmSMITH Electric Stand-on Stacker S-Ride 360cm 1500 kg operates entirely on electric and hydraulic systems, delivering efficient, agile, and high-performance handling and movement of goods. The SMITH Electric Stand-on Stacker S-Ride is engineered to assist with stacking goods or palletized cargo up to 2 tons, featuring smooth operation, a high-capacity battery (5-6 h per charge), and a modern control system. This model adapts well to various settings and meets the needs of both cargo and operators. Powered by its battery, this compact yet strong forklift stacker uses electric and hydraulic power for driving, lifting, lowering, steering, and more. It is well-suited for stacking palletized goods, loading and unloading cargo, and short-distance transport.

    The forklift’s control system supports driving and lifting operations with US-manufactured CURTIS1232E and CURTIS1230E controllers. It features a battery status display, working time indicator, and voltage protection information for safer, user-friendly operation. The S-Ride 360cm electric stand-on stacker weighs 760 kg, offering excellent stability and the ability to lift a range of objects and pallets. Height when fully lowered is 2327 mm.  This electric stacker is equipped with two motors: one for lifting and one for driving. The lifting motor delivers 24V/2,2KW, while the drive motor provides 24V/0.75KW. The unit includes 2 batteries and a charger. The batteries have a robust capacity of 2×12V/120Ah, allowing for several hours of operation before recharging is needed. Charging is quick, minimizing downtime. With its maneuverability and straightforward controls, this electric stacker is ideal for lifting pallets or items from the ground to shelves or trucks, or for unloading trucks. The SMITH S-Ride electric stacker is designed for easy handling and efficient use of space. Includes a 1-year warranty. Goods are collected EXW and prices are exclusive of VAT.

    Key features of the SMITH Electric Stand-on Stacker S-Ride 360 cm 1500 kg

    • Modern control system
    • Multiple braking options to suit different environments and load requirements
    • Telescopic hydraulic cylinder with integrated safety relief valve
    • Hydraulic control lever for precise hydraulic power management
    • Steering wheel angle can be adjusted
    • Emergency power-off system
    • Front and rear speakers with proximity audio alerts
    • Original spare parts, quality tested and certified
    • Simple operation and high load capacity
    • Steering motor equipped with control handle and integrated buttons
    • Four-way braking system
    • Designed for easy servicing and loading
    • Robust hydraulic power system



    Technical details for SMITH Electric Stand-on Stacker S-Ride 3.6m 1500 kg

    Model SMITH Electric Stand-on Stacker S-Ride 3.6m 360cm 1500 kg
    Power source electric
    Operation type walk-behind
    Rated towing capacity Q 1500 kg
    Load center c 600 mm
    Distance from axle center to fork face x 695 mm
    Wheelbase y 1148 mm
    Operating weight including battery 730 kg
    Wheel material polyurethane
    Drive wheel diameter Φ Φ210×70 Φ×w(mm)
    Load wheel diameter Φ Φ80×70 Φ×w(mm)
    Additional wheels (size) Φ115×55 Φ×w(mm)
    Number of wheels, front/rear (x = drive wheel) 1,4/2
    Track width 646 b10 (mm)
    Track width 390/515 b11 (mm)
    Mast height, lowered 2327 mm
    Free lift height 0 mm
    Maximum lift height 3600 mm
    Mast height, extended 4087 h4 (mm)
    Total height (with handle 1040/1415 h14 (mm)
    Minimum lowered height 86 h13 (mm)
    Total length 1890 l1 (mm)
    Length to fork face 740 l2 (mm)
    Total width 808
    Fork size 60/180/1150 mm
    Fork width 570 b5 (mm)
    Minimum ground clearance 26 m2 (mm)
    Aisle width with 1000 x 1200 pallet across forks 2110 Ast (mm)
    Aisle width with 800 x 1200 pallet along forks 2160 Ast (mm)
    Minimum turning radius 1455 Wa (mm)
    Travel speed, loaded/unloaded 4.2/4.5 km/h
    Lifting speed, loaded/unloaded 90/130 mm/s
    Lowering speed, loaded/unloaded 105/100 mm/s
    Maximum gradeability, loaded/unloaded 3/6 mm/s
    Service brake type Electromagnetic
    Drive motor, 60-minute rating 0.75 kW
    Lift motor output at S3 15% 2.2 kW
    Battery voltage / rated capacity 2×12/120 V/Ah
    Battery weight (± 5%) 2×35 kg
    Drive control type DC
    Noise level at operator’s position ≤70 dB(A)



    SMITH Platform Pallet Stacker lift curve

    SMITH Electric Stand-on Stacker S-Ride 260cm 360cm 1500 kg



    Key Features of the SMITH Electric Stand-on Stacker S-Ride 360 cm 1500 kg

    SMITH Electric stacker stand-on 1500kg 260cmControl system

    • Upgraded control system
    • Push the accelerator button forward or backward to move, and use the movement button to set your speed.
    • Multiple braking options adapt to different surfaces and loads, helping to keep the operator safe.
    • Perfect for stacking palletized goods, loading and unloading cargo, and transporting items over short distances.
    • Stacking is managed by a telescopic hydraulic cylinder, with a safety relief valve to regulate speed and enhance safety.

    Software & electrical system

    • The stacker’s electrical system enables both driving and lifting, using US CURTIS1232E and CURTIS1230E controllers.
    • Features include a battery level display, hour meter, and voltage protection information.
    • To maintain optimal motor performance, operate the lift in intervals.

    Hydraulic system design

    • The forklift’s hydraulic power comes from an oil gear pump, managed by the handle.

    Steering wheel angle adjustment

    • The steering wheel angle can be set to match the operator’s preferences.

    Hydraulic control lever operation

    • The hydraulic control lever distributes hydraulic power. The pallet forklift lever raises, holds, or lowers the forks. The tilt lever moves the forks back, holds position, or moves them forward.
    • For added hydraulic system safety, the valve block includes a pressure relief device.

    Emergency power safety switch usage

    • To help avoid accidents or uncontrolled forklift operation, the emergency stop switch lets you quickly power down the machine. Use this feature if the forklift moves unexpectedly, or if you notice smoke or an unusual burning smell during operation. This gives you a safe opportunity to check the equipment, find the cause, and resolve any issues before resuming use.

    Use of speakers and backup alarms

    • For added safety during operation, this forklift is fitted with front and rear speakers and horns to warn pedestrians and anyone nearby when the machine is in use.

    Battery charge display

    • The control panel shows the current battery charge level and can be used to monitor battery usage time.

    Safe operation and environmental responsibility

    • All original replacement parts are inspected and approved by our quality assurance team.

    Additional information

    Weight 800 kg
    Dimensions 1.8 × 0.8 × 2.45 m
    Parameter Specification
    Model

    SMITH Electric Stand-on Stacker S-Ride 3.6m 360cm 1500 kg

    Power unit

    electric

    Operation

    pedestrian

    Rated traction weight Q

    1500

    Load center

    600

    Axle center to fork face

    695

    Wheelbase

    1148

    Weight with battery

    730

    Wheels type

    polyurethane

    Driving wheel size

    Φ210×70

    Bearing wheel size

    Φ80×70

    Additional wheels (dimensions)

    Φ115×55

    Wheels, number front/rear (x = driven)

    1,4/2

    Track width

    646

    Track width

    390/515

    Height of mast, lowered

    2327

    Free lift

    0

    Lift

    3600

    Height of mast, extended

    4087

    Overall height (with handle)

    1040/1415

    Lowered height

    86

    Overall length

    1890

    Length to fork face

    740

    Overall width

    808

    Fork dimensions

    60/180/1150

    Fork width

    570

    Minimum ground clearance

    26

    Aisle width with pallet 1000 x 1200 across forks

    2110

    Aisle width with pallet 800 x 1200 along forks

    2160

    Minimum turning radius

    1455

    Travel speed, laden/unladen

    4.2/4.5

    Lifting speed, with/without load

    90/130

    Lowering speed, with/without load

    105/100

    Maximum climbing ability, with/without load

    3/6

    Service brake

    electromagnetic

    Drive motor, 60 minute rating

    0.75

    Lift motor rating at S3 15%

    2.2

    Battery voltage/rated capacity

    2×12/120

    Battery weight (± 5%)

    2×35

    Type of drive control

    DC

    Noise level at operator's ear

    ≤70

    What is the maximum weight capacity for the SMITH Electric Stand-on Stacker?

    The maximum weight capacity is 1500 kg, and at the highest lift height of 360 cm, the capacity is reduced to 700 kg.

    How high can this pallet stacker lift?

    The lift height is 360 cm (3600 mm), making it suitable for stacking pallets at elevated positions.

    Which pallet types and sizes does this stacker support?

    This model is built for EURO pallets, with fork dimensions of 570 mm by 1150 mm and each fork measuring 180 mm wide.

    How long does the stacker run on a full battery charge?

    With fully charged batteries, the stacker can operate for about 5 to 6 hours.

    What type of batteries does the stacker use?

    The stacker is equipped with two 12V/120AH batteries, providing a total of 24V.

    Does the stacker have a battery charge indicator?

    Yes, this stacker is equipped with a battery level display, making it easy to keep track of battery status while in use.

    What is the turning radius for this electric stacker?

    The turning radius is 1460 mm, which helps the stacker navigate efficiently in confined warehouse areas.

    Which safety features are built into the stacker?

    Although specific safety features are not listed, the stacker is designed for stable load handling and uses a 24V/220A controller for accurate operation.

    What warranty is included with the SMITH Electric Stand-on Stacker?

    This unit is covered by a 12-month warranty against manufacturing defects.

    What is the output current of the charger that comes with the stacker?

    The charger is rated at 24V/10A and is supplied with a European standard plug.

    Summary

    • Electric stand-on pallet stacker with 2 batteries (2*12V/120AH) and charger (24V/10A, European standard)
    • Maximum load: 1500 kg
    • Lift height: 360 cm or 3600 mm
    • Designed for user-friendly operation and easy adjustments
    • Battery charge indicator
    • Load at maximum lift height: 700 kg
    • Load center: 600 mm
    • Fork dimensions: 570*1150mm – suitable for EURO pallets
    • Width of single fork: 180 mm
    • 12-month warranty
    • Turning radius: 1460 mm
    • Controller: 24V/220A
    • Charger: 24V/30A
    • Run time on full charge: 5-6 h
