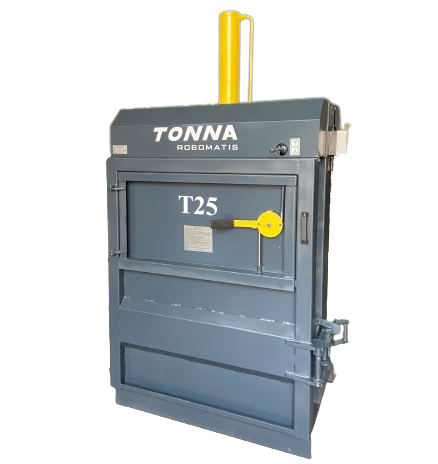

Vertical Cardboard Baler TONNA25, 25 Tons, 250kN, 250 kg Bale

Vertical baler TONNA25, 25 tons

The TONNA25 vertical baler, delivering 25 tons of pressing force, is an effective way to reduce waste disposal costs and maximize space in your facility. This machine is commonly used in warehouses, retail locations, hotels, restaurants, and manufacturing operations, and is also valued for its durability and performance in landfill environments. With a pressing force of 25 tons, the Vertical baler TONNA25 is suitable for compacting a variety of materials, including paper, cardboard, plastics, plastic bottles, stretch film, and more. Depending on the material, the finished bale can weigh up to 250 kg. The TONNA25 vertical baler features an advanced automatic bale ejection system, making it easy to remove the finished bale from the machine. Using wire technology, bales can be securely tied for a compact, stable result. The TONNA25 is built for both indoor and outdoor use, and is engineered for a long service life—often exceeding 20 years. The recycling baler measures 2650 mm (H) x 1500 mm (W) x 1100 mm (D) and has a weight of 750 kg. It comes with a 1-year warranty. The transportation height of the vertical baler is 1955 mm. Goods are collected EXW and all prices are exclusive of VAT.

Key specifications of TONNA25 cardboard baler

• Includes an automatic bale ejection system
• Produces bales of waste materials up to 250 kg

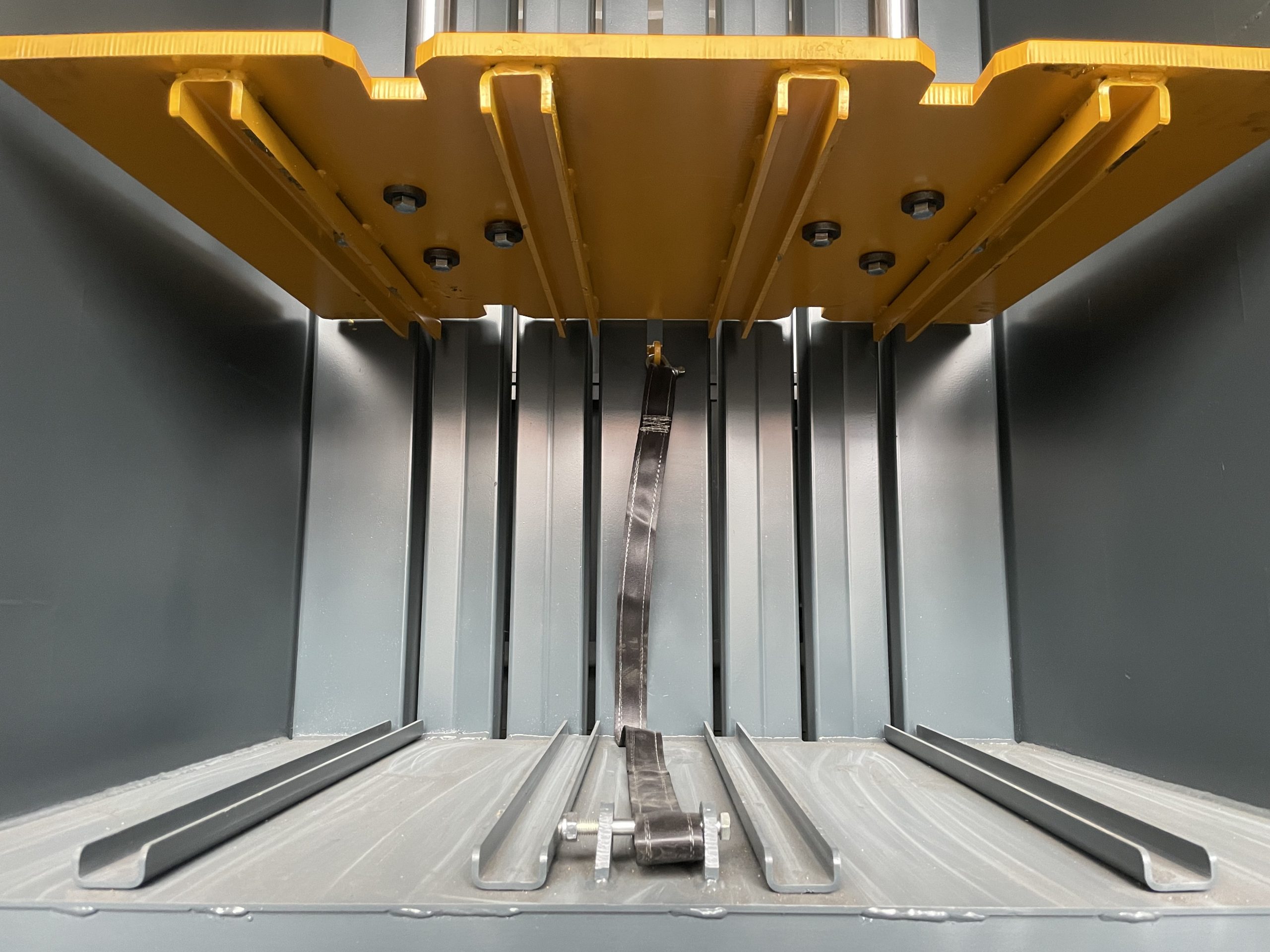

• Bale size: 1000 mm x 800 mm x 800 mm (W x D x H)
• 6-8 bales per hour
• Machine dimensions: 1500 mm x 1100 mm x 2650 mm (W x D x H)
• Perfect for spaces with height or area limitations
• User-friendly design and straightforward installation
• Sound Level: 72 dB
• Cycle Duration: 40 seconds
• Electronic control panel
• Motor: 2.2 kW 16 Amp Single oil cylinder
• Electrical Requirements: 220-230V
• Transport height: 1955 mm

Technical details for Vertical baler 25 tons TONNA25

How recycling is done with the TONNA Vertical Baler Video

▶

Benefits of the TONNA25 25-ton Vertical Baler

• Bale output weight: 250 kg
• This mid-range baler is designed for easy loading of large cardboard boxes
• Retaining claws help minimize material spring-back inside the baler chamber
• Automatic bale ejector for easy bale removal

How the Vertical Baler TONNA25 operates

Site Requirements

Please consider the following factors when selecting a location for the Vertical baler TONNA25:

• The machine must be installed on a floor that can support its weight, as well as the weight of pallet trucks and other load-bearing equipment.
• There should be enough space around the machine for loading, monitoring, maintenance, and removing bales.
• A 230 V electrical outlet should be located near the machine.
• Lighting in the area where the machine is installed should comply with local occupational health and safety standards.
• Adequate ventilation is required in the area where the machine is placed.

Loading the machine with waste material

After the cardboard compactors are secured, the machine is ready for loading. Begin by closing the lower door and filling the machine. When starting a new bale, place a large piece of cardboard (or another suitable material) at the bottom of the hopper. This will help catch all ties, tapes, and solid waste during baling. Ensure that only waste material is loaded into the machine. Once the baler is filled, you can start a new baling cycle.

Baling process

The hydraulic hoses provide the clamping force needed to compress the waste material. The material is compacted to minimize its volume. The baling steps are as follows:

1. Fill the bale chamber to the top of the machine.
2. To start compressing, select the compression mode from the control panel, press the green button, and activate the “compress” function. The machine will run the compression cycle and automatically stop when finished. (The press plate can remain in position until the next refill.)
3. To return the press plate to the top position, press the green button and move it to the “pinch” setting. The machine will automatically stop at the end of the cycle and the press plate will return to its starting position.
4. The machine will stop immediately if you press the red button.
5. Repeat this process until you have produced the required number of bales.
