AS600F Vertical Band Sealer – 13mm Seal Width, 0–15m/min, 20kg Capacity, 60cm Max Bag Height

AS600F Vertical Band Sealer

The AS600F Vertical Band Sealer is a high-performance packaging machine built for businesses that need reliable, continuous sealing in their operations. This equipment is suitable for a variety of industries, including food manufacturing, pharmaceuticals, chemicals, consumer products, and agriculture. Its main role is to deliver secure, consistent seals on plastic film bags, helping to safeguard products and maintain packaging quality. The vertical band sealer features an electronic constant temperature control system and variable speed adjustment, allowing users to fine-tune settings for different bag materials and thicknesses. With sealing speeds reaching 15 meters per minute and temperature settings from 0–300°C, the machine adapts easily to industrial needs. The conveyor supports up to 20 kilograms, making it ideal for handling larger or heavier packaging loads. By implementing this solution, companies can boost output, minimize waste from inconsistent seals, and maintain a professional product appearance while meeting safety and industry packaging standards.

AS600F Vertical Band Sealer demonstration video

▶

AS600F Vertical Band Sealer FAQ

1. What is a vertical band sealer and how does it operate? A vertical band sealer is a machine designed to seal plastic film bags in a continuous process. Bags move along a conveyor and pass through heated copper blocks that soften the film. Pressure and cooling then form a reliable, even seal.
2. Which industries use a vertical band sealer? Sectors such as food packaging, pharmaceuticals, agriculture, chemicals, and consumer products frequently utilize a vertical band sealer. It is ideal for medium to high-volume production lines that require dependable sealing quality.
3. What materials can be used with a vertical band sealer? The vertical band sealer works with LDPE, HDPE, PP, laminated, and composite films. With a temperature range of 0–300°C allows for use with films of various thicknesses from 0.04–0.20 mm.
4. What is the sealing capability of the AS600F Vertical Band Sealer? The AS600F vertical band sealer offers sealing speeds up to 15 meters per minute and supports a conveyor load of 20 kilograms. With a sealing width of 13 mm, it produces strong, reliable seals.

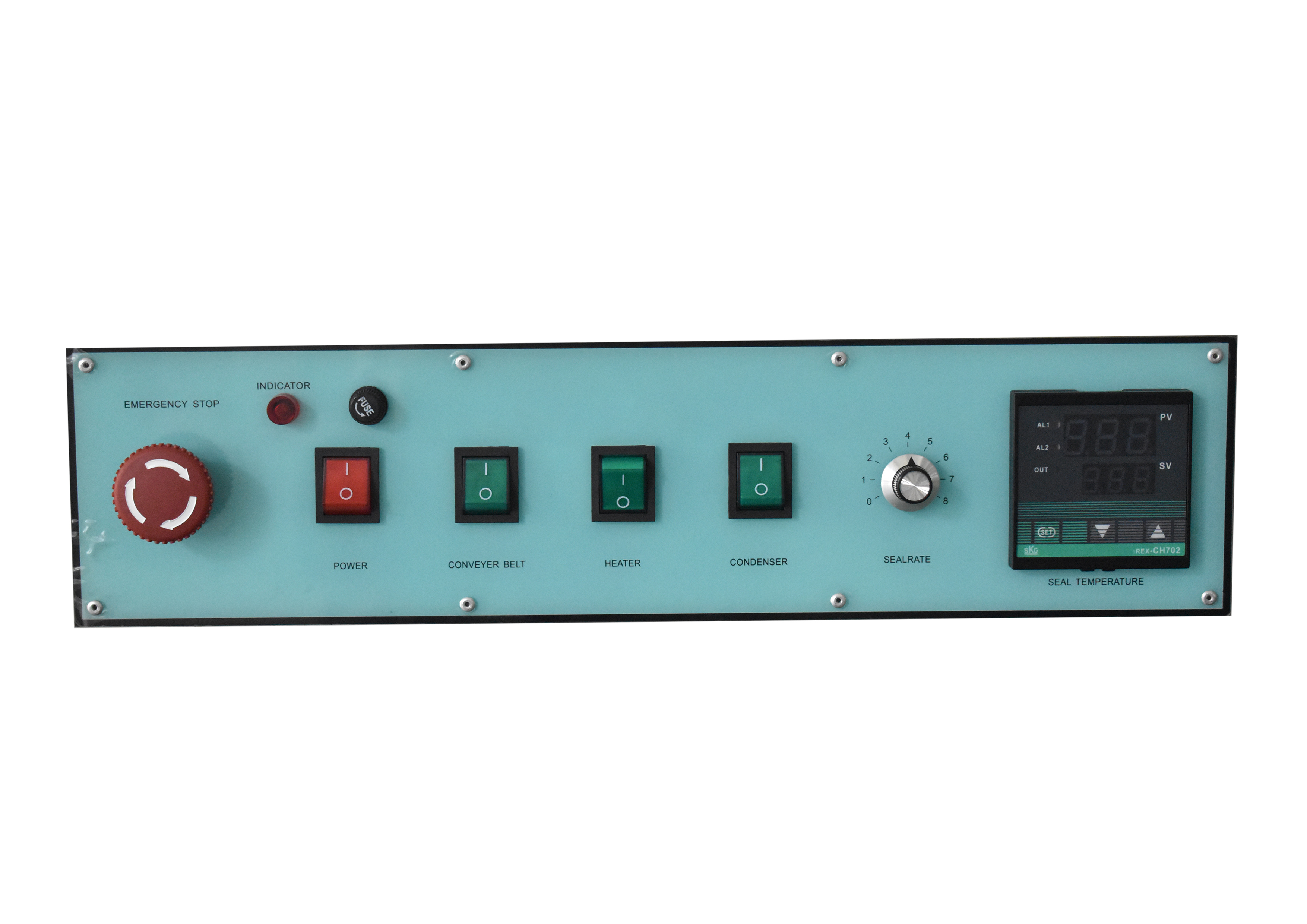

5. What safety features are included with the vertical band sealer? The equipment is equipped with an emergency stop button, proper grounding, protective covers for heated components, and a managed shutdown sequence. These elements help ensure operator safety during industrial use.
6. How do you maintain the vertical band sealer? Regular upkeep involves cleaning the sealing belts, inspecting the guide belts, checking the motor carbon brushes, and keeping an eye on the heating tubes. Performing scheduled checks helps ensure a long service life and reliable sealing quality.
7. Is the vertical band sealer suitable for heavy packaging tasks? Yes, the AS600F vertical band sealer is built for industrial applications and can handle conveyor loads up to 20 kg, making it a strong choice for demanding packaging needs in manufacturing and distribution settings.

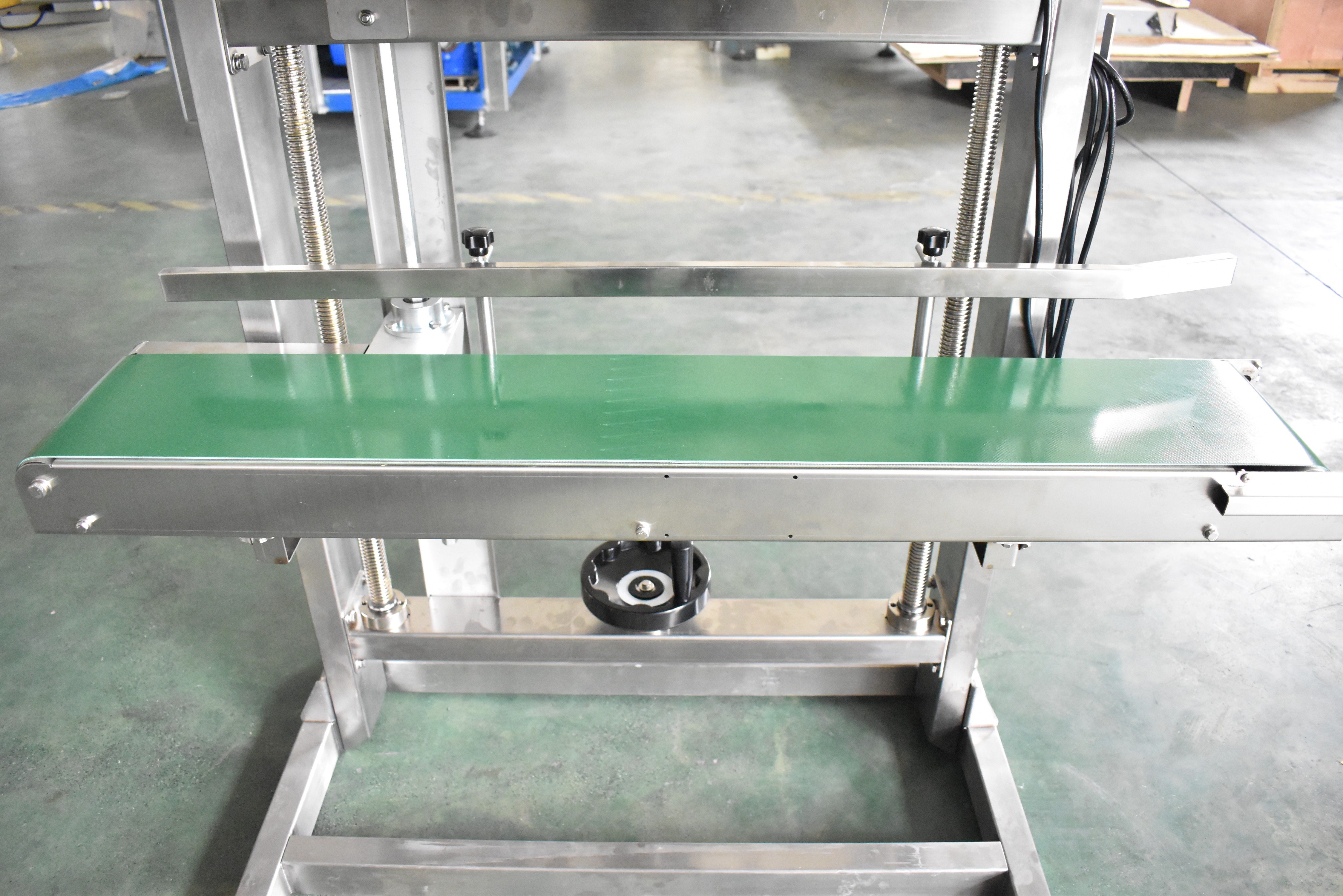

8. Can the vertical band sealer be adjusted for different bag heights? The conveyor height on this vertical band sealer can be set anywhere from 120–600 mm, so it accommodates bags of various sizes without requiring extra modifications.
9. How long does the vertical band sealer typically last? With proper care, the vertical band sealer is engineered for extended use in industrial settings. Key parts like heating tubes, belts, and motors can be replaced at recommended intervals to help maximize the machine’s lifespan.
10. What is the process for purchasing the AS600F Vertical Band Sealer? To purchase the AS600F vertical band sealer, businesses can use the ADD TO CART option for a direct transaction or request a tailored quote via GET OFFER. Both methods provide secure ordering and supplier support.

AS600F Vertical Band Sealer Technical Details

ROI – How This Machine Improves Process Efficiency

Using the AS600F Vertical Band Sealer helps businesses achieve a better return on investment by cutting down on manual labor and standardizing the packaging process. Manual sealing often leads to uneven results, more downtime, and higher rejection rates. The vertical band sealer addresses these issues by providing steady, repeatable sealing quality. With its adjustable speed and accurate temperature controls, companies can increase production without sacrificing consistency. Lower energy consumption, less material waste, and fewer rework needs all contribute to cost savings. The conveyor’s ability to handle up to 20 kilograms also allows for efficient packaging of larger items. Over time, these improvements lead to measurable savings, faster processing, and better use of staff. The AS600F is a smart investment for businesses looking for dependable, long-term packaging solutions.

Main Features and Advantages of the AS600F Vertical Band Sealer

The AS600F Vertical Band Sealer is equipped with features tailored for large-scale industrial use. Its constant temperature control allows precise adjustment for different packaging films, such as LDPE, HDPE, and PP. The 13 mm seal width delivers strong, reliable closures, and the adjustable conveyor height from 120–600 mm accommodates a wide range of bag sizes. With a sturdy build supporting up to 20 kg on the conveyor, the machine is well-suited for heavy-duty packaging. Key benefits include consistent seal quality, reduced labor needs, fewer packaging errors, and better product protection during storage and transport. The AS600F integrates smoothly into existing production lines, making it easy to scale up operations. These combined features help businesses achieve greater efficiency, reliability, and packaging quality with every use.

Operating Instructions for the AS600F Vertical Band Sealer

To operate the AS600F Vertical Band Sealer, follow a simple process that prioritizes both safety and efficiency. Place the machine on a stable, well-ventilated surface and connect it to an AC220V power source with proper grounding. Turn on the main power and activate the heating system. Set the desired sealing temperature based on the type of packaging material. Place bags on the conveyor, which moves them through the heated copper blocks for sealing. The plastic film is then pressed and bonded, followed by cooling with copper cooling blocks before entering the embossing wheel for a finished seal. Adjust the speed adjustment knob as needed to match conveyor speed with sealing requirements. When finished, turn off the heating system first, allow the fan to cool the machine, and then disconnect the power for safe handling.

Typical Applications for the AS600F Vertical Band Sealer

The AS600F Vertical Band Sealer is suitable for industries that require ongoing, accurate sealing of plastic packaging. Typical users include manufacturing facilities, contract packagers, food processors, pharmaceutical manufacturers, chemical plants, and distribution centers. Companies packaging dry foods, powders, medical items, agricultural goods, or industrial products benefit from its capabilities. The machine is especially valuable for operations with moderate to high production volumes, as it handles repetitive tasks with consistent results. Businesses in logistics, retail supply, and wholesale packaging also find it useful for improving product presentation and protection. This equipment is intended for professional use in environments where reliability, durability, and uniformity are essential.

AS600F Vertical Band Sealer – Design and Compatibility

The AS600F Vertical Band Sealer is engineered for stability, long-term use, and adaptability. Built from durable materials, it stands up to demanding work environments. Its compact footprint of 1195 × 500 × 1245 mm makes it easy to fit into tight production areas while still offering industrial-level performance. Weighing 85 kg, the machine remains stable during operation but can be moved if necessary. The bag height adjustment range of 120–600 mm allows for use with both small and large bags. This flexibility means companies can handle different packaging sizes without extra equipment. The AS600F works with most heat-sealable films, including polyethylene, polypropylene, and laminated materials. Its efficient design and compatibility make it a versatile choice for changing production needs, while ensuring consistent sealing quality.

AS600F Vertical Band Sealer – Performance and Capabilities

The AS600F Vertical Band Sealer is built to deliver high-level performance for industrial packaging. With sealing speeds up to 15 m/min, it meets the needs of high-volume production. The 0–300°C temperature range supports reliable sealing for films with thicknesses from 0.04–0.20 mm. Continuous operation is maintained through constant temperature control and variable speed adjustment. The conveyor can handle up to 20 kg, making it suitable for sealing heavier products efficiently. The 13 mm seal width creates strong, uniform seals that help protect products during storage and shipping. With its precise controls and ability to work with a variety of films, the AS600F is suitable for packaging everything from light consumer goods to bulk industrial items.

AS600F Vertical Band Sealer – Safety and Durability

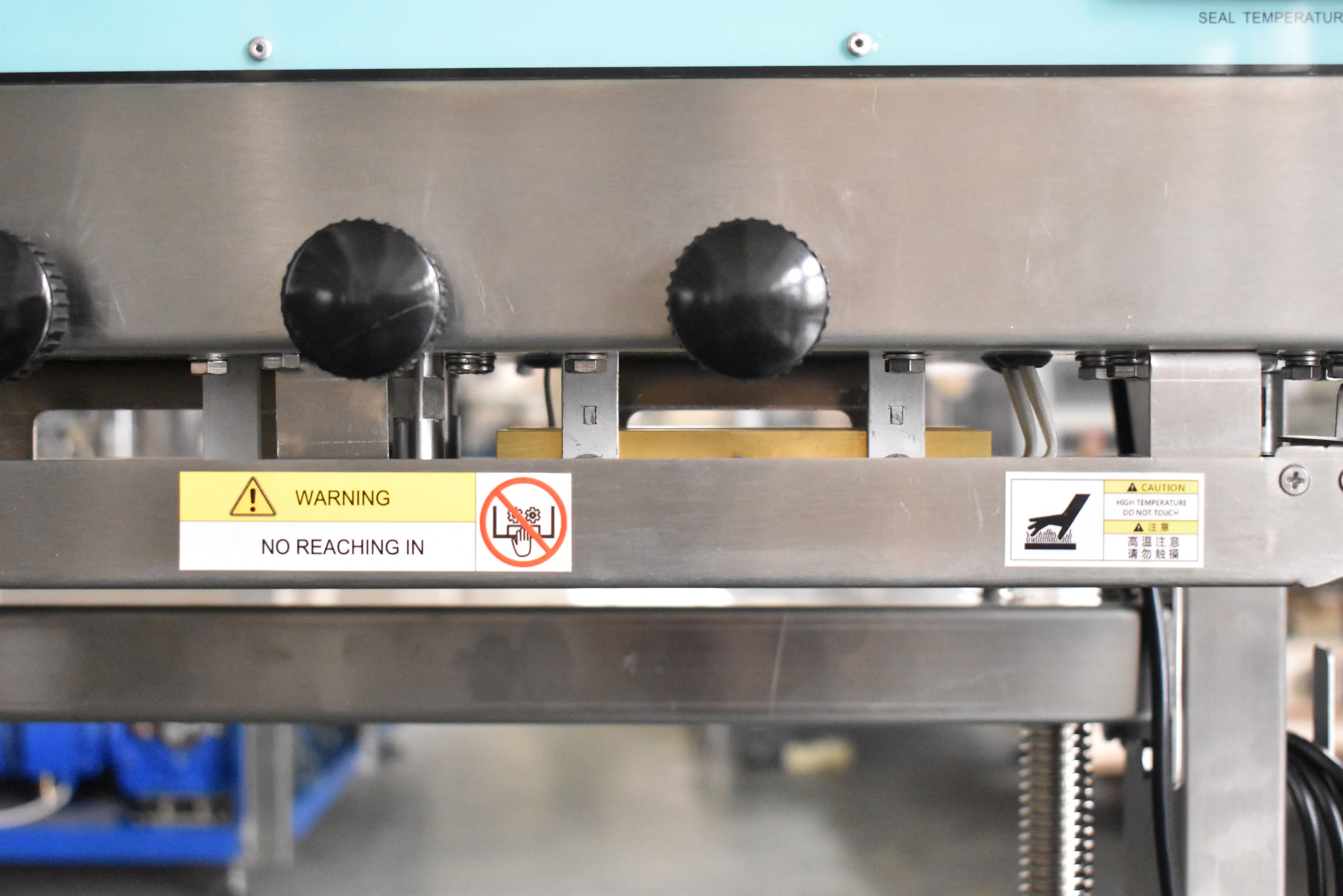

The AS600F Vertical Band Sealer is built with operator safety and long-lasting durability in mind. Safety features include an emergency stop button, required grounding, and protective covers to prevent accidental contact with hot parts. The copper heating blocks and cooling systems are designed for continuous operation while maintaining stable performance. The machine’s frame and components are made to resist wear and provide reliable service in industrial settings. Safety protocols such as disconnecting power before maintenance and ensuring proper grounding help prevent accidents. For durability, key parts like the motor, belts, and heating tubes are engineered for extended use, with regular checks and replacements recommended. This combination of safety and robust construction ensures dependable operation even in demanding production environments.

AS600F Vertical Band Sealer – Adjustments and Maintenance

The AS600F Vertical Band Sealer offers several adjustable settings to help users achieve the best results. Operators can set the sealing temperature, sealing speed, and conveyor height based on the bag material and thickness. Regular adjustments include changing sealing belts, correcting belt alignment, and making sure the conveyor is properly set up. Maintenance is key to keeping the machine running efficiently and extending its lifespan. Daily cleaning of sealing belts, monthly checks of toothed guide belts, and regular replacement of motor carbon brushes are recommended. Annual maintenance should include inspecting heating tubes, rubber rollers, and temperature controllers. Following these maintenance guidelines helps prevent downtime and ensures consistent sealing quality. The AS600F is designed for reliable, long-term use when maintained as recommended.

Environmental Considerations for the AS600F Vertical Band Sealer

The AS600F Vertical Band Sealer helps promote sustainability by cutting down on packaging waste and encouraging efficient material use. By delivering consistent, secure seals, it reduces product loss from faulty packaging. This leads to less rework, decreased use of packaging film, and fewer rejected products. The machine’s energy-saving heating system and adjustable temperature controls help optimize power usage, meeting today’s industrial standards for energy efficiency. In addition, its ability to work with recyclable materials like polyethylene and polypropylene films allows companies to comply with environmental regulations and support recycling efforts. With these features, the AS600F enables businesses to implement packaging processes that are both efficient and environmentally conscious.

AS600F Vertical Band Sealer – EXW Collection, Price Excludes VAT

The AS600F Vertical Band Sealer offers businesses a dependable, long-lasting, and efficient packaging solution that helps boost productivity and lower operational costs. Its ability to seal different film types, handle heavy loads, and accommodate a range of bag sizes makes it a valuable asset for industries that need reliable, high-quality sealing. For companies looking to improve packaging efficiency while protecting product quality, this machine is a smart investment. To place an order, click ADD TO CART for fast processing, or choose GET OFFER to request a custom quote based on your specific needs. The AS600F helps ensure your packaging operations meet industry standards and support long-term performance and reliability.
