F150PM Band Sealer with Inkjet Printer for Bags up to 3kg, 0–13m/min, 600W

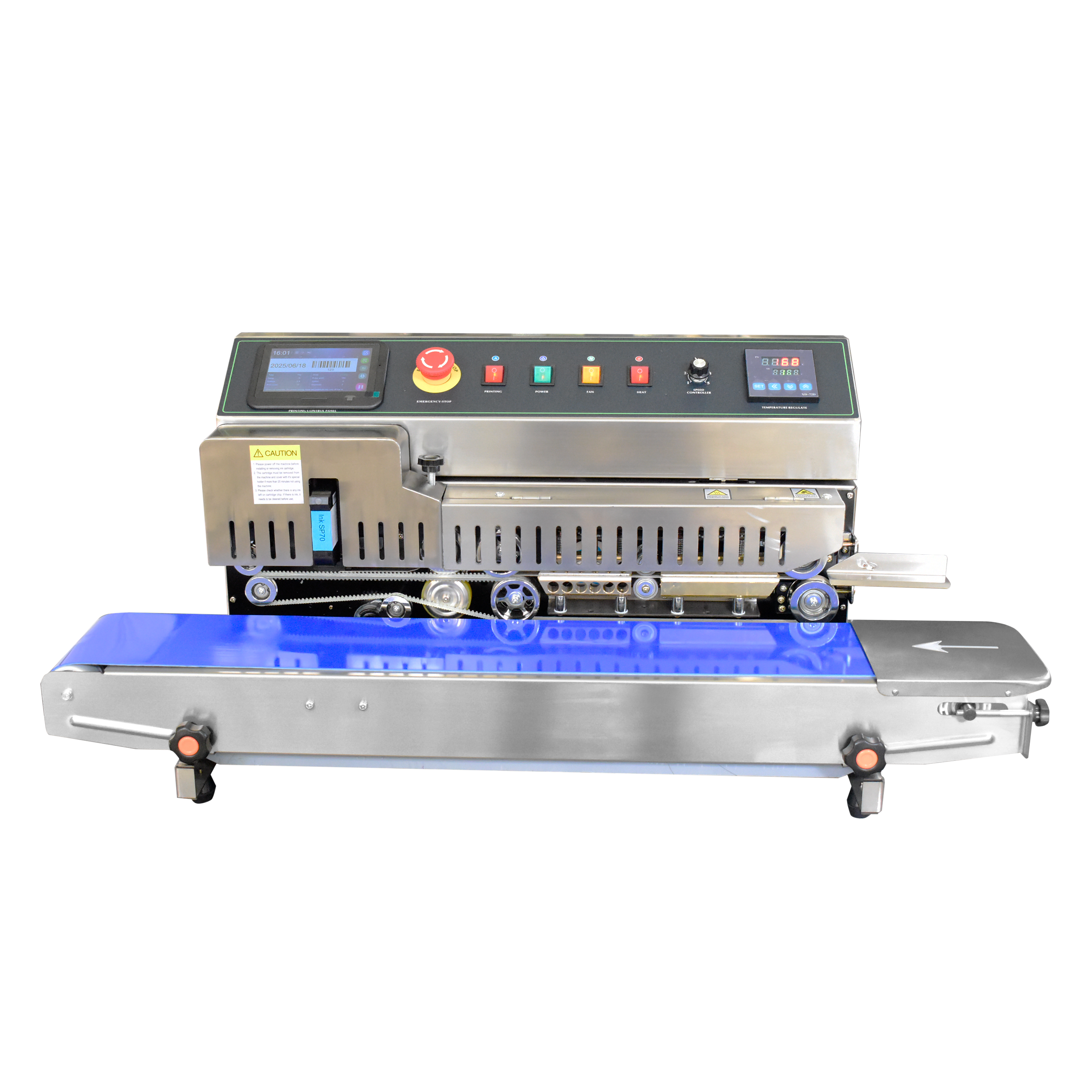

F150PM Band Sealer with Inkjet Printer

The F150PM Band Sealer with Inkjet Printer is engineered for continuous, high-efficiency sealing of plastic film bags in a variety of sectors, such as food, pharmaceutical, chemical, agricultural, and industrial operations. This machine merges advanced sealing with built-in inkjet printing, allowing for dependable seals and direct product coding in a single step. It runs on AC 220V/50-60Hz or 110V/60Hz power, with a 50W motor and 300W × 2 heating tubes, making it ideal for extended industrial use. The sealer operates at speeds up to 13m/min and supports a temperature range of 0–300°C, making it versatile for different bag materials. It accommodates film thicknesses up to 0.08 mm and supports loads up to 3 kg. With overall dimensions of 1000 × 400 × 450 mm and a sturdy build, it fits seamlessly into existing packaging setups. The machine delivers consistent seal quality, even heating, and precise printing, streamlining operations by combining sealing and marking. This results in greater efficiency, lower labor expenses, and compliance with traceability requirements for industrial packaging.

F150PM Band Sealer with Inkjet Printer demonstration video

▶

Frequently Asked Questions about the F150PM Band Sealer with Inkjet Printer

1. Which materials can the Band Sealer with printer process?
   This equipment is suitable for sealing plastic films like LDPE, MDPE, HDPE, and PP, with a maximum thickness of 0.08 mm.
2. How fast does the Band Sealer with printer operate?
   The machine offers adjustable speeds from 0–13 meters per minute, depending on the type and thickness of the bag material.
3. Is coding included with the Band Sealer with printer?
   Yes, this model comes with an integrated inkjet printer that can print dates, batch numbers, barcodes, and QR codes directly onto the package.
4. What electrical supply does the Band Sealer with printer need?
   The unit is compatible with 1P AC 220V/50-60Hz or 110V/60Hz, depending on local requirements.
5. What are the size and weight specifications for the Band Sealer with printer?
   The machine measures 1000 × 400 × 450 mm and has a net weight of about 42 kg, making it suitable for use in production lines.
6. How is temperature managed on the Band Sealer with printer?
   This machine features an electronic temperature controller that can be set anywhere from 0–300°C, providing stable and dependable sealing results.
7. What safety measures are included with the Band Sealer with printer?
   The unit is equipped with a grounding system, an emergency stop button, safety covers, and regulated cooling to promote safe use.
8. Is the Band Sealer with printer built for ongoing industrial use?
   Yes, it is engineered for continuous duty with robust parts, making it a good fit for medium to high-volume packaging operations.
9. What maintenance does the Band Sealer with printer require?
   Routine cleaning of the sealing belts and conveyor is recommended, along with regular checks of belts, gears, and motor brushes to maintain performance over time.
10. Can the Band Sealer with printer be added to automated production lines?
    Yes, its space-saving design and adjustable conveyor make it suitable for use in both standalone setups and automated packaging systems.

F150PM Band Sealer with Inkjet Printer – Technical Details

ROI – How This Equipment Improves Process Efficiency

The Band Sealer with printer helps businesses maximize their investment by combining sealing and coding into one operation, reducing process steps and saving time. By sealing bags and printing codes simultaneously, companies can minimize manual labor, decrease errors, and boost packaging speeds up to 13 meters per minute. The machine ensures reliable seals and accurate printing of dates, batch numbers, barcodes, and QR codes, lowering the risk of packaging defects and returns. Its efficient temperature management and DC motor drive help reduce energy usage and long-term costs. This system increases productivity for both medium and high-volume packaging lines, supporting faster turnaround and meeting traceability standards, which leads to improved customer satisfaction and fewer rework or recall incidents.

Main Features and Advantages of F150PM Band Sealer with Inkjet Printer

The F150PM Band Sealer with Inkjet Printer comes with several features that enhance business operations. It uses an electronic constant temperature control system for stable, even heating, preventing seal inconsistencies. The variable speed control lets operators set the sealing pace to match production needs, offering flexibility. The integrated inkjet printer marks packaging directly, removing the need for extra printing equipment. Its durable embossing wheel allows for mesh or stripe seal patterns, providing strong seals for different materials. The compact footprint fits various production spaces, and its rugged construction and low maintenance requirements ensure dependable, long-term use. Companies benefit from higher throughput, traceable packaging, and reduced labor, making this machine a smart choice for industrial packaging.

Operating the F150PM Band Sealer with Inkjet Printer

To operate the Band Sealer with printer, follow a step-by-step process designed for industrial productivity. Begin by connecting the power and confirming proper grounding. Turn on the main power and set the temperature controller based on the bag’s material and thickness. Adjust the sealing speed with the control knob, then start the heating and cooling systems. Place the bag’s opening evenly on the conveyor, allowing the machine to move it through the heating block, sealing zone, and cooling area. For printing, activate the printing switch and configure parameters like character spacing, delay, and voltage for clear marking. Adjust the print wheel pressure for sharp print quality. During operation, bags are automatically conveyed and sealed with coding in one pass. After finishing, follow the shutdown steps: switch off the temperature control, let the system cool, and disconnect the power.

Applications for F150PM Band Sealer with Inkjet Printer

The F150PM Band Sealer with Inkjet Printer is ideal for businesses that need secure, coded packaging. Typical users include food and beverage producers, pharmaceutical manufacturers, chemical processors, agricultural companies, and industrial product suppliers. It’s especially useful for organizations that require both strong seals and traceability. Its compact size and user-friendly design benefit small and medium businesses, while larger operations can integrate it into continuous packaging lines for high-volume output. Distributors, contract packagers, and logistics providers also use this machine to meet regulations for product coding and packaging safety.

Features and Compatibility of F150PM Band Sealer with Inkjet Printer

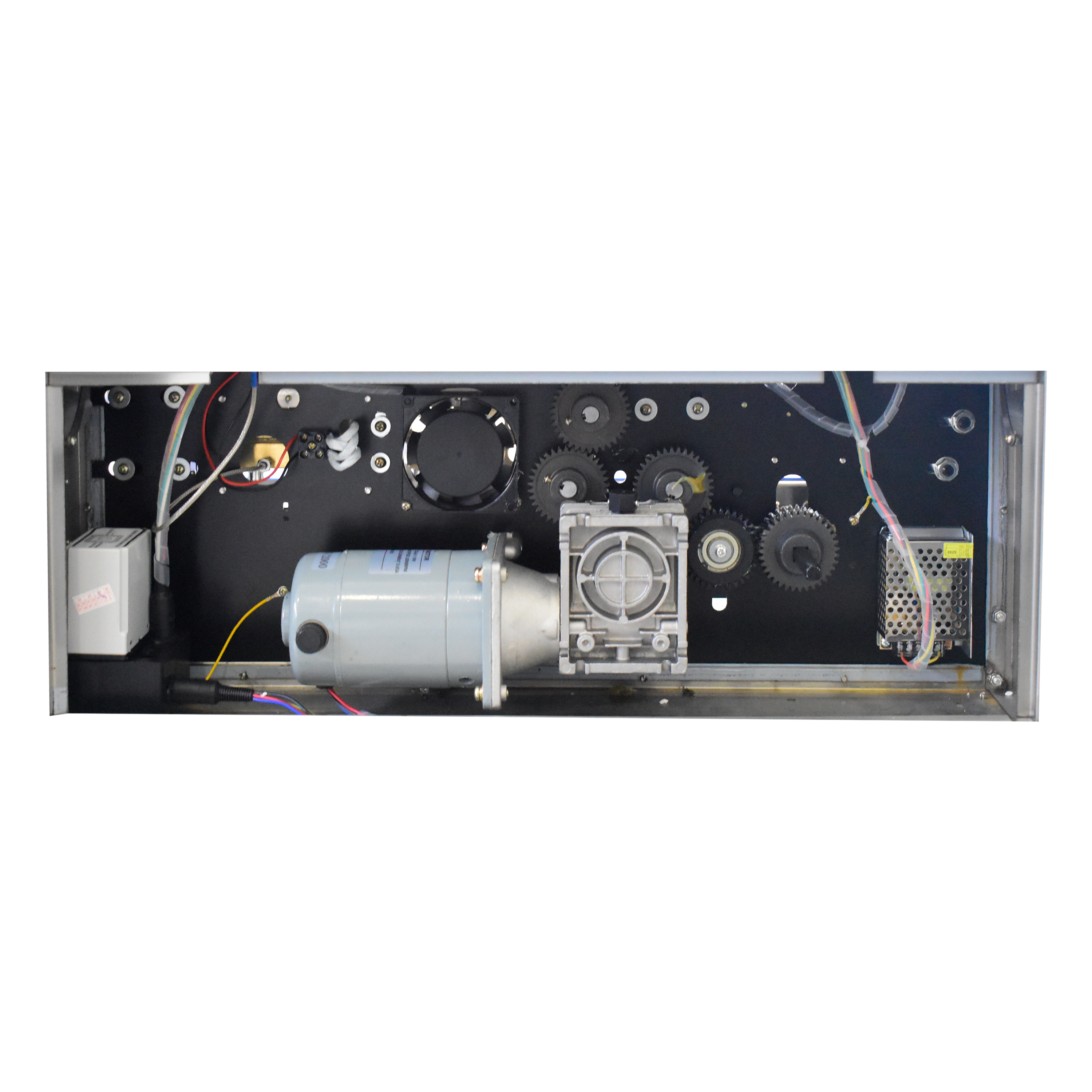

The design of the Band Sealer with printer highlights its robust build, compact footprint, and versatility. Measuring 1000 × 400 × 450 mm, this unit fits easily into tight production areas while still delivering professional-grade results. It is engineered to seal plastic film bags across various materials, including LDPE, MDPE, HDPE, and PP. Users can choose mesh or stripe embossing, with the option of smooth sealing or steel printing wheels to meet specific needs. The conveyor platform can be adjusted for height and depth, making it suitable for various bag sizes. Its durable DC motor drive system keeps the sealing belt, guide belt, and conveyor belt running in sync. The modular design makes it easy to use as a standalone machine or as part of an automated packaging line.

Capabilities and Performance of F150PM Band Sealer with Inkjet Printer

The F150PM Band Sealer with Inkjet Printer provides reliable performance in demanding packaging settings. It offers adjustable sealing speeds from 0–13 m/min to suit various products and materials. The 0–300°C temperature range supports sealing films of different thicknesses and types. The machine handles bag thicknesses up to 0.08 mm and maintains consistent seals with precise pressure controls. Its built-in printer delivers accurate marking, with customizable printing speed, delay, grayscale, pulse width, and voltage for best results. By combining sealing and printing, it ensures package integrity and traceability in one step, reducing the need for multiple machines and increasing production efficiency.

Safety Features and Durability of F150PM Band Sealer with Inkjet Printer

The Band Sealer with printer includes multiple safety features to protect users and extend machine life. A protective grounding system guards against electrical risks, and the emergency stop switch allows for quick shutdown in emergencies. The heating block features temperature controls to prevent overheating, and operators are advised to let the unit cool before maintenance. The structure uses industrial-grade parts, such as durable belts, embossing wheels, and copper blocks. Regular upkeep, like cleaning belts and lubricating gears, helps maximize service life. The machine is built to withstand daily industrial use, delivering steady sealing performance even under heavy workloads and minimizing downtime and repair expenses.

Adjustments and Maintenance for F150PM Band Sealer with Inkjet Printer

Regular maintenance is essential to keep the F150PM Band Sealer with Inkjet Printer running at its best. Daily care includes cleaning the sealing belts and conveyor, and clearing away debris. Monthly maintenance involves checking the sealing belts, guide belts, and motor brushes. Every six months, gears should be lubricated and worn brushes replaced, while yearly service includes inspecting electrical parts, heating tubes, and gearboxes. Adjustable features include conveyor height, sealing pressure, and print wheel depth, allowing the machine to be tailored for different packaging needs. Setting the right temperature, speed, and pressure is key to achieving quality seals. Following the recommended maintenance schedule helps prevent breakdowns and extends the equipment’s lifespan.

Purchase F150PM Band Sealer with Inkjet Printer

The F150PM Band Sealer with Inkjet Printer is a comprehensive solution for businesses that need efficient sealing and precise product coding. By combining both functions, it cuts labor, lowers costs, and meets packaging standards. Its industrial-grade build, safety systems, and long-lasting design make it a valuable asset for companies in many industries. To purchase, businesses can use ADD TO CART for immediate order or choose GET OFFER for a customized quote. This machine delivers consistent sealing, dependable coding, and efficient operation, making it a strong choice for professional packaging needs.
