FS150 Continuous Band Sealer, Vertical, for Bags up to 3kg, 0–13m/min

FS150 Vertical Band Sealer

The FS150 is a continuous band sealer that keeps your process moving. Twin belts grip the bag opening and guide it through the heated section, press the film together, and cool the seal, all while you’re readying the next bag.

The belts operate at 0 to 13 m/min, with adjustable speed, so the sealer matches your workflow. You can set the sealing temperature anywhere from 0 to 300 °C to suit your packaging film.

This is the vertical version: bags stand upright during sealing, which keeps powders, granules, or loose product inside and out of the seal area. The conveyor supports up to 3 kg per bag.

Handles film up to 0.08 mm thick (single layer), measures 820 × 350 × 590 mm for tabletop use, weighs 23 kg, and plugs into a standard 220 V outlet.

FS150 Vertical Band Sealer in Operation

The FS150 vertical band sealer is ideal for food, pharmaceutical, chemical, household, and agricultural applications. Common uses include sealing bags of powders, granules, seeds, dry foods, and small parts.

This sealer integrates into batch packing lines and is typically positioned after the filling station. Operators fill and close the bag, then feed it into the band sealer. It’s designed for small and medium upright bags, especially where preventing spills or contamination is important.

Technical Data

How a continuous band sealer improves your packing process

• No downtime between bags. The conveyor runs nonstop, so your output depends on how quickly you feed the continuous band sealer, not on the machine’s cycle.
• Bags stay upright. The vertical design keeps powders and granules at the bottom, away from the seal area, which helps prevent leaks.
• Customizable sealing. Set the temperature from 0 to 300 °C and adjust the speed from 0 to 13 m/min to match both thin PE and thicker laminates.

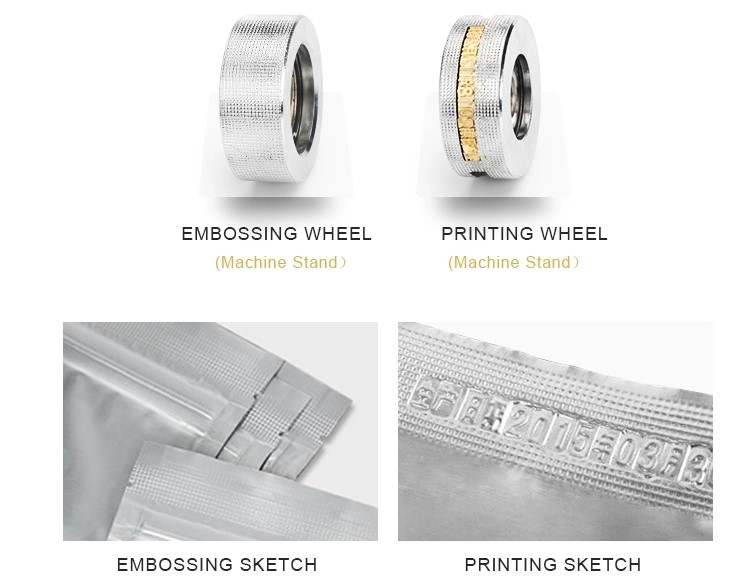

• Embossed closure. The embossing wheel presses a pattern into the seal, making it stronger and showing the bag was sealed by machine.
• Compact tabletop unit. Measures 820 × 350 × 590 mm and weighs 23 kg, fits on your packing table, and plugs into a standard outlet.
• Easy to maintain. Both the sealing and guide belts are wear parts and can be replaced quickly by a technician, no tools needed.

Features

• Vertical continuous band sealer
• Adjustable sealing speed from 0 to 13 m/min
• Adjustable temperature from 0 to 300 °C
• Motor output 50 W, heating elements 2 × 300 W
• Handles film up to 0.08 mm thick, single layer
• Conveyor supports up to 3 kg per bag
• Embossed sealing pattern
• 220 V, 50–60 Hz power (110 V, 60 Hz version available)
• Machine size: 820 × 350 × 590 mm, weight: 23 kg
• Compatible with PE, PP, and multi-layer films
• 12-month manufacturer warranty

How to use the FS150 vertical band sealer

For optimal sealing, test the seal quality on new bag materials at a lower speed before increasing production. The seal should look even and pass a basic peel or burst test. Regularly inspect the sealing and guide belts, and clean the conveyor to keep the machine running smoothly.

Bag sealing process

1. Turn on the sealer, set the right temperature for your film, and allow the heating block to reach temperature.
2. Adjust the belt speed so that bags exit the sealer properly sealed and cooled.
3. Hold the filled bag upright and insert the open end between the two belts.
4. The belts move the bag through the heated block, the pressure wheel, and the cooling block.
5. Remove the sealed bag at the end; you can feed the next bag in right after without stopping the belts.

Settings and maintenance

• Temperature. Gradually increase from low to high until the seal is secure. Setting the temperature too high too quickly can damage both the film and the belt.
• Speed. Adjustable from 0 to 13 meters per minute. Lower speeds apply more heat to the seal; higher speeds apply less. Set the temperature first, then adjust the speed.
• Seal position. Place the seal 10 to 20 mm from the bag edge. Too close causes curling; too far reduces bag capacity.
• Film. Handles single-layer film up to 0.08 mm thick, including PE, PP, and multi-layer types.
• Daily care. Brush off any film residue from the sealing belt and wipe down the conveyor table.
• Wear parts. The sealing belt and toothed guide belt should be checked monthly. Replace any belt immediately if torn to prevent seal damage.

What to check before purchasing

Pricing is listed on this page. Choose your band sealer based on your bag type and production speed. Please review these points before purchasing:

• Bag weight. Handles up to 3 kg per bag on the conveyor. For heavier bags, see the AS600F, which supports up to 20 kg on the table and 5 kg per bag.
• Bag height. The vertical model is ideal for bags that need to stay upright. The AS600F accommodates bags from 120 to 600 mm tall.
• Film. Accepts single-layer film up to 0.08 mm thick. For thicker films, the larger AS600F is recommended.
• Printing. This model is for sealing only. For date or batch coding, choose the F150PM with integrated inkjet printer.
• Power supply. 220 V / 50–60 Hz standard outlet; 110 V version available.
• Space required. 820 × 350 × 590 mm footprint on a table, weighs 23 kg, plus space for bag discharge.
