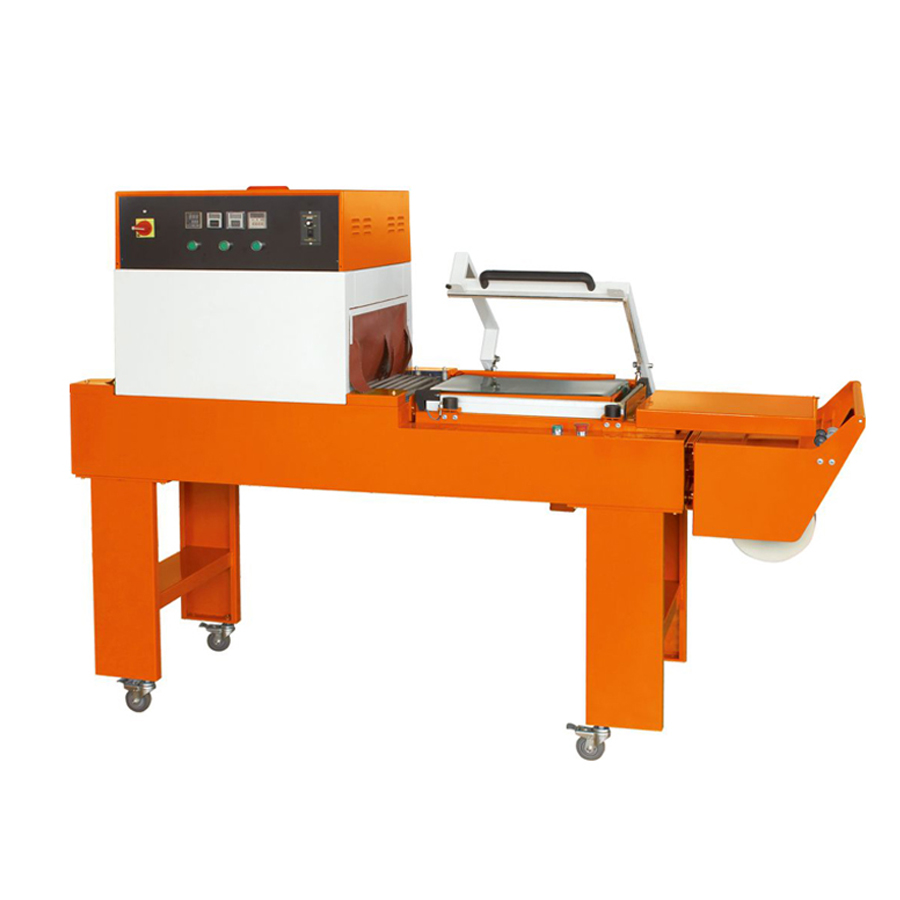

Shrink Wrapper with Tunnel T5040

Semi-Automatic Shrink Wrapper T5040 L-sealer with integrated shrink tunnel “combo” system

The T5040 shrink wrapping machine features a monoblock, semi-automatic compact L-sealer paired with a shrink tunnel measuring 700 mm in length and a tunnel entrance of 450 x 230 mm. The sealing area is 500 mm by 400 mm. Maximum package height is 150 mm. This model can shrink wrap up to 15 items per minute. The shrink wrap machine is well-suited for industrial packaging of both food products, such as bread and cookies, and non-food items like gifts, magazines, or gadgets that require protection from dust and external elements. The T5040 heat shrink wrap machine is straightforward to operate and comes equipped with control panels for maximum convenience. The T5040 shrink wrapper is not only practical but also features a modern and stylish design. The overall size of the Shrink wrapper T5040 is W775 x L2200 mm x H1500 mm, and it has a weight of 270 kg. Goods are collected EXW and prices do not include VAT.

Film specifications for Shrink Wrapper T5040

• Film type: single-layer folded POF film
• Film thickness: 0.015~0.019mm
• Maximum film width: 570mm

Benefits of the Shrink Wrapper T5040

• The T5040 is a semi-automatic shrink wrapper that combines an L-sealer and shrink tunnel within one frame.
• This model separates the sealing and shrinking operations for increased speed.
• The operator begins by placing the product into the center-folded shrink film; the L-sealer seals the package, and the shrink tunnel completes the process.
• The heated lower conveyor inside the tunnel ensures a smooth, high-quality finish on every side of the package.

Shrink wrapper T5040 highlights

• Delivers top-level performance
• Requires an external air compressor, which is not supplied with the equipment
• Film tension can be adjusted
• Seal jaws operate independently
• Seal jaws are easy to clean and can be rotated 180 degrees
• Human Machine Interface (HMI) accessible via the control panel
• Equipped with a separate electrical cabinet

Technical details for Shrink wrapper T5040:

Using the Shrink wrapper T5040

Our T5040 Combination Shrink Wrap Machines fill the space between manual stand-alone sealers and chamber (or “Tunnel”) units and fully automatic shrink wrapping systems. Two clamps are positioned at the front of the sealer to maximize sealing pressure, which is crucial for any sealing process. The Shrink wrapper T5040 is easy to use and accommodates various package sizes. Temperature settings can be adjusted easily to ensure proper sealing. The chamber is linked to a conveyor belt that leads to the tunnel, where the film shrinks tightly around the product. This machine requires an air supply, such as an air compressor. Air pressure: 5～8 ㎏/㎝². Goods are collected EXW and prices do not include VAT.

How does the Shrink wrapper T5040 operate?

To begin, place the product inside the film. The operator holds the film with the left hand, positions it in the chamber, presses the handle with the right hand, and closes the chamber to cut the film. The film wraps around the product, which is then moved into the tunnel where it shrinks to fit. The vacuuming process is quick and straightforward. The T5040 packing machine can handle up to 15 items per minute. Goods are collected EXW and prices do not include VAT.

Shrink wrapper T5040 demonstration video:

▶
