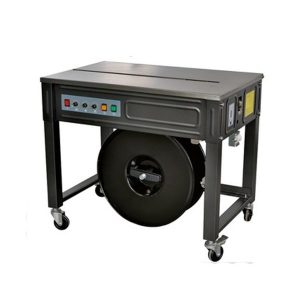

HIPO Semi-Automatic Strapping Machine for 5-15mm (3/16″ to 9/16″) Plastic PP Strap

HIPO semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) banding machine for plastic PP strappingping

The HIPO semi-automatic strapping machine for 5-15mm (3/16″ to 9/16″) strap offers high-quality performance is recognized as one of the most dependable and consistent semi-automatic machines available. This semi-automatic strapping machine is built with premium materials and advanced technology, meeting international quality requirements. The semi-automatic banding machine is compatible with polypropylene (PP) strapping in widths from 5-15mm (3/16″ to 9/16″). The length, width and height of the package shouldn’t be less than 120mm.

The Semi-automatic Strapping Machine is user-friendly, with adjustable strapping tension ranging from 30 to 450N. All essential accessories are included with the machine, so you can begin bundling right after collection.

This Semi-automatic Strapping Machine is suitable for use in a wide range of industries and warehouses, helping to streamline operations and boost productivity. The semi-automatic model features advanced strapping technology and is engineered to provide a strong friction weld seal.

Key benefits of the semi-automatic strapping machine for PP strapping:

• Dependable PCB and control parts.
• Minimum package size: length, width, and height must each be at least 120mm.
• Manual tension adjustment.
• Automatic motor shutoff for energy efficiency.
• Simple operation with minimal maintenance required.
• Lift-up table surface.

How to use the semi-automatic strapping machine

• The HIPO semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) is commonly used across a range of industries and warehouse settings.
• This semi-automatic strapping machine helps accelerate your packaging workflow.
• Designed for straightforward use and easy adjustments.
• The semi-automatic PP strapping machine lets you tighten, seal, and cut plastic PP strapping.

Strapping cycle time is under 3 seconds per strapping cycle. Tension can be set between 3-45kg. The heat-sealing area is located at the bottom of the semi-automatic strapping machine. Work table height is 730mm. This semi-automatic strapping machine is designed for PP straps with a width of 5-15mm and a thickness of 0.5-0.8mm. Compatible strap spool size is 210mm x 178mm.

The machine is built for durability, with all components and housing made from high-strength alloy materials. It delivers strong tightening force and features a specialized design for easy use with steel, aluminum, and heavy-duty packaging. Common applications include paper, aluminum, wood, wooden packaging, chemical fiber, cotton, tobacco, chemicals, food products, consumer goods, and metal industries.

Technical details for the semi-automatic strapping machine:

Operating instructions for the HIPO semi-automatic strapping machine:

1. Main power switch: Flip ON to activate the machine, and OFF to shut it down.
2. Power status indicator (POWER): When you turn on the power switch, this light will illuminate.
3. Strap feed length adjustment (TIMER): Each increment equals about 500mm. To increase the strap length, rotate the dial clockwise.
4. Strap tension control (TENSION): Select the appropriate strap tension based on your package size.
5. Manual feed/Reset button (FEED/HOME): Press FEED to advance the strap. The longer you hold it, the more strap is dispensed. If the machine is not in its starting position, press HOME to return it to the home position.
6. Cooling time setting (COOL TIME): Adjust the cooling time based on the type and tensile strength of the strap to achieve optimal bonding.
7. Safety cover switch: The machine will automatically stop if the top cover is opened. (Always turn off the main power switch before opening the top cover.)

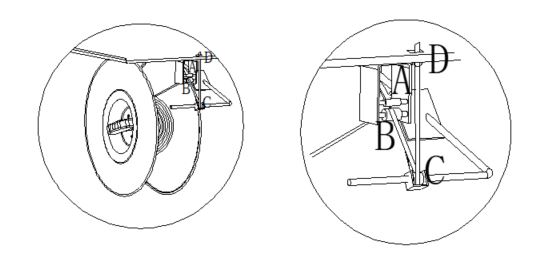

Pull the strap from the reel and check that the strap head is facing downward (if not, reverse the reel). Guide the strap from below pulley A and over pulley B. Next, feed the strap through wheel C and up into strap slot D on the bottom plate, then guide it upward along the roller to the gap between the rollers. Press the FEED button to automatically dispense the strap.

Goods are collected EXW at our warehouse. All prices are exclusive of VAT.

HIPO Semi-automatic Strapping Machine demonstration video

▶
