ROBI-600B Robotic Pallet Wrapper PRESTRETCH

12% OFF

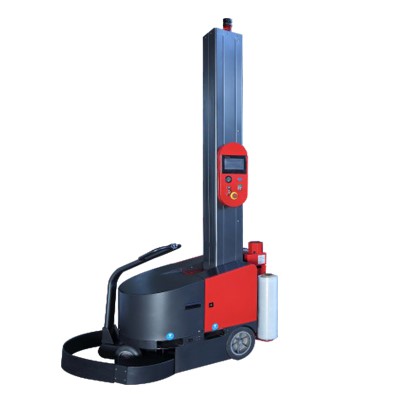

ROBI-600B robot stretch wrapper with pre-stretch
  • High-Speed Wrapping
  • Pre-Stretch Film
  • Rugged Construction

Product video

Available with 30% deposit · delivery in 90 working days

Variation SKUs: 330800, 330802

Price range: 5.999 € through 6.999 €

Price excl. VAT • VAT is added at checkout if no validated VAT number is entered

Add to cartAdd to quote

🔒 Secure checkout • PCI-DSS compliant

  • Availability Available with 30% deposit · delivery in 43 working days
  • 12-month warranty Register it in the customer portal · service and spare parts from us
  • Returns and complaints No fee if the product is faulty, damaged in transit or not as ordered
  • Export price without VAT Goods collected for export are invoiced without VAT
  • Tested before shipping CE-compliant · ISO
  • Secure payment Card, PayPal or bank transfer
  • Assembly and annual service available See options below

10,000+ products sold across Europe 30+ years of experience

The machine is assembled at our facility and provided fully assembled. You will need a forklift to unload it from the truck.
Assembly fee: €280.00
SKU wrapping-height Unit Price Quantity discounts Qty Actions
330800 2400mm Original price was: 6.800 €.Current price is: 5.999 €.
3+ 6+ 11+
3% OFF 5% OFF 7% OFF
Available with 30% deposit · delivery in 43 working days
330802 2800mm Original price was: 7.800 €.Current price is: 6.999 €.
3+ 6+ 11+
3% OFF 5% OFF 7% OFF
Available with 30% deposit · delivery in 90 working days

ROBI-600A/B Robot Stretch Wrapper PRESTRETCH

This robot stretch wrapper is easy to move and adjust, making it suitable for all types of loads in any workplace or industry.

The ROBI-600A/B self-propelled robot stretch wrapper is highly versatile and designed to wrap pallet loads and items of any size or shape. Its innovative concept allows the machine to travel around the load, unlike stationary wrappers. This approach eliminates the need to lift and place loads onto a turntable, saving time and effort. It also enables wrapping of items that cannot fit on traditional machines, as the wrapper moves smoothly around loads of any dimension, shape, or weight.

Thanks to its compact build, the wrapper delivers strong performance even in confined areas, while its excellent maneuverability gives you full control over the wrapping process. It’s a reliable solution for most workplaces and industries, operating effectively in ambient temperatures from -10°C to 40°C to maintain ideal film tension and wrap strength.

The ROBI-600A/B robot stretch wrapper offers both automatic and manual modes, giving you flexibility and efficiency in your workflow. The film threading system is quick and secure, saving time and ensuring the right film tension. You can easily adjust and customize settings based on your operation and load for optimal wrapping results.

The ROBI-600A/B wrapper runs on a strong, long-lasting battery with a lifespan of up to 800 charge cycles. Its control panel features simple start and stop controls, reset and emergency stop buttons, and battery level indicators. With an 8-hour charge, capable of wrapping up to 200 pallets.



ROBI 600A/B Robot Stretch Wrapper PRESTRETCH Features

  • Equipped with a power pre-stretch system delivering up to 300% film extension and 230% selectable in two steps using the handle
  • One full charge wraps up to 200 pallets
  • Precise control over the wrapping process
  • Digital parameter display
  • Highly mobile and easily adjustable
  • Long-lasting battery



Simple operation and quick wrapping with the ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

The ROBI 600A/B is built to streamline your packaging process while delivering reliable results every time. Its operation and navigation are simple and user-friendly.

Begin by moving the robot stretch wrapper to your load. Then, pull the film from the machine and attach it to the item. Set your desired number of wraps on the control panel and start the process. The wrapper will automatically circle the load and wrap it according to your settings.



ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

technical details

Model ROBI-600A/B
Power supply Battery
Battery type Charging power 1P AC220V/110V 50/60Hz
Model 6-GVF-120A
Weight 43 + 1kg
Dimensions (L x W x H) 407 x 174 x 216 (209) mm
Service life Up to 800 charging cycles
Wrapping rate 90 meters per minute
Maximum pallet dimensions Unlimited
Minimum pallet dimensions 600x600mm
Maximum wrapping height 2400 / 2800 mm
Film stretch rate (%) ROBI-600A Mechanical stretch system
ROBI-600B Powered pre-stretch: 300% and 230% selectable in two steps using handle
Film type LLDPE film, width up to 500mm, outer diameter up to 280mm
Film tension control Variable
Maximum film specification ∅250x500mm
Lift unit speed Variable
Gross/Net weight 450kg/430kg
Machine setup PLC controller German brand “Siemens”
Battery type CHILWEE
LCD display text Chinese brand “MEIWA”
Limit switch French brand “Schneider”
Push-button switch French brand “TE”
Electrical connector French brand “TE”
Detection sensor German brand “P+F”
Electric motor Chinese brand “MEIWA”
Overall machine dimensions (L x W x H) 1583 x 1233 x 2770 / 3170 mm
Sound level ≦ 75dB
Operating environment Relative humidity ≤ 98% Operating temperature: -10 to 40°C
Packed dimensions (L x W x H) 1950 x 1250 x 3000 / 3000 x 2000 x 1400 mm



Key features of the ROBI-600A/B Battery-Powered Robot Stretch Wrapper

  • Multiple operating modes make it simple to adapt to a wide range of applications and workspaces, while delivering consistent, high-quality wrapping.
  • User-friendly control panel provides dependable operation and helps maximize productivity for every job.
  • The digital display gives a clear overview and easy management of selected settings, allowing you to adjust for the size, weight, and shape of your load.
  • The chain-driven film carriage increases stability and delivers consistent tension to the stretch film.



Video demonstration of the ROBI-600A/B Battery-Powered Robot Stretch Wrapper

Additional information

Weight 430,0 kg
Dimensions 1,44 × 1 × 2,75 m
Wrapping height

2400mm, 2800mm
Parameter Specification
Model

ROBI-600A/B

Power source

Battery

Battery configuration

Charge power

Model

Weight

Size

Lifetime

Wrapping speed

90m/min

Maximum pallet size

No limit

Minimum pallet size

600x600mm

Maximum wrapping height

2400 / 2800 mm

Film stretch (%)

ROBI-600A Mechanical stretch

Film material

LLDPE film, width ≦ 500mm, outer diameter ≦ 280mm

Film tension

Adjustable

Maximum film spec.

∅250x500mm

Elevator unit speed

Adjustable

Gross weight/net weight

450kg/430kg

Machine configuration

PLC

Battery

LCD text

Travel switch

Button switch

Connector

Sensor

Motor

Machine size

(L x W x H) 1583 x 1233 x 2770 / 3170 mm

Noise

≦ 75dB

Environment

Humidity ≦ 98%

Packing size

(L x W x H) 1950 x 1250 x 3000 / 3000 x 2000 x 1400 mm

What kinds of loads can the ROBI-600B Robot Stretch Wrapper manage?

It can wrap pallets of any shape, size, or weight, making it suitable for a wide range of load types.

How many pallets can the ROBI-600B wrap per full battery charge?

With a fully charged battery, it can wrap up to 200 pallets.

What battery performance does the ROBI-600B provide?

It operates with a durable, high-performance battery that lasts up to 800 charge cycles for dependable use.

How does the height detection sensor improve the wrapping process?

The sensor enhances height accuracy, delivering precise and uniform wrapping for pallets of different heights.

Is it easy to move the ROBI-600B between work areas?

Yes, it is designed for easy movement from one load to the next, allowing for flexible operation.

What type of control interface is featured on the ROBI-600B?

The machine is equipped with a PLC control system and an LCD text display, offering dependable and straightforward operation.

In what way does the chain-driven film carriage enhance wrapping results?

It regulates the tension of the wrapping film, helping to ensure pallets are wrapped securely and remain stable.

Which design elements make the ROBI-600B energy efficient?

Features like soft start, soft positioning, and an efficient battery system all help reduce energy consumption.

Is the ROBI-600B adaptable to different workplace settings?

Yes, this machine is well-suited for a variety of workspaces, including areas with limited room.

Is it difficult to maintain the ROBI-600B?

No, the design of this machine allows for straightforward maintenance, helping to keep downtime to a minimum.

Summary

  • Rotates around loads, perfect for any shape, size, or weight
  • Space-saving design works efficiently in tight areas
  • One full charge wraps up to 200 pallets
  • Runs on a powerful and long-lasting battery with up to 800 charge cycles
  • Maximum battery life with included charger and battery level indicator
  • Simple to move between different loads
  • Works well in a variety of settings and job sites
  • Height sensor enhances height accuracy
  • Chain-driven film carriage maintains consistent film tension
  • Operated with PLC controls and LCD text for dependable use
  • Preset modes and adjustable settings as required
  • Consistent wrapping performance with gentle start and precise stopping
  • Delivers high performance and conserves energy
  • Designed for straightforward maintenance
