Pallet Wrapper with Pre-Stretch EASY-IN PRE-STRETCH

Pallet Wrapper EASY-IN PRE-STRETCH

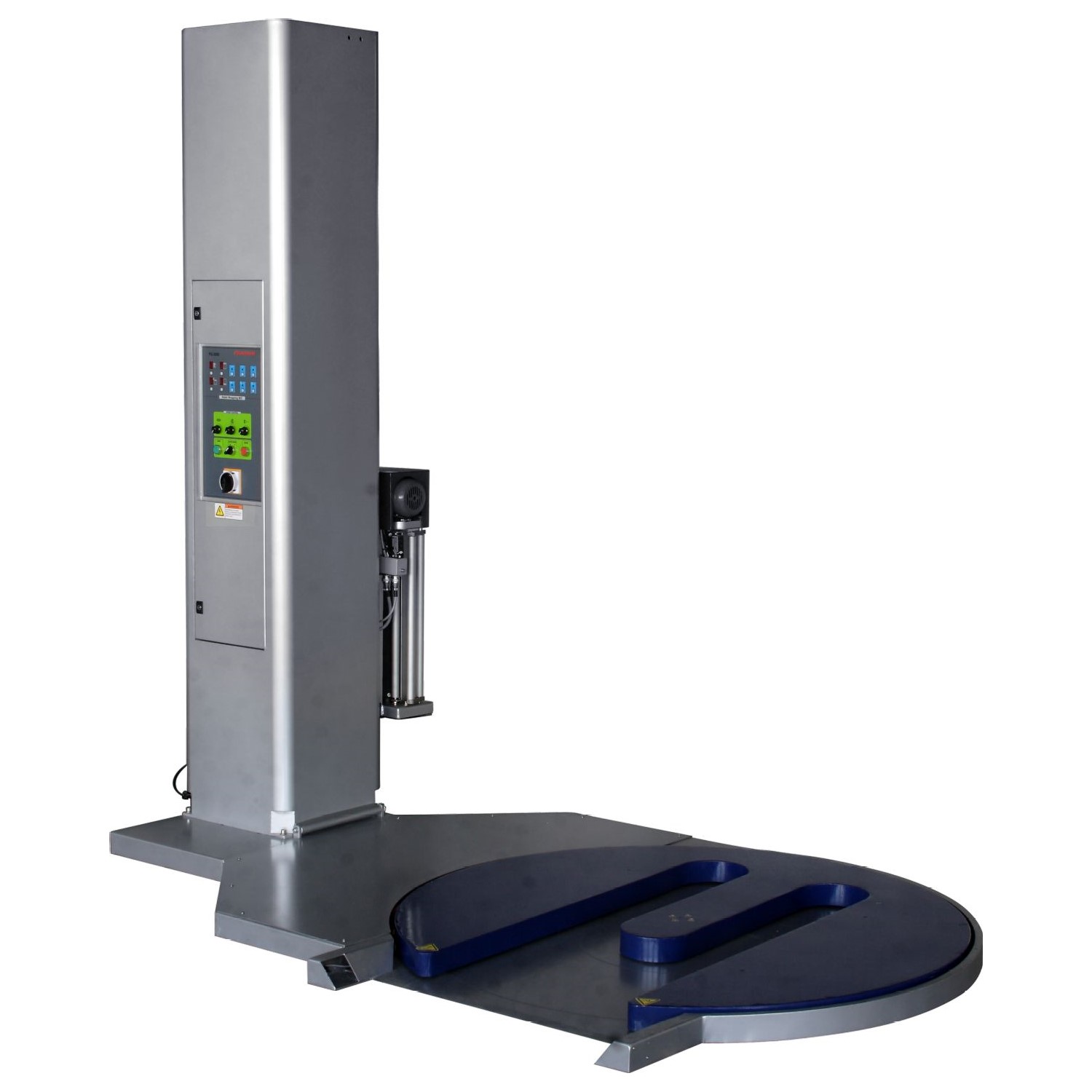

The EASY-IN PRE-STRETCH Automatic Pallet Stretch Wrapper is an M-type stretch wrapping machine designed for use with pallet trucks. Its unique M-type configuration removes the need for forklift handling or loading, and it saves space by letting you roll pallets in with a hand pallet truck—no ramp required. The turntable diameter of the EASY-IN PRE-STRETCH Automatic Pallet Wrapper is 1500 mm, with a maximum wrap height of 2000 mm. This wrapper is stable, and the turntable speed is adjustable up to 10 r/min. It features a soft start/stop function and a home position function that automatically returns the turntable to its starting point. The machine is equipped with PLC controls and a pallet height sensor. The opening in the turntable makes it simple to load pallets using a hand pallet truck. This stretch wrapper uses PLC controls, and its electrical components are sourced from leading brands such as “OMRON” (Japan), “LG” (Korea), and “TE” (France). The EASY-IN Automatic Pallet Stretch Wrapper is designed for practicality and smooth operation, offering high reliability and ease of use. It helps boost productivity and protects goods from damage during handling. The machine is dust-resistant, moisture-resistant, and helps keep your goods clean. It is suitable for a wide range of industries, including chemical fiber, bakery, pharmaceuticals, publishing, cold storage, and ceramics, among others. This machine is not intended for pallets with crossbars.

You can easily configure the wrapping program using a user-friendly and dependable interface. Thanks to its M-type turntable, the EASY-IN PRE-STRETCH pallet wrapper is perfect for businesses that use hand pallet trucks, as you can roll the pallet in directly without lifting. Multiple wrapping options can be set to match your requirements.

Key Features of the EASY-IN Pallet Wrapper

• Pre-stretch capability up to 300%: secure your load while using less stretch film.
• M-shaped design makes loading and unloading easier for operators.
• Tension can be adjusted, allowing for different types of packing film
• Smooth start and stop
• Home position, initial position, and automatic return after wrapping
• PLC control panel integrated into the mast
• Start the wrapping process with a single button on the display.
• Consistent and dependable operation
• Turntable and film carriage speeds are managed by inverters, reducing engine risks and increasing machine lifespan.
• Forklift slot provided for easy movement with a manual pallet truck
• Simple to use
• Automatic height sensor locates the top of goods without manual input.

EASY-IN Pallet Stretch Wrapper specifications

EASY-IN Pallet Stretch Wrapper: Operating procedure

The process is generally separated into these main steps:

1. 1. Position the pallet and its tray onto the turntable;
   2. The operator pulls the film and secures it around the outside of the load.
   3. The operator activates the machine; it will then automatically wrap the load.

Automated cycle

You can select high or low speeds and set the up and down movement based on pallet height using the PLC controls. Start the automatic cycle with the appropriate selector, and the machine is ready for the next load. Always verify that the items are properly stacked on the platform, and ensure the weight and height do not exceed the machine’s limits.

The automated cycle includes these steps:

• Set the items or pallet on the turntable and activate it using the photoelectric sensor.
• The turntable begins rotating clockwise. After the first full turn, the film carriage moves upward until the sensor detects the top of the pallet.
• The pre-set high speed engages, and the film carriage lowers.
• When the carriage reaches the bottom, the rotation slows down, then decelerates and stops at the set position.
• Once the wrapped load is removed, the pallet wrapper is ready for the next pallet.

Where can you get the EASY-IN Pallet Stretch Wrapper?

• PRE-STRETCH technology reduces film use by 36%, making it ideal for operations with high film consumption.
• Looking to save floor space? No ramp is necessary.
• compatible with euro pallets (800 x 1200 mm) only
• supports pallets weighing up to 1000 kg
• Need a dependable, sturdy pallet wrapper?
