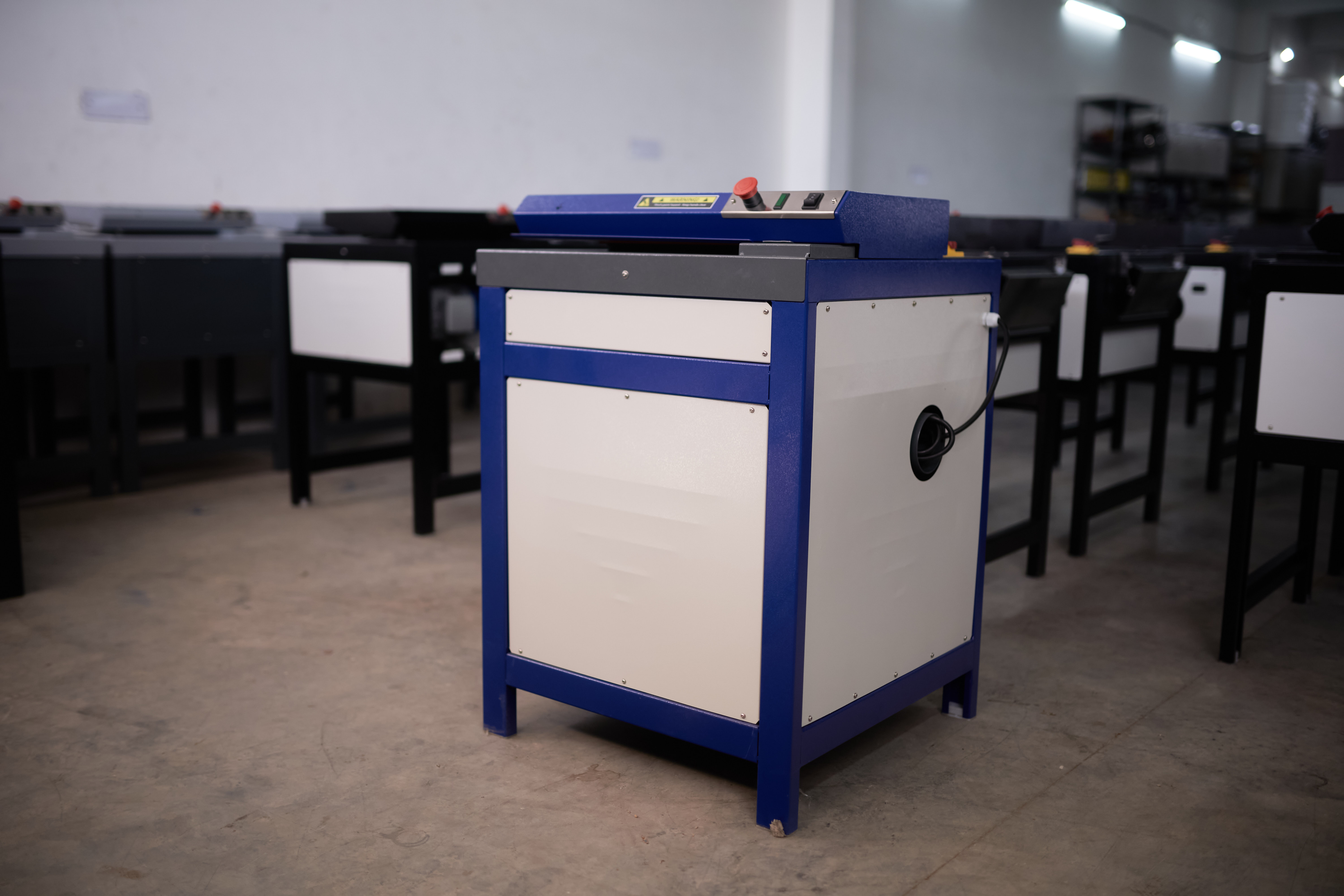

Cardboard Shredder Machine GREE ES 422mm

GREE ES 422mm Cardboard Shredder Machine

The GREE ES 422mm cardboard shredder machine offers a modern way to convert everyday waste paper, cardboard, and corrugated board into efficient void fill material. This machine is ready for immediate use with its plug-and-play design, helping you minimize cable expenses and setup time wherever you install it. The ES 422mm model is a GREE brand product, known worldwide for leading-edge packaging equipment engineering and innovation for packaging professionals.

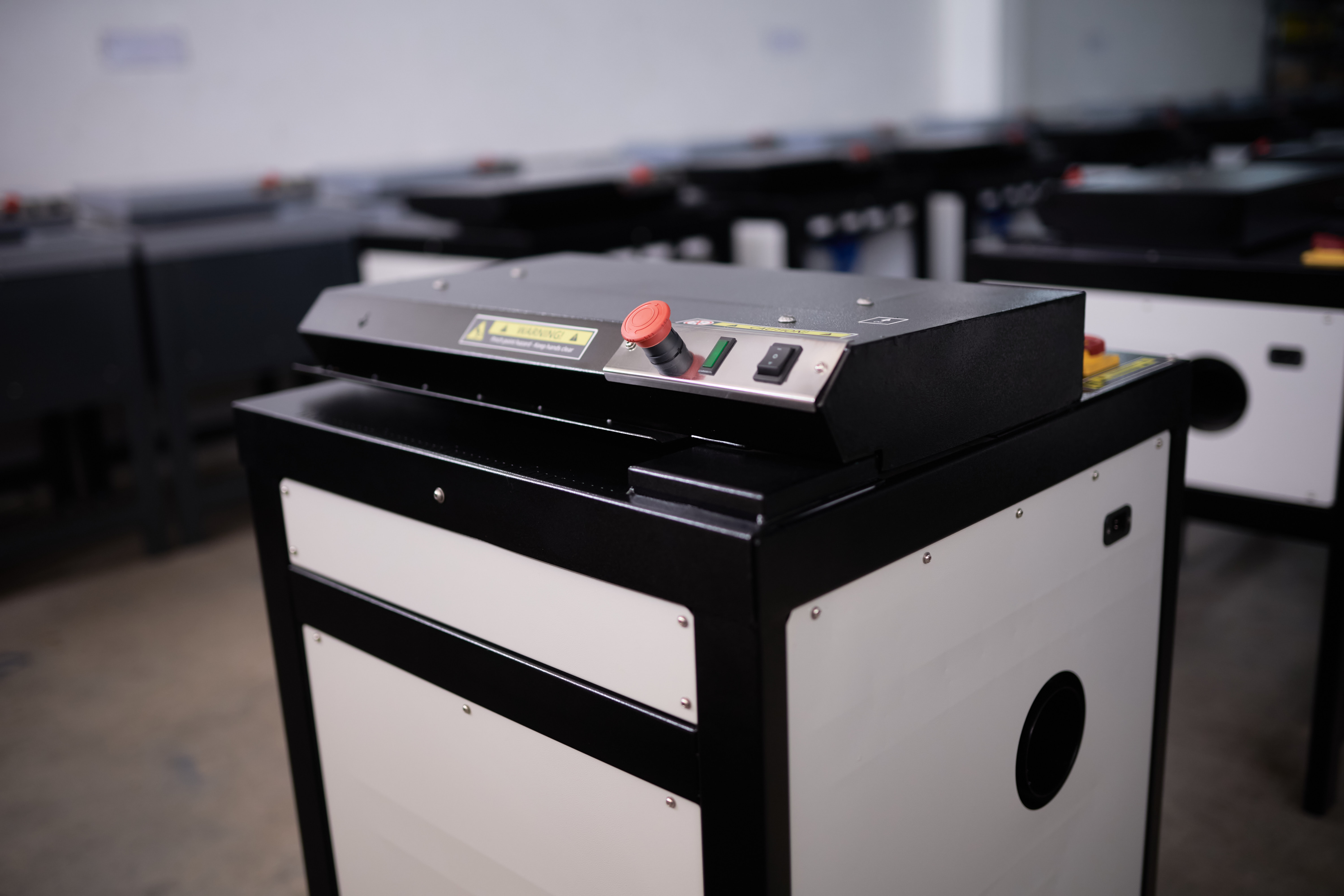

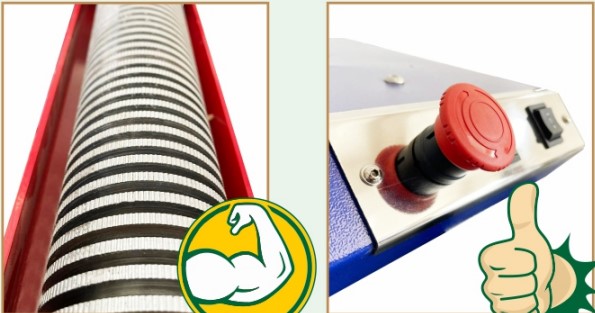

This machine features a specially developed, aerospace-grade steel shaft with dual action to cut and transform cardboard into void fill or flexible material. Its intuitive controls include Equipped with Start, Stop, Reverse, and Emergency controls for safety and productivity at your facility. The efficient drive system supports sustainable operation, while the soft start reduces wear and ensures quieter performance.

The ES model produces flexible matting. You can add a dust reduction unit, making this machine a great fit for environmentally minded users. It is engineered to cut materials up to 420mm wide and 18mm thick, delivering up to 6.0 cubic m/hr of void fill with no limit on operating time.

The machine measures W660mm x D660mm x H1060mm, with a weight of 120kg and a 0.5 square meter footprint. It operates on a 230 or 240 volt power supply and connects with a 13-amp plug. The machine processes cardboard or paper with a minimum weight of 60 g/m2, and it is supplied with CE, ISO, and EcoFriendly certificates.

This machine provides single-pass operation and features an emergency stop button for enhanced safety. The custom steel shaft is built for long-lasting durability, and the inverter drive offers 30% energy savings. Designed to meet international packaging equipment standards, it is an excellent choice for companies focused on efficiency and sustainability.

Operating this machine is easy. First, plug it into a 230 or 240-volt outlet using a 13-amp plug. Next, release the red emergency stop knob and turn the black rotary switch to the right. Press the GREEN start button to illuminate the operating lamp. Feed corrugated board, up to 18 mm thick, into the front opening. Any width of board can be processed, as the built-in cutter will trim off any excess width.

If your carton contains staples, position it so the staples are on the left side as you feed it into the machine. Process the board as usual, ensuring the last section with staples remains to the left of the built-in cutter. You will be left with a narrow strip containing the staples, which should be disposed of safely.

A spring-loaded stainless steel flap at the back of the machine compresses the shredded board into more flexible cushioning. Do not lift the flap to remove shredded material; processed board will be pushed out as more is fed in from the front. If you need flat material, remove the two L-shaped spring legs from the holes in the compactor flap. The flap will then move freely and allow the shredded board to exit without restriction.

If the motor overheats, the thermal cut-out will activate. Wait three minutes, then press the button to resume operation. If a jam occurs, turn the rotary switch all the way to the left to reverse the motor and clear the material.

GREE ES 422mm cardboard shredder machine video

▶

Six key advantages of the GREE ES 422 cardboard shredder:

Eight reasons to choose the GREE ES 422mm cardboard shredder:

1. Cost savings: Transforming waste cardboard into packaging material can help lower expenses for purchasing packing supplies.

2. Environmentally conscious: Shredding cardboard promotes recycling and reuse, helping to lessen the environmental impact of waste.

3. Space efficiency: Turning cardboard into packing material reduces the storage space needed for packaging supplies.

4. Productivity: A cardboard shredder quickly produces packing material, offering an efficient solution for packaging operations.

5. Custom options: The shredder allows you to create packaging material in custom sizes, minimizing excess and waste.

6. Multi-purpose: This shredder is capable of processing a variety of materials, including paper and corrugated board, in addition to cardboard.

7. Safety features: Most cardboard shredders include built-in safety measures such as emergency stop and reverse functions to help protect operators.

8. Ease of use: Many cardboard shredders are compact and simple to operate, making them a practical fit for any workspace.

Instructions for operating the GREE ES 422 cardboard shredder:

1.

   Plug the shredder into a 230 or 240-volt outlet using a 13-amp plug.

2. Pull out the RED emergency stop button.
3. Turn the black rotary switch to the right, press the green start button, and the indicator light will turn on.
4. Insert corrugated board up to 20mm thick into the front opening of the machine. The built-in cutter will trim any excess width, and you can feed trimmed pieces back into the shredder until all the material is processed.
5. If the cardboard contains staples, feed it into the machine with the staples positioned on the left side. Continue processing as usual, making sure the last section with staples stays to the left of the built-in cutter. This will leave a narrow strip with staples, which should be disposed of safely.
6. A spring-loaded stainless steel flap is located at the back of the machine. This compactor flap compresses the shredded board into a more flexible cushioning form. Do not lift the flap to remove shredded material; as more board is fed in from the front, the processed material will be pushed out.
7. If you need flat material, take out the two L-shaped spring legs from the holes in the compactor flap. The flap will then move freely and will not restrict the shredded board.
8. If the motor overheats, the thermal cut-out will activate. Wait three minutes, then press the button to restart.
9. If a jam happens, turn the rotary switch all the way to the left to reverse the motor and clear the material.
10. Set the rotary switch to the center position to turn the machine off.
11. NEVER leave the machine running without supervision.
12. The run time and maximum board thickness depend on the density of the material.
