    ZONE600F impulse sealer with foot pedal

    ZONE600F impulse sealer with foot pedal, 600 mm sealing barThe ZONE600F is an impulse sealer with foot pedal and a 600 mm bar. It seals the widest bags in this category in a single operation: sacks, pallet liners, protective covers, and any packaging that would require two passes with a 300 mm or 450 mm bar.

    The heating wire is energized only when the jaws are closed, and cools down while still clamped, so the bar stays cool between cycles and the seal is set before removing the bag. The seal width is 2 to 5 mm and the heating time can be adjusted.

    The ZONE600F is designed for use in factories, warehouses, and logistics centers where wide bags and liners are filled and sealed by hand. It is suitable for packing areas and workstations handling bulk items, components, hardware, food, pharmaceuticals, and cosmetics. The 600 mm bar is selected for sealing sacks, pallet covers, drum liners, and other packaging that cannot be closed in one step with a smaller sealer.

    Operators set the heating time to match the thickness and type of film, such as PE, PP, or multilayer film. The opening of the filled bag is laid flat across the full 600 mm sealing bar before the jaws are closed. After the indicator light turns off, the seal cools while still clamped, and the bag is removed by pulling it sideways. The ZONE600F does not require compressed air or three-phase power, operating from a standard single-phase grounded outlet.

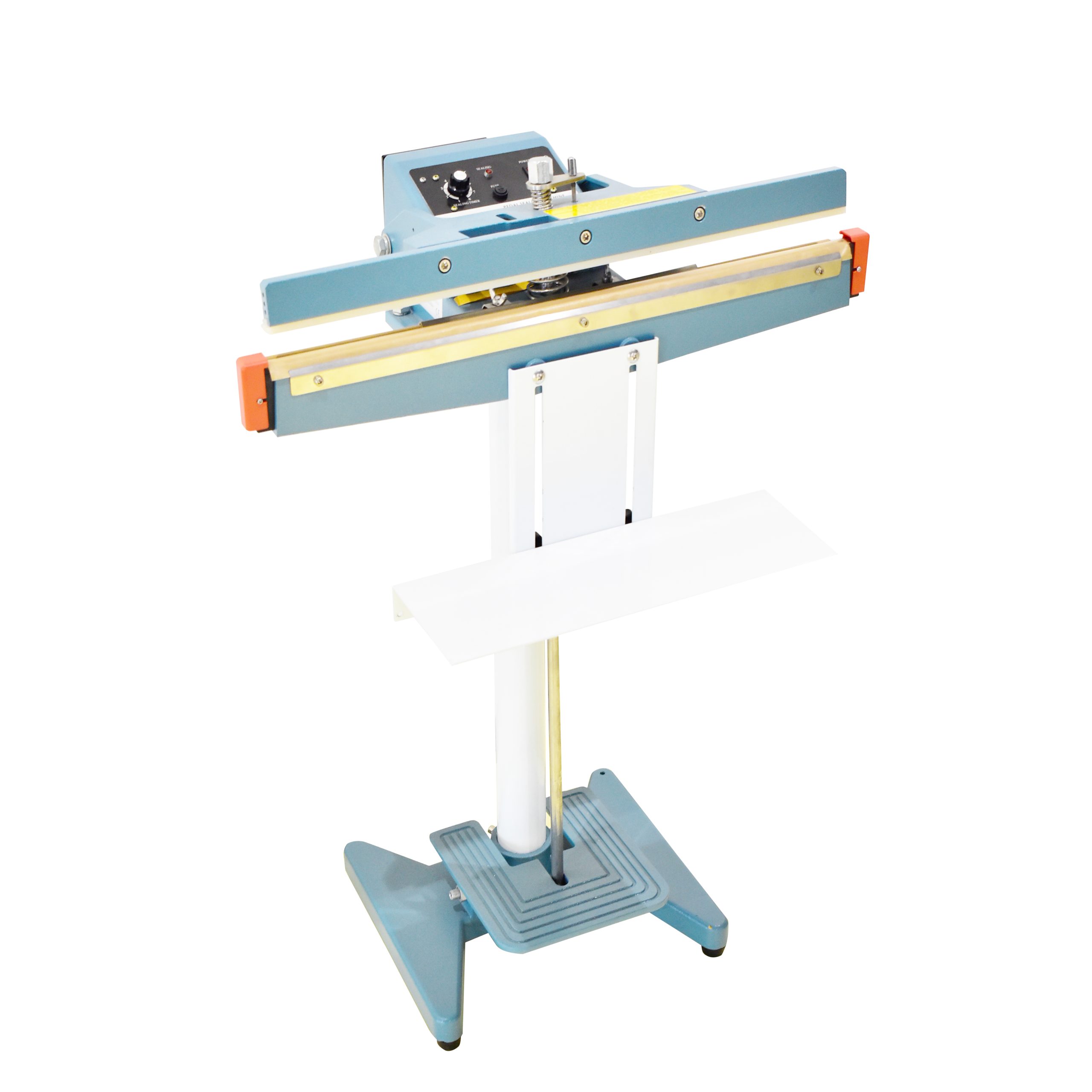

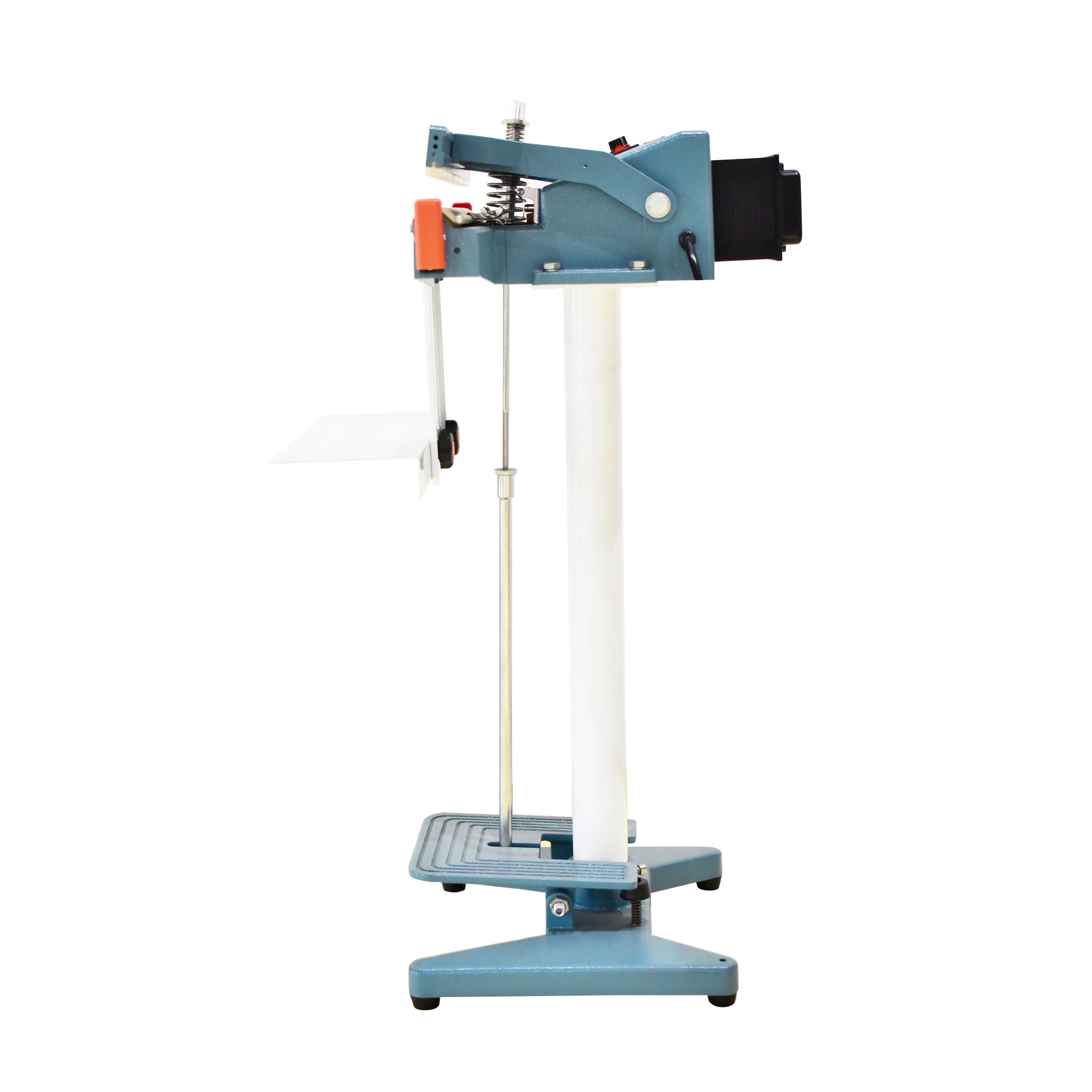

    ZONE600F impulse sealer, foot pedal, and standThe jaws are operated by a foot pedal, which is ideal for wide bags: both hands are free to hold the bag flat across the 600 mm bar during sealing.

    The sealer is mounted on its own stand, measuring 700 × 570 × 880 mm, weighs approximately 22 kg, and operates from a standard outlet at 1000 W.

    ZONE600F impulse sealer for production and logistics

    The ZONE600F is designed for use in factories, warehouses, and logistics centers where wide bags and liners are filled and sealed by hand. It is suitable for packing areas and workstations handling bulk items, components, hardware, food, pharmaceuticals, and cosmetics. The 600 mm bar is selected for sealing sacks, pallet covers, drum liners, and other packaging that cannot be closed in one step with a smaller sealer.



    Technical data

    Model ZONE600F (PFS-F600)
    Type Impulse sealer with foot pedal
    Sealing length 600 mm
    Sealing width 2–5 mm
    Heating time adjustable
    Power 1000 W
    Supply voltage single-phase, grounded
    Operation foot pedal
    Materials PE, PP, multilayer film
    Machine dimensions (L × W × H) 700 × 570 × 880 mm
    Net weight Approx. 22 kg
    Shipping crate 790 × 545 × 257 mm, approx. 24 kg
    Warranty period 12 months



    Uses for a 600 mm sealing bar

    • Seal the widest bags in one step. A 600 mm seal closes sacks or liners in a single motion, with no overlap or need for a second seal.
    • Cool bar between seals. The heating wire is only active during sealing, so the bar stays cool to the touch and does not warm up the workspace.
    • Keep both hands on the bag. The foot pedal closes the jaws, so you can hold large bags flat with both hands for a straight seal.
    • Adjusts for your film. Set the heating time to match the thickness, so both thin PE and thicker films seal cleanly.
    • No installation needed. Standard outlet, 1000 W. No need for compressed air or three-phase power.
    • Freestanding at your packing station. Measures 700 × 570 × 880 mm, weighs approx. 22 kg.



    Included features

    • Impulse foot pedal sealer, model PFS-F600
    • Sealing length: 600 mm
    • Seal width: 2–5 mm
    • Heating time adjustable
    • Power: 1000 W
    • Single-phase power with ground
    • Foot pedal operation, keeps both hands free
    • Unit size: 700 × 570 × 880 mm, approx. 22 kg
    • Compatible with PE, PP, and multilayer film
    • 12-month warranty



    How to make a seal

    1. Turn on the sealer and adjust the heating time to match your film type.
    2. Lay the filled bag with its opening flat across the full 600 mm sealing bar.
    3. Step on the foot pedal: the jaws close and the heating wire activates for your set time.
    4. After the indicator light turns off, wait one or two seconds so the seal cools while still clamped.
    5. Remove the bag by pulling it sideways, left and right, not toward yourself.



    Settings and maintenance

    • Heating time. Start with a short setting and increase gradually until the seal holds. Too long will burn through the film.
    • Bag position. The opening should be flat across the whole bar. If a 600 mm bag opens later, a fold in the middle is usually the cause.
    • After sealing. Wait one or two seconds, then pull the bag away sideways, never straight ahead.
    • Never seal empty. Closing the jaws with nothing inside will damage the PTFE cloth.
    • Cleaning. Keep the sealing bar and cloth free of melted film and never use wet cleaning methods.
    • Wear parts. The PTFE cloth, heating wire, and upper pressure pad; if the pad is damaged, the seal will be uneven.



    Before you buy

    ZONE600F impulse sealer in a packing areaYou’ll find the price on this page. Choose your sealer based on the bags you need to close. Please check these points before purchasing:

    • Bag width. Handles up to 600 mm in one cycle. For smaller bags, the ZONE450F is sufficient.
    • Film type. This impulse sealer works with PE, PP, and multilayer films. For aluminum-laminated or thick bags, use the constant heat ZONE300D.
    • Seal width. Between 2 and 5 mm. For a 14 mm heavy-duty seal, select the ZONE300D.
    • Space needed. 700 × 570 × 880 mm floor area, plus extra space on both sides for a 600 mm bag.
    • Power supply. Requires a single-phase grounded outlet, 1000 W.
    • Collection. The sealer is packed in a crate measuring 790 × 545 × 257 mm, weighing about 24 kg. Goods are collected EXW and prices do not include VAT.

    Additional information

    Weight 24 kg
    Dimensions 0.79 × 0.545 × 0.257 m

    Summary

    • Impulse heat sealer ZONE600F with a 600 mm sealing length designed for wide industrial packaging applications
    • Foot pedal operation allows for precise, hands-free sealing
    • Impulse heating technology delivers energy-saving sealing cycles
    • Heating time can be set from 0 to 2.5 seconds to suit different materials
    • Creates durable seals with a 2–5 mm sealing width
    • Delivers high output with 1000 W pulse power
    • Works with PE, PS, and multilayer composite films
    • Runs on 110V or 220V single-phase electrical supply
    • Built for durability with a die-cast aluminum alloy frame
    • Industrial size 700 × 570 × 880 mm ensures stable performance
    • Robust design with a Machine weight: 22 kg
    • Goods are collected EXW; prices do not include VAT. One-year warranty included.
