Truck Loading Conveyor LOADER UL1790 – L790 + 1000cm, W80cm

LOADER UL1790 truck loading and unloading conveyor

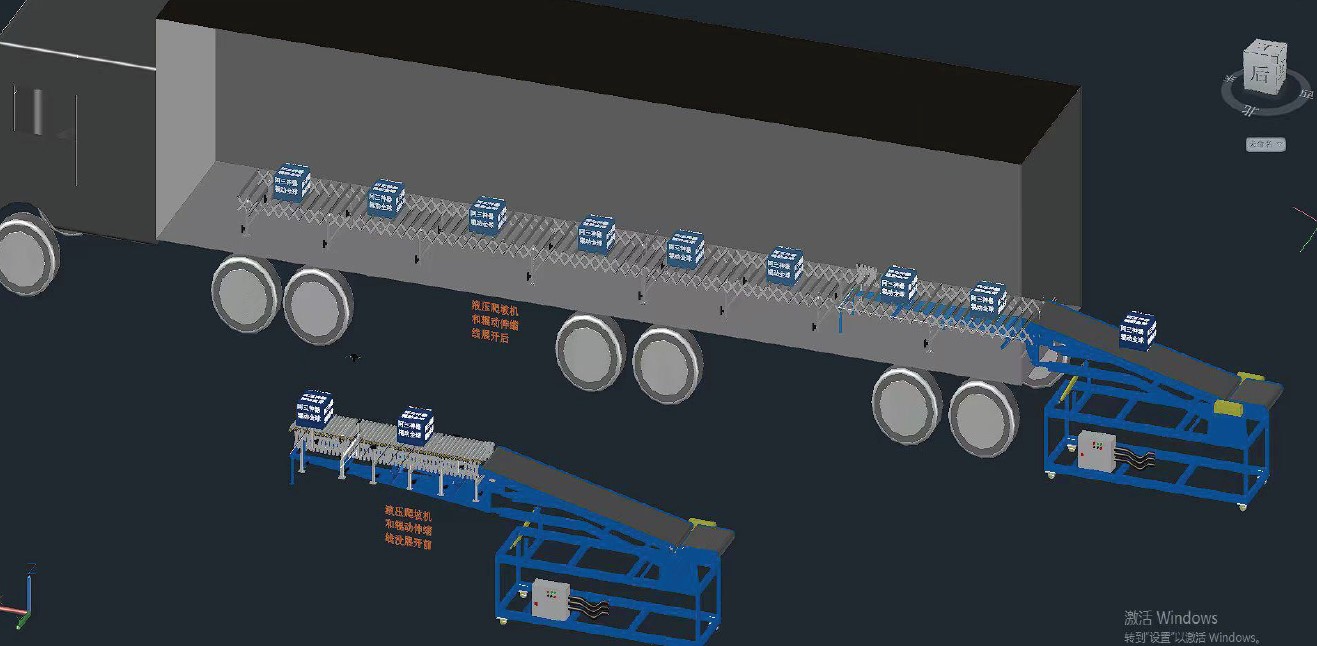

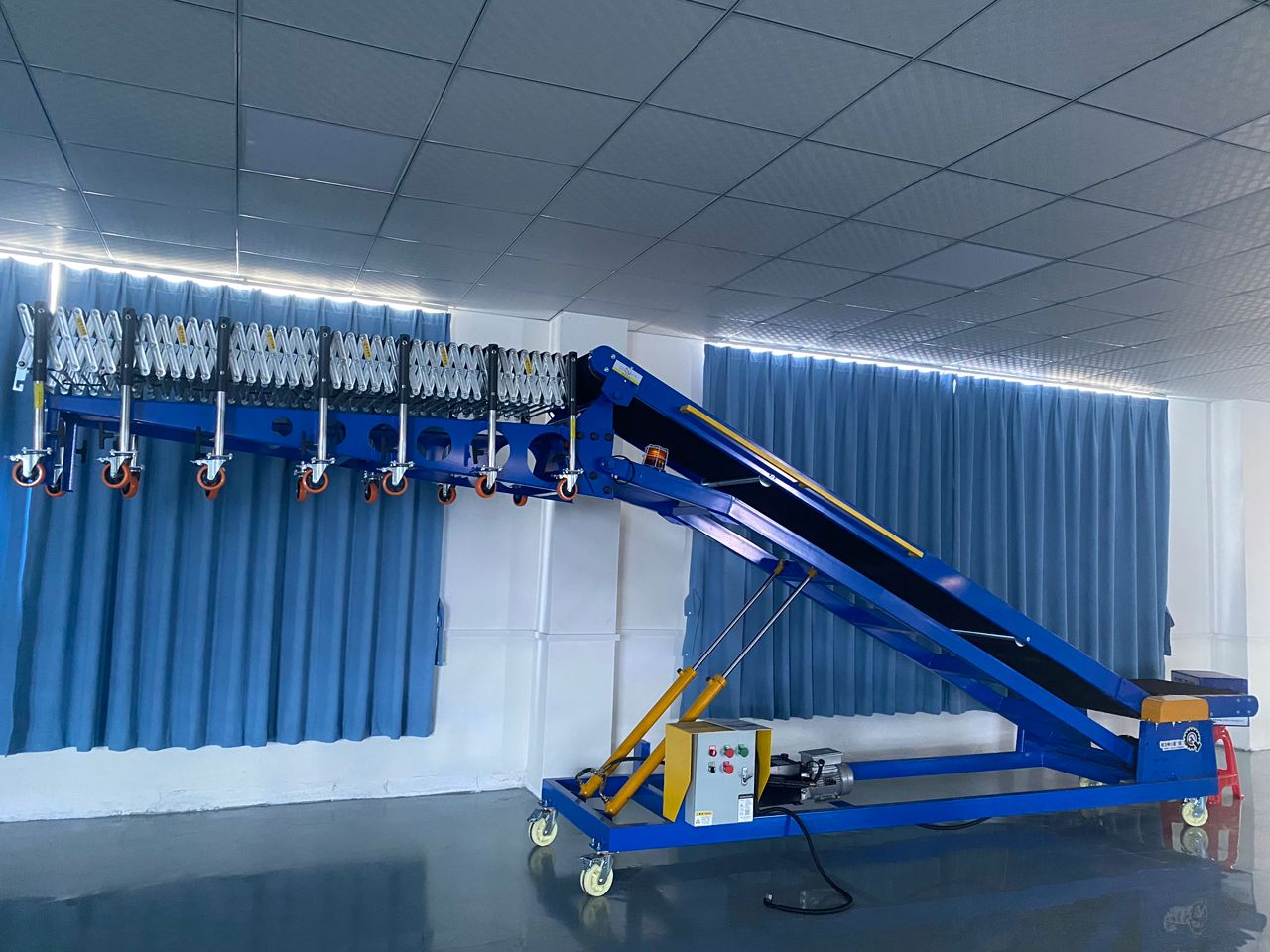

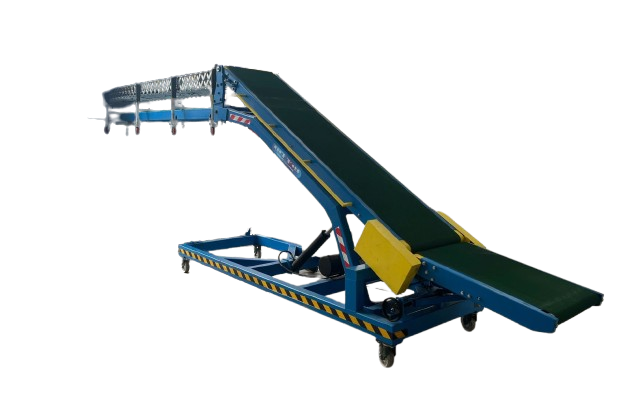

The LOADER UL1790 is a truck loading and unloading conveyor that features an extendable powered roller conveyor reaching into the truck and a belt conveyor on a hydraulic frame connecting to the warehouse floor.

Industries and applications for LOADER UL1790

The LOADER UL1790 is ideal for logistics, warehousing, distribution centers, manufacturing, and retail settings where large volumes of goods are loaded or unloaded from trucks. It’s a great fit for operations with frequent shipments, cross-docking, or fast turnaround at loading docks. This conveyor is designed for cartons, packages, and boxed items up to 800 mm wide, making it suitable for a broad range of products in supply chain and production environments.

The belt conveyor measures 7900 mm in length and 800 mm in width. Its hydraulic lifting frame allows the upper end to be set between 1000 and 2400 mm, matching the height of the truck floor.

The powered roller conveyor extends up to 10 meters in 5 sections, is 800 mm wide, height adjustable from 550 to 820 mm, and uses stainless-steel multi-wedge belts on 50 mm rollers.

Goods move at speeds up to 30 meters per minute, adjustable with a frequency converter. The frame is made from Q345 steel with a powder-coated finish and mounted on heavy-duty casters with brakes. Total machine weight is 1.08 tons.

Technical specifications

LOADER UL1790 video demonstration

▶

What the truck loading conveyor does

• Loads into trucks. The roller conveyor extends as far as 10 meters into the trailer, so boxes don’t have to be carried by hand to the front.
• Adjusts to the right height. The hydraulic frame lets you set the belt conveyor from 1000 up to 2400 mm, to fit different truck heights.
• From floor to truck bed. The belt conveyor moves goods directly from the warehouse floor up to the truck’s loading area.
• Variable speed. Up to 30 meters per minute, adjustable with the frequency converter, forward or reverse.
• Easy to move. Heavy-duty casters, each rated for 200 kg, with brakes for secure positioning.
• Engineered for daily use. Q345 steel frame, SAE double-layer hydraulic hoses, CE certified.

Belt conveyor, lift, and roller conveyor features

• Belt conveyor measuring 7900 × 800 mm, mounted on a hydraulic lifting frame
• Belt conveyor height adjustable from 1000 to 2400 mm
• Extendable powered roller conveyor, up to 10 meters in length, 800 mm wide, height adjustable from 550 to 820 mm, in 5 sections
• Stainless steel multi-rib belt drive, 50 mm diameter rollers
• Speed up to 30 meters per minute, controlled by frequency converter
• Drive motor 1.5 kW, hydraulic pump motor 2.2 kW
• Control panel: emergency stop, forward and reverse, speed adjustment
• Q345 steel construction, powder-coated finish
• Heavy-duty casters, each rated for 200 kg, with brakes
• Total weight 1.08 t, CE certified

Selecting and setting up your LOADER UL1790

Frequent issues include improper height adjustment between the conveyor and the truck floor, not engaging the caster brakes before use, and skipping regular inspections of belt tension and roller condition.

Operating the LOADER UL1790

1. Position the machine at the rear of the truck and secure the caster brakes.
2. Connect the ground and power supply, then release the emergency stop button.
3. Use the hydraulic frame to lift the belt conveyor to match the truck floor height.
4. Extend the roller conveyor into the truck as far as needed.
5. Select the direction for loading or unloading, set your speed, and place cartons onto the conveyor.

Operation and maintenance

• Before reversing. Make sure the conveyor end is clear and nothing is close to the rollers.
• Ground first. Always connect the protective ground before starting up.
• Monthly inspection. Check belt tension, rollers, fasteners, and cables.
• Cleaning. Use a soft brush or cloth to remove dust and debris, then confirm rollers and belts move freely.
• Annual maintenance. Have a qualified technician service the machine and replace any worn parts.
• Operating environment. Indoor use only, 0–40 °C, up to 85% humidity, not for explosive or corrosive areas.

Before you buy

Pricing is listed on this page. Several factors determine if the conveyor fits your loading dock—please review them before purchasing, or send your details to us and we’ll help you evaluate them.

• Your trucks. The belt conveyor adjusts to truck floors from 1000 to 2400 mm high; the roller conveyor extends up to 10 meters into the truck.
• Your products. Handles cartons and packages up to 800 mm wide.
• Space needed. 7.9 meters of belt conveyor behind the truck, plus clearance to maneuver the machine.
• Power requirements. 220/380 V, 50 Hz; 1.5 kW drive motor, 2.2 kW hydraulic pump.
• Weight. 1.08 metric tons, equipped with casters.
• Warranty. 12-month coverage.
