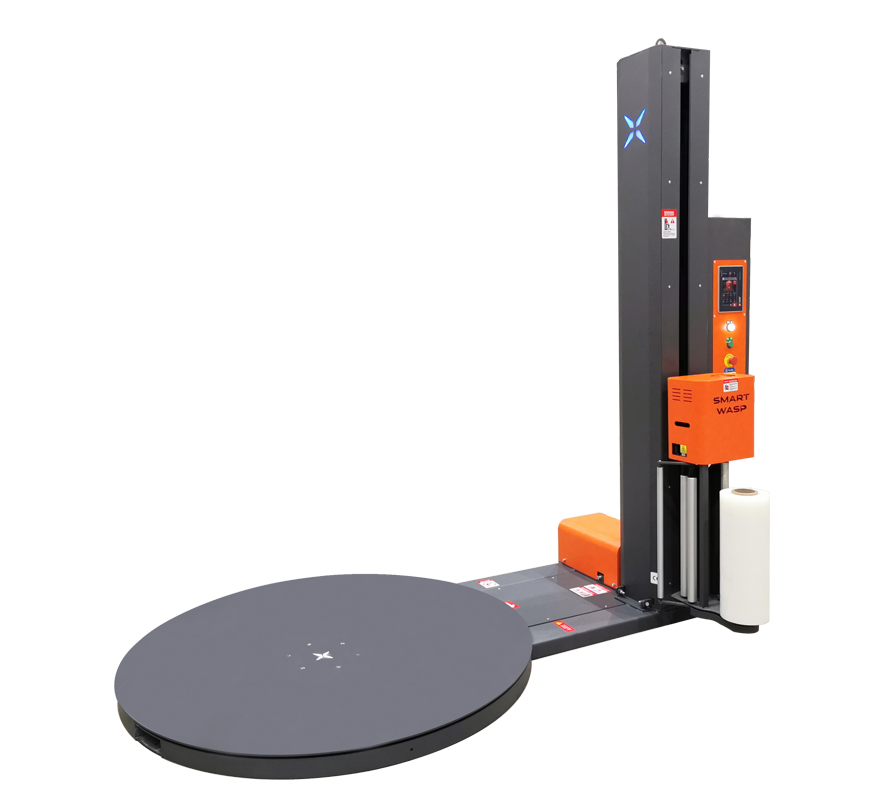

SMARTWRAP X2 PRE-STRETCH Pallet Wrapper | 2000 kg Capacity, Up to 3000 mm Wrap Height

Pallet Wrapper SMARTWRAP X2 PRE-STRETCH

The SMARTWRAP X2 PRE-STRETCH vertical pallet wrapper is designed for efficient wrapping of palletized goods, offering a high film stretch rate, adjustable speeds, large capacity, and a smart control panel. Its high packaging efficiency and advanced safety system deliver strong value, faster operation, and reduced film usage overall.

The SMARTWRAP X2 PRE-STRETCH pallet wrapper features a turntable design for simple operation and control, with options for automatic use via the smart panel or manual settings for custom management. Its 250% pre-stretch ratio ensures secure wrapping with less film while maintaining top performance. With a 2200 mm maximum wrapping height and a 1500 mm wide turntable, it accommodates tall and bulky loads up to 2000 kg. The constant force film system distributes film evenly, and the pre-fix film device supports efficient packaging.

Pallet Wrapper SMARTWRAP X2 PRE-STRETCH overview:

• 1500mm turntable diameter
• 2200mm maximum pallet height
• Maximum pallet weight: 2000kg
• 250% pre-stretch ratio for lower film costs
• Consistent tension film system
• Pre-fix film mechanism, optimized packaging productivity
• X-Line control panel
• Integrated safety protection features

Technical details for Pallet Wrapper SMARTWRAP X2 PRE-STRETCH

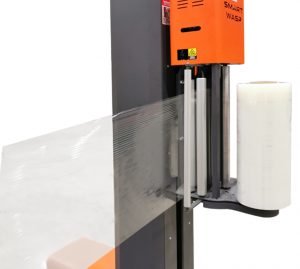

Reduces film usage

• Pre-Stretch Ratio up to 350%
• Maximizes the output per meter of stretch film
• Consistent film release as standard

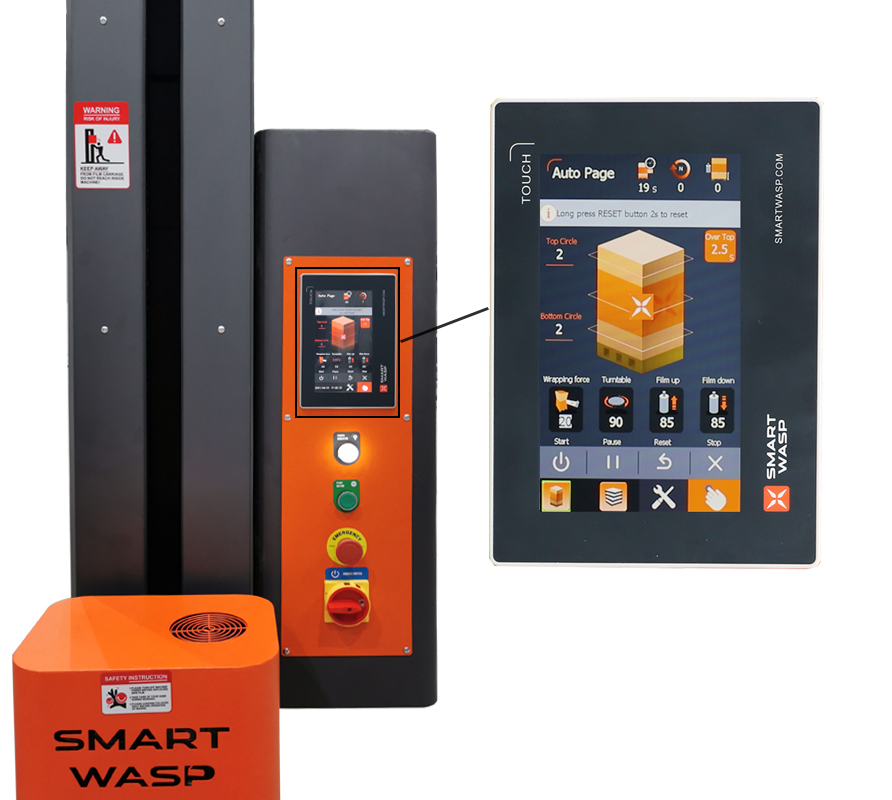

Smart touchscreen interface

This model is engineered in-house and includes remote maintenance, troubleshooting, and startup features. It offers easier operation and maintenance. SMART WASP prioritizes operator safety in its design.

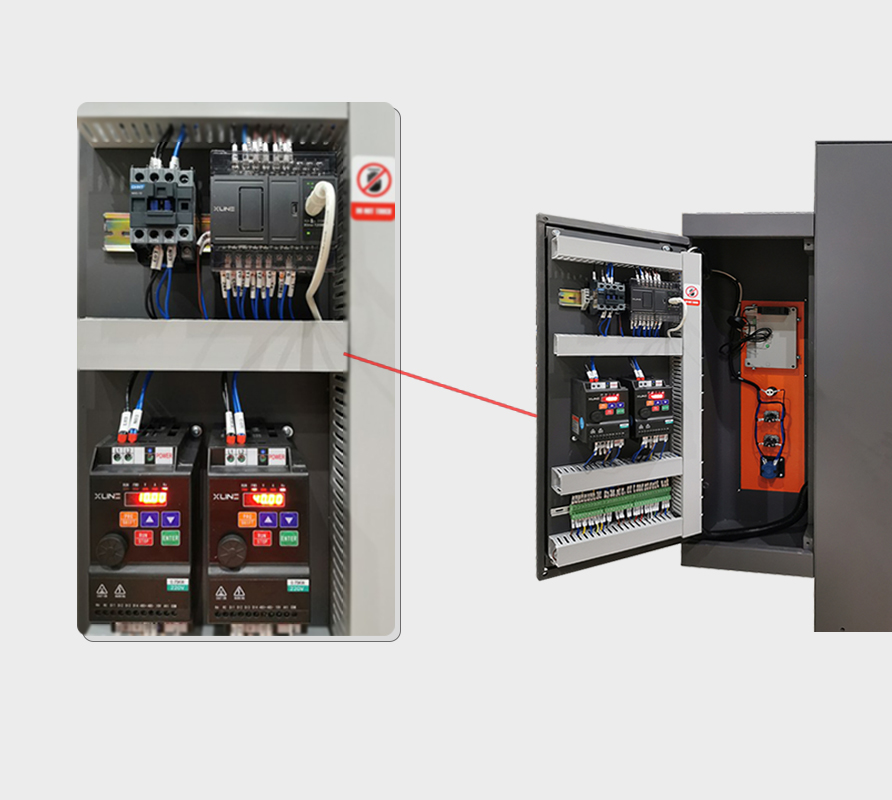

Pallet wrapper features premium-grade components

• X-Line TOUCHSCREEN
• X-Line PLC controller

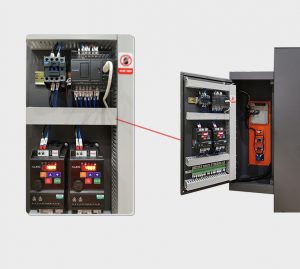

• X-Line inverter
• SICK proximity sensor
• AUTONICS photoelectric sensor
• WEIDMULLER terminal block

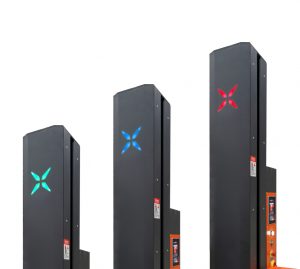

Three-color LED safety light

Ready to operate – Blue
In operation – Green
Alert – Red

SMARTWRAP X2 PRE-STRETCH pallet wrapper floor view

Benefits of the SMARTWRAP X2 PRE-STRETCH pallet wrapper

• 250% pre-stretch ratio delivers secure wrapping with reduced film use while maintaining top performance
• Smart touchscreen control panel
• Constructed with premium-grade components
• Three-color LED safety light indicates machine status
• Reduced film usage
• Consistent force film delivery system
• Meets leading safety standards, CE certified
• Enhanced safety systems
• 12-month warranty from installation date

SMARTWRAP X2 PRE-STRETCH Pallet Wrapper Features

• Operates on a single-phase grounded electrical supply
• Quick to set up and simple to load pallets
• Offers both remote and manual controls for operation and troubleshooting
• Equipped with advanced sensors and access controls
• Designed for straightforward cleaning and upkeep

Complies with stretch wrap machine safety regulations and standards

This machine meets the Machinery Directive 2006/42 / EC and the following legal standards:

• Machinery Directive: 2006/42/EC
• Low Voltage Directive: 2014/35/EU
• EMC Directive: 2014/30/EU

Warranty

The SMARTWRAP X2 PRE-STRETCH Intelligent Pallet Wrapper comes with a 12-month warranty from installation, not including parts and electrical components subject to normal wear.

SMARTWRAP X2 PRE-STRETCH Pallet Wrapper Safety Features

The turntable pallet wrapper includes these safety features:

• Emergency stop switch
• Safety labels and operating instructions

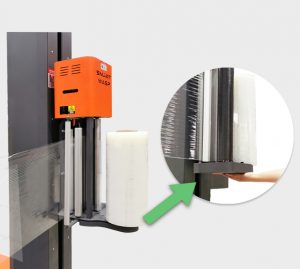

• Film carriage equipped with anti-fall safety switch
• Grounding wire
• Anti-fall safety lock

How the SMARTWRAP X2 PRE-STRETCH Pallet Wrapper Works

The pallet wrapping machine operates based on these main principles:

1. Goods are brought to the machine using a forklift
2. After the film is manually attached to the load, the machine begins operation and the pallet rotates.
3. During wrapping, the film moves upward around the load.
4. When the film carriage reaches the bottom, the turntable slows down and stops once wrapping is finished.
5. Once the wrapping cycle is complete, the machine returns to standby mode.

Transport, storage, and setup of the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine

To relocate the machine, use a forklift to lift it from underneath and move it to the desired area.
Store the machine in a dry, clean environment. Do not place any objects on top of the equipment.

Ground confirmation
The floor must be able to handle the total weight of the machine, its maximum load, and any impact:
Floor load capacity should be at least (total equipment weight + load weight) x 1.5.

Electrical connection
This system requires a dedicated single-phase grounded electrical supply
220V/AC 10A 50/60Hz 1PH

Cleaning
Wipe down the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine using a dry cloth or a gentle cleaning solution. Do not use gasoline, solvents, or similar chemicals for cleaning.
To clean the rollers on the film carriage, use alcohol to wipe the roller surface and maintain proper adhesion between the roller and the film.

Operating the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine

In addition to a variety of automatic functions, the machine also offers manual operation and administrator setting adjustments:

• Equipment status (Device details, Production data)
• Parameter adjustments (Slow start time, Slow start wrapping force, Turntable speed at startup, Descent delay, Film break alarm delay, Film break shield alarm, and more)
• Multi-option interface (I/O monitoring, Language options, Help section)
• System clock
• User password configuration
• Main menu

SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine video
